Vare nr.: F032115865

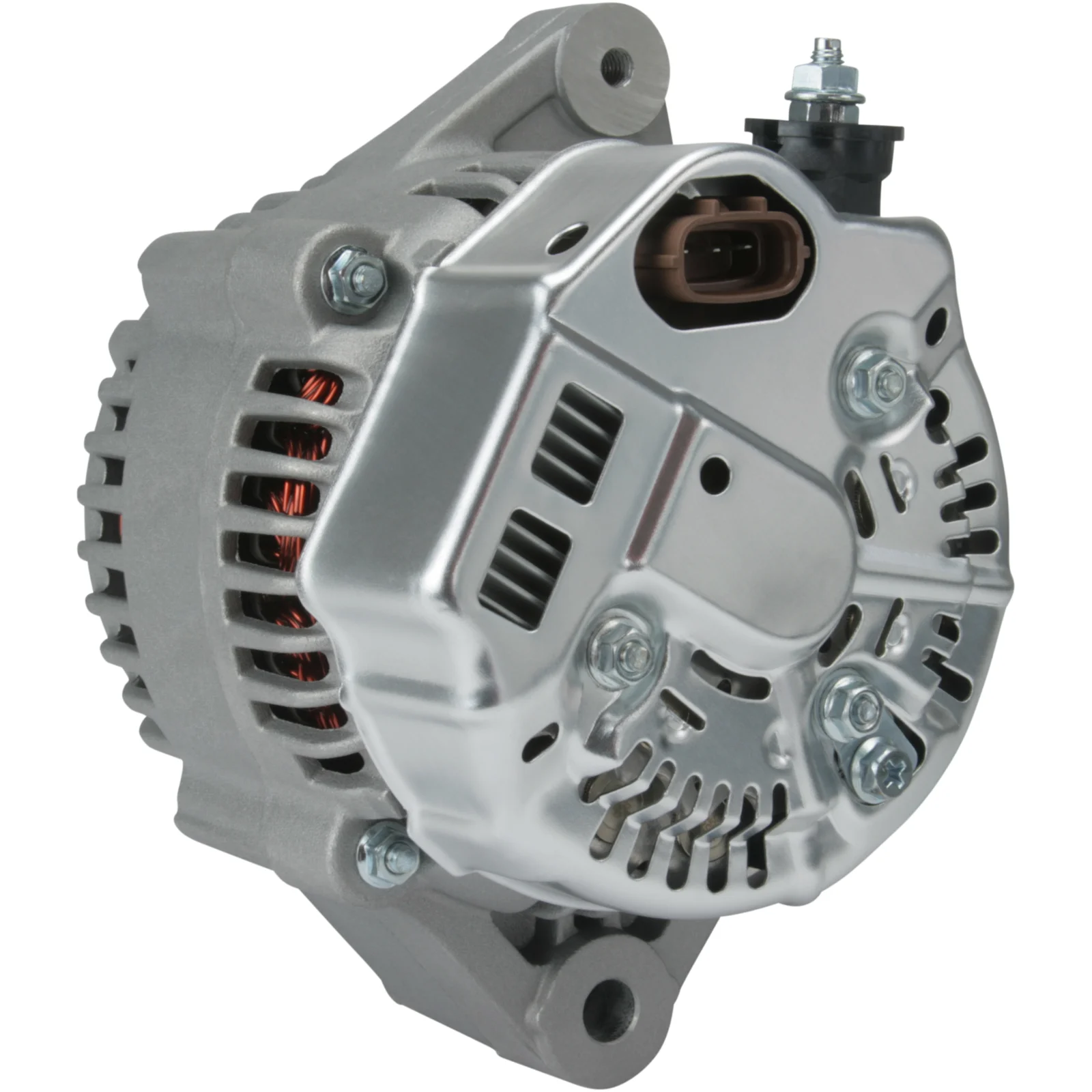

HC-Cargo Generator

Tekniske oplysninger:

Spænding: 14, Amp: 95, Rotation: CW, Remskive diameter: 62,50

Beskrivelse

Spænding: 14
Amp: 95
Drevskive: 32.00
Bredde/holderarm: 58.00
Udfærdigerhul: 10.20
Remjuster. brakketotholderpos.: 50
Remjuster. bracket hul 1: 8.50
Drevskive dia.: 62.50
Riller/drevskive: 4
Radius: 80.00
Radius 2: 84.00
B+: M6
Position/B+ i min.: 60
D+ Størrelse: Stik
Rotation: CW
Stik nr.: PL74
Samlet længde mm: 157.00
Drevskive: SP
Spændingsregulator type: IR
Produktion info: BN

Filer

Specifikation

B+ M6
Belt. adj. bracket hole 1 8.50
Belt. adj. brackethole pos. 50
Plug no. PL74
Bracket hole 10.20
Position/B+ in min. 60
Prod. info BN
Pulley SP
Pulley dia. 62.50
Pulley dist. 32.00
Radius 80.00
D+ Size Plug
Radius 2 84.00
Regulator type IR
Rotation CW
Grooves/pulley 4
Voltage 14
Total length 157.00 mm
Width/holder arm 58.00
Amp 95

  • OEM
    cjs52, CJU82, CJU88, cjv85, CJV86, F032115865, 31100-P3F-E01, 31100-P3F-G01, 31100-P3F-G52, 101211-9340, 101211-9440, 101211-9820, 101211-9821, 101211-9880, 102211-1850, 102211-1860

  • Konkurrentreferens
    A6663S, CAL40196, DRA4277, J5114043, LRA02161, 28-4615, 125.517.095, 125.546.090, 222.137.952, 0986CR0853, 11101N, 11101R, 209359, 209359A, 553293RI, 9090844, 12061156, 12061211

  • NormaliseratArtNr
    a6663s, cal40196, cjs52, cju82, cju88, cjv85, cjv86, dra4277, f032115865, j5114043, lra02161, 0986cr0853, 11101n, 11101r, 31100p3fe01, 31100p3fg01, 31100p3fg52, 209359, 209359a, 284615, 553293ri, 9090844, 12061156, 12061211, 125517095, 125546090, 222137952, 1012119340, 1012119440, 1012119820, 1012119821, 1012119880, 1022111850, 1022111860

  • Passar modeller
    Honda Model: CR-V Model series: CR-V Model type: 4WD Size of motor: 2.0 Brand of engine: B20Z2 Type description: RD Body: SUV From date: 01-09-1998 To date: 01-12-2001 Fuel: Petrol Approved: Yes
    Honda Model: CR-V Model series: CR-V Size of motor: 2.0 Brand of engine: B20Z1 Type description: RD Body: SUV From date: 01-04-1999 To date: 01-02-2002 Fuel: Gasoline Approved: Yes
    Honda Model: CR-V Model series: CR-V Type of engine: 16V Size of motor: 2.0 Brand of engine: B20B Type description: RD1, RD3 Body: SUV From date: 01-10-1995 To date: 01-12-2001 Fuel: Gasoline Approved: Yes
    Honda Model: CR-V Model series: CR-V Type of engine: 16V Size of motor: 2.0 Brand of engine: B20Z1 Type description: RD1, RD3 Body: SUV From date: 01-01-1999 To date: 01-02-2002 Fuel: Gasoline Approved: Yes
  • Beskrivelse
    Spænding: 14
    Amp: 95
    Drevskive: 32.00
    Bredde/holderarm: 58.00
    Udfærdigerhul: 10.20
    Remjuster. brakketotholderpos.: 50
    Remjuster. bracket hul 1: 8.50
    Drevskive dia.: 62.50
    Riller/drevskive: 4
    Radius: 80.00
    Radius 2: 84.00
    B+: M6
    Position/B+ i min.: 60
    D+ Størrelse: Stik
    Rotation: CW
    Stik nr.: PL74
    Samlet længde mm: 157.00
    Drevskive: SP
    Spændingsregulator type: IR
    Produktion info: BN

    Filer

  • Specifikation
    B+ M6
    Belt. adj. bracket hole 1 8.50
    Belt. adj. brackethole pos. 50
    Plug no. PL74
    Bracket hole 10.20
    Position/B+ in min. 60
    Prod. info BN
    Pulley SP
    Pulley dia. 62.50
    Pulley dist. 32.00
    Radius 80.00
    D+ Size Plug
    Radius 2 84.00
    Regulator type IR
    Rotation CW
    Grooves/pulley 4
    Voltage 14
    Total length 157.00 mm
    Width/holder arm 58.00
    Amp 95
  • Køretøjsmatchning

    • OEM
      cjs52, CJU82, CJU88, cjv85, CJV86, F032115865, 31100-P3F-E01, 31100-P3F-G01, 31100-P3F-G52, 101211-9340, 101211-9440, 101211-9820, 101211-9821, 101211-9880, 102211-1850, 102211-1860

    • Konkurrentreferens
      A6663S, CAL40196, DRA4277, J5114043, LRA02161, 28-4615, 125.517.095, 125.546.090, 222.137.952, 0986CR0853, 11101N, 11101R, 209359, 209359A, 553293RI, 9090844, 12061156, 12061211

    • NormaliseratArtNr
      a6663s, cal40196, cjs52, cju82, cju88, cjv85, cjv86, dra4277, f032115865, j5114043, lra02161, 0986cr0853, 11101n, 11101r, 31100p3fe01, 31100p3fg01, 31100p3fg52, 209359, 209359a, 284615, 553293ri, 9090844, 12061156, 12061211, 125517095, 125546090, 222137952, 1012119340, 1012119440, 1012119820, 1012119821, 1012119880, 1022111850, 1022111860

    • Passar modeller
      Honda Model: CR-V Model series: CR-V Model type: 4WD Size of motor: 2.0 Brand of engine: B20Z2 Type description: RD Body: SUV From date: 01-09-1998 To date: 01-12-2001 Fuel: Petrol Approved: Yes
      Honda Model: CR-V Model series: CR-V Size of motor: 2.0 Brand of engine: B20Z1 Type description: RD Body: SUV From date: 01-04-1999 To date: 01-02-2002 Fuel: Gasoline Approved: Yes
      Honda Model: CR-V Model series: CR-V Type of engine: 16V Size of motor: 2.0 Brand of engine: B20B Type description: RD1, RD3 Body: SUV From date: 01-10-1995 To date: 01-12-2001 Fuel: Gasoline Approved: Yes
      Honda Model: CR-V Model series: CR-V Type of engine: 16V Size of motor: 2.0 Brand of engine: B20Z1 Type description: RD1, RD3 Body: SUV From date: 01-01-1999 To date: 01-02-2002 Fuel: Gasoline Approved: Yes
