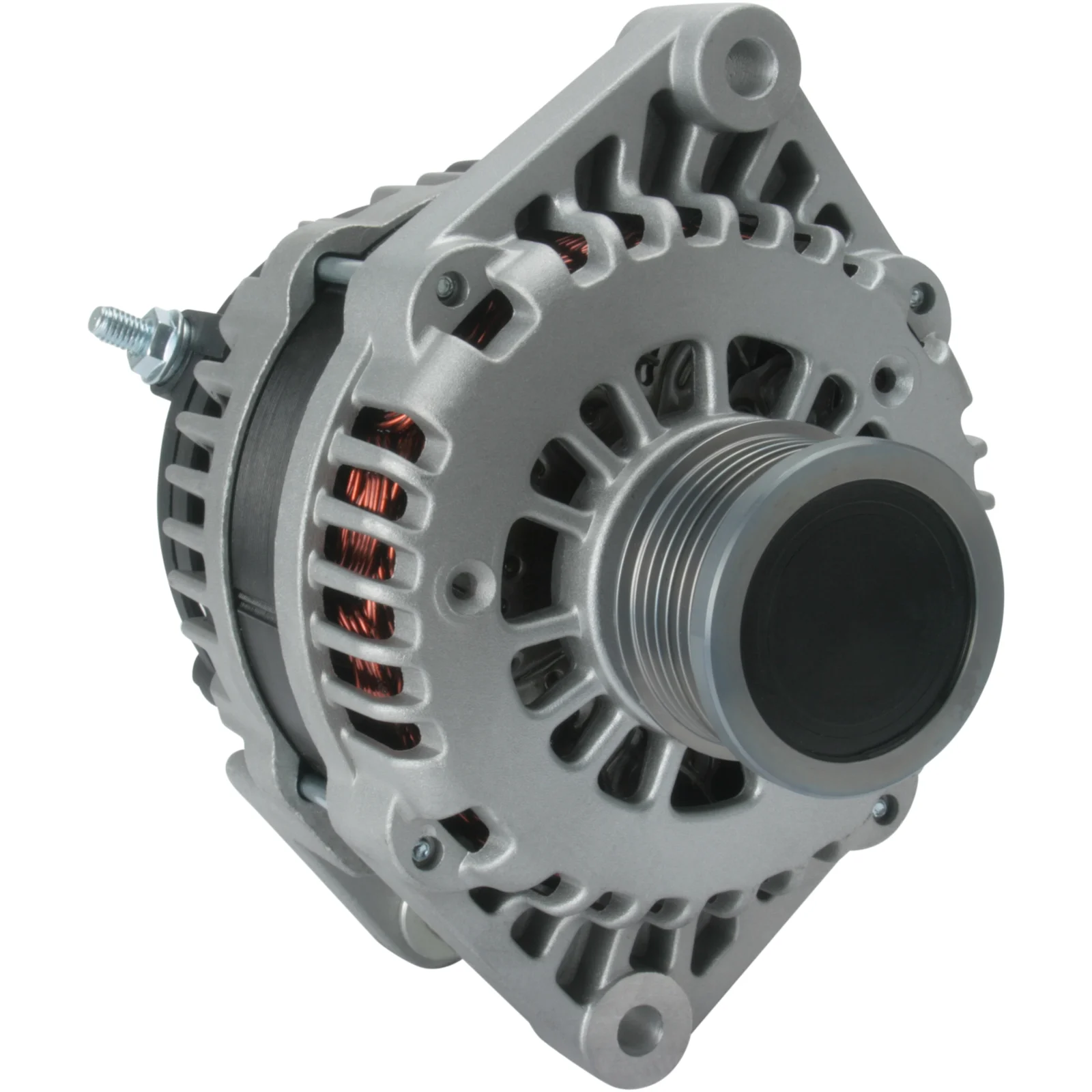

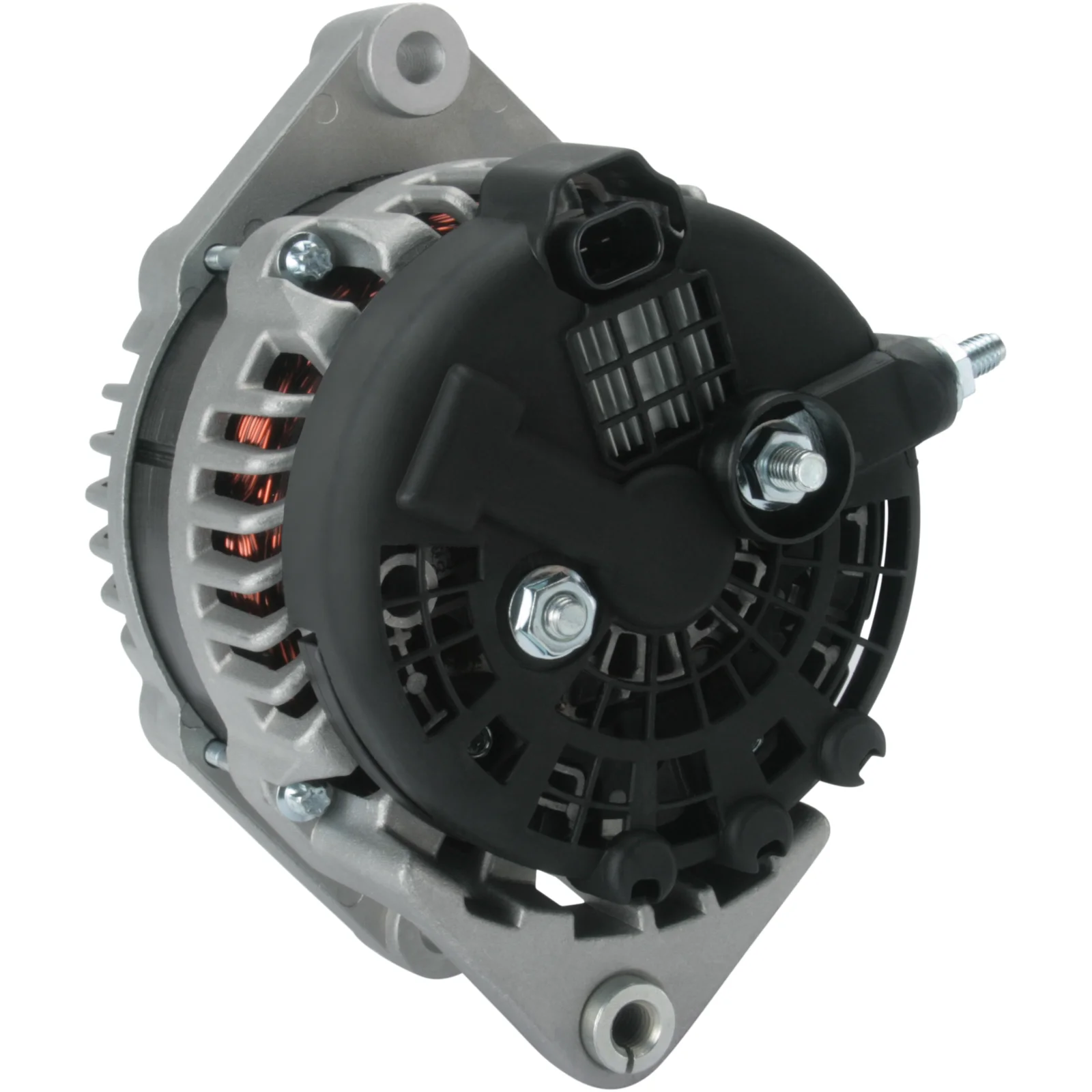

HC-Cargo Generator
HC-Cargo Generator
Vare nr.: F032115761

HC-Cargo Generator

Tekniske oplysninger:

Spænding: 14, Amp: 140, Rotation: CW, Mount. bøjle fordeler: 59,50

Beskrivelse

Chev/Opel Gen. 12V-140A 12V - 140A, 6gr.frg Til Yourex produkt bestilling 90-200-0078

DC-spænding: 14
Ampere: 140
Pully-diameter: 61.00
Bredde/holderarm: 24.60
Monteringsbeslag-afstand: 59.50
Beslagshul: 10.20
Båndjusteringsbeslags-position: 1
Båndjusteringsbeslags-hul: 10.40
Pully diameter: 55.70
Riller/pully: 6
Radius: 92.00
Radius 2: 92.00
B+: M8
Position/B+ i min.: 11
D+ Størrelse: Stik
Rotation: CW
Stik nr.: PL180
Total længde mm: 188.00
Terminaltype: L-F
Kommunikation: PWM
Pully: SP/FW
Regulator type: IR
Produktinfo: BN
Bemærkninger: Denne generator har en PWM-terminal på regulatoren. Det anbefales at bruge OEM-nummeret til at kontrollere egnethed, inden der bestilles.

Filer

Specifikation

B+ M8
Communication PWM
Mount. bracket dist. 59.50
Belt. adj. bracket hole 1 10.40
Belt. adj. brackethole pos. 1
Plug no. PL180
Bracket hole 10.20
Position/B+ in min. 11
Prod. info BN
Pulley SP/FW
Pulley dia. 55.70
Pulley dist. 61.00
Radius 92.00
D+ Size Plug
Radius 2 92.00
Regulator type IR
Remarks This Alternator has a PWM terminal on the regulator. It is recommended that the OEM number is used to check suitability before ordering.
Rotation CW
Grooves/pulley 6
Terminal type L-F
Voltage 14
Total length 188.00 mm
Width/holder arm 24.60
Amp 140

  • OEM
    F032115761, GM 13501719, GM 13579114, GM 13580078, GM 4818330, GM 4819446, 115761, 4818330, 4819446, 13501719, 13579114, 13580078

  • Konkurrentreferens
    A1032, CAL42118, DRA1219, 28-6837, 228.196.1402, 835.919.140, 20096N, 209018, 209018A, 444251, 554204RI, 12090614

  • Bilmärken
    Chevrolet, Opel

  • NormaliseratArtNr
    a1032, cal42118, dra1219, f032115761, gm13501719, gm13579114, gm13580078, gm4818330, gm4819446, 20096n, 115761, 209018, 209018a, 286837, 444251, 554204ri, 4818330, 4819446, 12090614, 13501719, 13579114, 13580078, 835919140, 2281961402

  • Passar modeller
    Chevrolet Model: Captiva Model series: Captiva Model type: 4x4 Type of engine: Diesel Size of motor: 2.2 Brand of engine: Z22D1 From date: 01-03-2011 Fuel: Diesel Approved: Yes
    Chevrolet Model: Captiva Model series: Captiva Type of engine: Diesel Size of motor: 2.0 Brand of engine: LNP Type description: C100, C140 Body: SUV Fuel: Diesel Approved: Yes
    Chevrolet Model: Captiva Model series: Captiva Type of engine: Diesel Size of motor: 2.2 Brand of engine: LNQ Type description: C100, C140 Body: SUV Fuel: Diesel Approved: Yes
    Chevrolet Model: Captiva Model series: Captiva Type of engine: Diesel Size of motor: 2.2 Brand of engine: Z22D1 Type description: KL1C, C140 From date: 01-03-2011 Fuel: Diesel Approved: Yes
    Chevrolet Model: Cruze Model series: Cruze Type of engine: CDi Size of motor: 2.0 Brand of engine: LNP Type description: J300 From date: 01-08-2010 Fuel: Diesel Approved: Yes
    Chevrolet Model: Cruze Model series: Cruze Type of engine: CDi Size of motor: 2.0 Brand of engine: Z20D1 Body: Hatchback From date: 01-06-2011 Fuel: Diesel Approved: Yes
    Chevrolet Model: Cruze Model series: Cruze Type of engine: CDi Size of motor: 2.0 Brand of engine: Z20D1 Type description: J300 From date: 01-08-2010 Fuel: Diesel Approved: Yes
    Chevrolet Model: Cruze Model series: Cruze Type of engine: TD Size of motor: 2.0 Brand of engine: LNP Type description: J308 Body: Estate From date: 01-08-2012 Fuel: Diesel Approved: Yes Manufacture type: Station Wa
    Chevrolet Model: Orlando Model series: Orlando Type of engine: VCDi Size of motor: 2.0 Brand of engine: Z20D1 Type description: KL1Y, J309 Body: MPV From date: 01-02-2011 Fuel: Diesel Approved: Yes
    Chevrolet Series: Captiva Model: 2.2 D 4WD Engine volume: 2.2 Engine type: A 22 DMH / Z 22 D1 Year: 03.11-
    Chevrolet Series: Captiva Model: 2.2 D Engine volume: 2.2 Engine type: Z 22 D1 Year: 03.11-
    Chevrolet Series: Orlando Model: 2.0 D Engine volume: 2.0 Engine type: Z 20 D1 Year: 02.11-
    Opel Model: Antara Model series: Antara Model type: 4x4 Type of engine: CDTi Size of motor: 2.2 Brand of engine: A22DM From date: 01-12-2010 To date: 01-12-2015 Fuel: Diesel Approved: Yes
    Opel Model: Antara Model series: Antara Model type: 4x4 Type of engine: CDTi Size of motor: 2.2 Brand of engine: A22DMH From date: 01-12-2010 To date: 01-12-2015 Fuel: Diesel Approved: Yes
    Opel Model: Antara Model series: Antara Type of engine: CDTi Size of motor: 2.2 Brand of engine: A22DM From date: 01-12-2010 To date: 01-12-2015 Fuel: Diesel Approved: Yes
    Opel Model: Antara Model series: Antara Type of engine: CDTi Size of motor: 2.2 Brand of engine: A22DM Type description: L07 Body: Closed Off-Road Vehicle From date: 01-07-2014 Fuel: Diesel Approved: Yes
    Opel Series: Antara Model: 2.2 CDTi 4x4 Engine volume: 2.2 Engine type: A 22 DM Year: 12.10-
    Opel Series: Antara Model: 2.2 CDTi 4x4 Engine volume: 2.2 Engine type: A 22 DMH Year: 12.10-
    Opel Series: Antara Model: 2.2 CDTi Engine volume: 2.2 Engine type: A 22 DM Year: 12.10-
    Vauxhall Model: Antara Model series: Antara Type of engine: CDTi Size of motor: 2.2 Brand of engine: A22DM From date: 01-12-2010 Fuel: Diesel Approved: Yes
    Vauxhall Model: Antara Model series: Antara Type of engine: CDTi Size of motor: 2.2 Brand of engine: A22DMH From date: 01-12-2010 Fuel: Diesel Approved: Yes
    1 / 5
