HC-Cargo Generator
HC-Cargo Generator
Vare nr.: F032115700

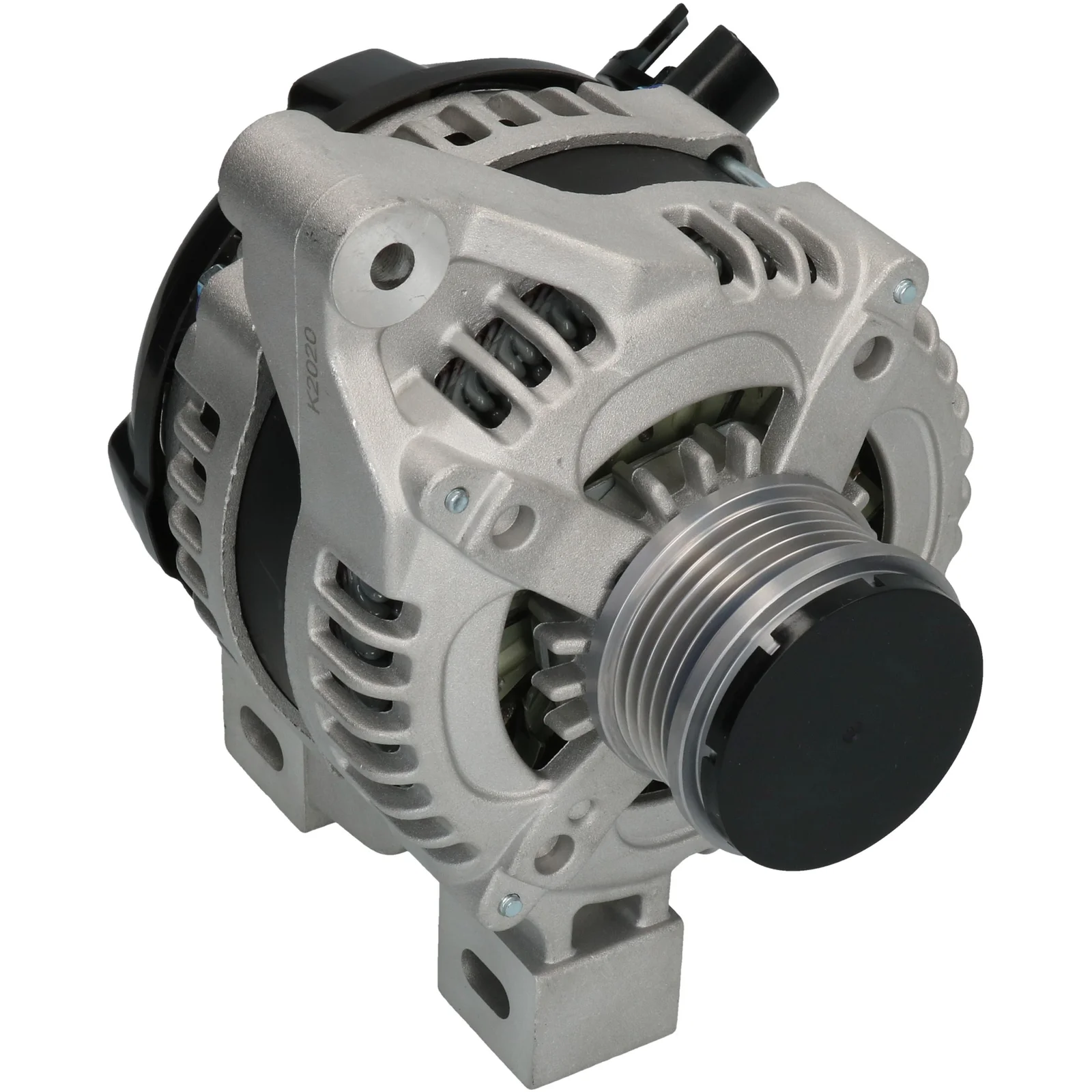

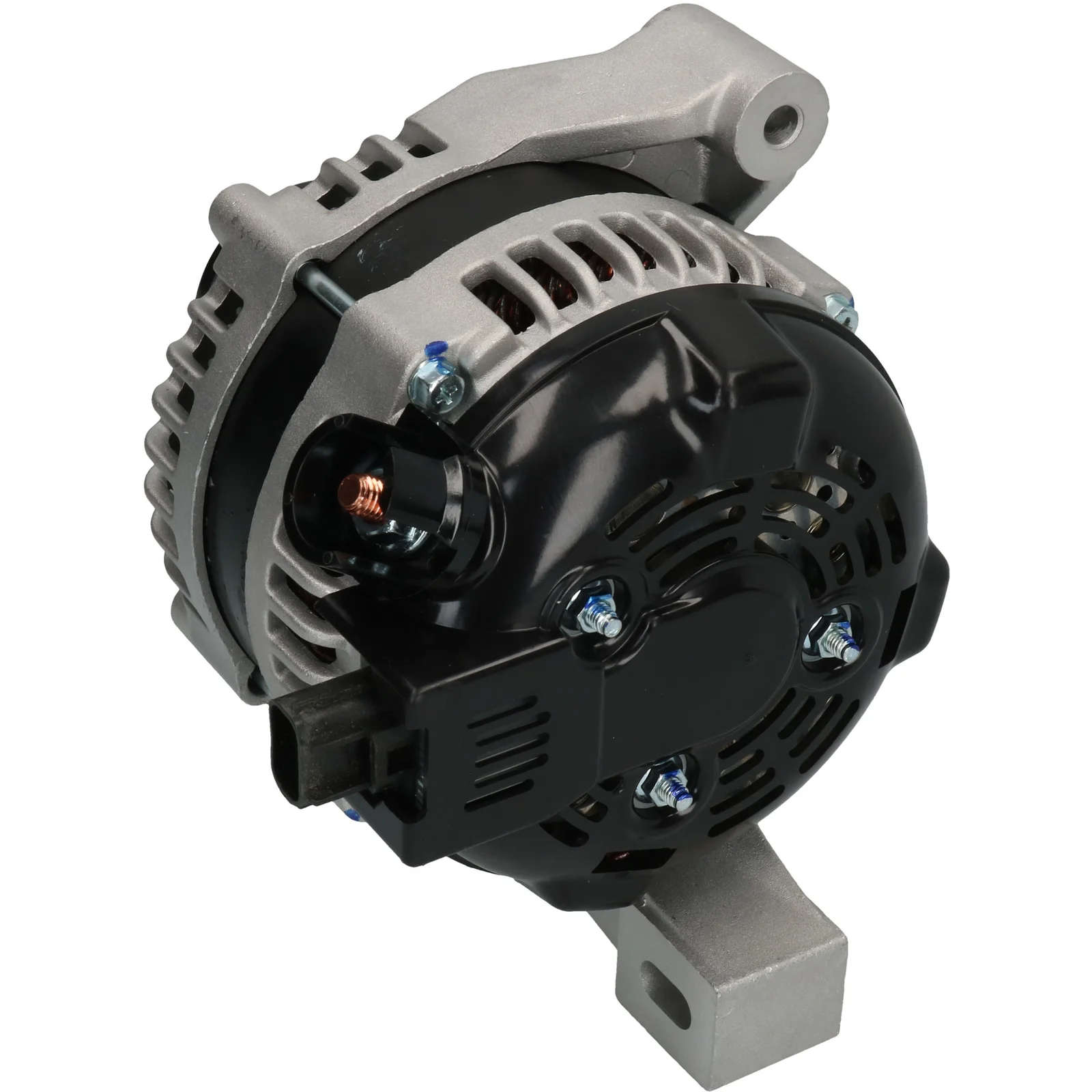

HC-Cargo Generator

Tekniske oplysninger:

Spænding: 14, Amp: 150, Rotation: CW, Monteringsbeslag afstand: 91,00

Beskrivelse

Gen. 12V-150A passer til Volvo 12V - 150A, 5gr.frg, (DFM, L) OBS! chassisrummer! S40: Ch.nr.-> 045203, V50: Ch.nr.-> 040122. Kontaktstykke/Reparationsledning : 54-101-0111 Til Yourex produktbestilling 90-600-2920

Spænding: 14
Amp: 150
Pulley afstand: 34,00
Bredde/holderarm: 33,00
Monteringsbeslag afstand: 91,00
Beslag hul: 8,20/17,50
Beslag hul 2: 8,50x17,00
Bælte justering beslags hul stilling: 55
Bælte justering beslag hul 1: 8,00
Pulley diameter: 55,00
Grooves/pulley: 5
Radius: 89,00
Radius 2: 89,00
B+: M8
Position/B+ i min.: 50
D+ Størrelse: Stik
Rotation: Udadgående
Stik nr.: PL184
Samlet længde mm: 172,00
Pulley: SP/FW
Vifte: IF
Regulator type: IR
Produktinformation: BN

Filer

Specifikation

B+ M8
Mount. bracket dist. 91.00
Belt. adj. bracket hole 1 8.00
Belt. adj. brackethole pos. 55
Plug no. PL184
Bracket hole 8.20/17.50
Bracket hole 2 8.50x17.00
Position/B+ in min. 50
Prod. info BN
Pulley SP/FW
Pulley dia. 55.00
Pulley dist. 34.00
Radius 89.00
D+ Size Plug
Radius 2 89.00
Regulator type IR
Rotation CW
Fan IF
Grooves/pulley 5
Voltage 14
Total length 172.00 mm
Width/holder arm 33.00
Amp 150

  • OEM
    F032115700, 3M5T-10300UA, 3M5T10300UA, 104210-4050, 104210-4051, 115700, 8602920, 30667051, 30667051A

  • Konkurrentreferens
    A4086, A4086(MM), A6292, CAL40296, dra1426, lra03662, 28-6802, 238.162.1502, 815.529.150, 11093R, 443155, 12090635, 32006000

  • Bilmärken
    Volvo

  • NormaliseratArtNr
    a4086, a4086mm, a6292, cal40296, dra1426, f032115700, lra03662, 3m5t10300ua, 11093r, 115700, 286802, 443155, 8602920, 12090635, 30667051, 30667051a, 32006000, 815529150, 1042104050, 1042104051, 2381621502

  • Passar modeller
    Volvo Model: S40 Model series: S40 Model type: T5 AWD Size of motor: 2.5 Brand of engine: B5254T3 Type description: MS From date: 01-04-2004 To date: 01-12-2007 Fuel: Gasoline Approved: Yes
    Volvo Model: S40 Model series: S40 Model type: T5 Size of motor: 2.5 Brand of engine: B5254T3 Type description: MS From date: 01-01-2004 To date: 01-12-2007 Fuel: Gasoline Approved: Yes
    Volvo Model: S40 Model series: S40 Size of motor: 2.4 Brand of engine: B5244S4 Type description: MS From date: 01-01-2004 To date: 01-12-2012 Fuel: Gasoline Approved: Yes
    Volvo Model: S40 Model series: S40 Size of motor: 2.4 Brand of engine: B5244S5 Type description: MS From date: 01-01-2004 To date: 01-12-2010 Fuel: Gasoline Approved: Yes
    Volvo Model: V50 Model series: V50 Model type: T5 AWD Size of motor: 2.5 Brand of engine: B5254T3 Type description: MW Body: Estate From date: 01-04-2004 To date: 01-12-2007 Fuel: Gasoline Approved: Yes
    Volvo Model: V50 Model series: V50 Model type: T5 Size of motor: 2.5 Brand of engine: B5254T3 Type description: MW Body: Estate From date: 01-04-2004 To date: 01-12-2007 Fuel: Gasoline Approved: Yes
    Volvo Model: V50 Model series: V50 Size of motor: 2.4 Brand of engine: B5244S4 Type description: MW Body: Estate From date: 01-04-2004 To date: 01-12-2010 Fuel: Gasoline Approved: Yes
    Volvo Model: V50 Model series: V50 Size of motor: 2.4 Brand of engine: B5244S5 Type description: MW Body: Estate From date: 01-04-2004 To date: 01-12-2010 Fuel: Gasoline Approved: Yes
    Volvo Series: S40 II Model: 2.4 Ch.nr ->045203 Engine volume: 2.4 Engine type: B 5244 S4 Year: 01.04-
    Volvo Series: S40 II Model: 2.4 Ch.nr ->045203 Engine volume: 2.4 Engine type: B 5244 S5 Year: 01.04-
    Volvo Series: S40 II Model: T5 Ch.nr -> 045203 Engine volume: 2.5 Engine type: B 5254 T3 Year: 01.04-
    Volvo Series: V50 Model: 2.4 Ch.nr -> 040122 Engine volume: 2.4 Engine type: B 5244 S4 Year: 04.04-
    Volvo Series: V50 Model: 2.4 Ch.nr -> 040122 Engine volume: 2.4 Engine type: B 5244 S5 Year: 04.04-
    Volvo Series: V50 Model: T5 CH.nr: -> 040122 Engine volume: 2.5 Engine type: B 5254 T3 Year: 04.04-
    Volvo Series: V50 Model: T5 AWD Ch.nr:>40122 Engine volume: 2.5 Engine type: B 5254 T3 Year: 04.04-
