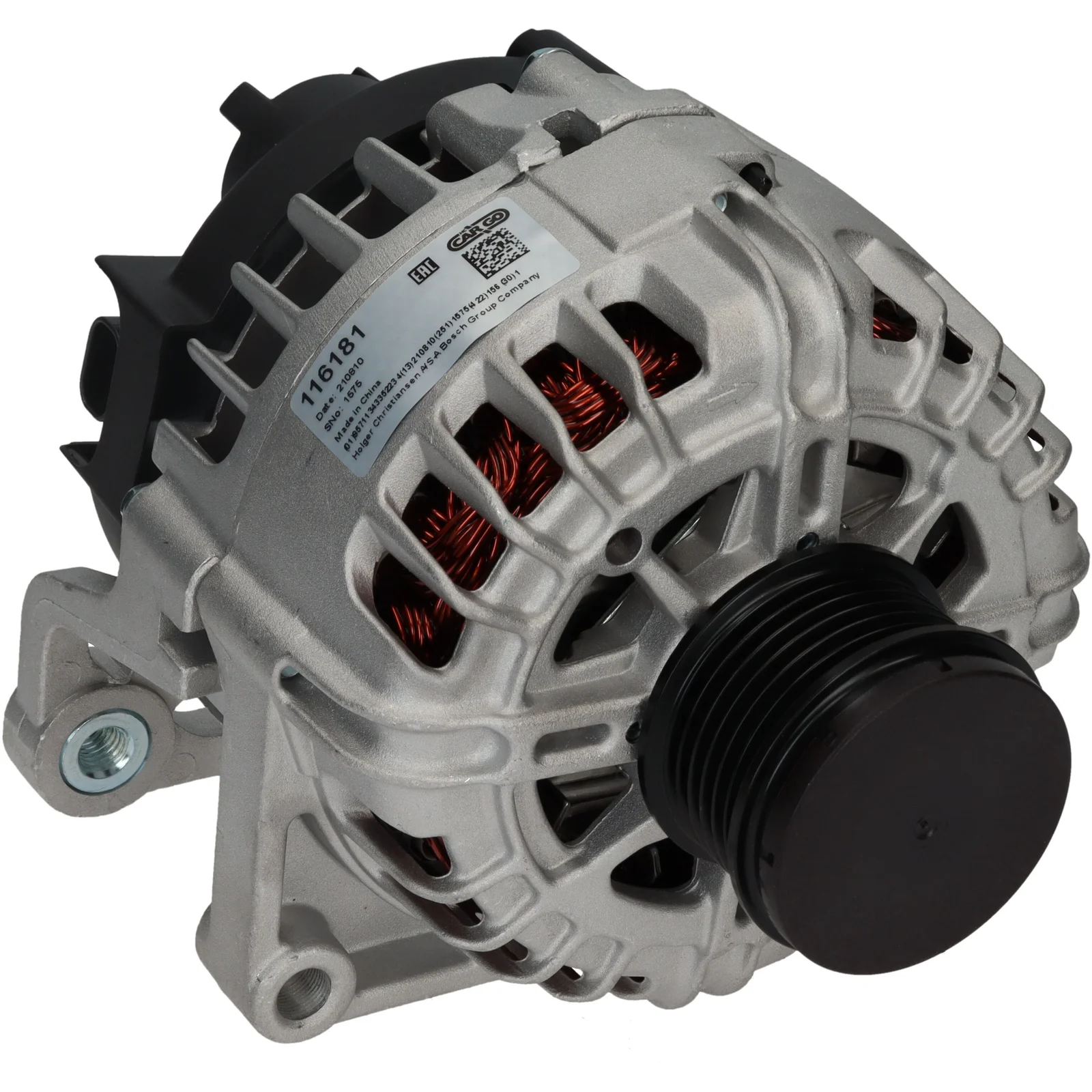

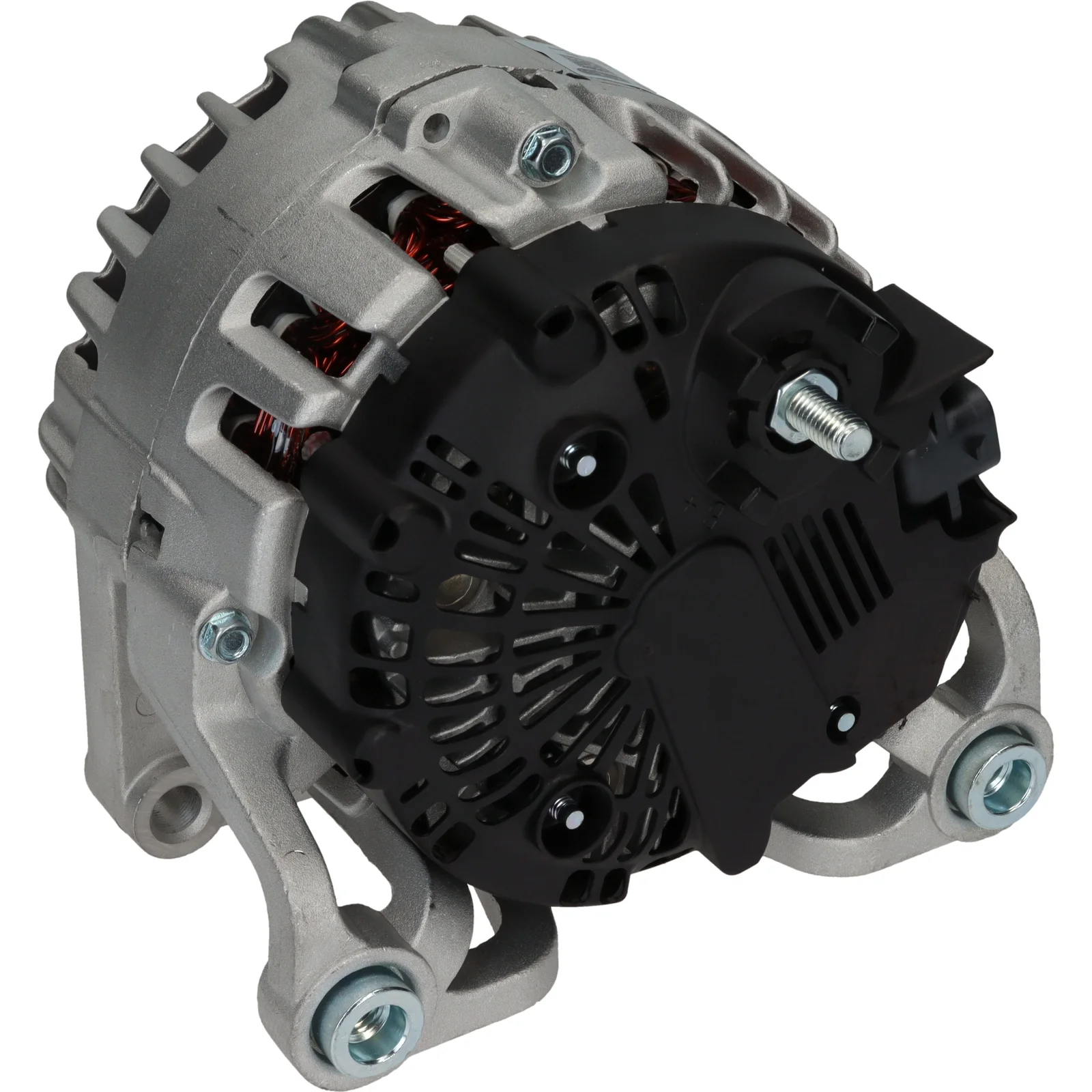

HC-Cargo Generator
HC-Cargo Generator
Vare nr.: F032116181

HC-Cargo Generator

Tekniske oplysninger:

Spænding: 14, Amp: 120, Rotation: CW, Monteringsbeslag afstand: 59,00

Beskrivelse

Spænding: 14
Amp: 120
Remskive afstand: 64,50
Bredde/holderarm: 23,00
Monteringsbeslag afstand: 59,00
Beslaghul: 10,20
Bæltejustering beslaghul position: 46
Bæltejustering beslaghul 1: 10,20
Remskive dia.: 59,00
Riller/remskive: 6
Radius: 92,00
Radius 2: 92,00
B+: M8
Position/B+ i min.: 55
D+ Størrelse: Stik
Rotation: CW
Stik nr.: PL180
Total længde mm: 194,00
Terminaltype: L-F
Kommunikation: PWM
Remskive: SP/FW
Fan: IF
Regulator type: IR
Bemærkninger: Denne Generator har en PWM terminal på regulatoren. Det anbefales, at OEM-nummeret bruges til at kontrollere egnethed, før der bestilles.

Filer

Specifikation

B+ M8
Communication PWM
Mount. bracket dist. 59.00
Belt. adj. bracket hole 1 10.20
Belt. adj. brackethole pos. 46
Plug no. PL180
Bracket hole 10.20
Position/B+ in min. 55
Pulley SP/FW
Pulley dia. 59.00
Pulley dist. 64.50
Radius 92.00
D+ Size Plug
Radius 2 92.00
Regulator type IR
Remarks This Alternator has a PWM terminal on the regulator. It is recommended that the OEM number is used to check suitability before ordering.
Rotation CW
Fan IF
Grooves/pulley 6
Terminal type L-F
Voltage 14
Total length 194.00 mm
Width/holder arm 23.00
Amp 120

  • OEM
    F032116181, TG12C070, 1202332, 1204622, 2605853A, 13500586, 13512748, 13588301

  • Konkurrentreferens
    CAL15507, DRA0878, DRA1044, LRA03459, 8EL011713-291, 8EL012240-551, 28-6569, 135.563.120, 135.924.120, 228.180.1202, 20505R, 20505RW, 210943, 210943A, 440619, 554177RI, 849235, 12090494

  • NormaliseratArtNr
    cal15507, dra0878, dra1044, f032116181, lra03459, tg12c070, 8el011713291, 8el012240551, 20505r, 20505rw, 210943, 210943a, 286569, 440619, 554177ri, 849235, 1202332, 1204622, 2605853a, 12090494, 13500586, 13512748, 13588301, 135563120, 135924120, 2281801202

  • Passar modeller
    Opel Model: Astra Gtc J Model series: Astra J GTC Size of motor: 1.6 Brand of engine: A16XHT Body: Hatchback From date: 01-12-2012 Fuel: Gasoline Approved: Yes
    Opel Model: Astra Model series: Astra J Model type: Ecotec Size of motor: 1.6 Brand of engine: A16XER Body: Hatchback From date: 01-12-2009 To date: 01-10-2015 Fuel: Gasoline Approved: Yes
    Opel Model: Astra Model series: Astra J Model type: ecotec Type of engine: Turbo Size of motor: 1.6 Brand of engine: A16LET Body: Estate From date: 01-10-2010 To date: 01-10-2015 Fuel: Gasoline Approved: Yes Manufacture type: SPORTS TOU
    Opel Model: Astra Model series: Astra J Model type: Sports Tourer Size of motor: 1.6 Brand of engine: A16XHT Type description: J Body: Estate From date: 01-12-2012 To date: 01-10-2015 Fuel: Gasoline Approved: Yes Manufacture type: Sports Tou
    Opel Model: Astra Model series: Astra J Model type: Sports Tourer Type of engine: BiTurbo CDTI Size of motor: 2.0 Brand of engine: A20DTR Type description: J Body: Estate From date: 01-09-2012 To date: 01-10-2015 Fuel: Diesel Approved: Yes Manufacture type: Sports Tou
    Opel Model: Astra Model series: Astra J Size of motor: 1.6 Brand of engine: A16LET Body: Hatchback From date: 01-10-2011 Fuel: Gasoline Approved: Yes
    Opel Model: Astra Model series: Astra J Size of motor: 1.6 Brand of engine: A16XER Body: Estate From date: 01-10-2010 To date: 01-10-2015 Fuel: Gasoline Approved: Yes Manufacture type: SPORTS TOU
    Opel Model: Astra Model series: Astra J Size of motor: 1.6 Brand of engine: A16XHT Body: Hatchback From date: 01-12-2012 To date: 01-10-2015 Fuel: Gasoline Approved: Yes
    Opel Model: Astra Model series: Astra J Size of motor: 1.6 Brand of engine: A16XHT From date: 01-12-2012 To date: 01-10-2016 Fuel: Gasoline Approved: Yes
    Opel Model: Astra Model series: Astra J Type of engine: BiTurbo CDTI Size of motor: 2.0 Brand of engine: A20DTR Body: Hatchback From date: 01-09-2012 To date: 01-10-2015 Fuel: Diesel Approved: Yes
    Opel Model: Astra Model series: Astra J Type of engine: Turbo Size of motor: 1.6 Brand of engine: A16LET Body: Hatchback From date: 01-12-2009 To date: 01-10-2015 Fuel: Gasoline Approved: Yes
    Opel Model: Astra Model series: Astra J Type of engine: Turbo Size of motor: 1.6 Brand of engine: A16XER From date: 01-06-2012 Fuel: Gasoline Approved: Yes
    Opel Model: Insignia Model series: Insignia Model type: Caravan Size of motor: 1.6 Brand of engine: A16XER Body: Estate From date: 01-07-2008 To date: 01-06-2012 Fuel: Gasoline Approved: Yes Manufacture type: CARAVAN
    Opel Model: Insignia Model series: Insignia Model type: Caravan Size of motor: 1.8 Brand of engine: A18XER Body: Estate From date: 01-07-2008 To date: 01-06-2013 Fuel: Gasoline Approved: Yes Manufacture type: CARAVAN
    Opel Model: Insignia Model series: Insignia Size of motor: 1.6 Brand of engine: A16LET Body: Hatchback From date: 01-07-2008 To date: 01-03-2017 Fuel: Gasoline Approved: Yes
    Opel Model: Insignia Model series: Insignia Size of motor: 1.6 Brand of engine: A16LET From date: 01-07-2008 To date: 01-03-2017 Fuel: Gasoline Approved: Yes
    Opel Model: Insignia Model series: Insignia Size of motor: 1.6 Brand of engine: A16XER Body: Hatchback From date: 01-07-2008 To date: 01-03-2017 Fuel: Gasoline Approved: Yes
    Opel Model: Insignia Model series: Insignia Size of motor: 1.6 Brand of engine: A16XER From date: 01-07-2008 To date: 01-03-2017 Fuel: Gasoline Approved: Yes
    Opel Model: Insignia Model series: Insignia Size of motor: 1.8 Brand of engine: A18XER Body: Hatchback From date: 01-07-2008 To date: 01-03-2017 Fuel: Gasoline Approved: Yes
    Opel Model: Insignia Model series: Insignia Size of motor: 1.8 Brand of engine: A18XER From date: 01-07-2008 To date: 01-03-2017 Fuel: Gasoline Approved: Yes
    Opel Model: Insignia Model series: Insignia Type of engine: Turbo Size of motor: 1.6 Brand of engine: A16LET Body: Estate From date: 01-01-2009 To date: 01-06-2013 Fuel: Gasoline Approved: Yes Manufacture type: SportsTour
    Opel Model: Insignia Model series: Insignia Type of engine: Turbo Size of motor: 1.6 Brand of engine: A16LET Body: Hatchback From date: 01-07-2008 To date: 01-03-2017 Fuel: Gasoline Approved: Yes
    Opel Model: Insignia Model series: Insignia Type of engine: Turbo Size of motor: 1.6 Brand of engine: A16LET From date: 01-07-2008 To date: 01-03-2017 Fuel: Gasoline Approved: Yes
    Opel Model: Zafira Model series: Zafira C Model type: CNG Size of motor: 1.6 Brand of engine: A16XNT Type description: P12 Body: MPV From date: 01-10-2011 Fuel: Bi-Fuel Approved: Yes
    Opel Model: Zafira Model series: Zafira C Model type: CNG Size of motor: 1.6 Brand of engine: B16XNT Type description: P12 Body: MPV From date: 01-10-2011 Fuel: Bi-Fuel Approved: Yes
    Vauxhall Model: Insignia Model series: Insignia MK I Size of motor: 1.6 Brand of engine: A16XER Type description: A Body: Hatchback From date: 01-07-2008 To date: 01-07-2012 Fuel: Gasoline Approved: Yes
    Vauxhall Model: Insignia Model series: Insignia MK I Size of motor: 1.6 Brand of engine: A16XER Type description: A G09 Body: Estate From date: 01-07-2008 To date: 01-07-2012 Fuel: Gasoline Approved: Yes Manufacture type: Sports Tou
    Vauxhall Model: Insignia Model series: Insignia MK I Size of motor: 1.6 Brand of engine: A16XER Type description: A G09 From date: 01-07-2008 To date: 01-07-2012 Fuel: Gasoline Approved: Yes
