HC-Cargo Generator
HC-Cargo Generator
Vare nr.: F032116141

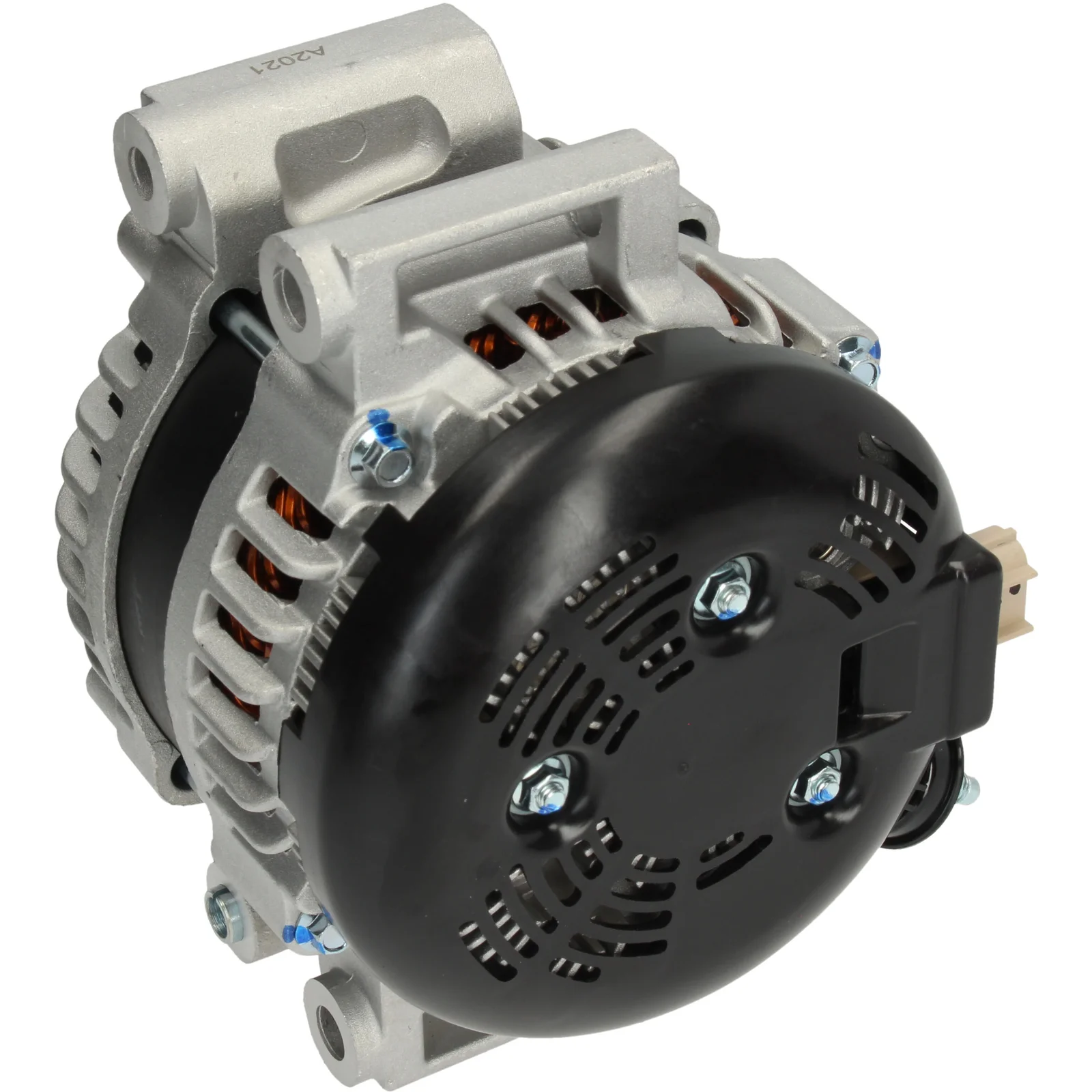

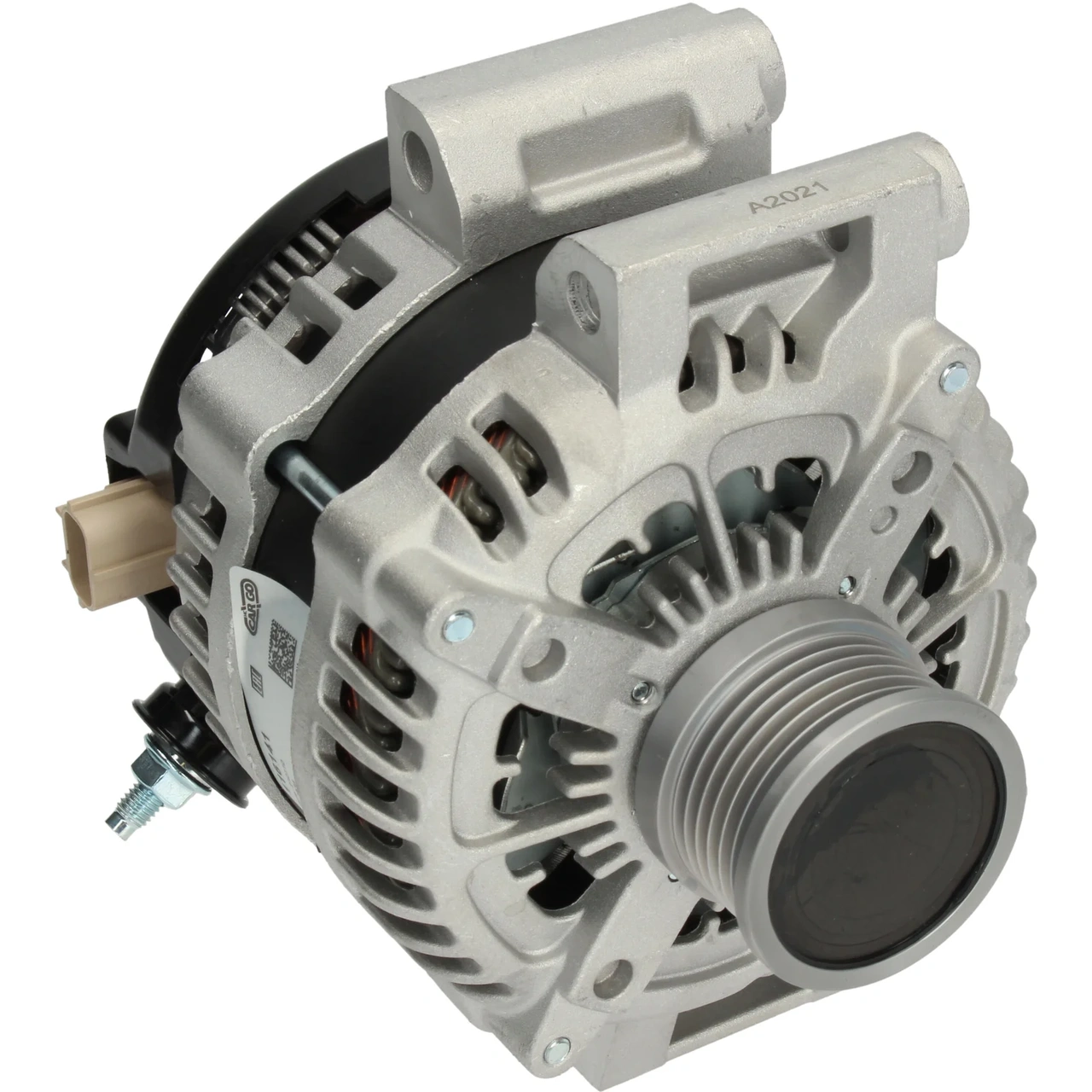

HC-Cargo Generator

Tekniske oplysninger:

Spænding: 14, Amp: 210, Rotation: CW, Mount. bøsning afstand: 56.00

Beskrivelse

Chrysler 2.8CRD Generator 220A 12V - 220A, 6gr.frg ( - LIN - ) For Yourex produkt bestilling 90-095-7866

Spænding: 14
Amp: 210
Hjul afstande: 38,40
Bredde/holderarm: 70,00
Monteringsbeslag afstand: 56,00
Beslagshul: 10,70
Bælte justering beslag hul 1: 10,00
Hjulediameter: 53,50
Riller/hjul: 6
Radius: 93,50
Radius 2: 93,50
B+: M8
Position/B+ i min.: 50
Rotation: CW
Stikk nr.: PL154
Total længde mm: 176,00
Terminaltype: COM
Kommunikation: LIN
Hjul: SP/FW
Regulator type: IR
Bemærkninger: Denne generator har en COM terminal på regulatoren. Det anbefales at bruge OEM-nummeret til at kontrollere egnethed, før der bestilles.

Filer

Specifikation

B+ M8
Communication LIN
Mount. bracket dist. 56.00
Belt. adj. bracket hole 1 10.00
Plug no. PL154
Bracket hole 10.70
Position/B+ in min. 50
Pulley SP/FW
Pulley dia. 53.50
Pulley dist. 38.40
Radius 93.50
Radius 2 93.50
Regulator type IR
Remarks This Alternator has a COM terminal on the regulator. It is recommended that the OEM number is used to check suitability before ordering.
Rotation CW
Grooves/pulley 6
Terminal type COM
Voltage 14
Total length 176.00 mm
Width/holder arm 70.00
Amp 210

  • OEM
    F032116141, 104210-6090, 116141, 04727866 AB, 04727866AB, 4727866AB

  • Konkurrentreferens
    A6466S, CAL40374, DRA0963, 28-7504, 534.146.2202, 20393, 20393R, 553924RI, 12090756

  • Bilmärken
    Chrysler, Lancia

  • NormaliseratArtNr
    a6466s, cal40374, dra0963, f032116141, 20393, 20393r, 116141, 287504, 553924ri, 04727866ab, 4727866ab, 12090756, 1042106090, 5341462202

  • Passar modeller
    Chrysler Model: Grand Voyager Model series: Grand Voyager Type of engine: CRDi Size of motor: 2.8 Brand of engine: ENS Type description: RT Body: MPV From date: 01-09-2012 Fuel: Diesel Approved: Yes
    Chrysler Model: Grand Voyager Model series: Grand Voyager Type of engine: CRDi Size of motor: 2.8 Brand of engine: ENS Type description: RT Body: Van From date: 01-01-2008 To date: 01-12-2011 Fuel: Diesel Approved: Yes
    Chrysler Model: Voyager Model series: Voyager Type of engine: CRD Size of motor: 2.8 Brand of engine: ENS Type description: RT Body: MPV From date: 01-10-2007 Fuel: Diesel Approved: Yes
    Chrysler Model: Voyager Model series: Voyager Type of engine: CRDi Size of motor: 2.8 Brand of engine: ENS Type description: RS Body: MPV From date: 01-10-2007 Fuel: Diesel Approved: Yes
    Chrysler Series: Grand Voyager Model: 2.8 CRD Engine volume: 2.8 Year: 10.07-
    Lancia Series: Voyager Model: 2.8 CRD Engine volume: 2.8 Engine type: ENS Year: 09.11-12.14
    1 / 2
  • Beskrivelse
    Chrysler 2.8CRD Generator 220A 12V - 220A, 6gr.frg ( - LIN - ) For Yourex produkt bestilling 90-095-7866

    Spænding: 14
    Amp: 210
    Hjul afstande: 38,40
    Bredde/holderarm: 70,00
    Monteringsbeslag afstand: 56,00
    Beslagshul: 10,70
    Bælte justering beslag hul 1: 10,00
    Hjulediameter: 53,50
    Riller/hjul: 6
    Radius: 93,50
    Radius 2: 93,50
    B+: M8
    Position/B+ i min.: 50
    Rotation: CW
    Stikk nr.: PL154
    Total længde mm: 176,00
    Terminaltype: COM
    Kommunikation: LIN
    Hjul: SP/FW
    Regulator type: IR
    Bemærkninger: Denne generator har en COM terminal på regulatoren. Det anbefales at bruge OEM-nummeret til at kontrollere egnethed, før der bestilles.

    Filer

  • Specifikation
    B+ M8
    Communication LIN
    Mount. bracket dist. 56.00
    Belt. adj. bracket hole 1 10.00
    Plug no. PL154
    Bracket hole 10.70
    Position/B+ in min. 50
    Pulley SP/FW
    Pulley dia. 53.50
    Pulley dist. 38.40
    Radius 93.50
    Radius 2 93.50
    Regulator type IR
    Remarks This Alternator has a COM terminal on the regulator. It is recommended that the OEM number is used to check suitability before ordering.
    Rotation CW
    Grooves/pulley 6
    Terminal type COM
    Voltage 14
    Total length 176.00 mm
    Width/holder arm 70.00
    Amp 210
  • Køretøjsmatchning

    • OEM
      F032116141, 104210-6090, 116141, 04727866 AB, 04727866AB, 4727866AB

    • Konkurrentreferens
      A6466S, CAL40374, DRA0963, 28-7504, 534.146.2202, 20393, 20393R, 553924RI, 12090756

    • Bilmärken
      Chrysler, Lancia

    • NormaliseratArtNr
      a6466s, cal40374, dra0963, f032116141, 20393, 20393r, 116141, 287504, 553924ri, 04727866ab, 4727866ab, 12090756, 1042106090, 5341462202

    • Passar modeller
      Chrysler Model: Grand Voyager Model series: Grand Voyager Type of engine: CRDi Size of motor: 2.8 Brand of engine: ENS Type description: RT Body: MPV From date: 01-09-2012 Fuel: Diesel Approved: Yes
      Chrysler Model: Grand Voyager Model series: Grand Voyager Type of engine: CRDi Size of motor: 2.8 Brand of engine: ENS Type description: RT Body: Van From date: 01-01-2008 To date: 01-12-2011 Fuel: Diesel Approved: Yes
      Chrysler Model: Voyager Model series: Voyager Type of engine: CRD Size of motor: 2.8 Brand of engine: ENS Type description: RT Body: MPV From date: 01-10-2007 Fuel: Diesel Approved: Yes
      Chrysler Model: Voyager Model series: Voyager Type of engine: CRDi Size of motor: 2.8 Brand of engine: ENS Type description: RS Body: MPV From date: 01-10-2007 Fuel: Diesel Approved: Yes
      Chrysler Series: Grand Voyager Model: 2.8 CRD Engine volume: 2.8 Year: 10.07-
      Lancia Series: Voyager Model: 2.8 CRD Engine volume: 2.8 Engine type: ENS Year: 09.11-12.14
      1 / 2
