HC-Cargo Generator
HC-Cargo Generator
Vare nr.: F032116099

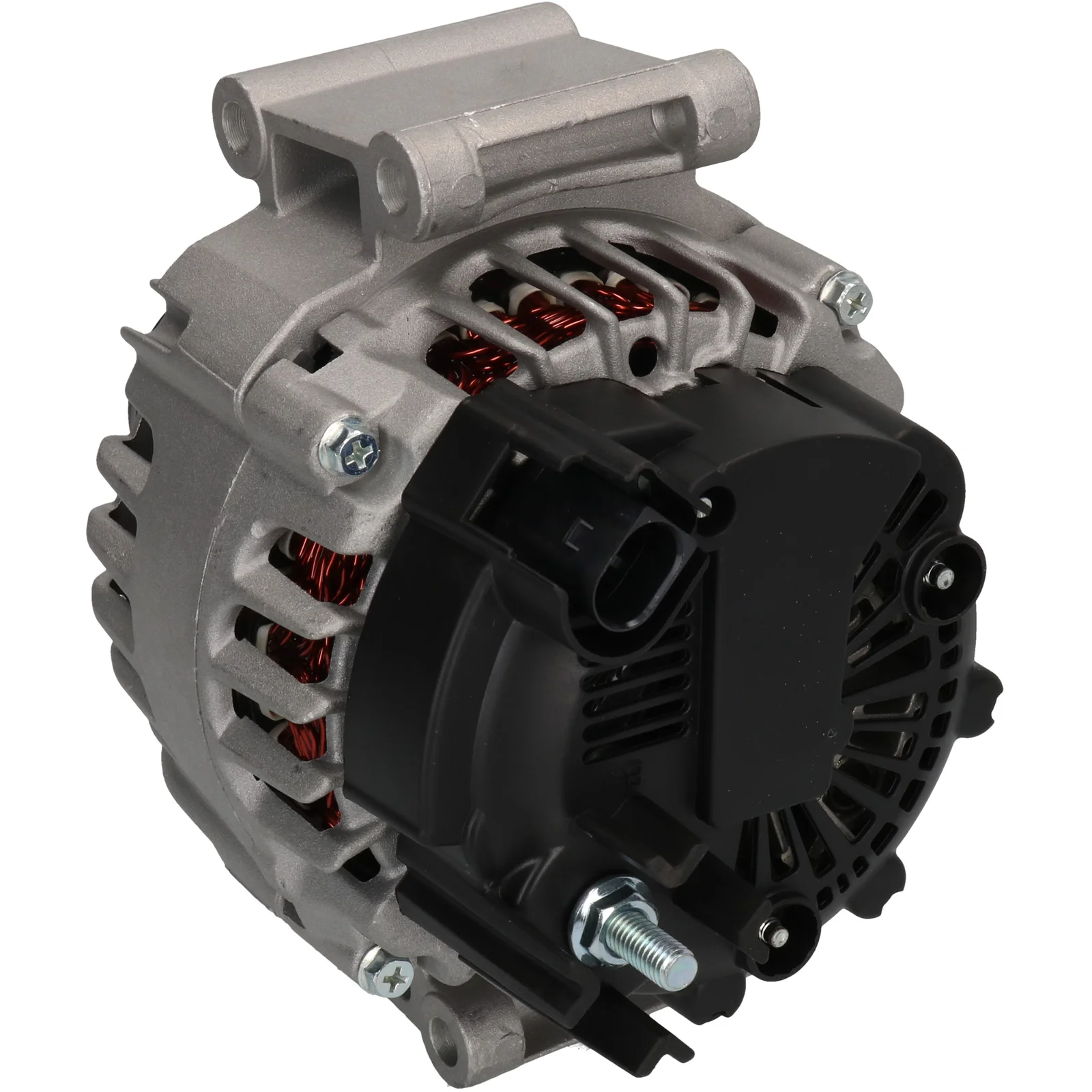

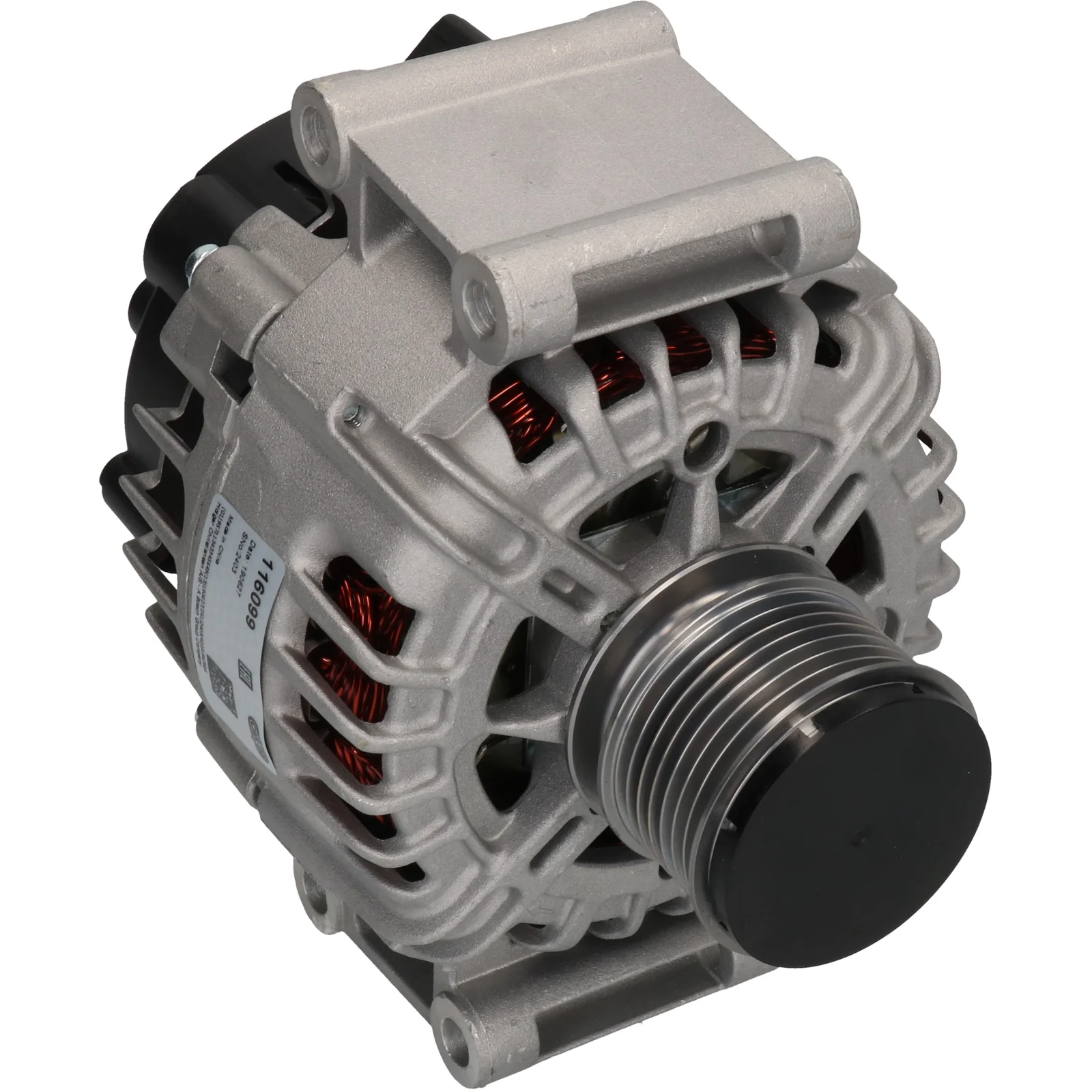

HC-Cargo Generator

Tekniske oplysninger:

Spænding: 14, Amp: 120, Rotation: CW, Monteringsbeslag afstand: 56.00

Beskrivelse

Generator 12V-120A 12V - 120A, 7gr.frg, (LIN) Til Yourex produktbestilling 90-365-2711

Spenning: 14
Amp: 120
Remskive diameter: 32,00
Bredde/holderarm: 70,00
Monteringsbeslag diameter: 56,00
Beslagshulder: 9,50
Beslagshulder 2: 9,50
Bæltejustering beslagshul: 9,50
Remskive dia.: 56,00
Ribber/remskive: 7
Radius: 79,00
Radius 2: 82,00
B+: M8
Position/B+ i min.: 8
Rotation: CW
Stiknummer: PL181
Samlet længde mm: 240,00
Terminaltype: COM
Remskive: SP/FW
Regulator type: IR
Bemærkninger: Denne generator har en COM-terminal på regulatoren. Det anbefales at bruge OEM-nummeret til at kontrollere egnethed, før der bestilles.

Filer

Specifikation

B+ M8
Mount. bracket dist. 56.00
Belt. adj. bracket hole 1 9.50
Plug no. PL181
Bracket hole 9.50
Bracket hole 2 9.50
Position/B+ in min. 8
Pulley SP/FW
Pulley dia. 56.00
Pulley dist. 32.00
Radius 79.00
Radius 2 82.00
Regulator type IR
Remarks This Alternator has a COM terminal on the regulator. It is recommended that the OEM number is used to check suitability before ordering.
Rotation CW
Grooves/pulley 7
Terminal type COM
Voltage 14
Total length 240.00 mm
Width/holder arm 70.00
Amp 120

  • OEM
    A271 1541402, a2711541402, F032116099, TG12C 026, tg12c026, 271 154 1402, 116099, 439611, 440128, 2543296, 2543296A, 2543296B, 2711541402

  • Konkurrentreferens
    A3352S, CAL15453, DRA0782, LRA03453, 28-6561, 225.302.1202, 555.581.120, 23285N, 24101N, 24101R, 112847, 209220, 209220A, 439611, 440128, 554006RI, 9090804, 12090469

  • Bilmärken
    Mercedes Benz

  • NormaliseratArtNr
    a2711541402, a3352s, cal15453, dra0782, f032116099, lra03453, tg12c026, 23285n, 24101n, 24101r, 112847, 116099, 209220, 209220a, 286561, 439611, 440128, 554006ri, 2543296, 2543296a, 2543296b, 9090804, 12090469, 555581120, 2253021202, 2711541402

  • Passar modeller
    Mercedes Benz Series: C (S204) Model: 180 T Kompressor Engine volume: 1.6 Engine type: M 271.910 Year: 09.08-04.10
    Mercedes Benz Series: C (S204) Model: 180 T Kompressor Engine volume: 1.8 Engine type: M 271.952 Year: 08.07-
    Mercedes Benz Series: C (S204) Model: 200 T Kompressor Engine volume: 1.8 Engine type: M 271.950 Year: 08.07-05.10
    Mercedes Benz Series: C (W204) Model: 180 Kompressor Engine volume: 1.6 Engine type: M 271.910 Year: 04.08-04.10
    Mercedes Benz Series: C (W204) Model: 180 Kompressor Engine volume: 1.8 Engine type: M 271.950 Year: 03.07-04.10
    Mercedes Benz Series: C (W204) Model: 180 Kompressor Engine volume: 1.8 Engine type: M 271.952 Year: 01.07-
    Mercedes Benz Series: C (W204) Model: 250 CGI Engine volume: 1.8 Engine type: M 271.860 Year: 07.09-
    Mercedes-Benz Model: 180 Model series: C 180 Model type: Kompressor Size of motor: 1.6 Brand of engine: M271.910 Type description: W204 From date: 01-01-2008 To date: 01-01-2014 Fuel: Gasoline Approved: Yes
    Mercedes-Benz Model: 180 Model series: C 180 Model type: Kompressor Size of motor: 1.8 Brand of engine: M271.952 Type description: 204 From date: 01-01-2007 To date: 01-01-2014 Fuel: Gasoline Approved: Yes
    Mercedes-Benz Model: 180 Model series: C 180 Model type: Kompressor Size of motor: 1.8 Brand of engine: M271.952 Type description: S204 Body: Estate From date: 01-08-2007 To date: 01-08-2014 Fuel: Gasoline Approved: Yes
    Mercedes-Benz Model: 180 Model series: C 180 Type of engine: CGi Size of motor: 1.8 Brand of engine: M271.820 Type description: W204 From date: 01-01-2007 To date: 01-01-2014 Fuel: Gasoline Approved: Yes
    Mercedes-Benz Model: 180 Model series: C180 Model type: Kompressor T-Model Size of motor: 1.6 Brand of engine: M271.910 Type description: S204 Body: Estate From date: 01-01-2008 To date: 01-08-2014 Fuel: Gasoline Approved: Yes
    Mercedes-Benz Model: 200 Model series: C 200 Model type: Kompressor Size of motor: 1.8 Brand of engine: M271.950 Type description: 204 From date: 01-01-2007 To date: 01-01-2014 Fuel: Gasoline Approved: Yes
    Mercedes-Benz Model: 200 Model series: C 200 Model type: Kompressor Size of motor: 1.8 Brand of engine: M271.950 Type description: S204 Body: Estate From date: 01-08-2007 To date: 01-08-2014 Fuel: Gasoline Approved: Yes
    Mercedes-Benz Model: 200 Model series: C 200 Type of engine: CGi Size of motor: 1.8 Brand of engine: M271.820 Type description: W204 From date: 01-01-2007 To date: 01-01-2014 Fuel: Gasoline Approved: Yes
    Mercedes-Benz Model: 200 Model series: E 200 Size of motor: 1.8 Brand of engine: M271.958 Type description: W212 From date: 01-03-2011 To date: 01-12-2015 Fuel: Diesel Approved: Yes
    Mercedes-Benz Model: 250 Model series: C 250 Model type: CGI Size of motor: 1.8 Brand of engine: M271.860 Type description: S204 Body: Estate From date: 01-07-2009 To date: 01-08-2014 Fuel: Gasoline Approved: Yes Manufacture type: T-Model
    Mercedes-Benz Model: 250 Model series: C 250 Type of engine: CGi Size of motor: 1.8 Brand of engine: M271.860 Type description: W204 From date: 01-07-2009 To date: 01-01-2014 Fuel: Gasoline Approved: Yes
    Mercedes-Benz Model: Sprinter Model series: Sprinter 316 LGT Model type: LGT Size of motor: 1.8 Brand of engine: M271.951 Type description: 906 Body: Bus From date: 01-09-2008 Fuel: Bi-Fuel Approved: Yes
    Mercedes-Benz Model: Sprinter Model series: Sprinter 316 Size of motor: 1.8 Brand of engine: M271.951 Type description: 906 Body: Platform / Chassis From date: 01-09-2008 Fuel: Gasoline Approved: Yes
    Mercedes-Benz Model: Sprinter Model series: Sprinter 316 Size of motor: 1.8 Brand of engine: M271.951 Type description: 906 Body: Van From date: 01-09-2008 Fuel: Gas Approved: Yes
    Mercedes-Benz Model: Sprinter Model series: Sprinter 316 Size of motor: 1.8 Brand of engine: M271.951 Type description: 906 Body: Van From date: 01-09-2008 Fuel: Gasoline Approved: Yes
    1 / 5
  • Beskrivelse
    Generator 12V-120A 12V - 120A, 7gr.frg, (LIN) Til Yourex produktbestilling 90-365-2711

    Spenning: 14
    Amp: 120
    Remskive diameter: 32,00
    Bredde/holderarm: 70,00
    Monteringsbeslag diameter: 56,00
    Beslagshulder: 9,50
    Beslagshulder 2: 9,50
    Bæltejustering beslagshul: 9,50
    Remskive dia.: 56,00
    Ribber/remskive: 7
    Radius: 79,00
    Radius 2: 82,00
    B+: M8
    Position/B+ i min.: 8
    Rotation: CW
    Stiknummer: PL181
    Samlet længde mm: 240,00
    Terminaltype: COM
    Remskive: SP/FW
    Regulator type: IR
    Bemærkninger: Denne generator har en COM-terminal på regulatoren. Det anbefales at bruge OEM-nummeret til at kontrollere egnethed, før der bestilles.

    Filer

  • Specifikation
    B+ M8
    Mount. bracket dist. 56.00
    Belt. adj. bracket hole 1 9.50
    Plug no. PL181
    Bracket hole 9.50
    Bracket hole 2 9.50
    Position/B+ in min. 8
    Pulley SP/FW
    Pulley dia. 56.00
    Pulley dist. 32.00
    Radius 79.00
    Radius 2 82.00
    Regulator type IR
    Remarks This Alternator has a COM terminal on the regulator. It is recommended that the OEM number is used to check suitability before ordering.
    Rotation CW
    Grooves/pulley 7
    Terminal type COM
    Voltage 14
    Total length 240.00 mm
    Width/holder arm 70.00
    Amp 120
  • Køretøjsmatchning

    • OEM
      A271 1541402, a2711541402, F032116099, TG12C 026, tg12c026, 271 154 1402, 116099, 439611, 440128, 2543296, 2543296A, 2543296B, 2711541402

    • Konkurrentreferens
      A3352S, CAL15453, DRA0782, LRA03453, 28-6561, 225.302.1202, 555.581.120, 23285N, 24101N, 24101R, 112847, 209220, 209220A, 439611, 440128, 554006RI, 9090804, 12090469

    • Bilmärken
      Mercedes Benz

    • NormaliseratArtNr
      a2711541402, a3352s, cal15453, dra0782, f032116099, lra03453, tg12c026, 23285n, 24101n, 24101r, 112847, 116099, 209220, 209220a, 286561, 439611, 440128, 554006ri, 2543296, 2543296a, 2543296b, 9090804, 12090469, 555581120, 2253021202, 2711541402

    • Passar modeller
      Mercedes Benz Series: C (S204) Model: 180 T Kompressor Engine volume: 1.6 Engine type: M 271.910 Year: 09.08-04.10
      Mercedes Benz Series: C (S204) Model: 180 T Kompressor Engine volume: 1.8 Engine type: M 271.952 Year: 08.07-
      Mercedes Benz Series: C (S204) Model: 200 T Kompressor Engine volume: 1.8 Engine type: M 271.950 Year: 08.07-05.10
      Mercedes Benz Series: C (W204) Model: 180 Kompressor Engine volume: 1.6 Engine type: M 271.910 Year: 04.08-04.10
      Mercedes Benz Series: C (W204) Model: 180 Kompressor Engine volume: 1.8 Engine type: M 271.950 Year: 03.07-04.10
      Mercedes Benz Series: C (W204) Model: 180 Kompressor Engine volume: 1.8 Engine type: M 271.952 Year: 01.07-
      Mercedes Benz Series: C (W204) Model: 250 CGI Engine volume: 1.8 Engine type: M 271.860 Year: 07.09-
      Mercedes-Benz Model: 180 Model series: C 180 Model type: Kompressor Size of motor: 1.6 Brand of engine: M271.910 Type description: W204 From date: 01-01-2008 To date: 01-01-2014 Fuel: Gasoline Approved: Yes
      Mercedes-Benz Model: 180 Model series: C 180 Model type: Kompressor Size of motor: 1.8 Brand of engine: M271.952 Type description: 204 From date: 01-01-2007 To date: 01-01-2014 Fuel: Gasoline Approved: Yes
      Mercedes-Benz Model: 180 Model series: C 180 Model type: Kompressor Size of motor: 1.8 Brand of engine: M271.952 Type description: S204 Body: Estate From date: 01-08-2007 To date: 01-08-2014 Fuel: Gasoline Approved: Yes
      Mercedes-Benz Model: 180 Model series: C 180 Type of engine: CGi Size of motor: 1.8 Brand of engine: M271.820 Type description: W204 From date: 01-01-2007 To date: 01-01-2014 Fuel: Gasoline Approved: Yes
      Mercedes-Benz Model: 180 Model series: C180 Model type: Kompressor T-Model Size of motor: 1.6 Brand of engine: M271.910 Type description: S204 Body: Estate From date: 01-01-2008 To date: 01-08-2014 Fuel: Gasoline Approved: Yes
      Mercedes-Benz Model: 200 Model series: C 200 Model type: Kompressor Size of motor: 1.8 Brand of engine: M271.950 Type description: 204 From date: 01-01-2007 To date: 01-01-2014 Fuel: Gasoline Approved: Yes
      Mercedes-Benz Model: 200 Model series: C 200 Model type: Kompressor Size of motor: 1.8 Brand of engine: M271.950 Type description: S204 Body: Estate From date: 01-08-2007 To date: 01-08-2014 Fuel: Gasoline Approved: Yes
      Mercedes-Benz Model: 200 Model series: C 200 Type of engine: CGi Size of motor: 1.8 Brand of engine: M271.820 Type description: W204 From date: 01-01-2007 To date: 01-01-2014 Fuel: Gasoline Approved: Yes
      Mercedes-Benz Model: 200 Model series: E 200 Size of motor: 1.8 Brand of engine: M271.958 Type description: W212 From date: 01-03-2011 To date: 01-12-2015 Fuel: Diesel Approved: Yes
      Mercedes-Benz Model: 250 Model series: C 250 Model type: CGI Size of motor: 1.8 Brand of engine: M271.860 Type description: S204 Body: Estate From date: 01-07-2009 To date: 01-08-2014 Fuel: Gasoline Approved: Yes Manufacture type: T-Model
      Mercedes-Benz Model: 250 Model series: C 250 Type of engine: CGi Size of motor: 1.8 Brand of engine: M271.860 Type description: W204 From date: 01-07-2009 To date: 01-01-2014 Fuel: Gasoline Approved: Yes
      Mercedes-Benz Model: Sprinter Model series: Sprinter 316 LGT Model type: LGT Size of motor: 1.8 Brand of engine: M271.951 Type description: 906 Body: Bus From date: 01-09-2008 Fuel: Bi-Fuel Approved: Yes
      Mercedes-Benz Model: Sprinter Model series: Sprinter 316 Size of motor: 1.8 Brand of engine: M271.951 Type description: 906 Body: Platform / Chassis From date: 01-09-2008 Fuel: Gasoline Approved: Yes
      Mercedes-Benz Model: Sprinter Model series: Sprinter 316 Size of motor: 1.8 Brand of engine: M271.951 Type description: 906 Body: Van From date: 01-09-2008 Fuel: Gas Approved: Yes
      Mercedes-Benz Model: Sprinter Model series: Sprinter 316 Size of motor: 1.8 Brand of engine: M271.951 Type description: 906 Body: Van From date: 01-09-2008 Fuel: Gasoline Approved: Yes
