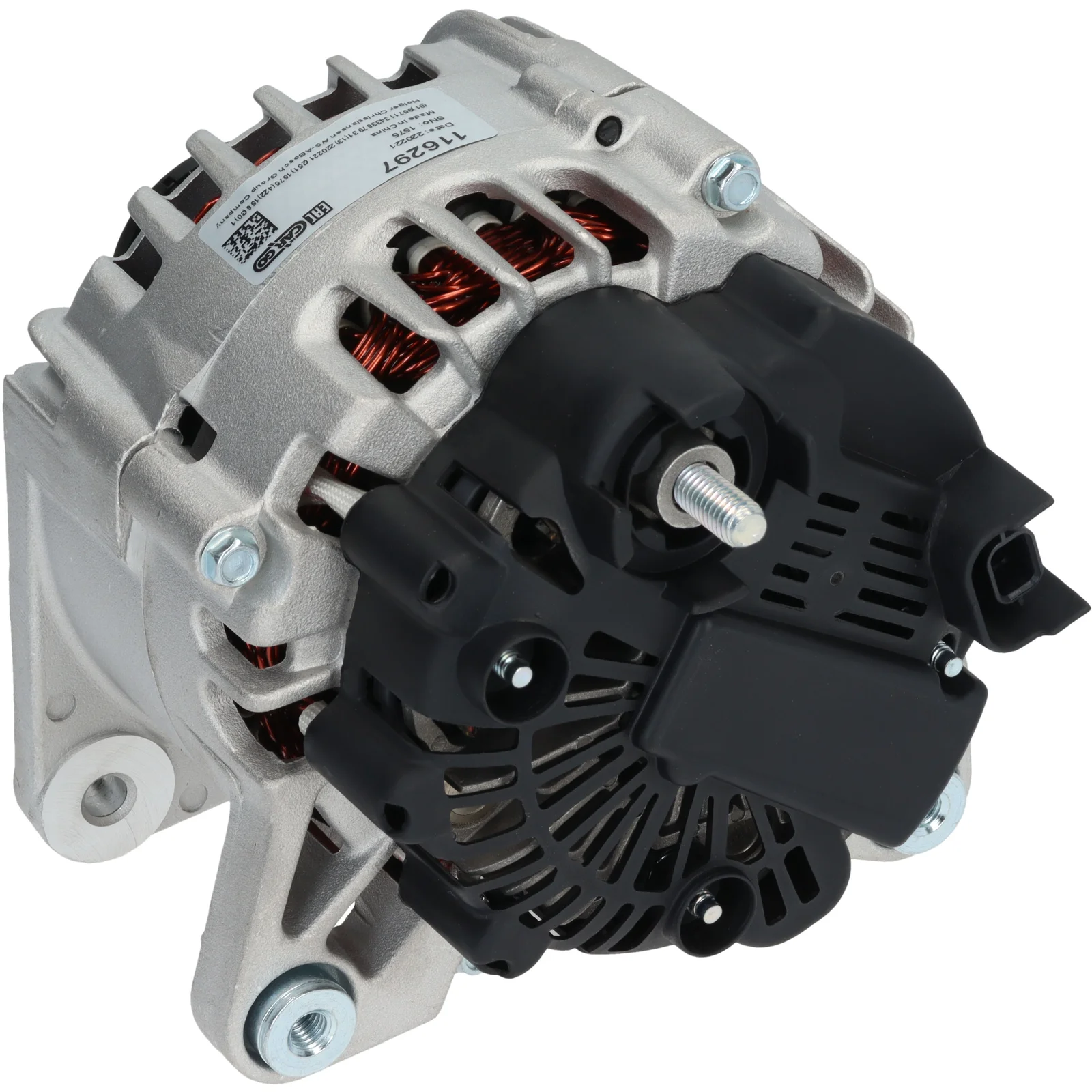

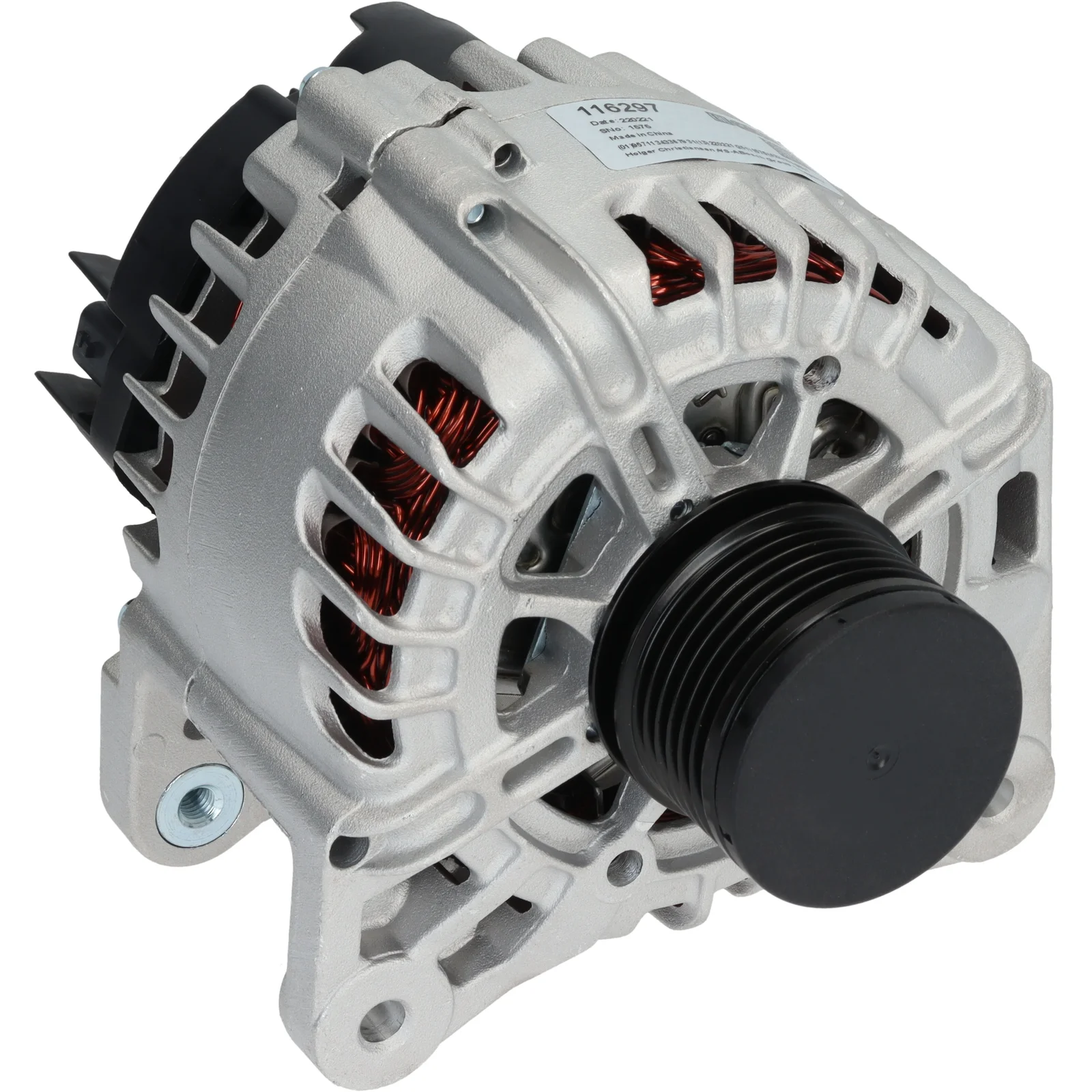

HC-Cargo Generator
HC-Cargo Generator
Vare nr.: F032116297

HC-Cargo Generator

Tekniske oplysninger:

Spænding: 14, Amp: 150, Rotation: CW, Monteringsbeslag afstand: 60,50

Beskrivelse

Spænding: 14
Amp: 150
Remskive dist.: 38,50
Bredde/holderarm: 14,00
Monteringsbeslag dist.: 60,50
Beslagshul: 8,50
Bæltejustering. beslagshul pos.: 45
Bæltejustering. beslagshul 1: 8,50
Bæltejustering. beslagshul 2: M8
Remskive dia.: 55,00
Riller/remskive: 6
Radius: 90,00
Radius 2: 90,00
B+: M8
Position/B+ i min.: 53
Rotation: med uret
Stik nr.: PL132
Total længde mm: 193,00
Terminaltype: COM
ID-kode: 17
Kommunikation: LIN
Remskive: SP/FW
Regulator type: IR
Bemærkninger: Denne generator har et COM-terminal på regulatoren. Det anbefales at bruge OEM-nummeret for at kontrollere egnethed, inden der bestilles.

Filer

Specifikation

B+ M8
Communication LIN
Mount. bracket dist. 60.50
Belt. adj. bracket hole 1 8.50
Belt. adj. bracket hole 2 M8
Belt. adj. brackethole pos. 45
Plug no. PL132
Bracket hole 8.50
Position/B+ in min. 53
Pulley SP/FW
Pulley dia. 55.00
Pulley dist. 38.50
Radius 90.00
Radius 2 90.00
Regulator type IR
Remarks This Alternator has a COM terminal on the regulator. It is recommended that the OEM number is used to check suitability before ordering.
Rotation CW
Grooves/pulley 6
ID Code 17
Terminal type COM
Voltage 14
Total length 193.00 mm
Width/holder arm 14.00
Amp 150

  • OEM
    F032116297, FG15T057, 23100-7281R, 2612717A, 231007281R, 231007281RA

  • Konkurrentreferens
    A3561S, CAL15032, DRA1491, 8EL011713-591, 28-6842, 230.357.1502, 575.958.150, 20608N, 20608N-OE, 209545, 209545A, 439834, 440559, 554409RI, 12090781, 32440559

  • NormaliseratArtNr
    a3561s, cal15032, dra1491, f032116297, fg15t057, 8el011713591, 20608n, 20608noe, 209545, 209545a, 286842, 439834, 440559, 554409ri, 2612717a, 12090781, 32440559, 231007281r, 231007281ra, 575958150, 2303571502

  • Passar modeller
    Renault Model: Clio Model series: Clio Grandtour Model type: 110 Type of engine: DCi Size of motor: 1.5 Brand of engine: K9K646 Body: Estate From date: 01-06-2016 Fuel: Diesel Approved: Yes Manufacture type: Grandtour
    Renault Model: Clio Model series: Clio Grandtour Model type: 75 Type of engine: DCI Size of motor: 1.5 Brand of engine: K9K612 Type description: KH_ Body: Van From date: 01-01-2014 Fuel: Diesel Approved: Yes
    Renault Model: Clio Model series: Clio Grandtour Model type: 90 Type of engine: DCI Size of motor: 1.5 Brand of engine: K9K608 Type description: KH_ Body: Van From date: 01-01-2014 Fuel: Diesel Approved: Yes
    Renault Model: Clio Model series: Clio Model type: dCi (BHM6) Type of engine: dci Size of motor: 1.5 Brand of engine: K9K838 Type description: BH_ Body: Hatchback Fuel: Diesel Approved: Yes
    Renault Model: Dokker Model series: Dokker Model type: dci Type of engine: dci Size of motor: 1.5 Brand of engine: K9K612 Body: Van Fuel: Diesel Approved: Yes
  • Beskrivelse
    Spænding: 14
    Amp: 150
    Remskive dist.: 38,50
    Bredde/holderarm: 14,00
    Monteringsbeslag dist.: 60,50
    Beslagshul: 8,50
    Bæltejustering. beslagshul pos.: 45
    Bæltejustering. beslagshul 1: 8,50
    Bæltejustering. beslagshul 2: M8
    Remskive dia.: 55,00
    Riller/remskive: 6
    Radius: 90,00
    Radius 2: 90,00
    B+: M8
    Position/B+ i min.: 53
    Rotation: med uret
    Stik nr.: PL132
    Total længde mm: 193,00
    Terminaltype: COM
    ID-kode: 17
    Kommunikation: LIN
    Remskive: SP/FW
    Regulator type: IR
    Bemærkninger: Denne generator har et COM-terminal på regulatoren. Det anbefales at bruge OEM-nummeret for at kontrollere egnethed, inden der bestilles.

    Filer

  • Specifikation
    B+ M8
    Communication LIN
    Mount. bracket dist. 60.50
    Belt. adj. bracket hole 1 8.50
    Belt. adj. bracket hole 2 M8
    Belt. adj. brackethole pos. 45
    Plug no. PL132
    Bracket hole 8.50
    Position/B+ in min. 53
    Pulley SP/FW
    Pulley dia. 55.00
    Pulley dist. 38.50
    Radius 90.00
    Radius 2 90.00
    Regulator type IR
    Remarks This Alternator has a COM terminal on the regulator. It is recommended that the OEM number is used to check suitability before ordering.
    Rotation CW
    Grooves/pulley 6
    ID Code 17
    Terminal type COM
    Voltage 14
    Total length 193.00 mm
    Width/holder arm 14.00
    Amp 150
  • Køretøjsmatchning

    • OEM
      F032116297, FG15T057, 23100-7281R, 2612717A, 231007281R, 231007281RA

    • Konkurrentreferens
      A3561S, CAL15032, DRA1491, 8EL011713-591, 28-6842, 230.357.1502, 575.958.150, 20608N, 20608N-OE, 209545, 209545A, 439834, 440559, 554409RI, 12090781, 32440559

    • NormaliseratArtNr
      a3561s, cal15032, dra1491, f032116297, fg15t057, 8el011713591, 20608n, 20608noe, 209545, 209545a, 286842, 439834, 440559, 554409ri, 2612717a, 12090781, 32440559, 231007281r, 231007281ra, 575958150, 2303571502

    • Passar modeller
      Renault Model: Clio Model series: Clio Grandtour Model type: 110 Type of engine: DCi Size of motor: 1.5 Brand of engine: K9K646 Body: Estate From date: 01-06-2016 Fuel: Diesel Approved: Yes Manufacture type: Grandtour
      Renault Model: Clio Model series: Clio Grandtour Model type: 75 Type of engine: DCI Size of motor: 1.5 Brand of engine: K9K612 Type description: KH_ Body: Van From date: 01-01-2014 Fuel: Diesel Approved: Yes
      Renault Model: Clio Model series: Clio Grandtour Model type: 90 Type of engine: DCI Size of motor: 1.5 Brand of engine: K9K608 Type description: KH_ Body: Van From date: 01-01-2014 Fuel: Diesel Approved: Yes
      Renault Model: Clio Model series: Clio Model type: dCi (BHM6) Type of engine: dci Size of motor: 1.5 Brand of engine: K9K838 Type description: BH_ Body: Hatchback Fuel: Diesel Approved: Yes
      Renault Model: Dokker Model series: Dokker Model type: dci Type of engine: dci Size of motor: 1.5 Brand of engine: K9K612 Body: Van Fuel: Diesel Approved: Yes
