Vare nr.: F032111325

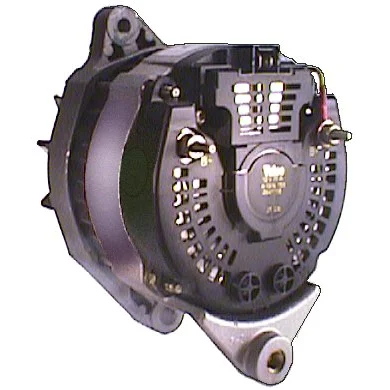

HC-Cargo Generator

Tekniske oplysninger:

Spænding: 14, Amp: 70, Rotation: CW, Monteringsbeslag forfordeling: 66,70

Beskrivelse

Renault Clio/R19 Gen. 70A 14V - 70A, 1V, (L, +) For Yourex produktordre 90-480-3732

Spænding: 14
Amp: 70
Remskive afstand: 57.00
Bredde/holderarm: 27.20
Monteringsbeslag afstand: 66.70
Beslagshul: 10.20
Tegl. justering beslagshul pos.: 4
Tegl. justering beslagshul 1: M8
Remskive dia.: 67.50
Riller/remskive: 1
Radius: 83.50
Radius 2: 80.50
B+: M6
Position/B+ i min.: 60
D+ Størrelse: M5
Rotation: CW
Stik nr.: PL27
Samlet længde mm: 174.50
Remskive: P
Reg. type: IR
Produkt info: BN
Service: Renault

Filer

Specifikation

B+ M6
Mount. bracket dist. 66.70
Belt. adj. bracket hole 1 M8
Belt. adj. brackethole pos. 4
Plug no. PL27
Bracket hole 10.20
Position/B+ in min. 60
Prod. info BN
Pulley P
Pulley dia. 67.50
Pulley dist. 57.00
Radius 83.50
D+ Size M5
Radius 2 80.50
Regulator type IR
Rotation CW
Servicing Renault
Grooves/pulley 1
Voltage 14
Total length 174.50 mm
Width/holder arm 27.20
Amp 70

  • OEM
    A13N157, A13N158, a13n158, A13N203, aak4506, aak4585, F032111325, 11.201.554, 11.201.765, 649ir, 111325, 436250, 2541118, 7700784482, 7700784890, 7700784891, 7701351757, 7702150654

  • Konkurrentreferens
    A3050, ALT-7014, ALT14016, dra7321, DRA7321X, F042208029, F042A0B019, IA0554, lra00397, LRA01530, MG514, NA391, va266, 8EL012427-391, 8el725933-001, 28-1546, 28-2615, 32-37.321, 230.123.602, 230.123.702, 2579, 22530N, 30649RI, 56122, 200089, 200164, 210091, 210091A, 433097, 433459, 436250, 746080, 746804, 746880, 9037321, 32037321, 0986037320

  • Bilmärken
    Renault, Volvo

  • NormaliseratArtNr
    a13n157, a13n158, a13n203, a3050, aak4506, aak4585, alt14016, alt7014, dra7321, dra7321x, f032111325, f042208029, f042a0b019, ia0554, lra00397, lra01530, mg514, na391, va266, 8el012427391, 8el725933001, 649ir, 2579, 22530n, 30649ri, 56122, 111325, 200089, 200164, 210091, 210091a, 281546, 282615, 433097, 433459, 436250, 746080, 746804, 746880, 2541118, 3237321, 9037321, 11201554, 11201765, 32037321, 230123602, 230123702, 0986037320, 7700784482, 7700784890, 7700784891, 7701351757, 7702150654

  • Passar modeller
    Renault Model: Clio Model series: Clio Size of motor: 1.1 Brand of engine: C1E700 Type description: B,C,S571 Body: Hatchback From date: 01-01-1991 To date: 01-09-1998 Fuel: Gasoline Approved: Yes
    Renault Model: Clio Model series: Clio Size of motor: 1.2 Brand of engine: E7F706 Body: Van From date: 01-01-1991 To date: 01-09-1998 Fuel: Gasoline Approved: Yes
    Renault Model: Clio Model series: Clio Size of motor: 1.2 Brand of engine: E7F706 Type description: B,C57R,S Body: Hatchback From date: 01-01-1991 To date: 01-06-1996 Fuel: Gasoline Approved: Yes
    Renault Model: Clio Model series: Clio Size of motor: 1.2 Brand of engine: E7F708 Type description: B,C57R,S Body: Hatchback From date: 01-05-1990 To date: 01-09-1998 Fuel: Gasoline Approved: Yes
    Renault Model: Clio Model series: Clio Size of motor: 1.2 Brand of engine: E7F750 Body: Van From date: 01-01-1991 To date: 01-09-1998 Fuel: Gasoline Approved: Yes
    Renault Model: Clio Model series: Clio Size of motor: 1.2 Brand of engine: E7F750 Type description: B,C57R,S Body: Hatchback From date: 01-05-1990 To date: 01-09-1998 Fuel: Gasoline Approved: Yes
    Renault Model: Clio Model series: Clio Size of motor: 1.4 Brand of engine: E7J601 Type description: B,C,S57 Body: Hatchback From date: 01-01-1991 To date: 01-09-1998 Fuel: Gasoline Approved: Yes
    Renault Model: Clio Model series: Clio Size of motor: 1.4 Brand of engine: E7J718 Type description: B,C,S57 Body: Hatchback From date: 01-01-1991 To date: 01-09-1998 Fuel: Gasoline Approved: Yes
    Renault Model: Clio Model series: Clio Size of motor: 1.4 Brand of engine: E7J719 Type description: B,C,S57 Body: Hatchback From date: 01-01-1991 To date: 01-09-1998 Fuel: Gasoline Approved: Yes
    Renault Model: Clio Model series: Clio Size of motor: 1.4 Brand of engine: E7J754 Type description: B,C,S57 Body: Hatchback From date: 01-01-1991 To date: 01-09-1998 Fuel: Gasoline Approved: Yes
    Renault Model: Clio Model series: Clio Type of engine: i Size of motor: 1.4 Brand of engine: E7J601 Type description: B,C57 Body: Hatchback From date: 01-01-1991 To date: 01-09-1998 Fuel: Gasoline Approved: Yes
    Renault Model: Clio Model series: Clio Type of engine: i Size of motor: 1.4 Brand of engine: E7J710 Type description: B,C57 Body: Hatchback From date: 01-01-1991 To date: 01-09-1998 Fuel: Gasoline Approved: Yes
    Renault Model: Clio Model series: Clio Type of engine: i Size of motor: 1.4 Brand of engine: E7J711 Type description: B,C57 Body: Hatchback From date: 01-01-1991 To date: 01-09-1998 Fuel: Gasoline Approved: Yes
    Renault Model: R19 Model series: R19 Size of motor: 1.4 Brand of engine: E6J700 Body: Hatchback From date: 01-01-1988 To date: 01-12-1992 Fuel: Gasoline Approved: Yes
    Renault Model: R19 Model series: R19 Size of motor: 1.4 Brand of engine: E6J700 Body: Hatchback From date: 01-01-1992 To date: 01-12-1995 Fuel: Gasoline Approved: Yes
    Renault Model: R19 Model series: R19 Size of motor: 1.4 Brand of engine: E6J700 Body: Van From date: 01-01-1988 To date: 01-12-1992 Fuel: Gasoline Approved: Yes
    Renault Model: R19 Model series: R19 Size of motor: 1.4 Brand of engine: E7J Body: Van From date: 01-03-1992 To date: 01-12-1995 Fuel: Gasoline Approved: Yes
    Renault Model: R19 Model series: R19 Size of motor: 1.4 Brand of engine: E7J706 Body: Hatchback From date: 01-01-1992 To date: 01-12-1995 Fuel: Gasoline Approved: Yes
    Renault Model: R19 Model series: R19 Size of motor: 1.4 Brand of engine: E7J742 Type description: 53A From date: 01-11-1993 To date: 01-12-1995 Fuel: Gasoline Approved: Yes Manufacture type: Chamade
    Renault Model: R19 Model series: R19 Size of motor: 1.4 Brand of engine: E7J742 Type description: B,C535 Body: Hatchback From date: 01-01-1992 To date: 01-12-1995 Fuel: Gasoline Approved: Yes
    Renault Model: Rapid Model series: Rapid Size of motor: 1.4 Brand of engine: E7J720 Type description: F40U,V Body: Van From date: 01-09-1991 To date: 01-03-1998 Fuel: Gasoline Approved: Yes
    Renault Model: Rapid Model series: Rapid Size of motor: 1.4 Brand of engine: E7J724 Type description: F40U,V Body: Van From date: 01-09-1991 To date: 01-03-1998 Fuel: Gasoline Approved: Yes
    Renault Model: Rapid Model series: Rapid Size of motor: 1.4 Brand of engine: E7J726 Type description: F40U,V Body: Van From date: 01-09-1991 To date: 01-03-1998 Fuel: Gasoline Approved: Yes
    Renault Model: Rapid Model series: Rapid Size of motor: 1.4 Brand of engine: E7J728 Type description: F40D Body: Van From date: 01-01-1994 To date: 01-03-1998 Fuel: Gasoline Approved: Yes
    Renault Model: Rapid Model series: Rapid Size of motor: 1.4 Brand of engine: E7J773 Type description: F40U,V Body: Van From date: 01-09-1991 To date: 01-03-1998 Fuel: Gasoline Approved: Yes
    Renault Series: Clio I Model: 1.2 Engine volume: 1.2 Engine type: E7F 700 / 708 / 750 Year: 01.94-02.98
    Renault Series: Clio I Model: 1.2 Engine volume: 1.2 Engine type: E7F 706 Year: 01.91-01.96
    Renault Series: Clio I Model: 1.4 Engine volume: 1.4 Engine type: E7J 710/11 Year: 07.91-02.98
    Renault Series: Clio I Model: 1.4 Engine volume: 1.4 Engine type: E7J 718 / 719 / 754 Year: 01.91-09.98
    Renault Series: Express Model: 1.4 Engine volume: 1.4 Engine type: E7J 720/724/726/773 Year: 09.91-03.98
    Renault Series: Express Model: 1.4 Engine volume: 1.4 Engine type: E7J 728 Year: 01.94-03.98
    Renault Series: R 19 Model: 1.4 Engine volume: 1.4 Year: 01.89-12.95
    Renault Series: R 19 Model: 1.4, w/o AC Engine volume: 1.4 Engine type: E6J 700 Year: 01.92-12.95
    Renault Series: R 19 Model: 1.4, w/o AC Engine volume: 1.4 Engine type: E7J 706 Year: 05.92-12.95
