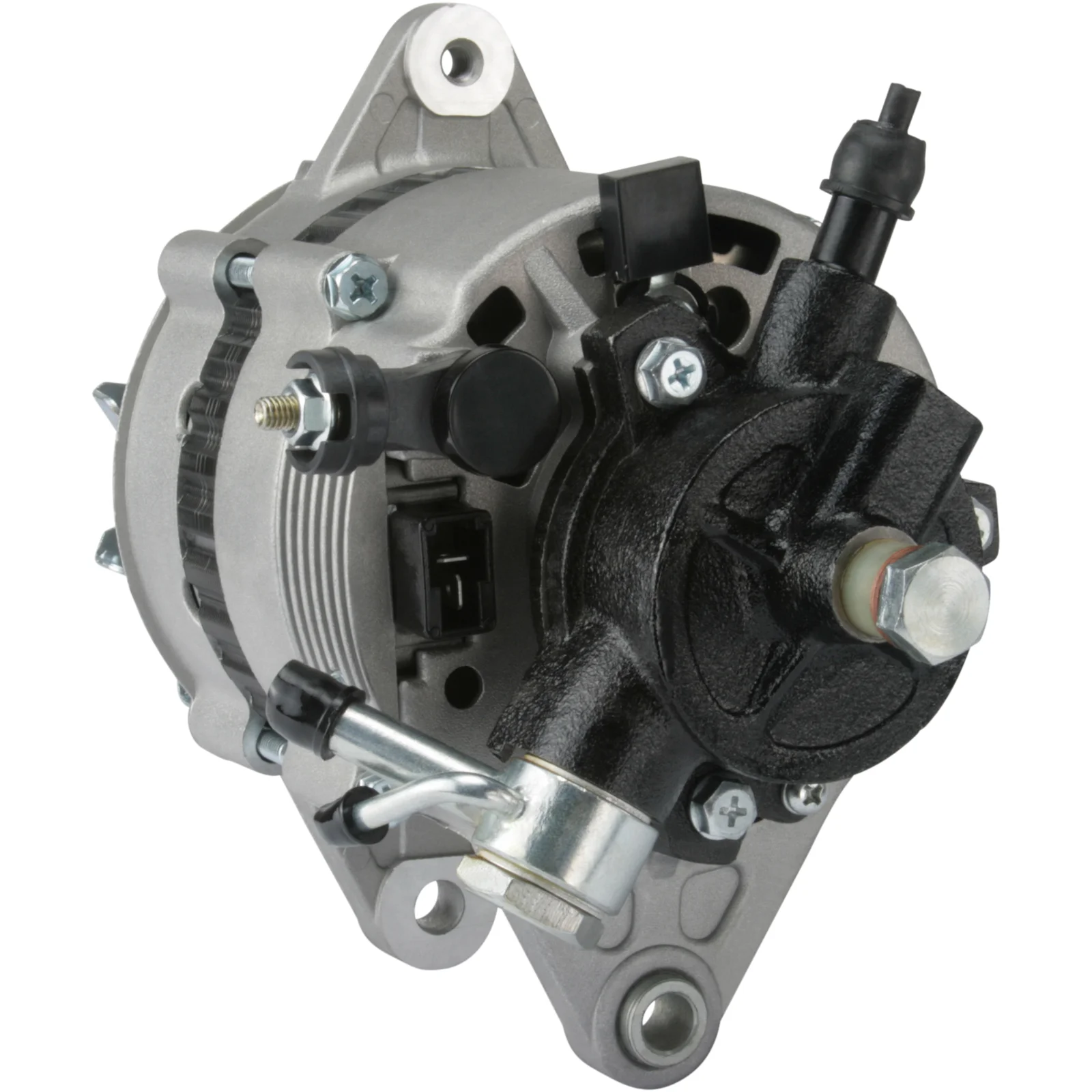

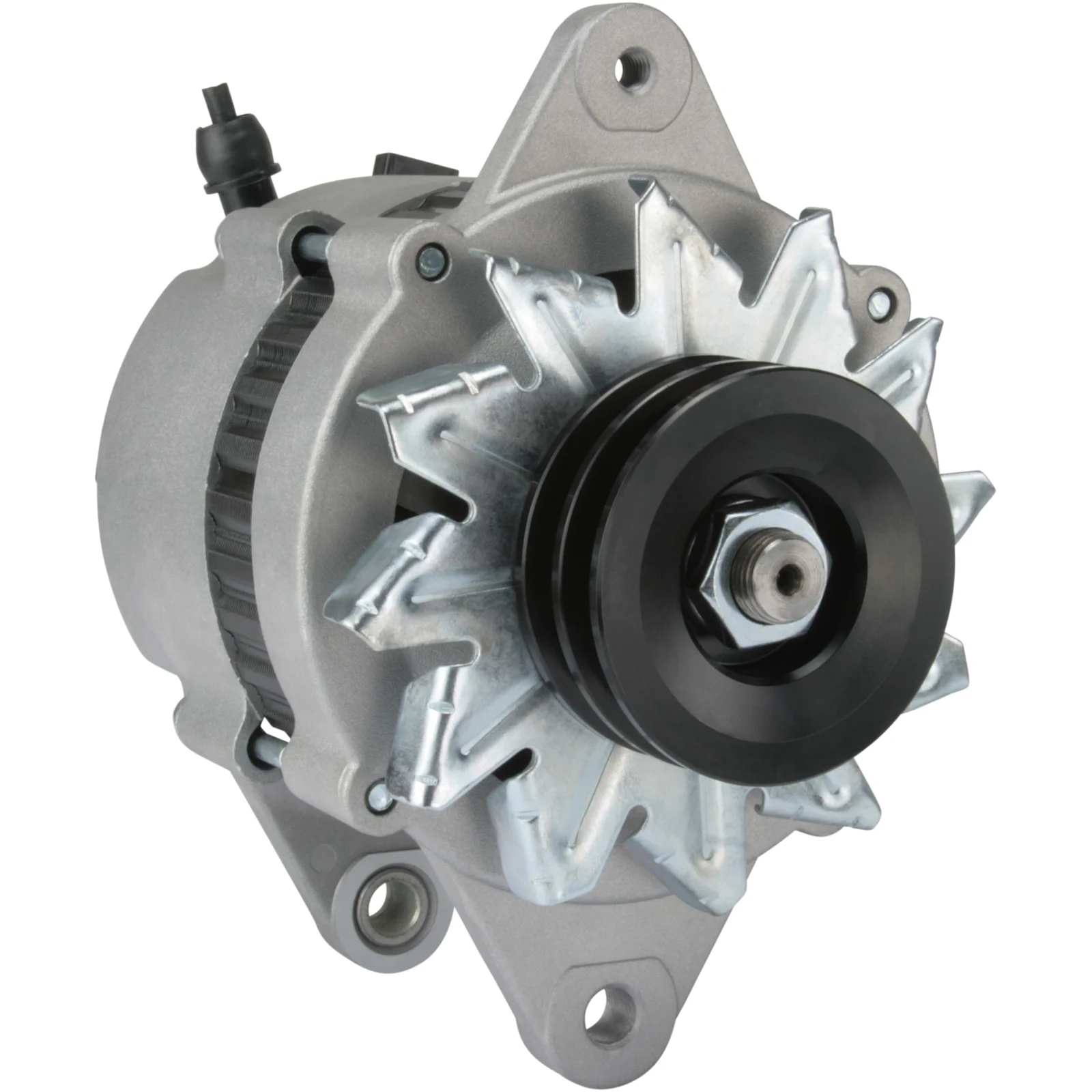

HC-Cargo Generator
HC-Cargo Generator
Vare nr.: F032113903

HC-Cargo Generator

Tekniske oplysninger:

Spænding: 14, Amp: 60, Rotation: CW, Mount. bøjle dist.: 80.60

Beskrivelse

Spænding: 14
Amp: 60
Remskive dist.: 46,50
Bredde/holderarm: 13,00
Montagebeslag dist.: 80,60
Beslaghul: 10,60
Bæltejustering beslaghul pos.: 60
Bæltejustering beslaghul 1: M8
Remskive dia.: 73,20
Riller/remskive: 2
Radius: 90,00
Radius 2: 85,00
B+: M6
Position/B+ i min.: 45
D+ Størrelse: Proppe
Rotation: CW
Proppe nr.: PL09
Total længde mm: 226,00
Remskive: DP
Regulator type: IR
Vakuumpumpe: Ja
Produktion info: BN

Filer

Specifikation

B+ M6
Mount. bracket dist. 80.60
Belt. adj. bracket hole 1 M8
Belt. adj. brackethole pos. 60
Plug no. PL09
Bracket hole 10.60
Position/B+ in min. 45
Prod. info BN
Pulley DP
Pulley dia. 73.20
Pulley dist. 46.50
Radius 90.00
D+ Size Plug
Radius 2 85.00
Regulator type IR
Rotation CW
Grooves/pulley 2
Vac. pump Yes
Voltage 14
Total length 226.00 mm
Width/holder arm 13.00
Amp 60

  • OEM
    0K05418300, 0K05418300A, 0K05418300B, 0K05418300C, F032113903, ja1795ir, OK05418300C, 02121-8074, 37300-2W000, 37300-2W001

  • Konkurrentreferens
    A9070, CAL41100, DRA4198, 28-4821, 524.113.602, 23326, 210250, 210250A, 401795RI, 12060786, 063532621, 063532621010

  • NormaliseratArtNr
    0k05418300, 0k05418300a, 0k05418300b, 0k05418300c, a9070, cal41100, dra4198, f032113903, ja1795ir, ok05418300c, 23326, 210250, 210250a, 284821, 373002w000, 373002w001, 401795ri, 12060786, 021218074, 063532621, 524113602, 063532621010

  • Passar modeller
    Kia Model: Retona Model series: Retona Type of engine: TD Size of motor: 2.0 Brand of engine: RF From date: 01-06-1999 To date: 01-12-2001 Fuel: Diesel Approved: Yes
    Kia Model: Sportage Model series: Sportage Model type: 4WD Type of engine: TD Size of motor: 2.0 Brand of engine: RF From date: 01-10-1997 To date: 01-08-2003 Fuel: Diesel Approved: Yes
    Kia Model: Sportage Model series: Sportage Model type: 4WD Type of engine: TDi Size of motor: 2.0 Brand of engine: RF Body: Box Body / Estate From date: 01-10-1997 To date: 01-08-2003 Fuel: Diesel Approved: Yes
  • Beskrivelse
    Spænding: 14
    Amp: 60
    Remskive dist.: 46,50
    Bredde/holderarm: 13,00
    Montagebeslag dist.: 80,60
    Beslaghul: 10,60
    Bæltejustering beslaghul pos.: 60
    Bæltejustering beslaghul 1: M8
    Remskive dia.: 73,20
    Riller/remskive: 2
    Radius: 90,00
    Radius 2: 85,00
    B+: M6
    Position/B+ i min.: 45
    D+ Størrelse: Proppe
    Rotation: CW
    Proppe nr.: PL09
    Total længde mm: 226,00
    Remskive: DP
    Regulator type: IR
    Vakuumpumpe: Ja
    Produktion info: BN

    Filer

  • Specifikation
    B+ M6
    Mount. bracket dist. 80.60
    Belt. adj. bracket hole 1 M8
    Belt. adj. brackethole pos. 60
    Plug no. PL09
    Bracket hole 10.60
    Position/B+ in min. 45
    Prod. info BN
    Pulley DP
    Pulley dia. 73.20
    Pulley dist. 46.50
    Radius 90.00
    D+ Size Plug
    Radius 2 85.00
    Regulator type IR
    Rotation CW
    Grooves/pulley 2
    Vac. pump Yes
    Voltage 14
    Total length 226.00 mm
    Width/holder arm 13.00
    Amp 60
  • Køretøjsmatchning

    • OEM
      0K05418300, 0K05418300A, 0K05418300B, 0K05418300C, F032113903, ja1795ir, OK05418300C, 02121-8074, 37300-2W000, 37300-2W001

    • Konkurrentreferens
      A9070, CAL41100, DRA4198, 28-4821, 524.113.602, 23326, 210250, 210250A, 401795RI, 12060786, 063532621, 063532621010

    • NormaliseratArtNr
      0k05418300, 0k05418300a, 0k05418300b, 0k05418300c, a9070, cal41100, dra4198, f032113903, ja1795ir, ok05418300c, 23326, 210250, 210250a, 284821, 373002w000, 373002w001, 401795ri, 12060786, 021218074, 063532621, 524113602, 063532621010

    • Passar modeller
      Kia Model: Retona Model series: Retona Type of engine: TD Size of motor: 2.0 Brand of engine: RF From date: 01-06-1999 To date: 01-12-2001 Fuel: Diesel Approved: Yes
      Kia Model: Sportage Model series: Sportage Model type: 4WD Type of engine: TD Size of motor: 2.0 Brand of engine: RF From date: 01-10-1997 To date: 01-08-2003 Fuel: Diesel Approved: Yes
      Kia Model: Sportage Model series: Sportage Model type: 4WD Type of engine: TDi Size of motor: 2.0 Brand of engine: RF Body: Box Body / Estate From date: 01-10-1997 To date: 01-08-2003 Fuel: Diesel Approved: Yes
