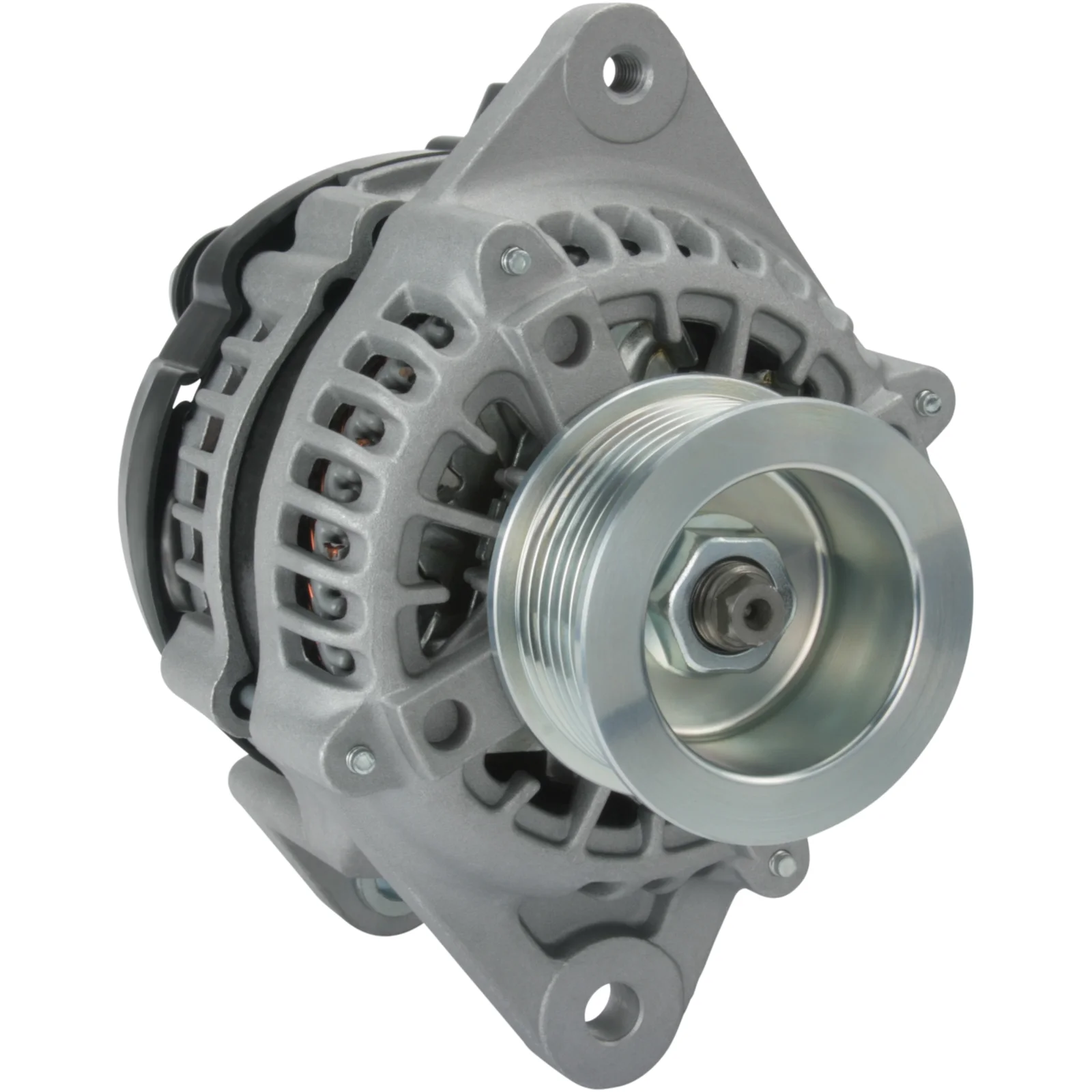

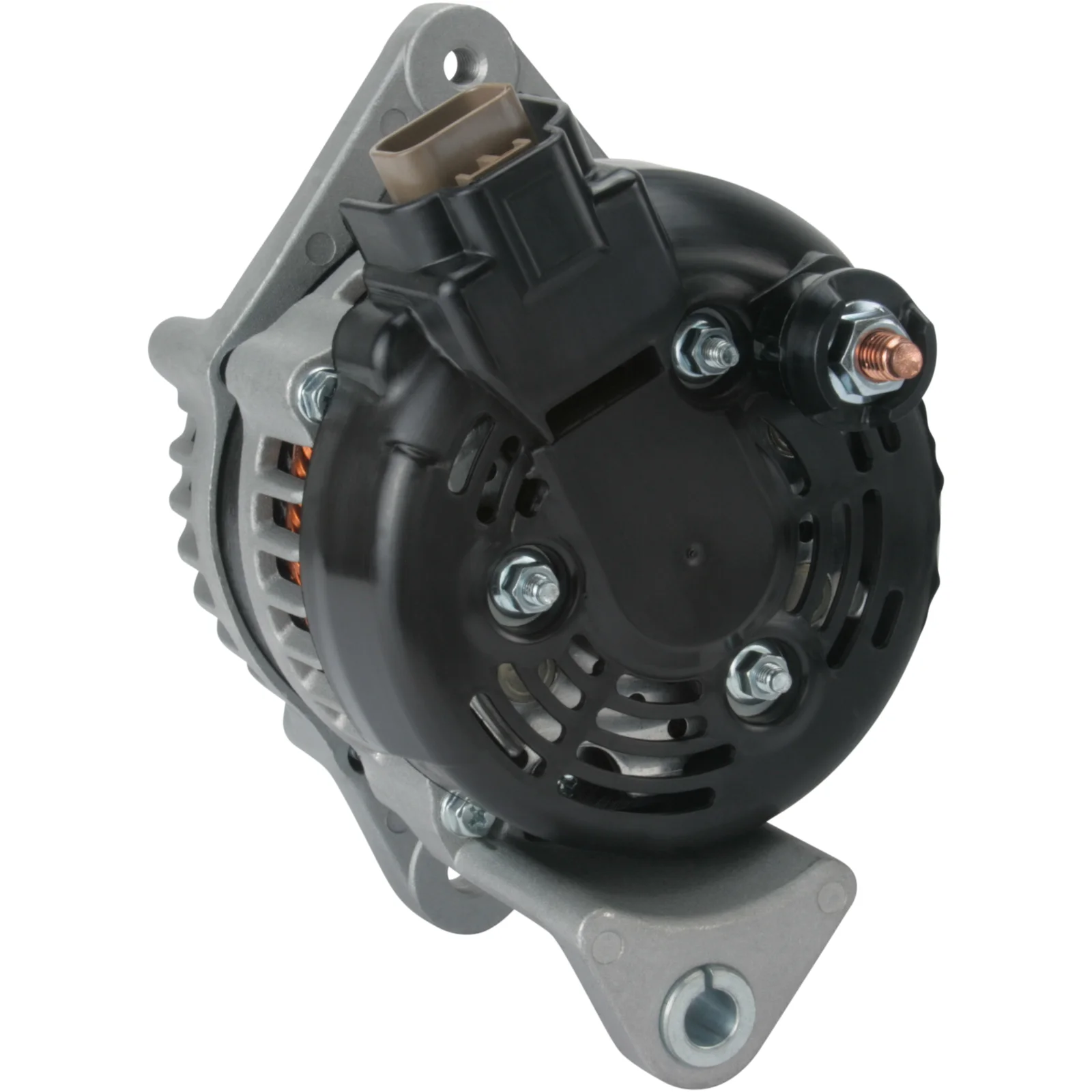

HC-Cargo Generator
HC-Cargo Generator
Vare nr.: F032115683

HC-Cargo Generator

Tekniske oplysninger:

Spænding: 14, Amp: 85, Rotation: CW, Monteringsbeslag for fordelingsskive: 80,00

Beskrivelse

Isuzu D-MAX 2.5D Gen. 12V-90A 12V - 90A, 7 rækker, ( - , L) For Yourex produkt ordre 90-250-4903

Spænding: 14
Ampere: 85
Bæltehjul afb. afstand: 43.00
Bredde/holderarm: 13.00
Monteringsbeslag afstand: 80.00
Bøsning til beslag: 10.20
Bæltejustering beslag hul position: 60
Bæltejustering beslag hul 1: M8
Bæltehjuls dia.: 62.50
Riller/bæltehjul: 7
Radius: 80.50
Radius 2: 80.50
B+: M8
Position/B+ i min.: 5
D+ Størrelse: Pluggemøtrik
Rotation: CW
Plug nummer: PL100
Samlet længde mm: 185.00
Bæltehjul: SP
Regulator type: IR
Produktinfo: BN

Filer

Specifikation

B+ M8
Mount. bracket dist. 80.00
Belt. adj. bracket hole 1 M8
Belt. adj. brackethole pos. 60
Plug no. PL100
Bracket hole 10.20
Position/B+ in min. 5
Prod. info BN
Pulley SP
Pulley dia. 62.50
Pulley dist. 43.00
Radius 80.50
D+ Size Plug
Radius 2 80.50
Regulator type IR
Rotation CW
Grooves/pulley 7
Voltage 14
Total length 185.00 mm
Width/holder arm 13.00
Amp 85

  • OEM
    F032115683, TG1042109033, TG1042109840, 8-98196-5850, 8-98229-0710, 104210-9030, 104210-9031, 104210-9032, 104210-9033, 104210-9840, 104210-9841, 104210-9960, 115683, 8973697161, 8981530040, 8981965850, 8982290710, 8982290711, 8982903230

  • Konkurrentreferens
    A6152, A6611S, CAL40313, CAL40584, DAN1487, DRA1314, F042205224, LRA03597, 8EL015630-551, 28-6707, 28-7628, 28-7641, 135.573.080, 135.573.090, 135.928.090, 243.130.802, 20212N, 554321RI, 12060997

  • Bilmärken
    Isuzu

  • NormaliseratArtNr
    a6152, a6611s, cal40313, cal40584, dan1487, dra1314, f032115683, f042205224, lra03597, tg1042109033, tg1042109840, 8el015630551, 20212n, 115683, 286707, 287628, 287641, 554321ri, 12060997, 135573080, 135573090, 135928090, 243130802, 1042109030, 1042109031, 1042109032, 1042109033, 1042109840, 1042109841, 1042109960, 8973697161, 8981530040, 8981965850, 8982290710, 8982290711, 8982903230

  • Passar modeller
    Isuzu Model: D-Max Model series: D-Max Model type: 4WD Type of engine: Ddi Size of motor: 2.5 Brand of engine: 4JK-1E5-TC Body: Pick Up From date: 01-06-2012 Fuel: Diesel Approved: Yes
    Isuzu Model: D-Max Model series: D-Max Model type: 4WD Type of engine: Ddi Size of motor: 2.5 Brand of engine: 4JK-1E5-TC Body: Platform / Chassis From date: 01-06-2012 Fuel: Diesel Approved: Yes
    Isuzu Model: D-Max Model series: D-Max Model type: 4WD Type of engine: Ddi Size of motor: 2.5 Brand of engine: 4JK1E5S-L Body: Pick Up From date: 01-06-2012 Fuel: Diesel Approved: Yes
    Isuzu Model: D-Max Model series: D-Max Type of engine: Ddi Size of motor: 2.5 Brand of engine: 4JK-1E5-TC Body: Pick Up From date: 01-06-2012 Fuel: Diesel Approved: Yes
    Isuzu Model: D-Max Model series: D-Max Type of engine: Ddi Size of motor: 2.5 Brand of engine: 4JK-1E5-TC Body: Platform / Chassis From date: 01-06-2012 Fuel: Diesel Approved: Yes
    Isuzu Model: D-Max Model series: D-Max Type of engine: Ddi Size of motor: 2.5 Brand of engine: 4JK1E5S-L Body: Pick Up From date: 01-06-2012 Fuel: Diesel Approved: Yes
    Isuzu Model: D-MAX Model series: D-MAX Type of engine: Diesel Size of motor: 2.5 Brand of engine: 4JK1-TC Type description: 8DH Body: Pick Up From date: 01-01-2007 To date: 01-06-2012 Fuel: Diesel Approved: Yes
    Isuzu Model: D-Max Model series: D-Max Type of engine: Diesel Size of motor: 3.0 Brand of engine: 4JJ1-TC Type description: 8DH Body: Pick Up From date: 01-01-2007 To date: 01-06-2012 Fuel: Diesel Approved: Yes
    Isuzu Model: D-MAX Model series: D-MAX Type of engine: Diesel Size of motor: 3.0 Brand of engine: 4JJ1-TC Type description: 8DH Body: Pick Up From date: 01-01-2007 To date: 01-06-2012 Fuel: Diesel Approved: Yes
    Isuzu Model: D-Max Model series: D-Max Type of engine: DiTD Size of motor: 2.5 Brand of engine: 4JK1-TC Type description: 8DH Body: Pick Up From date: 01-10-2006 To date: 01-06-2012 Fuel: Diesel Approved: Yes
    Isuzu Series: D-MAX I Model: 2.5 DiTD 4x4 Engine volume: 2.5 Engine type: 4JK1-TC Year: 01.07-06.12
    Isuzu Series: D-MAX II Model: 2.5 CRDi 4x4 Engine volume: 2.5 Engine type: 4JK1... Year: 06.12-
