HC-Cargo Generator
HC-Cargo Generator
Vare nr.: F032116304

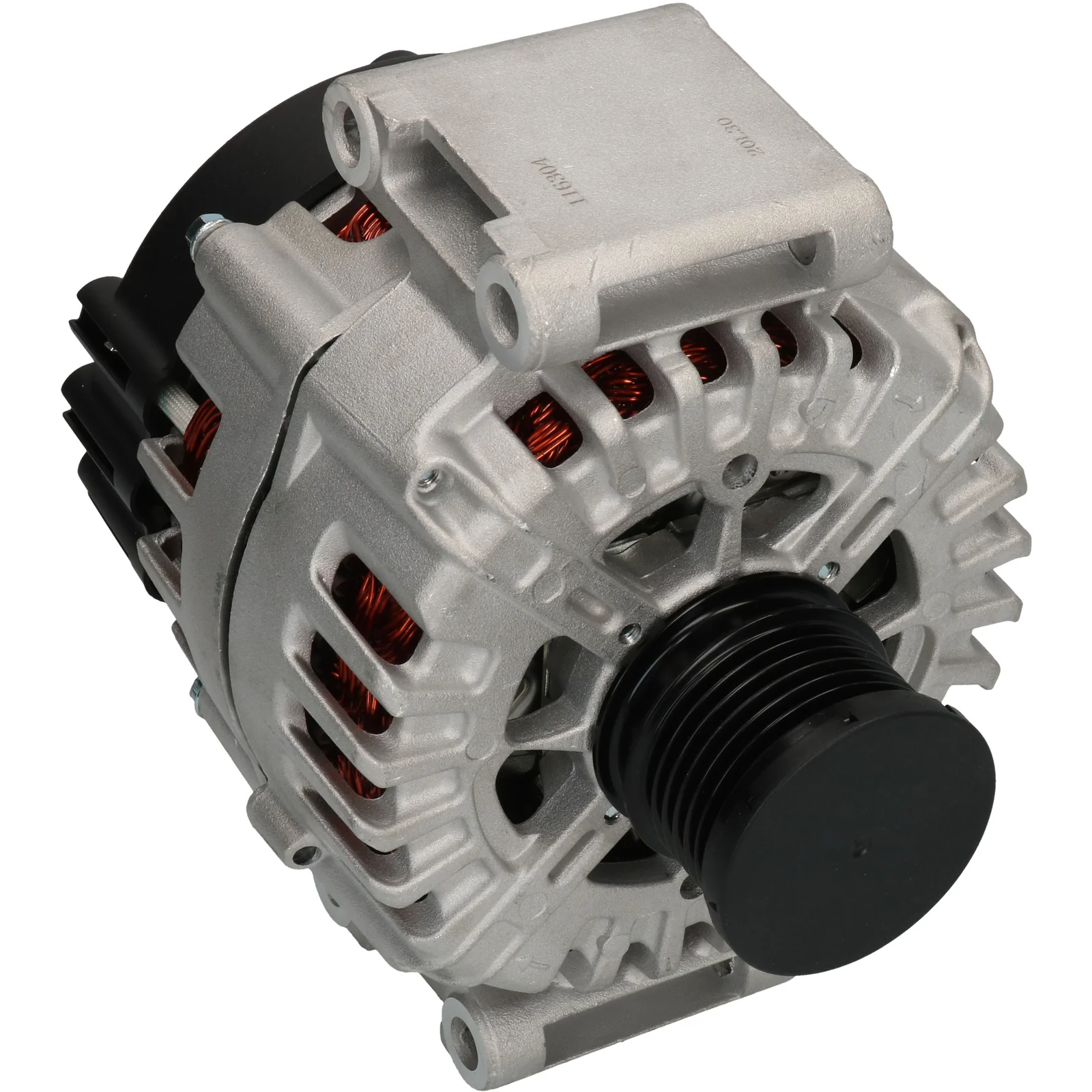

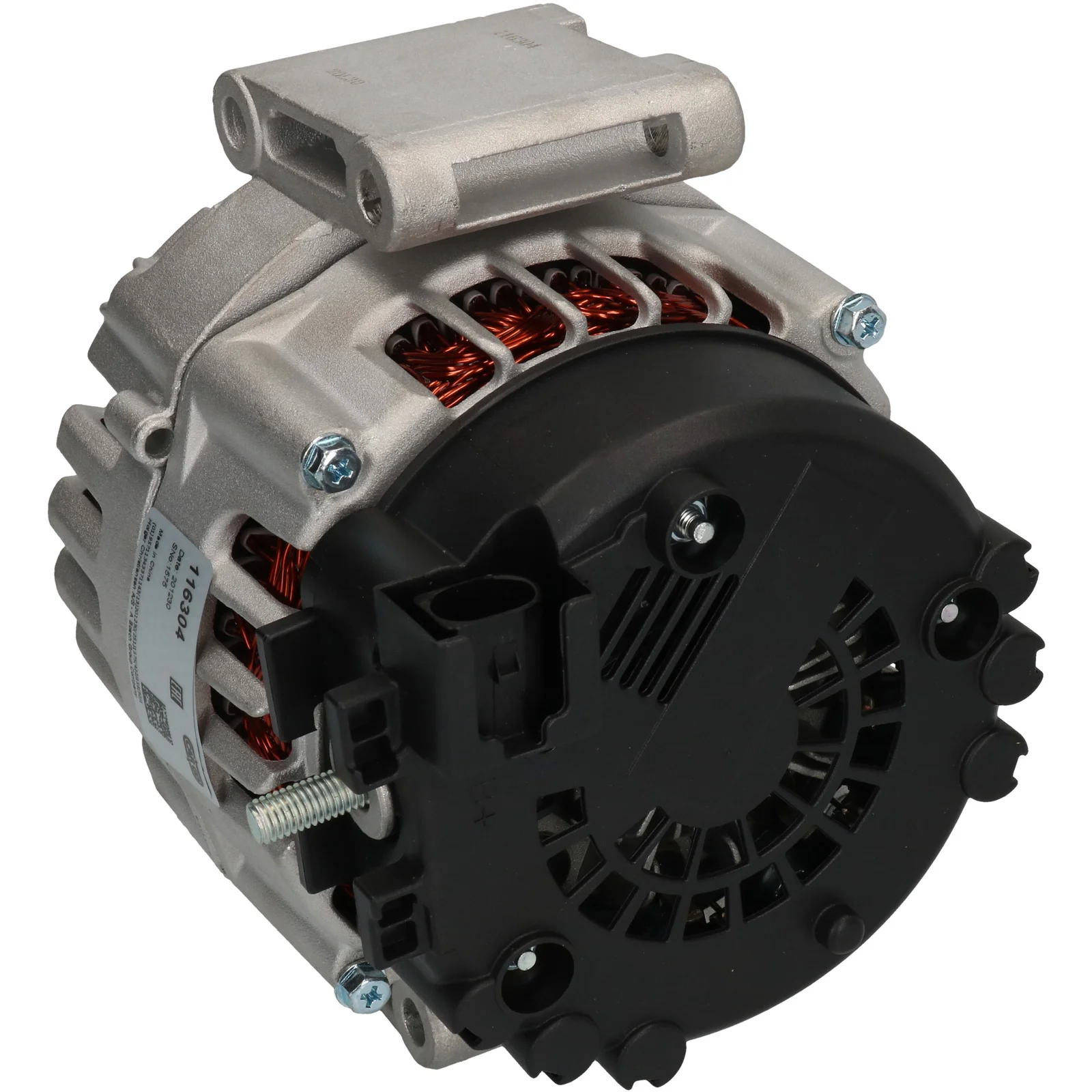

HC-Cargo Generator

Tekniske oplysninger:

Spænding: 14, Amp: 180, Rotation: CW, Monteringsbeslag afstand: 55,80

Beskrivelse

Generator 12V-180A (MB) 12V - 180A, 6gr.frg, (LIN) Biler UDEN Start/Stop Biler UDEN Start/Stop For Yourex produktordre 90-365-1439

Volt: 14
Amp.: 180
Drivehjulets afstand: 31,60
Bredde/holder arm: 70,00
Montagebeslag afstand: 55,80
Beslagshulder: 9,20
Bælte justering beslag hul 1: 8,50
Drivehjuls diamenter: 50,00
Grooves/drivehjul: 6
Radius: 81,50
Radius 2: 81,50
B+: M8
Position/B+ i min.: 15
Rotation: CW
Stik no.: PL125
Total længde mm: 193,00
Terminaltype: COM
ID-kode: 41
Kommunikation: LIN
Drivehjul: SP/FW
Fan: IF
Regulator type: IR
Bemærkninger: Denne generator har en COM terminal på regulatoren. Det anbefales at anvende OEM-nummeret til at kontrollere egnetheden før bestilling.

Filer

Specifikation

B+ M8
Communication LIN
Mount. bracket dist. 55.80
Belt. adj. bracket hole 1 8.50
Plug no. PL125
Bracket hole 9.20
Position/B+ in min. 15
Pulley SP/FW
Pulley dia. 50.00
Pulley dist. 31.60
Radius 81.50
Radius 2 81.50
Regulator type IR
Remarks This Alternator has a COM terminal on the regulator. It is recommended that the OEM number is used to check suitability before ordering.
Rotation CW
Fan IF
Grooves/pulley 6
ID Code 41
Terminal type COM
Voltage 14
Total length 193.00 mm
Width/holder arm 70.00
Amp 180

  • OEM
    A014 1543902, A0141543902, A01415439020080, A0141543902080, A014154390280, A3466S, CAL15564, DRA1067, F032116304, FG18S 047, FG18S047, FGN18S047, LRA03471, 014 154 3902, 28-6581, 95 608 852, 225.304.1802, 555.592.180, 11738N, 116304, 209175, 209175A, 439704, 440295, 553550RI, 2607384, 2607384A, 9090678, 12090646, 0141543902, 141543902, 014154390280, 0141543902080, 01415439020080

  • Konkurrentreferens
    A3466S, CAL15564, DRA1067, LRA03471, 28-6581, 225.304.1802, 555.592.180, 11738N, 209175, 209175A, 439704, 440295, 553550RI, 9090678, 12090646

  • Bilmärken
    MERCEDES-BENZ

  • NormaliseratArtNr
    a0141543902, a01415439020080, a0141543902080, a014154390280, a3466s, cal15564, dra1067, f032116304, fg18s047, fgn18s047, lra03471, 11738n, 116304, 209175, 209175a, 286581, 439704, 440295, 553550ri, 2607384, 2607384a, 9090678, 12090646, 95608852, 0141543902, 141543902, 555592180, 2253041802, 014154390280, 0141543902080, 01415439020080

  • Passar modeller
    MERCEDES-BENZ E-KLASS (W212) E 250 CDI / BlueTEC 4-matic (212.082, 212.097) Engine volume: 2.2 Engine type: OM 651.924 Year: 01.11-12.15
    MERCEDES-BENZ E-KLASS T-Model (S212) E 250 CDI / BlueTEC 4-matic (212.282, 212.297) Engine volume: 2.2 Engine type: OM 651.924 Year: 07.10-12.16
    MERCEDES-BENZ GLK-KLASS (X204) 220 CDI 4-matic (204.984) Engine volume: 2.2 Engine type: OM 651.912 Year: 12.08-06.15
    MERCEDES-BENZ GLK-KLASS (X204) 220 CDI 4-matic (204.984, 204.997) Engine volume: 2.2 Engine type: OM 651.912 Year: 12.08-06.15
    MERCEDES-BENZ GLK-KLASS (X204) 250 CDI 4-matic (204.982, 204.904) Engine volume: 2.2 Engine type: OM 651.912 Year: 09.09-06.15
  • Beskrivelse
    Generator 12V-180A (MB) 12V - 180A, 6gr.frg, (LIN) Biler UDEN Start/Stop Biler UDEN Start/Stop For Yourex produktordre 90-365-1439

    Volt: 14
    Amp.: 180
    Drivehjulets afstand: 31,60
    Bredde/holder arm: 70,00
    Montagebeslag afstand: 55,80
    Beslagshulder: 9,20
    Bælte justering beslag hul 1: 8,50
    Drivehjuls diamenter: 50,00
    Grooves/drivehjul: 6
    Radius: 81,50
    Radius 2: 81,50
    B+: M8
    Position/B+ i min.: 15
    Rotation: CW
    Stik no.: PL125
    Total længde mm: 193,00
    Terminaltype: COM
    ID-kode: 41
    Kommunikation: LIN
    Drivehjul: SP/FW
    Fan: IF
    Regulator type: IR
    Bemærkninger: Denne generator har en COM terminal på regulatoren. Det anbefales at anvende OEM-nummeret til at kontrollere egnetheden før bestilling.

    Filer

  • Specifikation
    B+ M8
    Communication LIN
    Mount. bracket dist. 55.80
    Belt. adj. bracket hole 1 8.50
    Plug no. PL125
    Bracket hole 9.20
    Position/B+ in min. 15
    Pulley SP/FW
    Pulley dia. 50.00
    Pulley dist. 31.60
    Radius 81.50
    Radius 2 81.50
    Regulator type IR
    Remarks This Alternator has a COM terminal on the regulator. It is recommended that the OEM number is used to check suitability before ordering.
    Rotation CW
    Fan IF
    Grooves/pulley 6
    ID Code 41
    Terminal type COM
    Voltage 14
    Total length 193.00 mm
    Width/holder arm 70.00
    Amp 180
  • Køretøjsmatchning

    • OEM
      A014 1543902, A0141543902, A01415439020080, A0141543902080, A014154390280, A3466S, CAL15564, DRA1067, F032116304, FG18S 047, FG18S047, FGN18S047, LRA03471, 014 154 3902, 28-6581, 95 608 852, 225.304.1802, 555.592.180, 11738N, 116304, 209175, 209175A, 439704, 440295, 553550RI, 2607384, 2607384A, 9090678, 12090646, 0141543902, 141543902, 014154390280, 0141543902080, 01415439020080

    • Konkurrentreferens
      A3466S, CAL15564, DRA1067, LRA03471, 28-6581, 225.304.1802, 555.592.180, 11738N, 209175, 209175A, 439704, 440295, 553550RI, 9090678, 12090646

    • Bilmärken
      MERCEDES-BENZ

    • NormaliseratArtNr
      a0141543902, a01415439020080, a0141543902080, a014154390280, a3466s, cal15564, dra1067, f032116304, fg18s047, fgn18s047, lra03471, 11738n, 116304, 209175, 209175a, 286581, 439704, 440295, 553550ri, 2607384, 2607384a, 9090678, 12090646, 95608852, 0141543902, 141543902, 555592180, 2253041802, 014154390280, 0141543902080, 01415439020080

    • Passar modeller
      MERCEDES-BENZ E-KLASS (W212) E 250 CDI / BlueTEC 4-matic (212.082, 212.097) Engine volume: 2.2 Engine type: OM 651.924 Year: 01.11-12.15
      MERCEDES-BENZ E-KLASS T-Model (S212) E 250 CDI / BlueTEC 4-matic (212.282, 212.297) Engine volume: 2.2 Engine type: OM 651.924 Year: 07.10-12.16
      MERCEDES-BENZ GLK-KLASS (X204) 220 CDI 4-matic (204.984) Engine volume: 2.2 Engine type: OM 651.912 Year: 12.08-06.15
      MERCEDES-BENZ GLK-KLASS (X204) 220 CDI 4-matic (204.984, 204.997) Engine volume: 2.2 Engine type: OM 651.912 Year: 12.08-06.15
      MERCEDES-BENZ GLK-KLASS (X204) 250 CDI 4-matic (204.982, 204.904) Engine volume: 2.2 Engine type: OM 651.912 Year: 09.09-06.15
