HC-Cargo Generator
HC-Cargo Generator
Vare nr.: F032113324

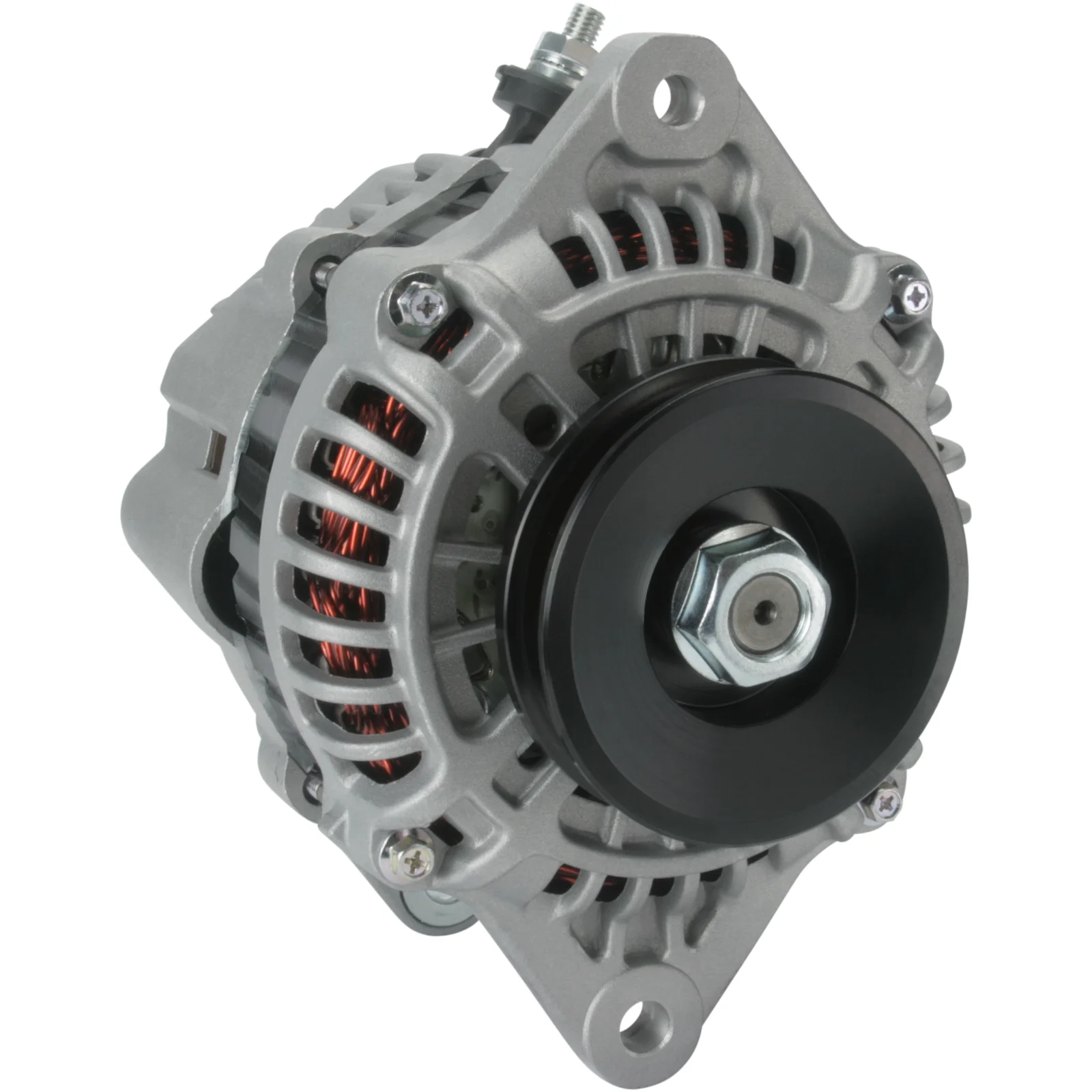

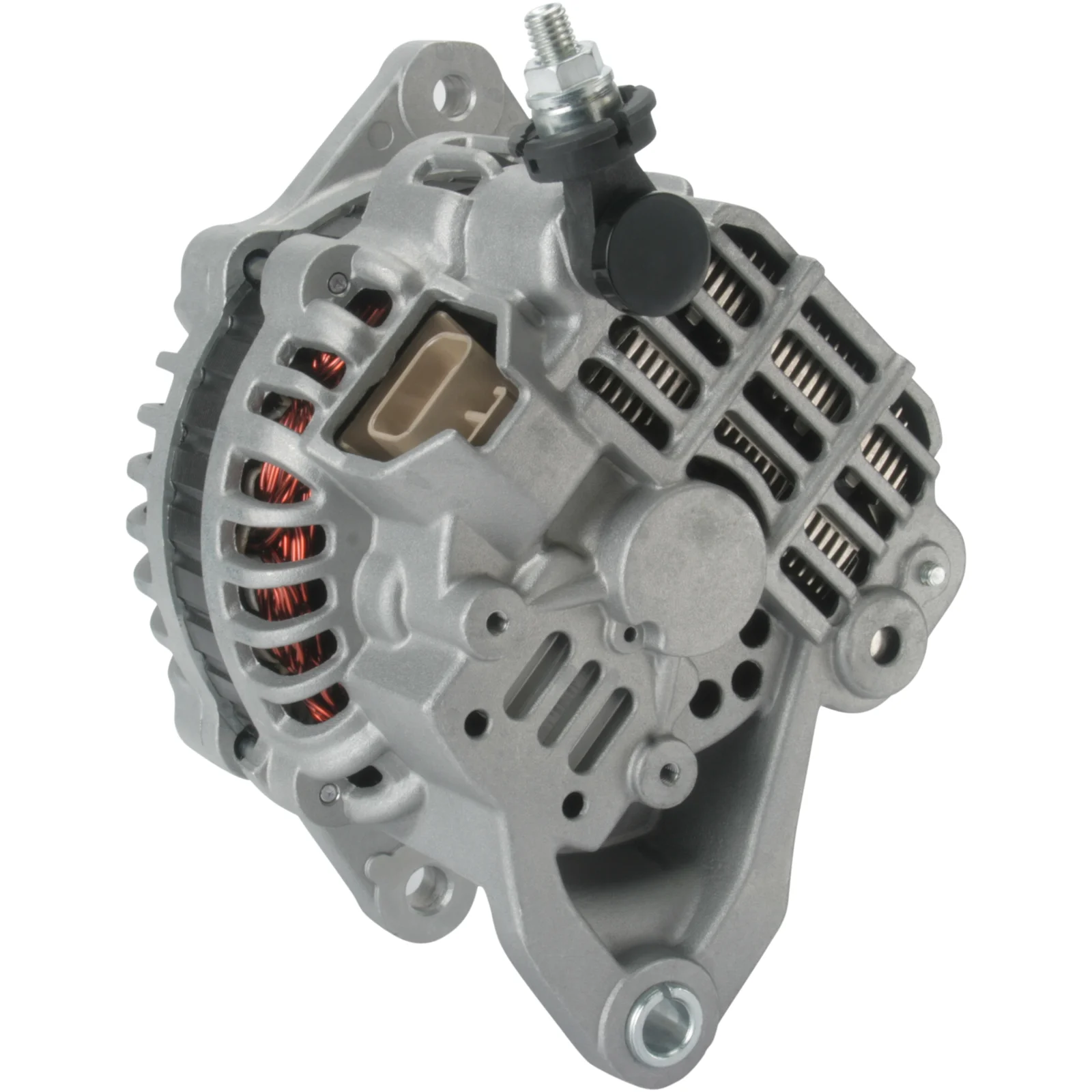

HC-Cargo Generator

Tekniske oplysninger:

Spænding: 14, Amp: 90, Rotation: CW, Monteringsbeslag afstanden: 80,80

Beskrivelse

Spenning: 14
Amp: 90
Bøsning afstand.: 42,50
Bredde/holder arm: 13,00
Påsætningsbeslag afstand.: 80,80
Beslaghul: 10,20
Kørtidsjustering beslaghul pos.: 60
Kørtidsjustering beslaghul 1: 8,30
Bælte hjul dia.: 85,70
Riller/bæltehjul: 1
Radius: 90,00
Radius 2: 85,50
B+: M8
Position/B+ i min.: 57
D+ Størrelse: Stik
Rotation: CW
Stik nr.: PL07
Samlet længde mm: 164,00
Bæltehjul: P
Regulator type: IR
Produktoplysninger: BN
Service: Nissan

Filer

Specifikation

B+ M8
Mount. bracket dist. 80.80
Belt. adj. bracket hole 1 8.30
Belt. adj. brackethole pos. 60
Plug no. PL07
Bracket hole 10.20
Position/B+ in min. 57
Prod. info BN
Pulley P
Pulley dia. 85.70
Pulley dist. 42.50
Radius 90.00
D+ Size Plug
Radius 2 85.50
Regulator type IR
Rotation CW
Servicing Nissan
Grooves/pulley 1
Voltage 14
Total length 164.00 mm
Width/holder arm 13.00
Amp 90

  • OEM
    A003TB0771, a3tb0771, F032113324, ja1615ir, 1986A00938, 1986A01198, 23100-5m310

  • Konkurrentreferens
    A5042, A5042PR, ALT-H128, CAL20108, CAL35196, DRA0386, F042A0H128, J5111098, LRA02225, 8EL012428-281, 8EL737990-001, 28-4699, 227.176.902, 227.187.902, 9212, 21500N, 210532, 210532A, 401615RI, 440535, 9213497, 12060837, 0986080430, 944390904210

  • NormaliseratArtNr
    a003tb0771, a3tb0771, a5042, a5042pr, alth128, cal20108, cal35196, dra0386, f032113324, f042a0h128, j5111098, ja1615ir, lra02225, 8el012428281, 8el737990001, 1986a00938, 1986a01198, 9212, 21500n, 210532, 210532a, 231005m310, 284699, 401615ri, 440535, 9213497, 12060837, 227176902, 227187902, 0986080430, 944390904210

  • Passar modeller
    Nissan Model: Almera Model series: Almera Type of engine: Diesel Di Size of motor: 2.2 Brand of engine: YD22DDT Type description: N16 From date: 01-07-2000 To date: 01-04-2003 Fuel: Diesel Approved: Yes
    Nissan Model: Pick-Up Model series: Pick-Up Model type: 4WD Type of engine: TD Size of motor: 2.5 Brand of engine: TD25Ti Type description: D22 Body: Pick Up From date: 01-05-1998 To date: 01-04-2005 Fuel: Diesel Approved: Yes
    Nissan Model: Pick-Up Model series: Pick-Up Type of engine: TD Size of motor: 2.5 Brand of engine: YD25DDTi Type description: D22 Body: Pick Up From date: 01-03-2002 To date: 01-12-2010 Fuel: Diesel Approved: Yes
    Nissan Model: X-Trail Model series: X-Trail Model type: 4WD Type of engine: DCi Size of motor: 2.2 Brand of engine: YD22DDTI Type description: T30 From date: 01-06-2001 To date: 01-12-2008 Fuel: Diesel Approved: Yes
    Nissan Model: X-Trail Model series: X-Trail Model type: 4WD Type of engine: Di Size of motor: 2.2 Brand of engine: YD22ETI Type description: T30 From date: 01-07-2001 To date: 01-10-2005 Fuel: Diesel Approved: Yes
    Nissan Model: X-Trail Model series: X-Trail Type of engine: DCi Size of motor: 2.2 Brand of engine: YD22DDTI Type description: T30 From date: 01-12-2003 To date: 01-01-2013 Fuel: Diesel Approved: Yes
    1 / 2
  • Beskrivelse
    Spenning: 14
    Amp: 90
    Bøsning afstand.: 42,50
    Bredde/holder arm: 13,00
    Påsætningsbeslag afstand.: 80,80
    Beslaghul: 10,20
    Kørtidsjustering beslaghul pos.: 60
    Kørtidsjustering beslaghul 1: 8,30
    Bælte hjul dia.: 85,70
    Riller/bæltehjul: 1
    Radius: 90,00
    Radius 2: 85,50
    B+: M8
    Position/B+ i min.: 57
    D+ Størrelse: Stik
    Rotation: CW
    Stik nr.: PL07
    Samlet længde mm: 164,00
    Bæltehjul: P
    Regulator type: IR
    Produktoplysninger: BN
    Service: Nissan

    Filer

  • Specifikation
    B+ M8
    Mount. bracket dist. 80.80
    Belt. adj. bracket hole 1 8.30
    Belt. adj. brackethole pos. 60
    Plug no. PL07
    Bracket hole 10.20
    Position/B+ in min. 57
    Prod. info BN
    Pulley P
    Pulley dia. 85.70
    Pulley dist. 42.50
    Radius 90.00
    D+ Size Plug
    Radius 2 85.50
    Regulator type IR
    Rotation CW
    Servicing Nissan
    Grooves/pulley 1
    Voltage 14
    Total length 164.00 mm
    Width/holder arm 13.00
    Amp 90
  • Køretøjsmatchning

    • OEM
      A003TB0771, a3tb0771, F032113324, ja1615ir, 1986A00938, 1986A01198, 23100-5m310

    • Konkurrentreferens
      A5042, A5042PR, ALT-H128, CAL20108, CAL35196, DRA0386, F042A0H128, J5111098, LRA02225, 8EL012428-281, 8EL737990-001, 28-4699, 227.176.902, 227.187.902, 9212, 21500N, 210532, 210532A, 401615RI, 440535, 9213497, 12060837, 0986080430, 944390904210

    • NormaliseratArtNr
      a003tb0771, a3tb0771, a5042, a5042pr, alth128, cal20108, cal35196, dra0386, f032113324, f042a0h128, j5111098, ja1615ir, lra02225, 8el012428281, 8el737990001, 1986a00938, 1986a01198, 9212, 21500n, 210532, 210532a, 231005m310, 284699, 401615ri, 440535, 9213497, 12060837, 227176902, 227187902, 0986080430, 944390904210

    • Passar modeller
      Nissan Model: Almera Model series: Almera Type of engine: Diesel Di Size of motor: 2.2 Brand of engine: YD22DDT Type description: N16 From date: 01-07-2000 To date: 01-04-2003 Fuel: Diesel Approved: Yes
      Nissan Model: Pick-Up Model series: Pick-Up Model type: 4WD Type of engine: TD Size of motor: 2.5 Brand of engine: TD25Ti Type description: D22 Body: Pick Up From date: 01-05-1998 To date: 01-04-2005 Fuel: Diesel Approved: Yes
      Nissan Model: Pick-Up Model series: Pick-Up Type of engine: TD Size of motor: 2.5 Brand of engine: YD25DDTi Type description: D22 Body: Pick Up From date: 01-03-2002 To date: 01-12-2010 Fuel: Diesel Approved: Yes
      Nissan Model: X-Trail Model series: X-Trail Model type: 4WD Type of engine: DCi Size of motor: 2.2 Brand of engine: YD22DDTI Type description: T30 From date: 01-06-2001 To date: 01-12-2008 Fuel: Diesel Approved: Yes
      Nissan Model: X-Trail Model series: X-Trail Model type: 4WD Type of engine: Di Size of motor: 2.2 Brand of engine: YD22ETI Type description: T30 From date: 01-07-2001 To date: 01-10-2005 Fuel: Diesel Approved: Yes
      Nissan Model: X-Trail Model series: X-Trail Type of engine: DCi Size of motor: 2.2 Brand of engine: YD22DDTI Type description: T30 From date: 01-12-2003 To date: 01-01-2013 Fuel: Diesel Approved: Yes
      1 / 2
