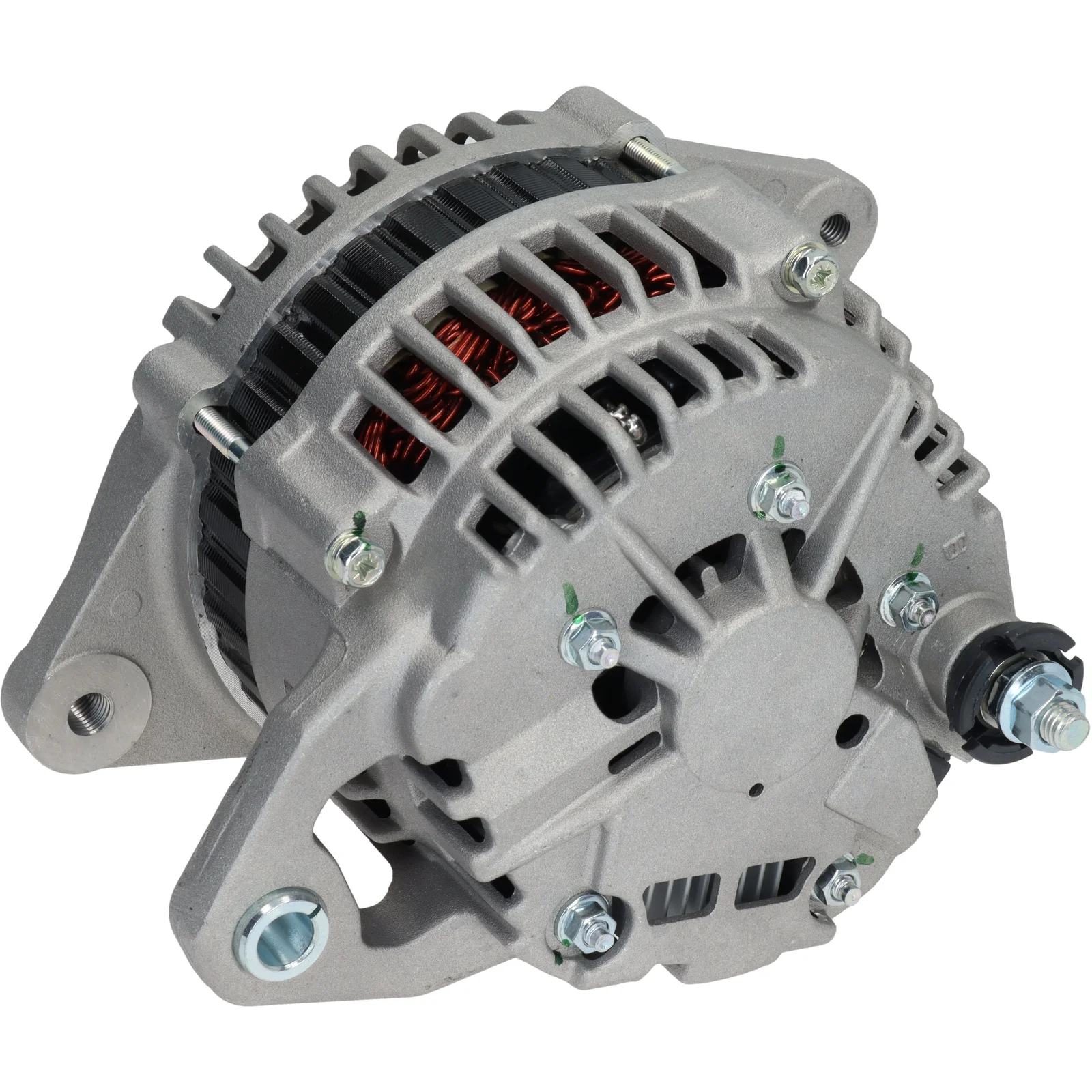

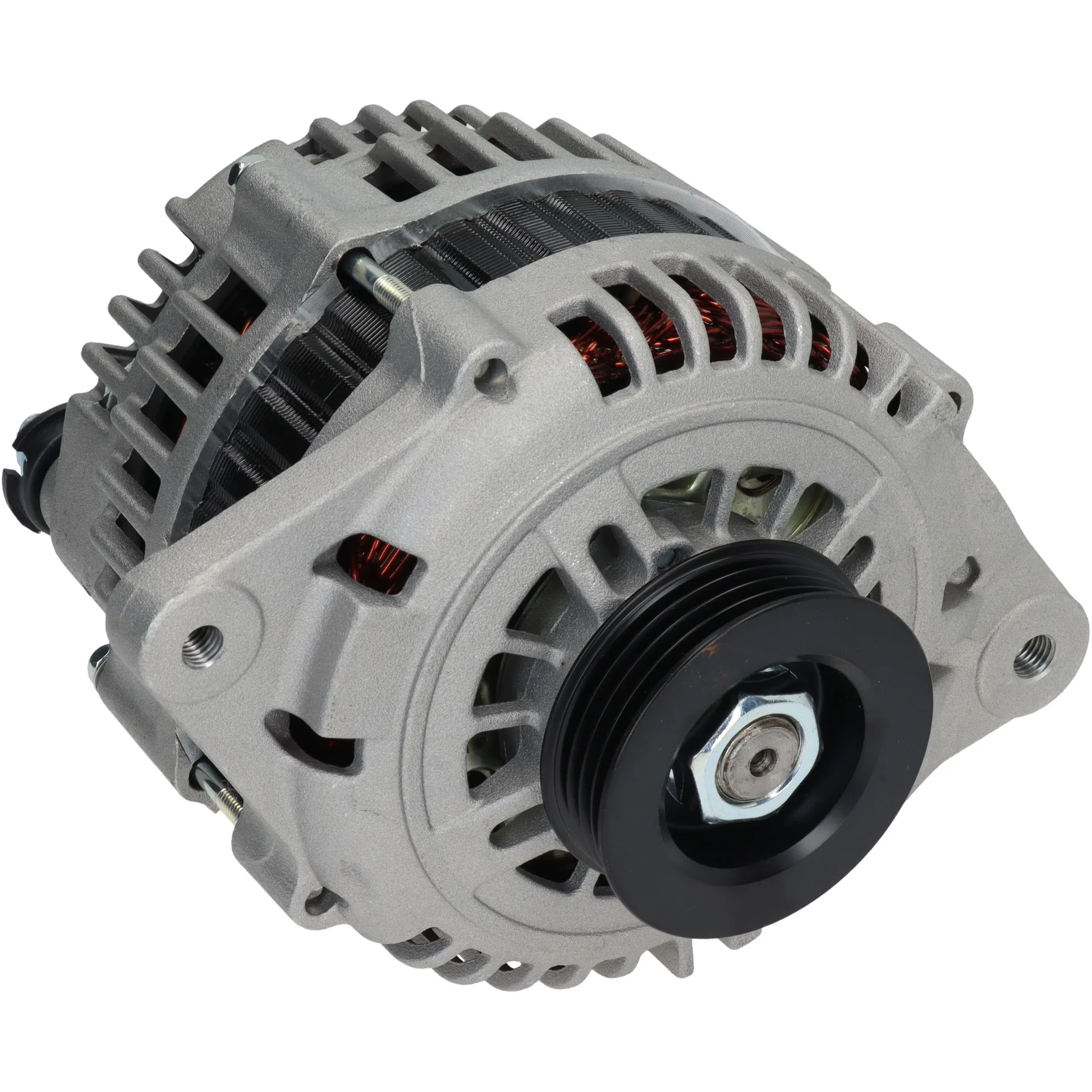

HC-Cargo Generator
HC-Cargo Generator
Vare nr.: F032116493

HC-Cargo Generator

Tekniske oplysninger:

SPÆNDING: 14, Amp: 70, Rotation: CW, Mount. bøsning dist.: 67.00

Beskrivelse

Tension: 14
Amp: 70
Remskive afstand: 37.00
Bredde/holder arm: 13.00
Monteringsbeslag afstand: 67.00
Beslaghul: M10-1.25
Drivejustering beslaghul pos.: 60
Drivejustering beslaghul 1: M8
Remskivens diameter: 60.00
Riller/remskive: 4
Radius: 90.00
Radius 2: 85.00
B+: M8
Position/B+ i min.: 5
Rotation: CW
Stik nr.: PL54
Terminaltype: P-D
Remskive: SP
Ventilator: IF
Regulator type: IR

Filer

Specifikation

B+ M8
Mount. bracket dist. 67.00
Belt. adj. bracket hole 1 M8
Belt. adj. brackethole pos. 60
Plug no. PL54
Bracket hole M10-1.25
Position/B+ in min. 5
Pulley SP
Pulley dia. 60.00
Pulley dist. 37.00
Radius 90.00
Radius 2 85.00
Regulator type IR
Rotation CW
Fan IF
Grooves/pulley 4
Terminal type P-D
Voltage 14
Width/holder arm 13.00
Amp 70

  • OEM
    B33M-18-300, B33M-18-300A, F032116493, LR170-759, lr170-764

  • Konkurrentreferens
    CAL20173, DRA0427, J5113051, LRA01142, 27-3820, 145.532.070, 224.149.702, 111603, 111893, 401610, 440877, 9045491, 12060761, 0986045491

  • NormaliseratArtNr
    b33m18300, b33m18300a, cal20173, dra0427, f032116493, j5113051, lr170759, lr170764, lra01142, 111603, 111893, 273820, 401610, 440877, 9045491, 12060761, 145532070, 224149702, 0986045491

  • Passar modeller
    Mazda Model: 121 Model series: Metro Type of engine: 16V Size of motor: 1.3 Brand of engine: B3ME Type description: DW3W Body: Hatchback From date: 01-08-1998 To date: 01-07-2003 Fuel: Gasoline Approved: Yes
    Mazda Model: Demio Model series: Demio Type of engine: 16V Size of motor: 1.3 Brand of engine: B3 Type description: DW Body: Estate From date: 01-08-1998 To date: 01-04-2000 Fuel: Gasoline Approved: Yes
  • Beskrivelse
    Tension: 14
    Amp: 70
    Remskive afstand: 37.00
    Bredde/holder arm: 13.00
    Monteringsbeslag afstand: 67.00
    Beslaghul: M10-1.25
    Drivejustering beslaghul pos.: 60
    Drivejustering beslaghul 1: M8
    Remskivens diameter: 60.00
    Riller/remskive: 4
    Radius: 90.00
    Radius 2: 85.00
    B+: M8
    Position/B+ i min.: 5
    Rotation: CW
    Stik nr.: PL54
    Terminaltype: P-D
    Remskive: SP
    Ventilator: IF
    Regulator type: IR

    Filer

  • Specifikation
    B+ M8
    Mount. bracket dist. 67.00
    Belt. adj. bracket hole 1 M8
    Belt. adj. brackethole pos. 60
    Plug no. PL54
    Bracket hole M10-1.25
    Position/B+ in min. 5
    Pulley SP
    Pulley dia. 60.00
    Pulley dist. 37.00
    Radius 90.00
    Radius 2 85.00
    Regulator type IR
    Rotation CW
    Fan IF
    Grooves/pulley 4
    Terminal type P-D
    Voltage 14
    Width/holder arm 13.00
    Amp 70
  • Køretøjsmatchning

    • OEM
      B33M-18-300, B33M-18-300A, F032116493, LR170-759, lr170-764

    • Konkurrentreferens
      CAL20173, DRA0427, J5113051, LRA01142, 27-3820, 145.532.070, 224.149.702, 111603, 111893, 401610, 440877, 9045491, 12060761, 0986045491

    • NormaliseratArtNr
      b33m18300, b33m18300a, cal20173, dra0427, f032116493, j5113051, lr170759, lr170764, lra01142, 111603, 111893, 273820, 401610, 440877, 9045491, 12060761, 145532070, 224149702, 0986045491

    • Passar modeller
      Mazda Model: 121 Model series: Metro Type of engine: 16V Size of motor: 1.3 Brand of engine: B3ME Type description: DW3W Body: Hatchback From date: 01-08-1998 To date: 01-07-2003 Fuel: Gasoline Approved: Yes
      Mazda Model: Demio Model series: Demio Type of engine: 16V Size of motor: 1.3 Brand of engine: B3 Type description: DW Body: Estate From date: 01-08-1998 To date: 01-04-2000 Fuel: Gasoline Approved: Yes
