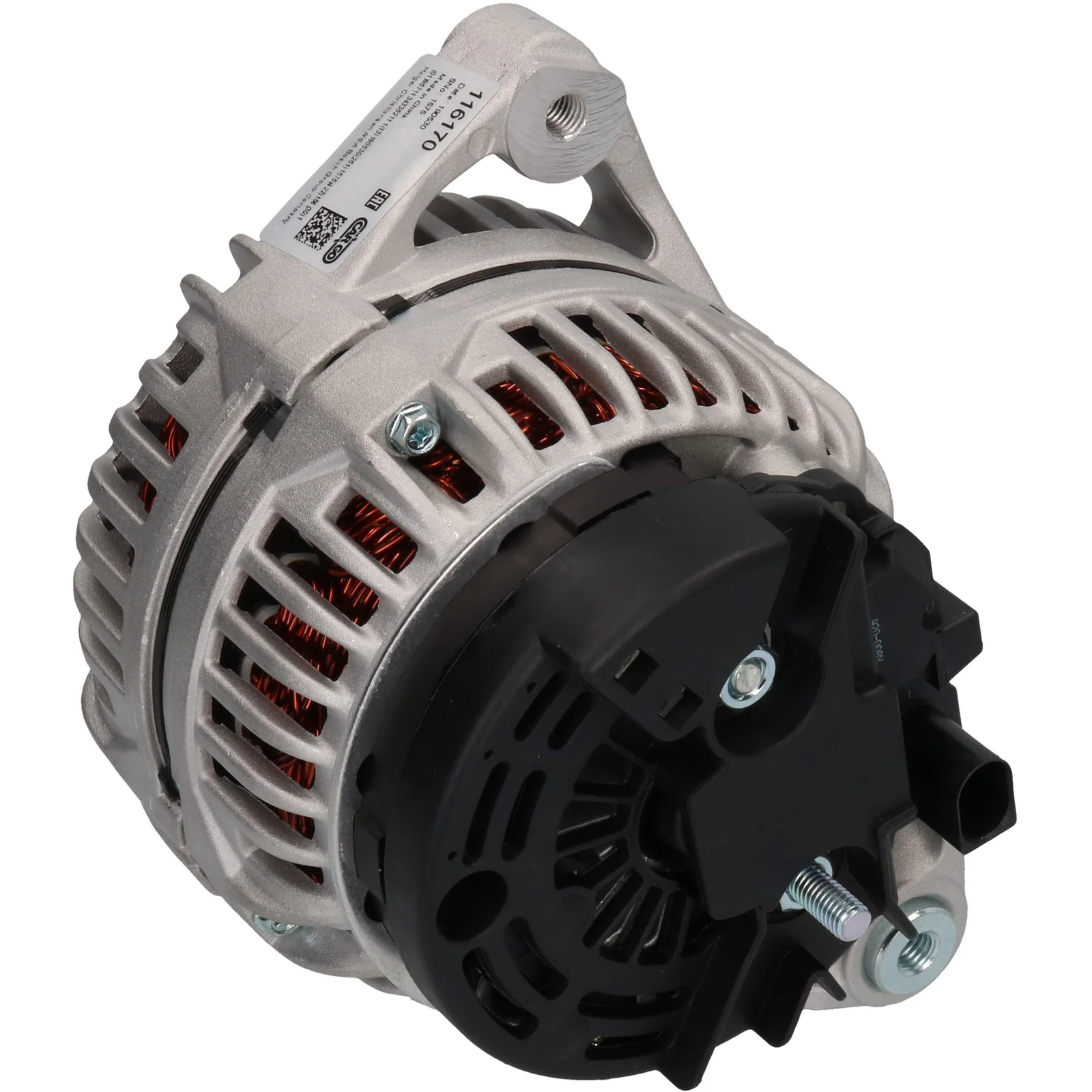

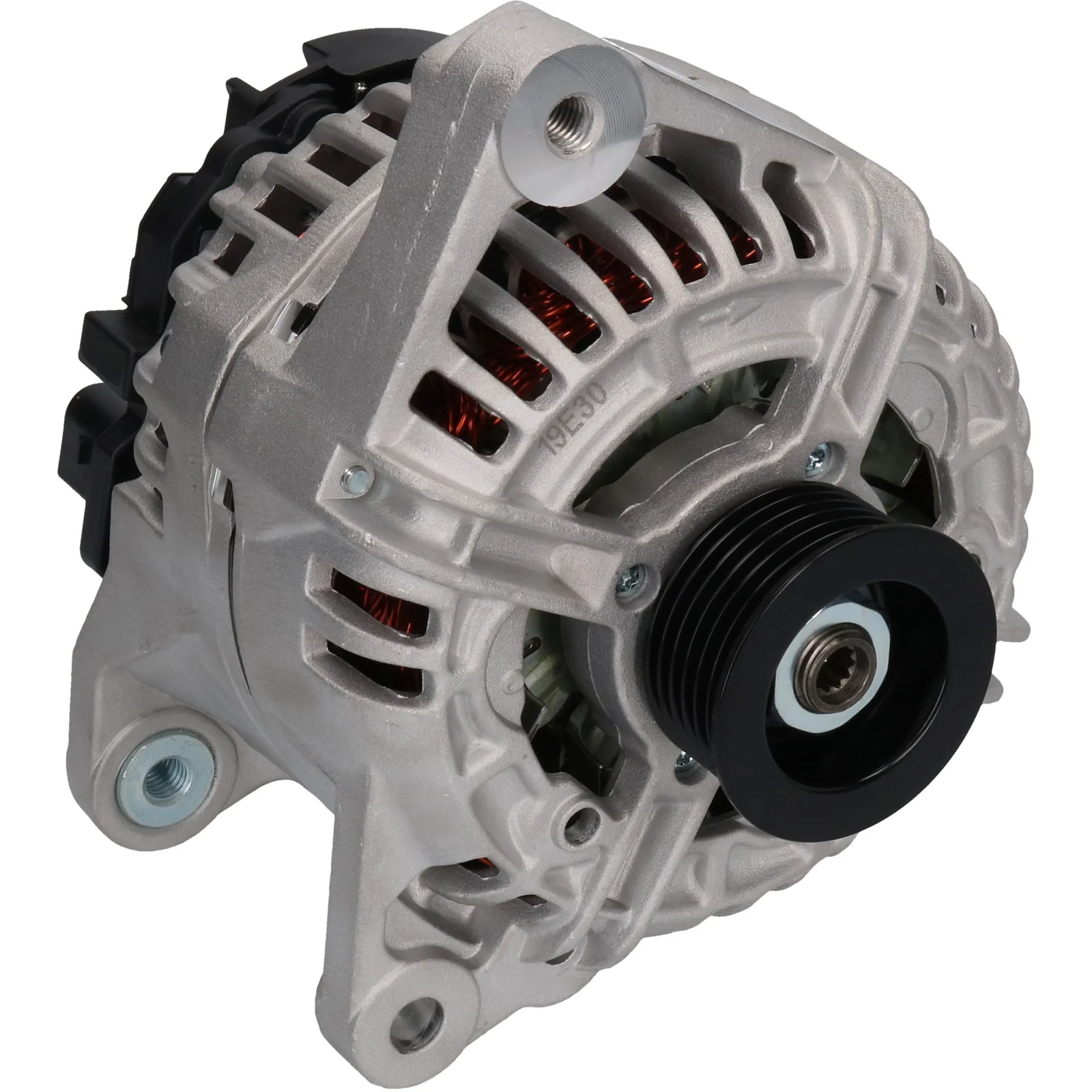

HC-Cargo Generator
HC-Cargo Generator
Vare nr.: F032116170

HC-Cargo Generator

Tekniske oplysninger:

Spænding: 14, Amp: 120, Rotation: CW, Monteringsbøjle afstand: 81.80

Beskrivelse

Spænding: 14
Amp: 120
Remskive dist.: 31,70
Bredde/holderarm: 14,00
Montagebeslag dist.: 81,80
Beslagshul: 10,50
Bælte justering beslaghul position.: 50
Bælte justering beslaghul 1: M10
Remskive dia.: 52,00
Furer/remskive: 6
Radius: 92,00
Radius 2: 92,00
B+: M8
Position/B+ i min.: 30
Rotation: med uret
Stiknummer: PL61
Total længde mm: 185,00
Remskive: SP
Regulator type: IR

Filer

Specifikation

B+ M8
Mount. bracket dist. 81.80
Belt. adj. bracket hole 1 M10
Belt. adj. brackethole pos. 50
Plug no. PL61
Bracket hole 10.50
Position/B+ in min. 30
Pulley SP
Pulley dia. 52.00
Pulley dist. 31.70
Radius 92.00
Radius 2 92.00
Regulator type IR
Rotation CW
Grooves/pulley 6
Voltage 14
Total length 185.00 mm
Width/holder arm 14.00
Amp 120

  • OEM
    F032116170, 1986A00842, 1986A00843, 1986A01152, 0124515001, 0124515015, 0124515042, 996603012, 99660301200, 99660301201, 99660301203, 99660301205

  • Konkurrentreferens
    A0065, CAL10284, DRB3690, LRA02141, 28-4588, 211.306.1202, 13810N, 443440, 553098RI, 12043690, 32043690, 0986043690, 0986043697, 0986046526

  • NormaliseratArtNr
    a0065, cal10284, drb3690, f032116170, lra02141, 1986a00842, 1986a00843, 1986a01152, 13810n, 284588, 443440, 553098ri, 12043690, 32043690, 0124515001, 0124515015, 0124515042, 0986043690, 0986043697, 0986046526, 996603012, 2113061202, 99660301200, 99660301201, 99660301203, 99660301205

  • Passar modeller
    Iveco Model: Daily Model series: Dailyi Platform/Chassis Model type: 40 C 13 Type of engine: Diesel Size of motor: 2.8 Brand of engine: 8140.43S Body: Platform/Chassis From date: 01-05-1999 To date: 01-04-2006 Fuel: Diesel Approved: Yes
    Iveco Model: Daily Model series: Dailyi Van Model type: 35 S 9 V Type of engine: Diesel Size of motor: 2.8 Brand of engine: 8140.43R Body: Van From date: 01-11-2001 To date: 01-04-2006 Fuel: Diesel Approved: Yes
    Iveco Model: Daily Model series: Dailyi Van Model type: 40 C 13 Type of engine: Diesel Size of motor: 2.8 Brand of engine: 8140.43S Body: Van From date: 01-05-1999 To date: 01-04-2006 Fuel: Diesel Approved: Yes
    Iveco Model: Daily Model series: Dailyi Van Model type: 50 C 15 Type of engine: Diesel Size of motor: 2.8 Brand of engine: 8140.43N Body: Van From date: 01-01-2001 To date: 01-04-2006 Fuel: Diesel Approved: Yes
    Iveco Model: Daily Model series: Dailyi Van Model type: 65 C 15 Type of engine: Diesel Size of motor: 2.8 Brand of engine: 8140.43N Body: Van From date: 01-11-2001 To date: 01-04-2006 Fuel: Diesel Approved: Yes
    Porsche Model: 911 Model series: 911 Model type: 4S Type of engine: Turbo Size of motor: 3.6 Brand of engine: M96.70 Type description: 996 Body: Convertible From date: 01-10-2003 To date: 01-08-2005 Fuel: Gasoline Approved: Yes
    Porsche Model: 911 Model series: 911 Model type: Carrera 4 Size of motor: 3.4 Brand of engine: M96.01 Type description: 996 Body: Coupe From date: 01-09-1997 To date: 01-09-2001 Fuel: Gasoline Approved: Yes
    Porsche Model: 911 Model series: 911 Model type: Carrera 4 Size of motor: 3.4 Brand of engine: M96.04 Type description: 996 Body: Coupe From date: 01-09-1997 To date: 01-09-2001 Fuel: Gasoline Approved: Yes
    Porsche Model: 911 Model series: 911 Model type: Carrera 4 Size of motor: 3.6 Brand of engine: M96.03 Type description: 996 Body: Convertible From date: 01-10-2001 To date: 01-08-2005 Fuel: Gasoline Approved: Yes
    Porsche Model: 911 Model series: 911 Model type: Carrera 4 Size of motor: 3.6 Brand of engine: M96.03 Type description: 996 Body: Coupe From date: 01-10-2001 To date: 01-08-2005 Fuel: Gasoline Approved: Yes
    Porsche Model: 911 Model series: 911 Model type: Carrera 4 Type of engine: S Size of motor: 3.6 Brand of engine: M96.03 Type description: 996 Body: Convertible From date: 01-06-2002 To date: 01-08-2005 Fuel: Gasoline Approved: Yes
    Porsche Model: 911 Model series: 911 Model type: Carrera 4 Type of engine: S Size of motor: 3.6 Brand of engine: M96.03 Type description: 996 Body: Coupe From date: 01-02-2003 To date: 01-08-2005 Fuel: Gasoline Approved: Yes
    Porsche Model: 911 Model series: 911 Model type: Carrera Size of motor: 3.4 Brand of engine: M96.01 Type description: 996 Body: Convertible From date: 01-02-1998 To date: 01-09-2001 Fuel: Gasoline Approved: Yes
    Porsche Model: 911 Model series: 911 Model type: Carrera Size of motor: 3.4 Brand of engine: M96.01 Type description: 996 Body: Coupe From date: 01-09-1997 To date: 01-09-2001 Fuel: Gasoline Approved: Yes
    Porsche Model: 911 Model series: 911 Model type: Carrera Size of motor: 3.4 Brand of engine: M96.04 Type description: 996 Body: Convertible From date: 01-02-1998 To date: 01-09-2001 Fuel: Gasoline Approved: Yes
    Porsche Model: 911 Model series: 911 Model type: Carrera Size of motor: 3.4 Brand of engine: M96.04 Type description: 996 Body: Coupe From date: 01-09-1997 To date: 01-09-2001 Fuel: Gasoline Approved: Yes
    Porsche Model: 911 Model series: 911 Model type: Carrera Type of engine: S Size of motor: 3.6 Brand of engine: M96.03 Type description: 996 Body: Convertible From date: 01-06-2002 To date: 01-08-2005 Fuel: Gasoline Approved: Yes
    Porsche Model: 911 Model series: 911 Model type: Carrera Type of engine: S Size of motor: 3.6 Brand of engine: M96.03 Type description: 996 Body: Coupe From date: 01-02-2003 To date: 01-08-2005 Fuel: Gasoline Approved: Yes
    Porsche Model: 911 Model series: 911 Model type: GT3 Size of motor: 3.6 Brand of engine: M96.76 Type description: 996 Body: Coupe From date: 01-03-1999 To date: 01-08-2005 Fuel: Gasoline Approved: Yes
    Porsche Model: 911 Model series: 911 Model type: GT3 Size of motor: 3.6 Brand of engine: M96.79 Body: Coupe From date: 01-03-2003 To date: 01-08-2005 Fuel: Gasoline Approved: Yes
    Porsche Model: 911 Model series: 911 Model type: S Size of motor: 3.6 Brand of engine: M96.70 Type description: 996 Body: Convertible From date: 01-08-2004 To date: 01-08-2005 Fuel: Gasoline Approved: Yes
    Porsche Model: 911 Model series: 911 Model type: S Size of motor: 3.6 Type description: 996 Body: Coupe From date: 01-08-2004 To date: 01-08-2005 Fuel: Gasoline Approved: Yes
    Porsche Model: 911 Model series: 911 Model type: S Type of engine: Turbo Size of motor: 3.6 Brand of engine: M96.70 Body: Coupe From date: 01-02-2003 To date: 01-08-2005 Fuel: Gasoline Approved: Yes
    Porsche Model: 911 Model series: 911 Model type: Targa Size of motor: 3.6 Brand of engine: M96.03 Type description: 996 From date: 01-12-2001 To date: 01-08-2005 Fuel: Gasoline Approved: Yes
    Porsche Model: 911 Model series: 911 Size of motor: 3.4 Brand of engine: M96.02 Type description: 996 Body: Convertible From date: 01-02-1998 To date: 01-09-2001 Fuel: Gasoline Approved: Yes
    Porsche Model: 911 Model series: 911 Size of motor: 3.4 Brand of engine: M96.04 Type description: 996 Body: Convertible From date: 01-02-1998 To date: 01-09-2001 Fuel: Gasoline Approved: Yes
    Porsche Model: 911 Model series: 911 Size of motor: 3.6 Brand of engine: M96.03 Type description: 996 Body: Convertible From date: 01-10-2001 To date: 01-08-2005 Fuel: Gasoline Approved: Yes
    Porsche Model: 911 Model series: 911 Size of motor: 3.6 Brand of engine: M96.03 Type description: 996 Body: Coupe From date: 01-10-2001 To date: 01-08-2005 Fuel: Gasoline Approved: Yes
    Porsche Model: 911 Model series: 911 Type of engine: Turbo Size of motor: 3.6 Brand of engine: M96.70 Type description: 996 Body: Convertible From date: 01-10-2003 To date: 01-08-2005 Fuel: Gasoline Approved: Yes
    Porsche Model: Boxster Model series: Boxster Model type: S Size of motor: 3.2 Brand of engine: M96.24 Type description: 986 Body: Convertible From date: 01-01-2004 To date: 01-12-2004 Fuel: Gasoline Approved: Yes
    Porsche Model: Boxster Model series: Boxster Model type: S Size of motor: 3.2 Brand of engine: M96.24 Type description: 986 Body: Convertible From date: 01-07-2002 To date: 01-12-2004 Fuel: Gasoline Approved: Yes
    Porsche Model: Boxster Model series: Boxster Size of motor: 2.5 Brand of engine: M96.20 Body: Convertible From date: 01-09-1996 To date: 01-08-1999 Fuel: Gasoline Approved: Yes
    Porsche Model: Boxster Model series: Boxster Size of motor: 2.7 Brand of engine: M96.22 Type description: 986 Body: Convertible From date: 01-06-1999 To date: 01-12-2002 Fuel: Gasoline Approved: Yes
    Porsche Model: Boxster Model series: Boxster Size of motor: 2.7 Brand of engine: M96.22 Type description: 986 Body: Convertible From date: 01-08-1999 To date: 01-07-2002 Fuel: Gasoline Approved: Yes
    Porsche Model: Boxster Model series: Boxster Size of motor: 3.2 Brand of engine: M96.21 Type description: 986 Body: Convertible From date: 01-08-1999 To date: 01-07-2002 Fuel: Gasoline Approved: Yes
    Porsche Model: Boxster Model series: Boxster Type of engine: 24V Size of motor: 2.7 Brand of engine: M96.23 Type description: 986 Body: Convertible From date: 01-07-2002 To date: 01-12-2004 Fuel: Gasoline Approved: Yes
