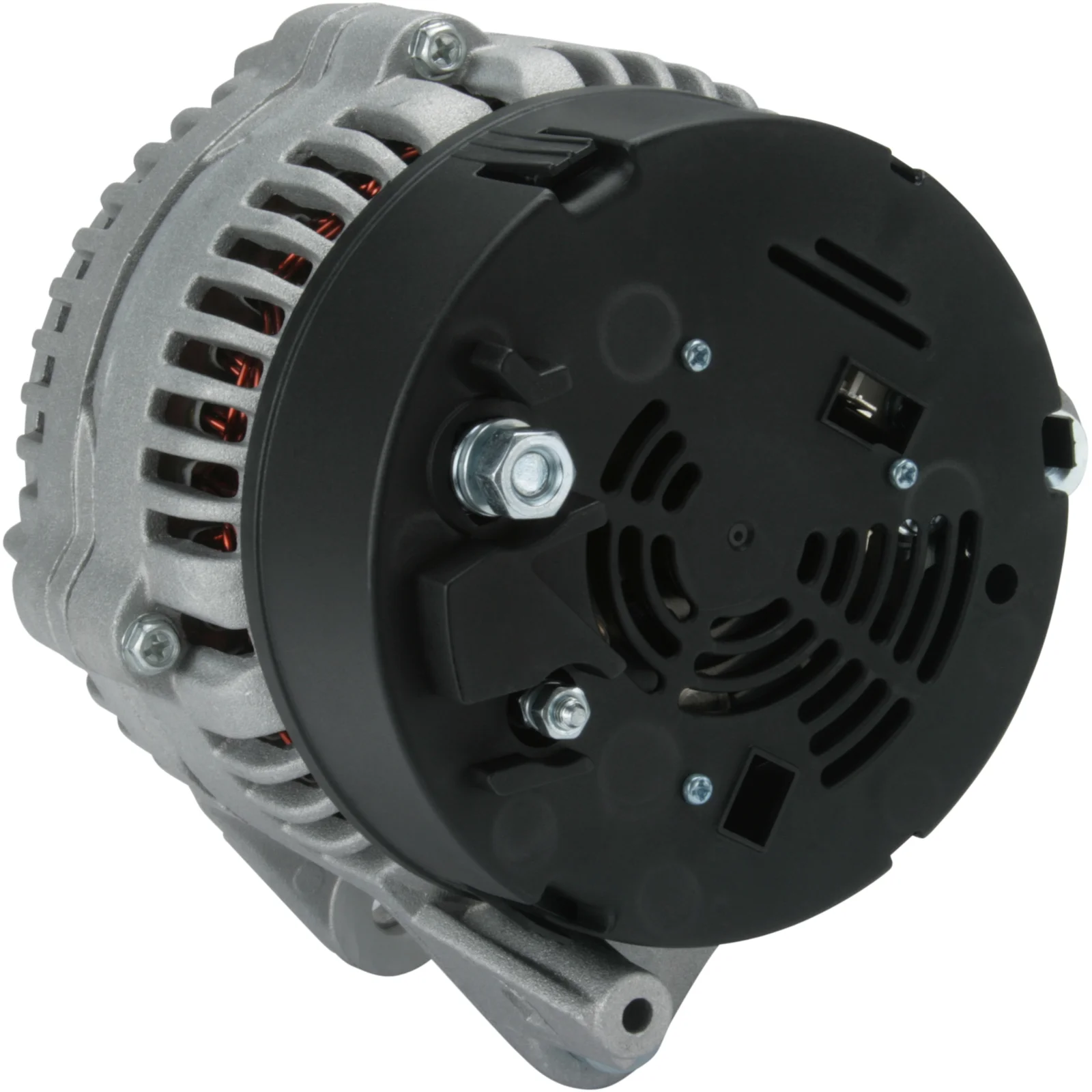

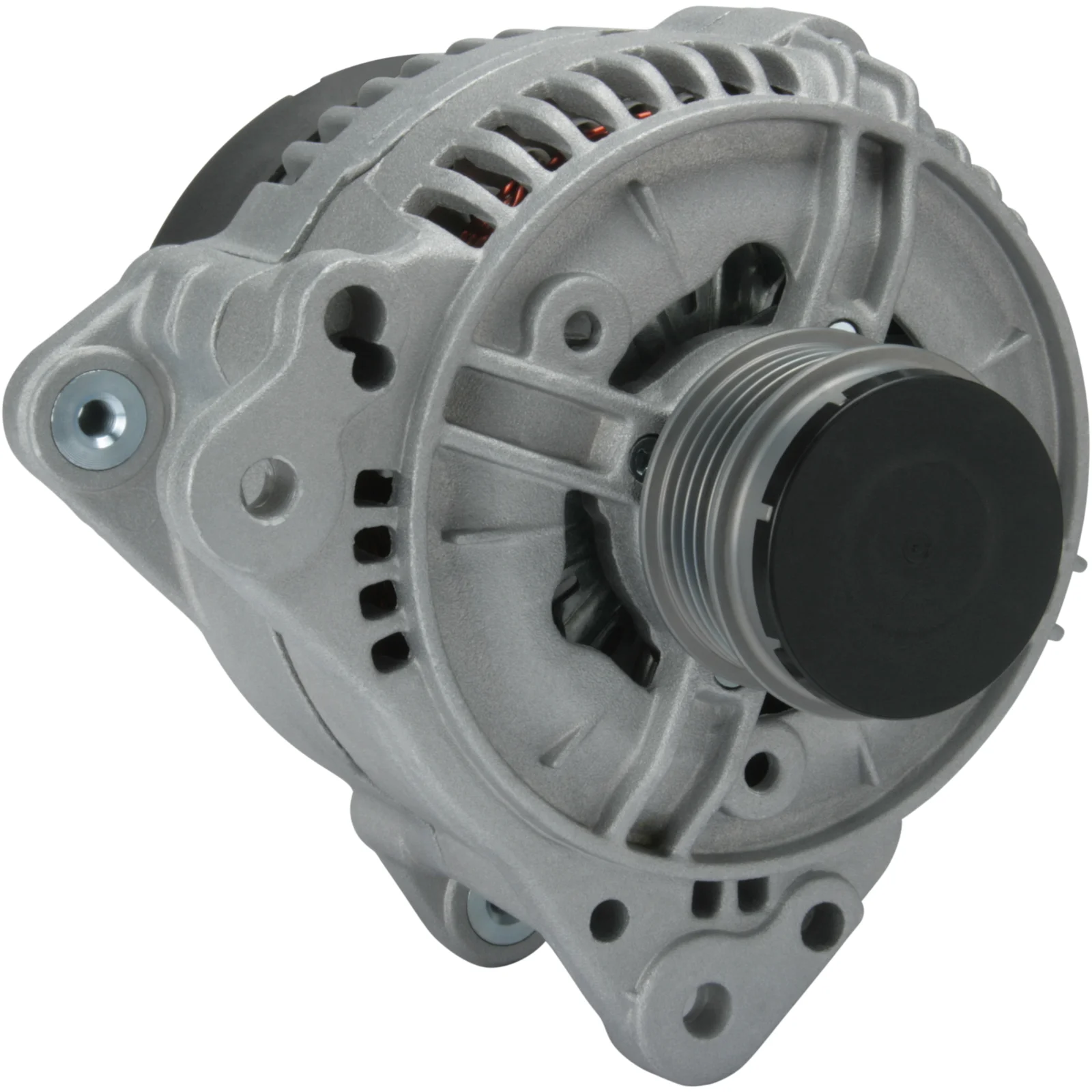

HC-Cargo Generator
HC-Cargo Generator
Vare nr.: F032113770

HC-Cargo Generator

Tekniske oplysninger:

Spænding: 14, Amp: 120, Rotation: CW, Monteringsbeslag afstand: 60,60

Beskrivelse

Spænding: 14
Amp: 120
Terminal: DF
Remskive ford.: 30.00
Bredde/holderarm: 14.00
Montagebeslag afst.: 60.60
Beslaghul: 8.50
Belt.regul. brackethole pos.: 15
Belt.regul. bracket hul 1: 8.50
Remskive dia.: 56.00
Riller/remskive: 5
Radius: 90.00
Radius 2: 90.00
B+: M8
Position/B+ i min.: 3
D+ Størrelse: M5
Rotation: med uret
Total længde mm: 193.50
Remskive: SP/FW
Spændingsregulator: uden
Produktoplysninger: BN
Service: Audi

Filer

Specifikation

B+ M8
Mount. bracket dist. 60.60
Belt. adj. bracket hole 1 8.50
Belt. adj. brackethole pos. 15
Bracket hole 8.50
Position/B+ in min. 3
Prod. info BN
Pulley SP/FW
Pulley dia. 56.00
Pulley dist. 30.00
Radius 90.00
D+ Size M5
Radius 2 90.00
Regulator w/o
Rotation CW
Servicing Audi
Grooves/pulley 5
Terminal DF
Voltage 14
Total length 193.50 mm
Width/holder arm 14.00
Amp 120

  • OEM
    F00E100029, F032113770, 1248ir, 028903027e, 028903028, 0123515003

  • Konkurrentreferens
    A0366, CAL10217, drb0350, ia1246, lrb00340, LRB00430, MG32, 8EL011710-231, 8el737381-001, 28-2862, 28-3698, 211.170.1202, 5700, 21430N, 118922, 200135, 210097, 210097A, 301248RI, 437492, 746185, 746985, 9038610, 9040350, 9040600, 12040350, 32040350, 0986040350, 0986040600, 943355110010, 944390403500

  • NormaliseratArtNr
    a0366, cal10217, drb0350, f00e100029, f032113770, ia1246, lrb00340, lrb00430, mg32, 8el011710231, 8el737381001, 1248ir, 5700, 21430n, 118922, 200135, 210097, 210097a, 282862, 283698, 301248ri, 437492, 746185, 746985, 9038610, 9040350, 9040600, 12040350, 028903027e, 028903028, 32040350, 0123515003, 0986040350, 0986040600, 2111701202, 943355110010, 944390403500

  • Passar modeller
    Audi Model: A4 Model series: A4 Model type: Quattro Type of engine: TDi Size of motor: 1.9 Brand of engine: AJM Type description: 8D5,B5 Body: Estate From date: 01-03-2000 To date: 01-09-2001 Fuel: Diesel Approved: Yes Manufacture type: AVANT
    Audi Model: A4 Model series: A4 Type of engine: TDi Size of motor: 1.9 Brand of engine: AFN Type description: 8D2 From date: 01-10-1995 To date: 01-11-2000 Fuel: Diesel Approved: Yes
    Audi Model: A4 Model series: A4 Type of engine: TDi Size of motor: 1.9 Brand of engine: AJM Type description: 8D2 From date: 01-03-2000 To date: 01-11-2000 Fuel: Diesel Approved: Yes
    VW Model: Passat Model series: Passat Model type: Syncro 4 Motion Type of engine: TDi Size of motor: 1.9 Brand of engine: AFN Body: Estate From date: 01-06-1997 To date: 01-08-2000 Fuel: Diesel Approved: Yes Manufacture type: variant
    VW Model: Passat Model series: Passat Model type: Syncro 4 Motion Type of engine: TDi Size of motor: 1.9 Brand of engine: AFN From date: 01-06-1997 To date: 01-08-2000 Fuel: Diesel Approved: Yes
    VW Model: Passat Model series: Passat Model type: Syncro 4 Motion Type of engine: TDi Size of motor: 1.9 Brand of engine: AVG Body: Estate From date: 01-06-1997 To date: 01-08-2000 Fuel: Diesel Approved: Yes Manufacture type: variant
    VW Model: Passat Model series: Passat Type of engine: TDi Size of motor: 1.9 Brand of engine: AFN From date: 01-10-1996 To date: 01-11-2000 Fuel: Diesel Approved: Yes
    VW Model: Passat Model series: Passat Type of engine: TDi Size of motor: 1.9 Brand of engine: AFN Type description: 3B_ Body: Estate From date: 01-06-1997 To date: 01-11-2000 Fuel: Diesel Approved: Yes Manufacture type: variant
    VW Model: Passat Model series: Passat Type of engine: TDi Size of motor: 1.9 Brand of engine: AHU Body: Estate From date: 01-06-1997 To date: 01-11-2000 Fuel: Diesel Approved: Yes Manufacture type: variant
    VW Model: Passat Model series: Passat Type of engine: TDi Size of motor: 1.9 Brand of engine: AHU From date: 01-10-1996 To date: 01-11-2000 Fuel: Diesel Approved: Yes
    VW Model: Passat Model series: Passat Type of engine: TDi Size of motor: 1.9 Brand of engine: AJM Type description: 3B From date: 01-08-1998 To date: 01-11-2000 Fuel: Diesel Approved: Yes
    1 / 3
  • Beskrivelse
    Spænding: 14
    Amp: 120
    Terminal: DF
    Remskive ford.: 30.00
    Bredde/holderarm: 14.00
    Montagebeslag afst.: 60.60
    Beslaghul: 8.50
    Belt.regul. brackethole pos.: 15
    Belt.regul. bracket hul 1: 8.50
    Remskive dia.: 56.00
    Riller/remskive: 5
    Radius: 90.00
    Radius 2: 90.00
    B+: M8
    Position/B+ i min.: 3
    D+ Størrelse: M5
    Rotation: med uret
    Total længde mm: 193.50
    Remskive: SP/FW
    Spændingsregulator: uden
    Produktoplysninger: BN
    Service: Audi

    Filer

  • Specifikation
    B+ M8
    Mount. bracket dist. 60.60
    Belt. adj. bracket hole 1 8.50
    Belt. adj. brackethole pos. 15
    Bracket hole 8.50
    Position/B+ in min. 3
    Prod. info BN
    Pulley SP/FW
    Pulley dia. 56.00
    Pulley dist. 30.00
    Radius 90.00
    D+ Size M5
    Radius 2 90.00
    Regulator w/o
    Rotation CW
    Servicing Audi
    Grooves/pulley 5
    Terminal DF
    Voltage 14
    Total length 193.50 mm
    Width/holder arm 14.00
    Amp 120
  • Køretøjsmatchning

    • OEM
      F00E100029, F032113770, 1248ir, 028903027e, 028903028, 0123515003

    • Konkurrentreferens
      A0366, CAL10217, drb0350, ia1246, lrb00340, LRB00430, MG32, 8EL011710-231, 8el737381-001, 28-2862, 28-3698, 211.170.1202, 5700, 21430N, 118922, 200135, 210097, 210097A, 301248RI, 437492, 746185, 746985, 9038610, 9040350, 9040600, 12040350, 32040350, 0986040350, 0986040600, 943355110010, 944390403500

    • NormaliseratArtNr
      a0366, cal10217, drb0350, f00e100029, f032113770, ia1246, lrb00340, lrb00430, mg32, 8el011710231, 8el737381001, 1248ir, 5700, 21430n, 118922, 200135, 210097, 210097a, 282862, 283698, 301248ri, 437492, 746185, 746985, 9038610, 9040350, 9040600, 12040350, 028903027e, 028903028, 32040350, 0123515003, 0986040350, 0986040600, 2111701202, 943355110010, 944390403500

    • Passar modeller
      Audi Model: A4 Model series: A4 Model type: Quattro Type of engine: TDi Size of motor: 1.9 Brand of engine: AJM Type description: 8D5,B5 Body: Estate From date: 01-03-2000 To date: 01-09-2001 Fuel: Diesel Approved: Yes Manufacture type: AVANT
      Audi Model: A4 Model series: A4 Type of engine: TDi Size of motor: 1.9 Brand of engine: AFN Type description: 8D2 From date: 01-10-1995 To date: 01-11-2000 Fuel: Diesel Approved: Yes
      Audi Model: A4 Model series: A4 Type of engine: TDi Size of motor: 1.9 Brand of engine: AJM Type description: 8D2 From date: 01-03-2000 To date: 01-11-2000 Fuel: Diesel Approved: Yes
      VW Model: Passat Model series: Passat Model type: Syncro 4 Motion Type of engine: TDi Size of motor: 1.9 Brand of engine: AFN Body: Estate From date: 01-06-1997 To date: 01-08-2000 Fuel: Diesel Approved: Yes Manufacture type: variant
      VW Model: Passat Model series: Passat Model type: Syncro 4 Motion Type of engine: TDi Size of motor: 1.9 Brand of engine: AFN From date: 01-06-1997 To date: 01-08-2000 Fuel: Diesel Approved: Yes
      VW Model: Passat Model series: Passat Model type: Syncro 4 Motion Type of engine: TDi Size of motor: 1.9 Brand of engine: AVG Body: Estate From date: 01-06-1997 To date: 01-08-2000 Fuel: Diesel Approved: Yes Manufacture type: variant
      VW Model: Passat Model series: Passat Type of engine: TDi Size of motor: 1.9 Brand of engine: AFN From date: 01-10-1996 To date: 01-11-2000 Fuel: Diesel Approved: Yes
      VW Model: Passat Model series: Passat Type of engine: TDi Size of motor: 1.9 Brand of engine: AFN Type description: 3B_ Body: Estate From date: 01-06-1997 To date: 01-11-2000 Fuel: Diesel Approved: Yes Manufacture type: variant
      VW Model: Passat Model series: Passat Type of engine: TDi Size of motor: 1.9 Brand of engine: AHU Body: Estate From date: 01-06-1997 To date: 01-11-2000 Fuel: Diesel Approved: Yes Manufacture type: variant
      VW Model: Passat Model series: Passat Type of engine: TDi Size of motor: 1.9 Brand of engine: AHU From date: 01-10-1996 To date: 01-11-2000 Fuel: Diesel Approved: Yes
      VW Model: Passat Model series: Passat Type of engine: TDi Size of motor: 1.9 Brand of engine: AJM Type description: 3B From date: 01-08-1998 To date: 01-11-2000 Fuel: Diesel Approved: Yes
      1 / 3
