Vare nr.: F032110267

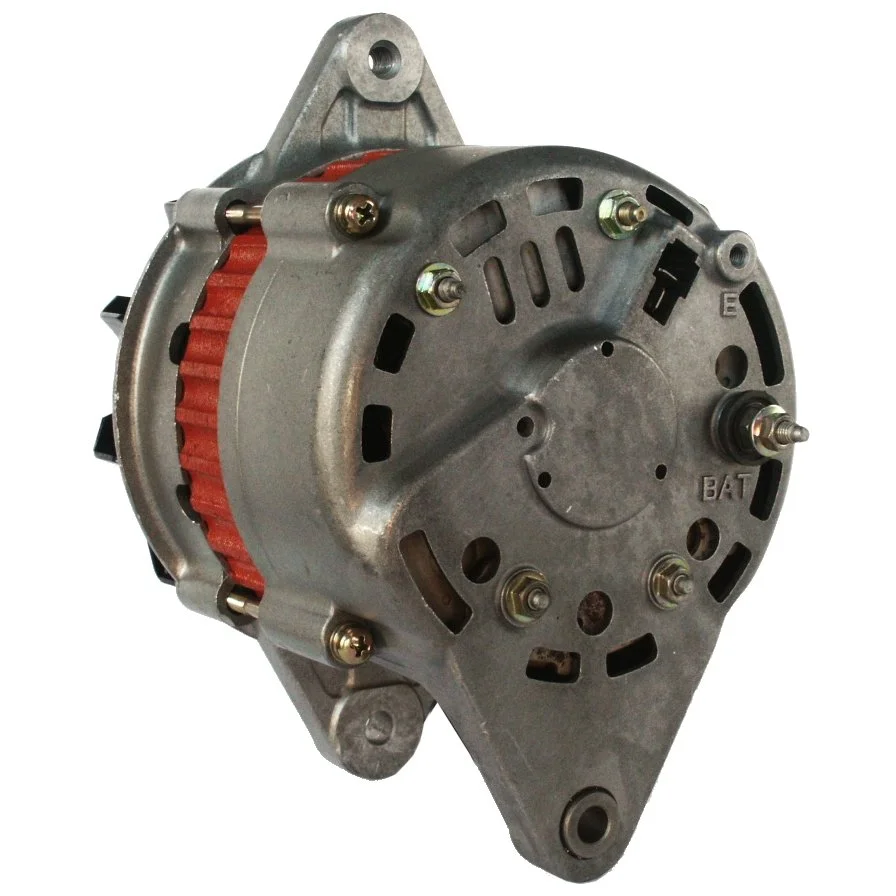

HC-Cargo Generator

Tekniske oplysninger:

Spænding: 14, Amp: 55, Rotation: CW, Montering. bøsning afstand: 81,00

Beskrivelse

Spænding: 14
Amp: 55
Drevskive dist.: 42.00
Bredde/holderarm: 13.00
Monteringsbeslag dist.: 81.00
Beslags hul: 8.00
Bæltejustering beslags hul pos.: 60
Bæltejustering beslags hul 1: M8
Drevskive dia.: 75.20
Riller/drevskive: 1
Radius: 88.00
Radius 2: 86.00
B+: M5
Position/B+ i min.: 15
Rotation: med uret
Stik nr.: PL08
Total længde mm: 172.00
Drevskive: P
Regulator type: IR
Producent info: BN
Service: Sabaru

Filer

Specifikation

B+ M5
Mount. bracket dist. 81.00
Belt. adj. bracket hole 1 M8
Belt. adj. brackethole pos. 60
Plug no. PL08
Bracket hole 8.00
Position/B+ in min. 15
Prod. info BN
Pulley P
Pulley dia. 75.20
Pulley dist. 42.00
Radius 88.00
Radius 2 86.00
Regulator type IR
Rotation CW
Servicing Sabaru
Grooves/pulley 1
Voltage 14
Total length 172.00 mm
Width/holder arm 13.00
Amp 55

  • OEM
    F032110267, lr150-110, lr150-110c, lr155-15, lr155-15b, lr155-15c, lr155-17, lr155-18, lr155-25, lr160-137, lr160-138, 23700-7050, 23700-aa000, 23700-AA010, 23700-aa020, 23700-AA031, 42990-7330, 42990-7340, 42990-7400, 429907010, 429907020, 429907320

  • Konkurrentreferens
    A2132S, ALT32058, asa-393, asa-394, dra3471, dra5431, lra00574, LRA02670, QA1994, va226, 1-1253-01HI, 1-1593-02HI, 8el726264-001, 28-1682, 28-1880, 36-51.702, 36-51.703, 233.102.602, 233.108.602, 2538, 14255N, 14303N, 14303R, 14585, 14585R, 14742N, 14742R, 14745N, 14745R, 56054, 436506, 436518, 436551, 12060317, 0986033471, 0986035431

  • NormaliseratArtNr
    a2132s, alt32058, asa393, asa394, dra3471, dra5431, f032110267, lr150110, lr150110c, lr15515, lr15515b, lr15515c, lr15517, lr15518, lr15525, lr160137, lr160138, lra00574, lra02670, qa1994, va226, 8el726264001, 2538, 14255n, 14303n, 14303r, 14585, 14585r, 14742n, 14742r, 14745n, 14745r, 23700aa000, 23700aa010, 23700aa020, 23700aa031, 56054, 281682, 281880, 436506, 436518, 436551, 1125301hi, 1159302hi, 3651702, 3651703, 12060317, 233102602, 233108602, 237007050, 429907010, 429907020, 429907320, 429907330, 429907340, 429907400, 0986033471, 0986035431

  • Passar modeller
    Subaru Model: Brat Model series: Brat Model type: GL Size of motor: 1.8 From date: 01-01-1985 To date: 01-01-1987 Fuel: Gasoline Approved: Yes
    Subaru Model: Brat Model series: Brat Model type: GL Type of engine: Turbo Size of motor: 1.8 From date: 01-01-1984 Fuel: Gasoline Approved: Yes
    Subaru Model: Brat Model series: Brat Size of motor: 1.8 Brand of engine: EA81 From date: 01-01-1980 Fuel: Gasoline Approved: Yes
    Subaru Model: DL Model series: DL Size of motor: 1.6 From date: 01-01-1982 To date: 01-01-1984 Fuel: Gasoline Approved: Yes
    Subaru Model: GL Model series: GL Size of motor: 1.6 From date: 01-01-1986 To date: 01-01-1987 Fuel: Gasoline Approved: Yes
    Subaru Model: GL Model series: GL Type of engine: Turbo Size of motor: 1.8 From date: 01-01-1983 To date: 01-01-1984 Fuel: Gasoline Approved: Yes
    Subaru Model: Leone / Loyale Model series: Leone / Loyale Model type: 4WD Size of motor: 1.8 Brand of engine: EA82 From date: 01-03-1987 To date: 01-12-1989 Fuel: Gasoline Approved: Yes
    Subaru Model: Leone Model series: Leone Model type: 1300 Size of motor: 1.3 Brand of engine: EA65 From date: 01-11-1984 To date: 01-09-1991 Fuel: Gasoline Approved: Yes
    Subaru Model: Leone Model series: Leone Model type: 1600 Size of motor: 1.6 Brand of engine: EA71 From date: 01-11-1984 To date: 01-09-1991 Fuel: Gasoline Approved: Yes
    Subaru Model: Leone Model series: Leone Model type: 1800 4WD Size of motor: 1.8 Brand of engine: EA82 Body: Estate From date: 01-08-1986 To date: 01-12-1990 Fuel: Gasoline Approved: Yes
    Subaru Model: Leone Model series: Leone Model type: 1800 4WD Size of motor: 1.8 Brand of engine: EA82 Body: Estate From date: 01-11-1984 To date: 01-12-1990 Fuel: Gasoline Approved: Yes
    Subaru Model: Leone Model series: Leone Model type: 1800 4WD Size of motor: 1.8 Brand of engine: EA82 Body: Estate From date: 01-12-1986 To date: 01-07-1991 Fuel: Gasoline Approved: Yes
    Subaru Model: Leone Model series: Leone Model type: 1800 4WD Size of motor: 1.8 Brand of engine: EA82 Type description: AB From date: 01-01-1988 To date: 01-12-1990 Fuel: Gasoline Approved: Yes
    Subaru Model: Leone Model series: Leone Model type: 1800 4WD Size of motor: 1.8 Brand of engine: EA82 Type description: LAC From date: 01-01-1988 To date: 01-12-1990 Fuel: Gasoline Approved: Yes
    Subaru Model: Leone Model series: Leone Model type: 1800 4WD Size of motor: 1.8 Brand of engine: EA82 Type description: LAC From date: 01-11-1984 To date: 01-12-1990 Fuel: Gasoline Approved: Yes
    Subaru Model: Leone Model series: Leone Model type: 1800 4WD Type of engine: Turbo Size of motor: 1.8 Brand of engine: EA82 Body: Estate From date: 01-03-1989 To date: 01-12-1990 Fuel: Gasoline Approved: Yes
    Subaru Model: Leone Model series: Leone Model type: 1800 4WD Type of engine: Turbo Size of motor: 1.8 Brand of engine: EA82 From date: 01-03-1989 To date: 01-12-1990 Fuel: Gasoline Approved: Yes
    Subaru Model: Leone Model series: Leone Model type: 1800 4WD Type of engine: Turbo Size of motor: 1.8 Brand of engine: EA82 From date: 01-11-1984 To date: 01-12-1990 Fuel: Gasoline Approved: Yes
    Subaru Model: Leone Model series: Leone Model type: 1800 Super 4WD Type of engine: Turbo Size of motor: 1.8 Brand of engine: EA82 Body: Estate From date: 01-11-1984 To date: 01-12-1990 Fuel: Gasoline Approved: Yes
    Subaru Model: Leone Model series: Leone Size of motor: 1.8 Brand of engine: EA82 From date: 01-06-1985 To date: 01-07-1986 Fuel: Gasoline Approved: Yes
    Subaru Model: Standard Model series: Standard Size of motor: 1.6 From date: 01-01-1982 To date: 01-01-1987 Fuel: Gasoline Approved: Yes
    1 / 5
  • Beskrivelse
    Spænding: 14
    Amp: 55
    Drevskive dist.: 42.00
    Bredde/holderarm: 13.00
    Monteringsbeslag dist.: 81.00
    Beslags hul: 8.00
    Bæltejustering beslags hul pos.: 60
    Bæltejustering beslags hul 1: M8
    Drevskive dia.: 75.20
    Riller/drevskive: 1
    Radius: 88.00
    Radius 2: 86.00
    B+: M5
    Position/B+ i min.: 15
    Rotation: med uret
    Stik nr.: PL08
    Total længde mm: 172.00
    Drevskive: P
    Regulator type: IR
    Producent info: BN
    Service: Sabaru

    Filer

  • Specifikation
    B+ M5
    Mount. bracket dist. 81.00
    Belt. adj. bracket hole 1 M8
    Belt. adj. brackethole pos. 60
    Plug no. PL08
    Bracket hole 8.00
    Position/B+ in min. 15
    Prod. info BN
    Pulley P
    Pulley dia. 75.20
    Pulley dist. 42.00
    Radius 88.00
    Radius 2 86.00
    Regulator type IR
    Rotation CW
    Servicing Sabaru
    Grooves/pulley 1
    Voltage 14
    Total length 172.00 mm
    Width/holder arm 13.00
    Amp 55
  • Køretøjsmatchning

    • OEM
      F032110267, lr150-110, lr150-110c, lr155-15, lr155-15b, lr155-15c, lr155-17, lr155-18, lr155-25, lr160-137, lr160-138, 23700-7050, 23700-aa000, 23700-AA010, 23700-aa020, 23700-AA031, 42990-7330, 42990-7340, 42990-7400, 429907010, 429907020, 429907320

    • Konkurrentreferens
      A2132S, ALT32058, asa-393, asa-394, dra3471, dra5431, lra00574, LRA02670, QA1994, va226, 1-1253-01HI, 1-1593-02HI, 8el726264-001, 28-1682, 28-1880, 36-51.702, 36-51.703, 233.102.602, 233.108.602, 2538, 14255N, 14303N, 14303R, 14585, 14585R, 14742N, 14742R, 14745N, 14745R, 56054, 436506, 436518, 436551, 12060317, 0986033471, 0986035431

    • NormaliseratArtNr
      a2132s, alt32058, asa393, asa394, dra3471, dra5431, f032110267, lr150110, lr150110c, lr15515, lr15515b, lr15515c, lr15517, lr15518, lr15525, lr160137, lr160138, lra00574, lra02670, qa1994, va226, 8el726264001, 2538, 14255n, 14303n, 14303r, 14585, 14585r, 14742n, 14742r, 14745n, 14745r, 23700aa000, 23700aa010, 23700aa020, 23700aa031, 56054, 281682, 281880, 436506, 436518, 436551, 1125301hi, 1159302hi, 3651702, 3651703, 12060317, 233102602, 233108602, 237007050, 429907010, 429907020, 429907320, 429907330, 429907340, 429907400, 0986033471, 0986035431

    • Passar modeller
      Subaru Model: Brat Model series: Brat Model type: GL Size of motor: 1.8 From date: 01-01-1985 To date: 01-01-1987 Fuel: Gasoline Approved: Yes
      Subaru Model: Brat Model series: Brat Model type: GL Type of engine: Turbo Size of motor: 1.8 From date: 01-01-1984 Fuel: Gasoline Approved: Yes
      Subaru Model: Brat Model series: Brat Size of motor: 1.8 Brand of engine: EA81 From date: 01-01-1980 Fuel: Gasoline Approved: Yes
      Subaru Model: DL Model series: DL Size of motor: 1.6 From date: 01-01-1982 To date: 01-01-1984 Fuel: Gasoline Approved: Yes
      Subaru Model: GL Model series: GL Size of motor: 1.6 From date: 01-01-1986 To date: 01-01-1987 Fuel: Gasoline Approved: Yes
      Subaru Model: GL Model series: GL Type of engine: Turbo Size of motor: 1.8 From date: 01-01-1983 To date: 01-01-1984 Fuel: Gasoline Approved: Yes
      Subaru Model: Leone / Loyale Model series: Leone / Loyale Model type: 4WD Size of motor: 1.8 Brand of engine: EA82 From date: 01-03-1987 To date: 01-12-1989 Fuel: Gasoline Approved: Yes
      Subaru Model: Leone Model series: Leone Model type: 1300 Size of motor: 1.3 Brand of engine: EA65 From date: 01-11-1984 To date: 01-09-1991 Fuel: Gasoline Approved: Yes
      Subaru Model: Leone Model series: Leone Model type: 1600 Size of motor: 1.6 Brand of engine: EA71 From date: 01-11-1984 To date: 01-09-1991 Fuel: Gasoline Approved: Yes
      Subaru Model: Leone Model series: Leone Model type: 1800 4WD Size of motor: 1.8 Brand of engine: EA82 Body: Estate From date: 01-08-1986 To date: 01-12-1990 Fuel: Gasoline Approved: Yes
      Subaru Model: Leone Model series: Leone Model type: 1800 4WD Size of motor: 1.8 Brand of engine: EA82 Body: Estate From date: 01-11-1984 To date: 01-12-1990 Fuel: Gasoline Approved: Yes
      Subaru Model: Leone Model series: Leone Model type: 1800 4WD Size of motor: 1.8 Brand of engine: EA82 Body: Estate From date: 01-12-1986 To date: 01-07-1991 Fuel: Gasoline Approved: Yes
      Subaru Model: Leone Model series: Leone Model type: 1800 4WD Size of motor: 1.8 Brand of engine: EA82 Type description: AB From date: 01-01-1988 To date: 01-12-1990 Fuel: Gasoline Approved: Yes
      Subaru Model: Leone Model series: Leone Model type: 1800 4WD Size of motor: 1.8 Brand of engine: EA82 Type description: LAC From date: 01-01-1988 To date: 01-12-1990 Fuel: Gasoline Approved: Yes
      Subaru Model: Leone Model series: Leone Model type: 1800 4WD Size of motor: 1.8 Brand of engine: EA82 Type description: LAC From date: 01-11-1984 To date: 01-12-1990 Fuel: Gasoline Approved: Yes
      Subaru Model: Leone Model series: Leone Model type: 1800 4WD Type of engine: Turbo Size of motor: 1.8 Brand of engine: EA82 Body: Estate From date: 01-03-1989 To date: 01-12-1990 Fuel: Gasoline Approved: Yes
      Subaru Model: Leone Model series: Leone Model type: 1800 4WD Type of engine: Turbo Size of motor: 1.8 Brand of engine: EA82 From date: 01-03-1989 To date: 01-12-1990 Fuel: Gasoline Approved: Yes
      Subaru Model: Leone Model series: Leone Model type: 1800 4WD Type of engine: Turbo Size of motor: 1.8 Brand of engine: EA82 From date: 01-11-1984 To date: 01-12-1990 Fuel: Gasoline Approved: Yes
      Subaru Model: Leone Model series: Leone Model type: 1800 Super 4WD Type of engine: Turbo Size of motor: 1.8 Brand of engine: EA82 Body: Estate From date: 01-11-1984 To date: 01-12-1990 Fuel: Gasoline Approved: Yes
      Subaru Model: Leone Model series: Leone Size of motor: 1.8 Brand of engine: EA82 From date: 01-06-1985 To date: 01-07-1986 Fuel: Gasoline Approved: Yes
      Subaru Model: Standard Model series: Standard Size of motor: 1.6 From date: 01-01-1982 To date: 01-01-1987 Fuel: Gasoline Approved: Yes
