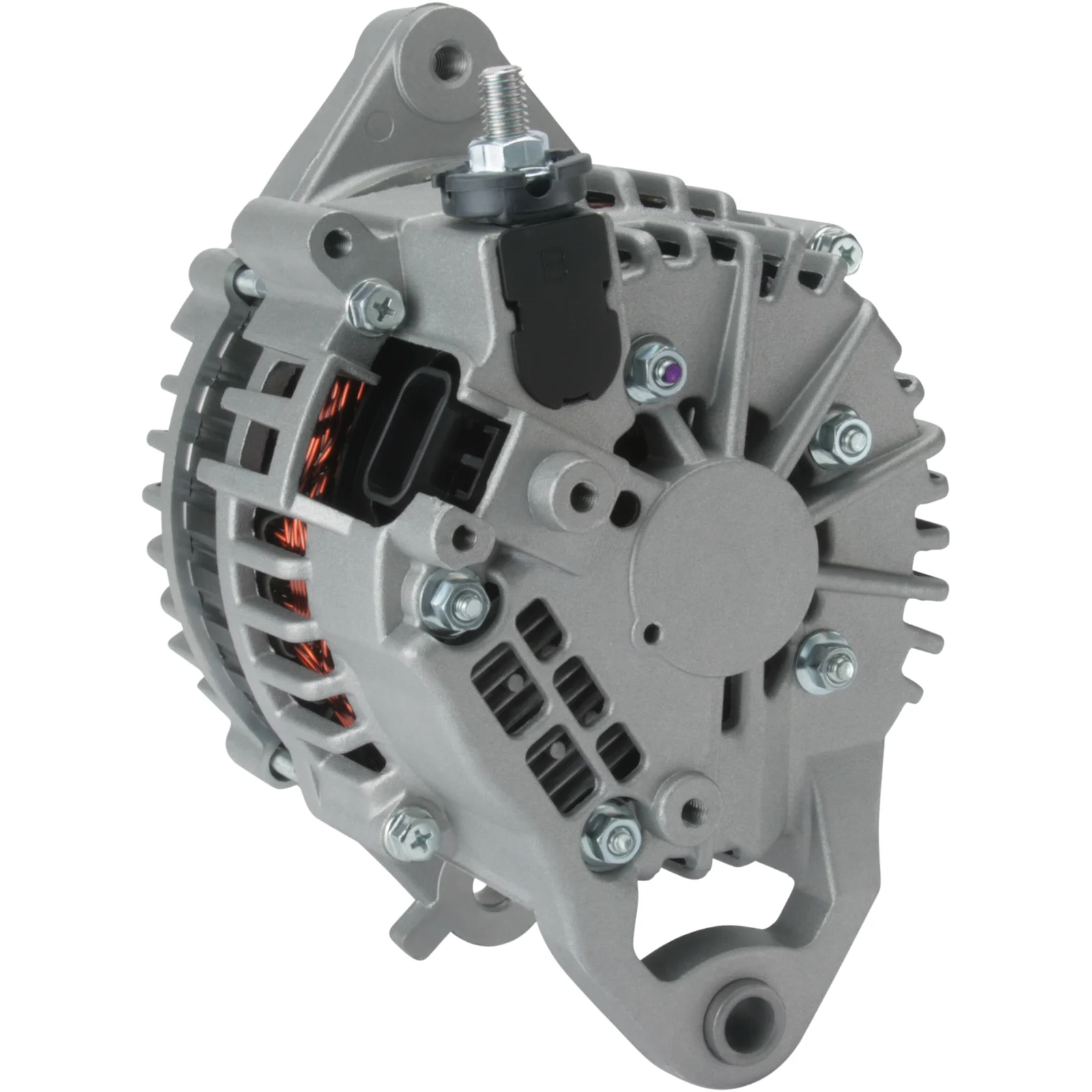

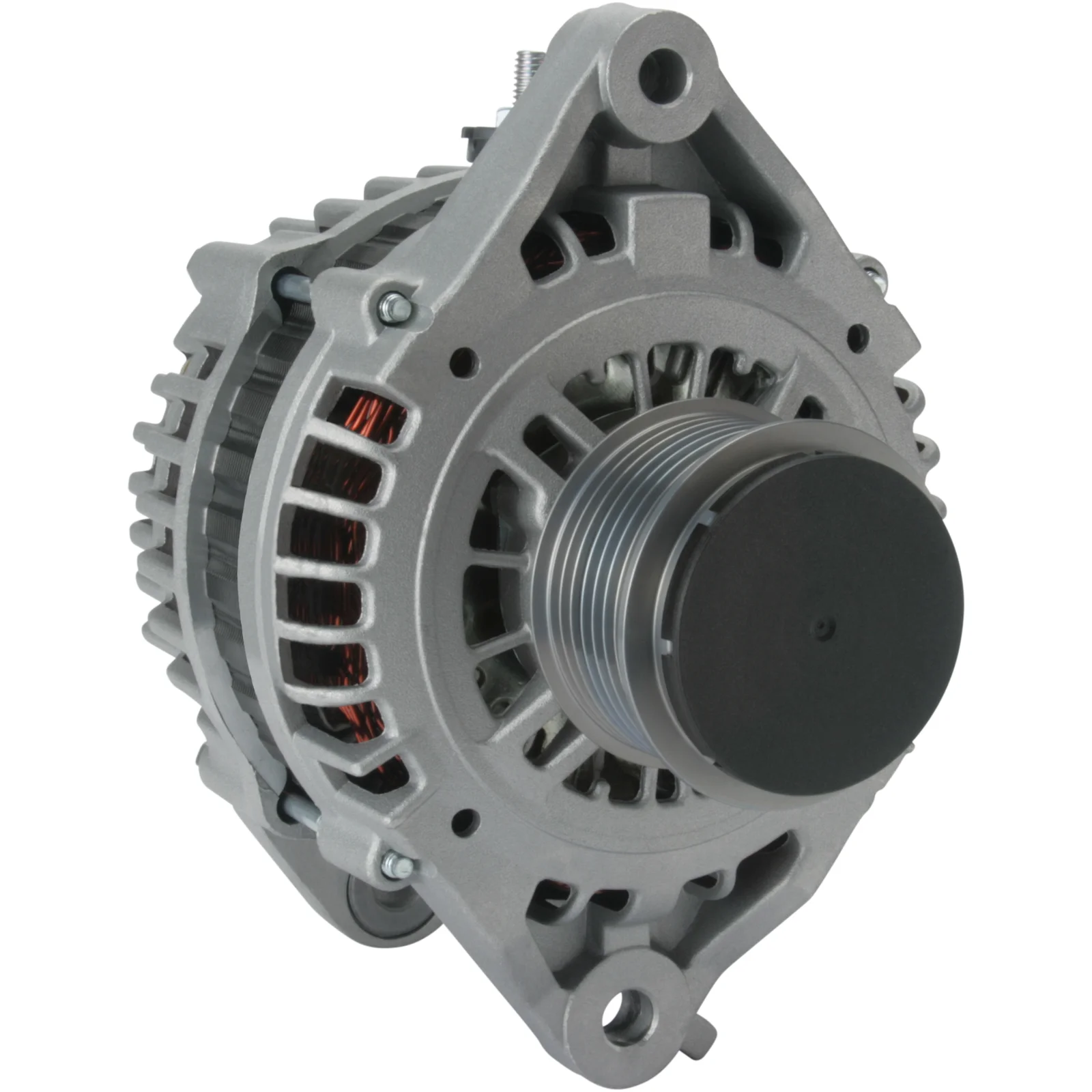

HC-Cargo Generator
HC-Cargo Generator
Vare nr.: F032113787

HC-Cargo Generator

Tekniske oplysninger:

Spænding: 14, Amp: 90, Rotation: CW, Monteringsbeslag afstand: 81.00

Beskrivelse

Spænding: 14
Amp: 90
Remskive afstand: 38.00
Bredde/holder arm: 13.00
Monteringsbeslag afstand: 81.00
Beslag hullerne: 10.30
Bælte. justering beslag hul pos.: 60
Bælte. justering beslag hul 1: M8
Remskive diameter: 59.70
Riller/remskive: 7
Radius: 84.00
Radius 2: 86.00
B+: M8
Position/B+ i min.: 50
D+ Størrelse: Plug
Rotation: med uret
Plug nr.: PL07
Total længde mm: 191.00
Terminaltype: L-S
Remskive: SP/FW
Vifte: IF
Regulator type: IR
Prod. info: BN
Service: Nissan

Filer

Specifikation

B+ M8
Mount. bracket dist. 81.00
Belt. adj. bracket hole 1 M8
Belt. adj. brackethole pos. 60
Plug no. PL07
Bracket hole 10.30
Position/B+ in min. 50
Prod. info BN
Pulley SP/FW
Pulley dia. 59.70
Pulley dist. 38.00
Radius 84.00
D+ Size Plug
Radius 2 86.00
Regulator type IR
Rotation CW
Servicing Nissan
Fan IF
Grooves/pulley 7
Terminal type L-S
Voltage 14
Total length 191.00 mm
Width/holder arm 13.00
Amp 90

  • OEM
    F032113787, ja1602ir, LR190-752, LR190-752B, LR190-752C, lr190-752h, LR190-770, lr190-770c, 1986A01298, 23100-vc100, 23100-VC10A, 23100-vc10b, 23100-VC10C, 23100-VS40C

  • Konkurrentreferens
    A2023, A2023(P), A2023SR, A2112S, ALT-H157, CAL20132, CAL20243, DRA4097, F042A0H157, J5111093, LRA02215, 8EL012428-251, 8EL737922-001, 28-4684, 165.933.090, 227.175.902, 9223, 23215N, 23215R, 111458, 200252, 210463, 210463A, 401602RI, 440695, 9051193, 12060791, 0986049800, 944390511930

  • NormaliseratArtNr
    a2023, a2023p, a2023sr, a2112s, alth157, cal20132, cal20243, dra4097, f032113787, f042a0h157, j5111093, ja1602ir, lr190752, lr190752b, lr190752c, lr190752h, lr190770, lr190770c, lra02215, 8el012428251, 8el737922001, 1986a01298, 9223, 23100vc100, 23100vc10a, 23100vc10b, 23100vc10c, 23100vs40c, 23215n, 23215r, 111458, 200252, 210463, 210463a, 284684, 401602ri, 440695, 9051193, 12060791, 165933090, 227175902, 0986049800, 944390511930

  • Passar modeller
    Nissan Model: Patrol Model series: Patrol GR Type of engine: DTi Size of motor: 3.0 Brand of engine: ZD30DDTi Type description: Y61 From date: 01-05-2000 Fuel: Diesel Approved: Yes
    Nissan Model: Terrano Model series: Terrano Model type: 4WD Type of engine: Diesel Di Size of motor: 3.0 Brand of engine: ZD30 From date: 01-05-2002 To date: 01-09-2007 Fuel: Diesel Approved: Yes
  • Beskrivelse
    Spænding: 14
    Amp: 90
    Remskive afstand: 38.00
    Bredde/holder arm: 13.00
    Monteringsbeslag afstand: 81.00
    Beslag hullerne: 10.30
    Bælte. justering beslag hul pos.: 60
    Bælte. justering beslag hul 1: M8
    Remskive diameter: 59.70
    Riller/remskive: 7
    Radius: 84.00
    Radius 2: 86.00
    B+: M8
    Position/B+ i min.: 50
    D+ Størrelse: Plug
    Rotation: med uret
    Plug nr.: PL07
    Total længde mm: 191.00
    Terminaltype: L-S
    Remskive: SP/FW
    Vifte: IF
    Regulator type: IR
    Prod. info: BN
    Service: Nissan

    Filer

  • Specifikation
    B+ M8
    Mount. bracket dist. 81.00
    Belt. adj. bracket hole 1 M8
    Belt. adj. brackethole pos. 60
    Plug no. PL07
    Bracket hole 10.30
    Position/B+ in min. 50
    Prod. info BN
    Pulley SP/FW
    Pulley dia. 59.70
    Pulley dist. 38.00
    Radius 84.00
    D+ Size Plug
    Radius 2 86.00
    Regulator type IR
    Rotation CW
    Servicing Nissan
    Fan IF
    Grooves/pulley 7
    Terminal type L-S
    Voltage 14
    Total length 191.00 mm
    Width/holder arm 13.00
    Amp 90
  • Køretøjsmatchning

    • OEM
      F032113787, ja1602ir, LR190-752, LR190-752B, LR190-752C, lr190-752h, LR190-770, lr190-770c, 1986A01298, 23100-vc100, 23100-VC10A, 23100-vc10b, 23100-VC10C, 23100-VS40C

    • Konkurrentreferens
      A2023, A2023(P), A2023SR, A2112S, ALT-H157, CAL20132, CAL20243, DRA4097, F042A0H157, J5111093, LRA02215, 8EL012428-251, 8EL737922-001, 28-4684, 165.933.090, 227.175.902, 9223, 23215N, 23215R, 111458, 200252, 210463, 210463A, 401602RI, 440695, 9051193, 12060791, 0986049800, 944390511930

    • NormaliseratArtNr
      a2023, a2023p, a2023sr, a2112s, alth157, cal20132, cal20243, dra4097, f032113787, f042a0h157, j5111093, ja1602ir, lr190752, lr190752b, lr190752c, lr190752h, lr190770, lr190770c, lra02215, 8el012428251, 8el737922001, 1986a01298, 9223, 23100vc100, 23100vc10a, 23100vc10b, 23100vc10c, 23100vs40c, 23215n, 23215r, 111458, 200252, 210463, 210463a, 284684, 401602ri, 440695, 9051193, 12060791, 165933090, 227175902, 0986049800, 944390511930

    • Passar modeller
      Nissan Model: Patrol Model series: Patrol GR Type of engine: DTi Size of motor: 3.0 Brand of engine: ZD30DDTi Type description: Y61 From date: 01-05-2000 Fuel: Diesel Approved: Yes
      Nissan Model: Terrano Model series: Terrano Model type: 4WD Type of engine: Diesel Di Size of motor: 3.0 Brand of engine: ZD30 From date: 01-05-2002 To date: 01-09-2007 Fuel: Diesel Approved: Yes
