HC-Cargo Generator
HC-Cargo Generator
Vare nr.: F032114010

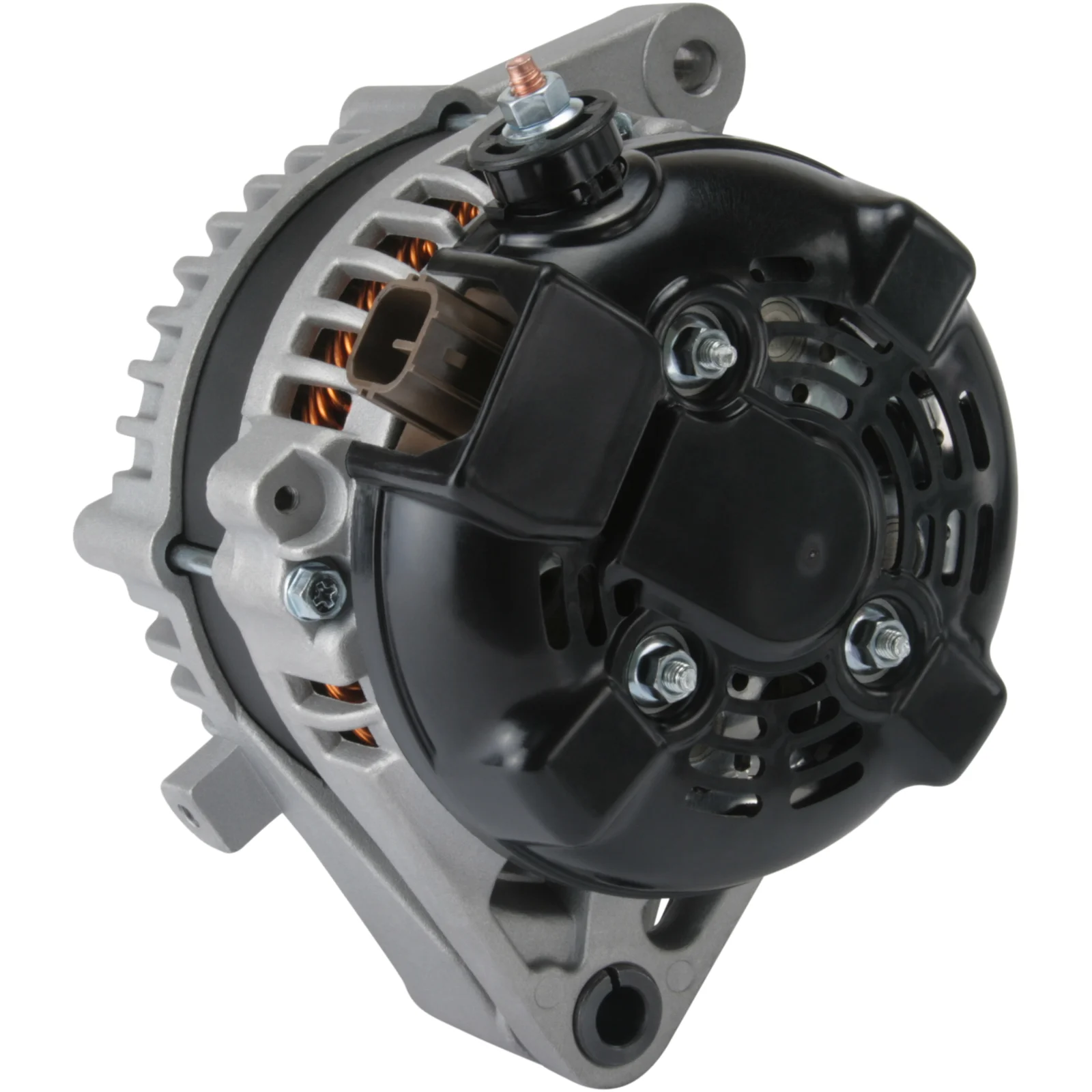

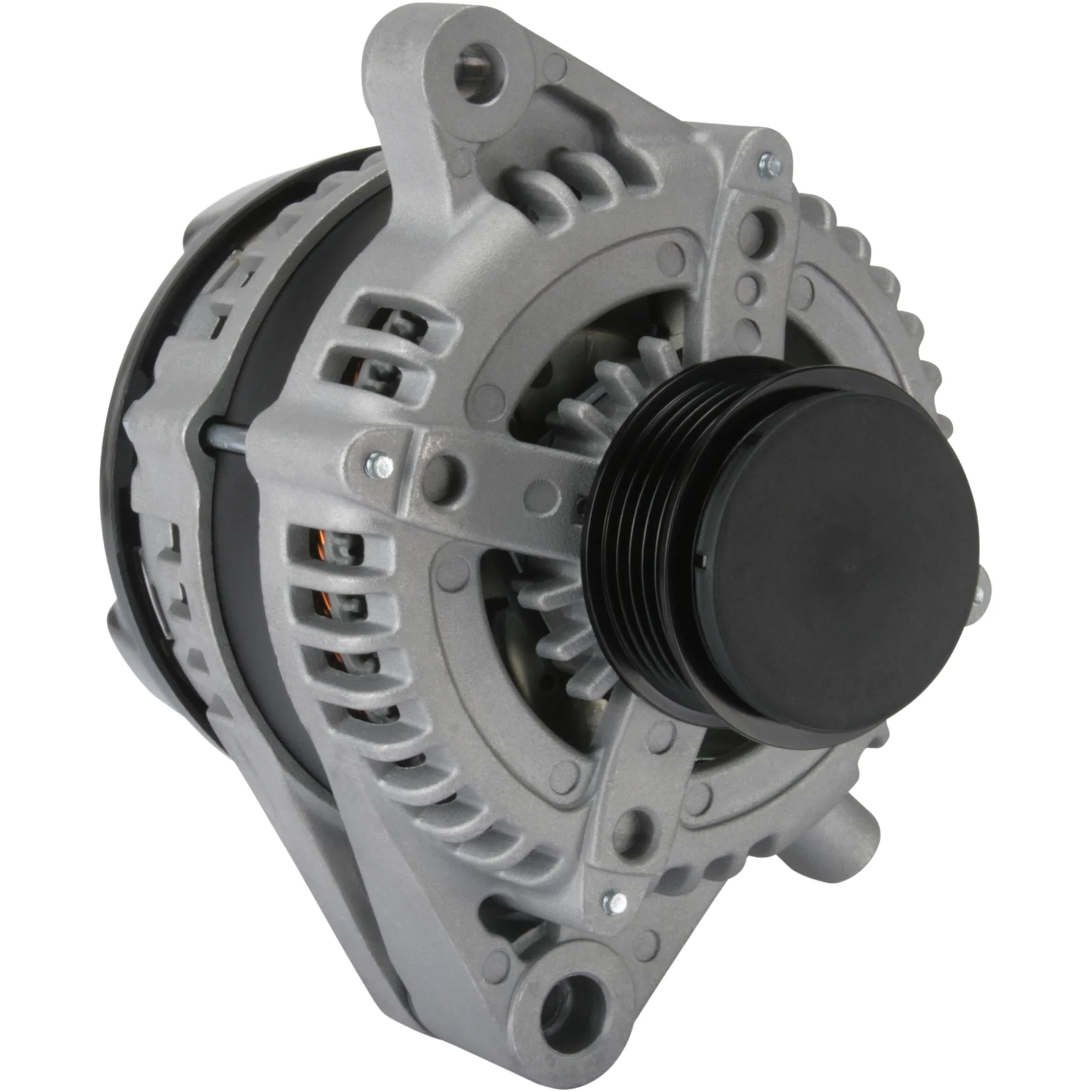

HC-Cargo Generator

Tekniske oplysninger:

Spænding: 14, Amp: 100, Rotation: CW, Remskive dia.: 58.00

Beskrivelse

Spænding: 14
Amp: 100
Remskive dist.: 93,00
Bredde/holderarm: 53,00
Bøsning hul: 10,50
Tilhørselsjustering remskive hul pos.: 55
Tilhørselsjustering remskive hul 1: 10,00
Remskive dia.: 58,00
Riller/remskive: 5
Radius: 90,00
Radius 2: 86,00
B+: M6
Position/B+ i min.: 55
D+ Størrelse: Plugg
Rotation: CW
Plug no.: PL78
Samlet længde mm: 157,00
Lampetype: Inaktiv
Remskive: SP/FW
Ventilator: IF
Regulator type: IR
Prod. info: BN

Filer

Specifikation

B+ M6
Belt. adj. bracket hole 1 10.00
Belt. adj. brackethole pos. 55
Plug no. PL78
Bracket hole 10.50
Position/B+ in min. 55
Prod. info BN
Pulley SP/FW
Pulley dia. 58.00
Pulley dist. 93.00
Radius 90.00
D+ Size Plug
Radius 2 86.00
Regulator type IR
Rotation CW
Fan IF
Grooves/pulley 5
Lamp type Inactive
Voltage 14
Total length 157.00 mm
Width/holder arm 53.00
Amp 100

  • OEM
    F032114010, 1950ir, 1986A01410, 27060-27060, 27060-27080, 27060-27090, 27060-2709084, 102211-2760, 104210-3430, 104210-3431, 9664219343

  • Konkurrentreferens
    A6007, A6007(P), A6007PR, A6384S, CAL40171, CAL40331, dan941, DENDAN941, DRA0831, DRA4284, J5112112, LRA02316, 8EL012240-961, 28-4809, 28-5900, 195.572.100, 235.190.1002, 235.190.902, 9315, 23316R, 23947N, 23947R, 209346, 209346A, 210930, 210930A, 301950RI, 301951RI, 444222, 12060828, 0986082030, 063377502010

  • NormaliseratArtNr
    a6007, a6007p, a6007pr, a6384s, cal40171, cal40331, dan941, dendan941, dra0831, dra4284, f032114010, j5112112, lra02316, 8el012240961, 1950ir, 1986a01410, 9315, 23316r, 23947n, 23947r, 209346, 209346a, 210930, 210930a, 284809, 285900, 301950ri, 301951ri, 444222, 12060828, 195572100, 235190902, 0986082030, 1022112760, 1042103430, 1042103431, 2351901002, 2706027060, 2706027080, 2706027090, 9664219343, 063377502010, 270602709084

  • Passar modeller
    Toyota Model: Avensis Model series: Avensis Type of engine: D-4D Size of motor: 2.0 Brand of engine: 1CD-FTV Type description: T25 Body: Estate From date: 01-04-2003 To date: 01-11-2008 Fuel: Diesel Approved: Yes
    Toyota Model: Avensis Model series: Avensis Type of engine: D-4D Size of motor: 2.0 Brand of engine: 1CD-FTV Type description: T25 Body: Hatchback From date: 01-04-2003 To date: 01-11-2008 Fuel: Diesel Approved: Yes
    Toyota Model: Avensis Model series: Avensis Type of engine: D-4D Size of motor: 2.0 Brand of engine: 1CD-FTV Type description: T25 From date: 01-04-2003 To date: 01-11-2008 Fuel: Diesel Approved: Yes
    Toyota Model: Corolla Model series: Corolla Model type: Verso Type of engine: D-4D Size of motor: 2.0 Brand of engine: 1CD-FTV Type description: E12 Body: MPV From date: 01-01-2002 To date: 01-05-2004 Fuel: Diesel Approved: Yes Manufacture type: verso
    Toyota Model: Corolla Model series: Corolla Model type: Verso Type of engine: D-4D Size of motor: 2.0 Brand of engine: 1CD-FTV Type description: ZER_, ZZE_ Body: MPV From date: 01-04-2004 To date: 01-03-2009 Fuel: Diesel Approved: Yes
    Toyota Model: Corolla Model series: Corolla Type of engine: D-4D Size of motor: 2.0 Brand of engine: 1CD-FTV Type description: E12_, 12J_ Body: Estate From date: 01-01-2002 To date: 01-02-2007 Fuel: Diesel Approved: Yes
    Toyota Model: Corolla Model series: Corolla Type of engine: D-4D Size of motor: 2.0 Brand of engine: 1CD-FTV Type description: E12_, 12J_ Body: Hatchback From date: 01-01-2002 To date: 01-12-2006 Fuel: Diesel Approved: Yes
    Toyota Model: Corolla Model series: Corolla Type of engine: D-4D Size of motor: 2.0 Brand of engine: 1CD-FTV Type description: _E12J_, _E12T_ Body: Estate From date: 01-04-2004 To date: 01-02-2007 Fuel: Diesel Approved: Yes
    Toyota Model: Corolla Model series: Corolla Type of engine: D-4D Size of motor: 2.0 Brand of engine: 1CD-FTV Type description: _E12U_, _E12J_ Body: Hatchback From date: 01-05-2003 To date: 01-02-2007 Fuel: Diesel Approved: Yes
    Toyota Model: Corolla Model series: Corolla Type of engine: D-4D Size of motor: 2.0 Brand of engine: 1CD-FTV Type description: _E12_, _E12T_ From date: 01-01-2002 To date: 01-12-2006 Fuel: Diesel Approved: Yes
    1 / 2
  • Beskrivelse
    Spænding: 14
    Amp: 100
    Remskive dist.: 93,00
    Bredde/holderarm: 53,00
    Bøsning hul: 10,50
    Tilhørselsjustering remskive hul pos.: 55
    Tilhørselsjustering remskive hul 1: 10,00
    Remskive dia.: 58,00
    Riller/remskive: 5
    Radius: 90,00
    Radius 2: 86,00
    B+: M6
    Position/B+ i min.: 55
    D+ Størrelse: Plugg
    Rotation: CW
    Plug no.: PL78
    Samlet længde mm: 157,00
    Lampetype: Inaktiv
    Remskive: SP/FW
    Ventilator: IF
    Regulator type: IR
    Prod. info: BN

    Filer

  • Specifikation
    B+ M6
    Belt. adj. bracket hole 1 10.00
    Belt. adj. brackethole pos. 55
    Plug no. PL78
    Bracket hole 10.50
    Position/B+ in min. 55
    Prod. info BN
    Pulley SP/FW
    Pulley dia. 58.00
    Pulley dist. 93.00
    Radius 90.00
    D+ Size Plug
    Radius 2 86.00
    Regulator type IR
    Rotation CW
    Fan IF
    Grooves/pulley 5
    Lamp type Inactive
    Voltage 14
    Total length 157.00 mm
    Width/holder arm 53.00
    Amp 100
  • Køretøjsmatchning

    • OEM
      F032114010, 1950ir, 1986A01410, 27060-27060, 27060-27080, 27060-27090, 27060-2709084, 102211-2760, 104210-3430, 104210-3431, 9664219343

    • Konkurrentreferens
      A6007, A6007(P), A6007PR, A6384S, CAL40171, CAL40331, dan941, DENDAN941, DRA0831, DRA4284, J5112112, LRA02316, 8EL012240-961, 28-4809, 28-5900, 195.572.100, 235.190.1002, 235.190.902, 9315, 23316R, 23947N, 23947R, 209346, 209346A, 210930, 210930A, 301950RI, 301951RI, 444222, 12060828, 0986082030, 063377502010

    • NormaliseratArtNr
      a6007, a6007p, a6007pr, a6384s, cal40171, cal40331, dan941, dendan941, dra0831, dra4284, f032114010, j5112112, lra02316, 8el012240961, 1950ir, 1986a01410, 9315, 23316r, 23947n, 23947r, 209346, 209346a, 210930, 210930a, 284809, 285900, 301950ri, 301951ri, 444222, 12060828, 195572100, 235190902, 0986082030, 1022112760, 1042103430, 1042103431, 2351901002, 2706027060, 2706027080, 2706027090, 9664219343, 063377502010, 270602709084

    • Passar modeller
      Toyota Model: Avensis Model series: Avensis Type of engine: D-4D Size of motor: 2.0 Brand of engine: 1CD-FTV Type description: T25 Body: Estate From date: 01-04-2003 To date: 01-11-2008 Fuel: Diesel Approved: Yes
      Toyota Model: Avensis Model series: Avensis Type of engine: D-4D Size of motor: 2.0 Brand of engine: 1CD-FTV Type description: T25 Body: Hatchback From date: 01-04-2003 To date: 01-11-2008 Fuel: Diesel Approved: Yes
      Toyota Model: Avensis Model series: Avensis Type of engine: D-4D Size of motor: 2.0 Brand of engine: 1CD-FTV Type description: T25 From date: 01-04-2003 To date: 01-11-2008 Fuel: Diesel Approved: Yes
      Toyota Model: Corolla Model series: Corolla Model type: Verso Type of engine: D-4D Size of motor: 2.0 Brand of engine: 1CD-FTV Type description: E12 Body: MPV From date: 01-01-2002 To date: 01-05-2004 Fuel: Diesel Approved: Yes Manufacture type: verso
      Toyota Model: Corolla Model series: Corolla Model type: Verso Type of engine: D-4D Size of motor: 2.0 Brand of engine: 1CD-FTV Type description: ZER_, ZZE_ Body: MPV From date: 01-04-2004 To date: 01-03-2009 Fuel: Diesel Approved: Yes
      Toyota Model: Corolla Model series: Corolla Type of engine: D-4D Size of motor: 2.0 Brand of engine: 1CD-FTV Type description: E12_, 12J_ Body: Estate From date: 01-01-2002 To date: 01-02-2007 Fuel: Diesel Approved: Yes
      Toyota Model: Corolla Model series: Corolla Type of engine: D-4D Size of motor: 2.0 Brand of engine: 1CD-FTV Type description: E12_, 12J_ Body: Hatchback From date: 01-01-2002 To date: 01-12-2006 Fuel: Diesel Approved: Yes
      Toyota Model: Corolla Model series: Corolla Type of engine: D-4D Size of motor: 2.0 Brand of engine: 1CD-FTV Type description: _E12J_, _E12T_ Body: Estate From date: 01-04-2004 To date: 01-02-2007 Fuel: Diesel Approved: Yes
      Toyota Model: Corolla Model series: Corolla Type of engine: D-4D Size of motor: 2.0 Brand of engine: 1CD-FTV Type description: _E12U_, _E12J_ Body: Hatchback From date: 01-05-2003 To date: 01-02-2007 Fuel: Diesel Approved: Yes
      Toyota Model: Corolla Model series: Corolla Type of engine: D-4D Size of motor: 2.0 Brand of engine: 1CD-FTV Type description: _E12_, _E12T_ From date: 01-01-2002 To date: 01-12-2006 Fuel: Diesel Approved: Yes
      1 / 2
