Vare nr.: F032112648

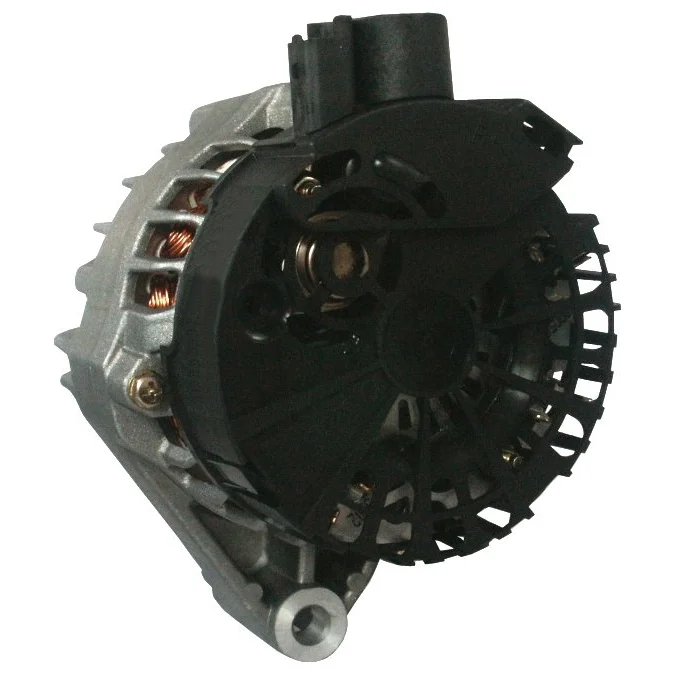

HC-Cargo Generator

Tekniske oplysninger:

Spænding: 14, Amp: 70, Rotation: CW, Remskive diameter: 56,20

Beskrivelse

Voltage: 14
Amp: 70
Remskive afstand: 75.00
Bredde/bærehåndtag: 56.00
Klammehull: 10.20
Bælte. justerings. klammehull pos.: 50
Bælte. justerings. klammehull 1: 9.00
Remskive dia.: 56.20
Groove/ringspore: 5
Radius: 90.00
Radius 2: 90.00
B+: M8
Position/B+ i min.: 58
D+ Størrelse: Stik
Rotation: med uret
Stik nr.: PL72
Samlet længde mm: 173.00
Remskive: SP
Regulator type: IR
Prod. info: BN
Servicing: Citroen

Filer

Specifikation

B+ M8
Belt. adj. bracket hole 1 9.00
Belt. adj. brackethole pos. 50
Plug no. PL72
Bracket hole 10.20
Position/B+ in min. 58
Prod. info BN
Pulley SP
Pulley dia. 56.20
Pulley dist. 75.00
Radius 90.00
D+ Size Plug
Radius 2 90.00
Regulator type IR
Rotation CW
Servicing Citroen
Grooves/pulley 5
Voltage 14
Total length 173.00 mm
Width/holder arm 56.00
Amp 70

  • OEM
    a11vi102, a11vi108, F032112648, 1640ir, 2542305, 2542398, 2542398B, 63321741, 9638276180

  • Konkurrentreferens
    A4076, ALT-H115, ALT14040, CAL15210, CAL15271, DRA3815, DRA3949, F042A0H115, LRB00448, 8EL737931-001, 28-4515, 229.119.702, 229.124.702, 5705gf, 5705GI, 5705gj, 23811R, 23813N, 57054N, 57055m, 57055N, 57055x, 57056S, 57056T, 111730, 200149, 210123, 210123A, 301640RI, 437190, 437345, 746059, 746859, 839088, 12090105, 943341740, 0986049910, 063341740010, 063341741010, 943341740010

  • NormaliseratArtNr
    a11vi102, a11vi108, a4076, alt14040, alth115, cal15210, cal15271, dra3815, dra3949, f032112648, f042a0h115, lrb00448, 8el737931001, 1640ir, 5705gf, 5705gi, 5705gj, 23811r, 23813n, 57054n, 57055m, 57055n, 57055x, 57056s, 57056t, 111730, 200149, 210123, 210123a, 284515, 301640ri, 437190, 437345, 746059, 746859, 839088, 2542305, 2542398, 2542398b, 12090105, 63321741, 229119702, 229124702, 943341740, 0986049910, 9638276180, 063341740010, 063341741010, 943341740010

  • Passar modeller
    Citroen Model: Berlingo / Berlingo First Box Body/Mpv Model series: Berlingo / Berlingo First Box Body/MPV Size of motor: 1.4 Brand of engine: KFX (TU3JP) Type description: M_ Body: Box Body/MPV From date: 01-08-1999 To date: 01-05-2008 Fuel: Petrol Approved: Yes
    Citroen Model: Berlingo Model series: Berlingo Box Type of engine: BiFuel Size of motor: 1.4 Brand of engine: KFW (TU3JP) Type description: M_ Body: Van From date: 01-07-1996 To date: 01-10-2002 Fuel: Bi-Fuel Approved: Yes
    Citroen Model: Berlingo Model series: Berlingo Type of engine: 16V Size of motor: 1.6 Brand of engine: NFU (TU5JP4) Body: Van From date: 01-10-2000 To date: 01-03-2008 Fuel: Gasoline Approved: Yes
    Citroen Model: Berlingo Model series: Berlingo Type of engine: i Size of motor: 1.1 Brand of engine: HDZ (TU1M) Body: MPV From date: 01-07-1996 To date: 01-05-2008 Fuel: Gasoline Approved: Yes
    Citroen Model: Berlingo Model series: Berlingo Type of engine: i Size of motor: 1.1 Brand of engine: HFX (TU1JP) Body: MPV From date: 01-07-1996 To date: 01-05-2008 Fuel: Gasoline Approved: Yes
    Citroen Model: Saxo Model series: Saxo Model type: VTS Size of motor: 1.4 Brand of engine: KFX (TU3JP) Body: Hatchback From date: 01-05-1996 To date: 01-06-2003 Fuel: Gasoline Approved: Yes
    Citroen Model: Saxo Model series: Saxo Size of motor: 1.1 Brand of engine: HDZ (TU1M) Body: Hatchback From date: 01-05-1996 To date: 01-09-2003 Fuel: Gasoline Approved: Yes
    Citroen Model: Saxo Model series: Saxo Size of motor: 1.6 Brand of engine: NFZ (TU5JP) Body: Hatchback From date: 01-05-1996 To date: 01-06-2003 Fuel: Gasoline Approved: Yes
    Peugeot Model: 106 Model series: 106 Type of engine: i Size of motor: 1.1 Brand of engine: HDY (TU1M) Body: Hatchback From date: 01-01-1997 To date: 01-03-2001 Fuel: Gasoline Approved: Yes
    Peugeot Model: 106 Model series: 106 Type of engine: i Size of motor: 1.1 Brand of engine: HDZ (TU1M) Body: Hatchback From date: 01-05-1996 To date: 01-07-2004 Fuel: Gasoline Approved: Yes
    Peugeot Model: 106 Model series: 106 Type of engine: i Size of motor: 1.1 Brand of engine: HFX (TU1JP) Body: Hatchback From date: 01-05-1996 To date: 01-07-2004 Fuel: Gasoline Approved: Yes
    Peugeot Model: 106 Model series: 106 Type of engine: i Size of motor: 1.4 Brand of engine: KFX (TU3JP) Body: Hatchback From date: 01-05-1996 To date: 01-07-2004 Fuel: Gasoline Approved: Yes
    Peugeot Model: 306 Model series: 306 Type of engine: i Size of motor: 1.4 Brand of engine: KFW (TU3JP) Type description: 7E,N5 Body: Estate From date: 01-03-1997 To date: 01-04-2002 Fuel: Gasoline Approved: Yes Manufacture type: break
    Peugeot Model: 306 Model series: 306 Type of engine: i Size of motor: 1.4 Brand of engine: KFX (TU3JP) Type description: 7E,N5 Body: Estate From date: 01-03-1997 To date: 01-04-2002 Fuel: Gasoline Approved: Yes Manufacture type: break
    Peugeot Model: Partner Model series: Partner Size of motor: 1.1 Brand of engine: HDZ (TU1M) Body: MPV From date: 01-06-1996 To date: 01-10-2002 Fuel: Gasoline Approved: Yes
    Peugeot Model: Partner Model series: Partner Size of motor: 1.1 Brand of engine: HFX (TU1JP) Body: MPV From date: 01-06-1996 To date: 01-10-2002 Fuel: Gasoline Approved: Yes
    Peugeot Model: Partner Model series: Partner Size of motor: 1.4 Brand of engine: KFW (TU3JP) Body: MPV From date: 01-06-1996 To date: 01-12-2015 Fuel: Gasoline Approved: Yes
    Peugeot Model: Partner Model series: Partner Size of motor: 1.4 Brand of engine: KFX (TU3JP) Body: MPV From date: 01-06-1996 To date: 01-12-2015 Fuel: Gasoline Approved: Yes
    Peugeot Model: Partner Model series: Partner Size of motor: 1.4 Brand of engine: TU32 Body: MPV From date: 01-06-1996 To date: 01-12-2015 Fuel: Gasoline Approved: Yes
    1 / 4
  • Beskrivelse
    Voltage: 14
    Amp: 70
    Remskive afstand: 75.00
    Bredde/bærehåndtag: 56.00
    Klammehull: 10.20
    Bælte. justerings. klammehull pos.: 50
    Bælte. justerings. klammehull 1: 9.00
    Remskive dia.: 56.20
    Groove/ringspore: 5
    Radius: 90.00
    Radius 2: 90.00
    B+: M8
    Position/B+ i min.: 58
    D+ Størrelse: Stik
    Rotation: med uret
    Stik nr.: PL72
    Samlet længde mm: 173.00
    Remskive: SP
    Regulator type: IR
    Prod. info: BN
    Servicing: Citroen

    Filer

  • Specifikation
    B+ M8
    Belt. adj. bracket hole 1 9.00
    Belt. adj. brackethole pos. 50
    Plug no. PL72
    Bracket hole 10.20
    Position/B+ in min. 58
    Prod. info BN
    Pulley SP
    Pulley dia. 56.20
    Pulley dist. 75.00
    Radius 90.00
    D+ Size Plug
    Radius 2 90.00
    Regulator type IR
    Rotation CW
    Servicing Citroen
    Grooves/pulley 5
    Voltage 14
    Total length 173.00 mm
    Width/holder arm 56.00
    Amp 70
  • Køretøjsmatchning

    • OEM
      a11vi102, a11vi108, F032112648, 1640ir, 2542305, 2542398, 2542398B, 63321741, 9638276180

    • Konkurrentreferens
      A4076, ALT-H115, ALT14040, CAL15210, CAL15271, DRA3815, DRA3949, F042A0H115, LRB00448, 8EL737931-001, 28-4515, 229.119.702, 229.124.702, 5705gf, 5705GI, 5705gj, 23811R, 23813N, 57054N, 57055m, 57055N, 57055x, 57056S, 57056T, 111730, 200149, 210123, 210123A, 301640RI, 437190, 437345, 746059, 746859, 839088, 12090105, 943341740, 0986049910, 063341740010, 063341741010, 943341740010

    • NormaliseratArtNr
      a11vi102, a11vi108, a4076, alt14040, alth115, cal15210, cal15271, dra3815, dra3949, f032112648, f042a0h115, lrb00448, 8el737931001, 1640ir, 5705gf, 5705gi, 5705gj, 23811r, 23813n, 57054n, 57055m, 57055n, 57055x, 57056s, 57056t, 111730, 200149, 210123, 210123a, 284515, 301640ri, 437190, 437345, 746059, 746859, 839088, 2542305, 2542398, 2542398b, 12090105, 63321741, 229119702, 229124702, 943341740, 0986049910, 9638276180, 063341740010, 063341741010, 943341740010

    • Passar modeller
      Citroen Model: Berlingo / Berlingo First Box Body/Mpv Model series: Berlingo / Berlingo First Box Body/MPV Size of motor: 1.4 Brand of engine: KFX (TU3JP) Type description: M_ Body: Box Body/MPV From date: 01-08-1999 To date: 01-05-2008 Fuel: Petrol Approved: Yes
      Citroen Model: Berlingo Model series: Berlingo Box Type of engine: BiFuel Size of motor: 1.4 Brand of engine: KFW (TU3JP) Type description: M_ Body: Van From date: 01-07-1996 To date: 01-10-2002 Fuel: Bi-Fuel Approved: Yes
      Citroen Model: Berlingo Model series: Berlingo Type of engine: 16V Size of motor: 1.6 Brand of engine: NFU (TU5JP4) Body: Van From date: 01-10-2000 To date: 01-03-2008 Fuel: Gasoline Approved: Yes
      Citroen Model: Berlingo Model series: Berlingo Type of engine: i Size of motor: 1.1 Brand of engine: HDZ (TU1M) Body: MPV From date: 01-07-1996 To date: 01-05-2008 Fuel: Gasoline Approved: Yes
      Citroen Model: Berlingo Model series: Berlingo Type of engine: i Size of motor: 1.1 Brand of engine: HFX (TU1JP) Body: MPV From date: 01-07-1996 To date: 01-05-2008 Fuel: Gasoline Approved: Yes
      Citroen Model: Saxo Model series: Saxo Model type: VTS Size of motor: 1.4 Brand of engine: KFX (TU3JP) Body: Hatchback From date: 01-05-1996 To date: 01-06-2003 Fuel: Gasoline Approved: Yes
      Citroen Model: Saxo Model series: Saxo Size of motor: 1.1 Brand of engine: HDZ (TU1M) Body: Hatchback From date: 01-05-1996 To date: 01-09-2003 Fuel: Gasoline Approved: Yes
      Citroen Model: Saxo Model series: Saxo Size of motor: 1.6 Brand of engine: NFZ (TU5JP) Body: Hatchback From date: 01-05-1996 To date: 01-06-2003 Fuel: Gasoline Approved: Yes
      Peugeot Model: 106 Model series: 106 Type of engine: i Size of motor: 1.1 Brand of engine: HDY (TU1M) Body: Hatchback From date: 01-01-1997 To date: 01-03-2001 Fuel: Gasoline Approved: Yes
      Peugeot Model: 106 Model series: 106 Type of engine: i Size of motor: 1.1 Brand of engine: HDZ (TU1M) Body: Hatchback From date: 01-05-1996 To date: 01-07-2004 Fuel: Gasoline Approved: Yes
      Peugeot Model: 106 Model series: 106 Type of engine: i Size of motor: 1.1 Brand of engine: HFX (TU1JP) Body: Hatchback From date: 01-05-1996 To date: 01-07-2004 Fuel: Gasoline Approved: Yes
      Peugeot Model: 106 Model series: 106 Type of engine: i Size of motor: 1.4 Brand of engine: KFX (TU3JP) Body: Hatchback From date: 01-05-1996 To date: 01-07-2004 Fuel: Gasoline Approved: Yes
      Peugeot Model: 306 Model series: 306 Type of engine: i Size of motor: 1.4 Brand of engine: KFW (TU3JP) Type description: 7E,N5 Body: Estate From date: 01-03-1997 To date: 01-04-2002 Fuel: Gasoline Approved: Yes Manufacture type: break
      Peugeot Model: 306 Model series: 306 Type of engine: i Size of motor: 1.4 Brand of engine: KFX (TU3JP) Type description: 7E,N5 Body: Estate From date: 01-03-1997 To date: 01-04-2002 Fuel: Gasoline Approved: Yes Manufacture type: break
      Peugeot Model: Partner Model series: Partner Size of motor: 1.1 Brand of engine: HDZ (TU1M) Body: MPV From date: 01-06-1996 To date: 01-10-2002 Fuel: Gasoline Approved: Yes
      Peugeot Model: Partner Model series: Partner Size of motor: 1.1 Brand of engine: HFX (TU1JP) Body: MPV From date: 01-06-1996 To date: 01-10-2002 Fuel: Gasoline Approved: Yes
      Peugeot Model: Partner Model series: Partner Size of motor: 1.4 Brand of engine: KFW (TU3JP) Body: MPV From date: 01-06-1996 To date: 01-12-2015 Fuel: Gasoline Approved: Yes
      Peugeot Model: Partner Model series: Partner Size of motor: 1.4 Brand of engine: KFX (TU3JP) Body: MPV From date: 01-06-1996 To date: 01-12-2015 Fuel: Gasoline Approved: Yes
      Peugeot Model: Partner Model series: Partner Size of motor: 1.4 Brand of engine: TU32 Body: MPV From date: 01-06-1996 To date: 01-12-2015 Fuel: Gasoline Approved: Yes
