Vare nr.: F032112665

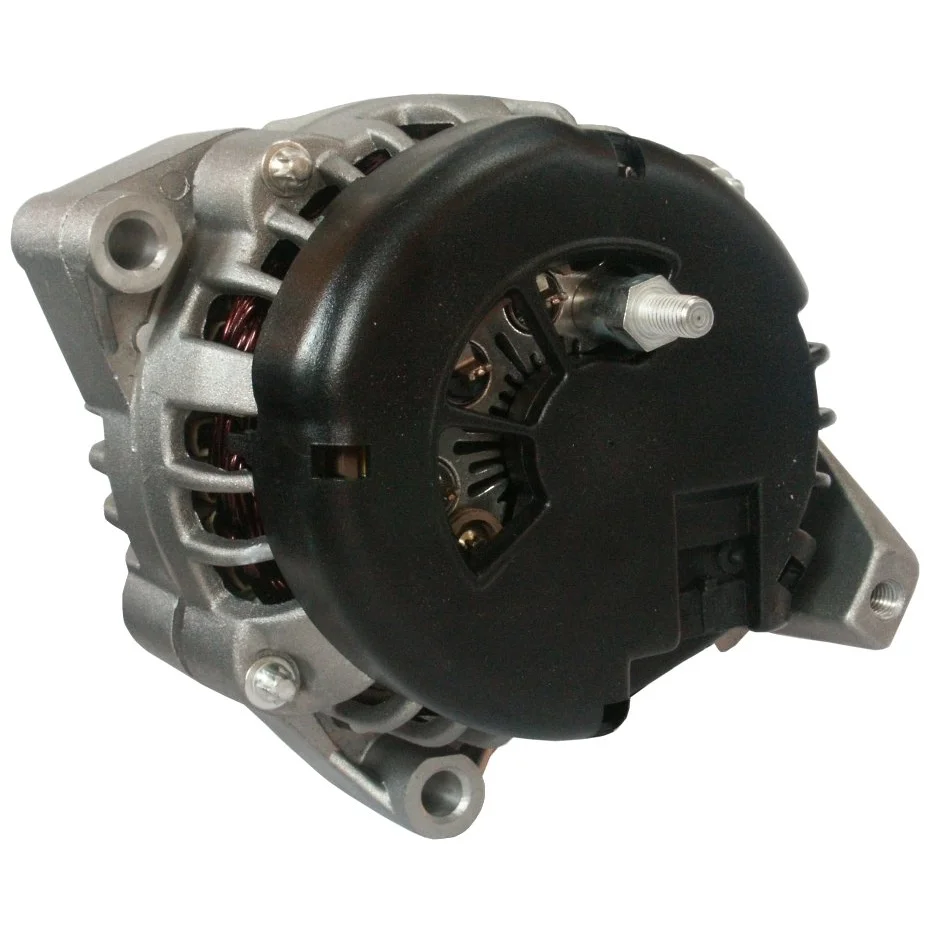

HC-Cargo Generator

Tekniske oplysninger:

Spenning: 14, Amp: 100, Rotation: CW, Remskive diameter: 56.50

Beskrivelse

Spænding: 14
Amp.: 100
Remskive dist.: 72,00
Bredde/holder arm: 50,80
Bøjlehull: 10,30
Kædebåndsjustering bøjlehull pos.: 10
Bæltes. justering bøjlehull 1: 10,30
Remskive dia.: 56,50
Riller/remskive: 6
Radius: 82,00
Radius 2: 82,00
B+: M8
Position/B+ i min.: 60
D+ Størrelse: Stik
Rotation: med uret
Stik nr.: PL187
W stiktype: Stik
Samlet længde mm: 176,00
Remskive: SP
Regulator type: IR
Prod. info: BN
Service: Chevrolet
Anmærkninger: Udskiftning: CS130.

Filer

Specifikation

B+ M8
Belt. adj. bracket hole 1 10.30
Belt. adj. brackethole pos. 10
Plug no. PL187
Bracket hole 10.30
Position/B+ in min. 60
Prod. info BN
Pulley SP
Pulley dia. 56.50
Pulley dist. 72.00
Radius 82.00
D+ Size Plug
Radius 2 82.00
Regulator type IR
Remarks Replacing: CS130.
Rotation CW
Servicing Chevrolet
Grooves/pulley 6
Voltage 14
W plug type Plug
Total length 176.00 mm
Width/holder arm 50.80
Amp 100

  • OEM
    F032112665, 8231, 10464084, 10480251, 10480254

  • Konkurrentreferens
    A1006, ALT-1420, F042300159, F042A00159, 1-2156-21dr, 1-2156-21DR-1, 1-2156-21DR-2, 835.947.105, 8231, 8231-5, 8231N, 8231R

  • NormaliseratArtNr
    a1006, alt1420, f032112665, f042300159, f042a00159, 8231, 8231n, 8231r, 82315, 1215621dr, 1215621dr1, 1215621dr2, 10464084, 10480251, 10480254, 835947105

  • Passar modeller
    Chevrolet Model: Astro Model series: Astre Size of motor: 4.3 From date: 01-01-1999 To date: 01-01-2005 Fuel: Gasoline Approved: Yes
    Chevrolet Model: Astro Model series: Astro Extended Cargo Van Model type: AWD Size of motor: 4.3 Brand of engine: L35 (262CUL6) Body: Van Fuel: Petrol Approved: Yes
    Chevrolet Model: Astro Model series: Astro Extended Cargo Van Size of motor: 4.3 Brand of engine: L35 (262CUL6) Body: Van Fuel: Petrol Approved: Yes
    Chevrolet Model: Blazer Model series: Blazer Model type: Trailblazer Size of motor: 4.3 From date: 01-01-1999 To date: 01-01-2000 Fuel: Gasoline Approved: Yes
    Chevrolet Model: Blazer Model series: Blazer Size of motor: 4.3 From date: 01-01-1998 To date: 01-01-2000 Fuel: Gasoline Approved: Yes
    Chevrolet Model: Blazer Model series: Blazer Size of motor: 4.3 From date: 01-01-1999 To date: 01-01-2002 Fuel: Gasoline Approved: Yes
    Chevrolet Model: S10 Extended Cab Pickup Model series: S10 Extended Cab Pickup Model type: 4WD Size of motor: 4.3 Brand of engine: L35 (262CUL6) Body: Pickup Fuel: Petrol Approved: Yes
    Chevrolet Model: S10 Model series: S10 Model type: 4x4 Size of motor: 4.3 Brand of engine: L35 Body: Pick Up From date: 01-10-1994 To date: 01-08-2002 Fuel: Gasoline Approved: Yes
    Chevrolet Model: S10 Model series: S10 Size of motor: 4.3 Body: Pick Up From date: 01-01-1999 To date: 01-01-1999 Fuel: Gasoline Approved: Yes
    Chevrolet Model: S10 Model series: S10 Size of motor: 4.3 Body: Pick Up From date: 01-01-1999 To date: 01-01-2000 Fuel: Gasoline Approved: Yes
    Chevrolet Model: S10 Pickup Model series: S10 Pickup Size of motor: 4.3 Brand of engine: L35 (262CUL6) Body: Pickup Fuel: Petrol Approved: Yes
    Chevrolet Model: S10 Standard Cab Pickup Model series: S10 Standard Cab Pickup Size of motor: 4.3 Brand of engine: L35 (262CUL6) Body: Pickup Fuel: Petrol Approved: Yes
    GMC Model: Jimmy Model series: Jimmy Model type: Envoy Size of motor: 4.3 From date: 01-01-1998 To date: 01-01-1998 Fuel: Gasoline Approved: Yes
    GMC Model: Jimmy Model series: Jimmy Model type: Envoy Size of motor: 4.3 From date: 01-01-1999 To date: 01-01-2001 Fuel: Gasoline Approved: Yes
    GMC Model: Jimmy Model series: Jimmy Size of motor: 4.3 From date: 01-01-1998 To date: 01-01-2000 Fuel: Gasoline Approved: Yes
    GMC Model: Safari Model series: Safari Size of motor: 4.3 From date: 01-01-1998 To date: 01-01-1998 Fuel: Gasoline Approved: Yes
    GMC Model: Sonoma Size of motor: 4.3 From date: 01-01-1999 To date: 01-01-1999 Fuel: Gasoline Approved: Yes
    GMC Model: Sonoma Size of motor: 4.3 From date: 01-01-1999 To date: 01-01-2000 Fuel: Gasoline Approved: Yes
    Isuzu Model: Hombre Model series: Hombre Size of motor: 4.3 From date: 01-01-1998 To date: 01-01-2000 Fuel: Gasoline Approved: Yes
    Oldsmobile Model: Bravada Model series: Bravada Size of motor: 4.3 From date: 01-01-1998 To date: 01-01-2000 Fuel: Gasoline Approved: Yes
