HC-Cargo Generator
HC-Cargo Generator
Vare nr.: F032112468

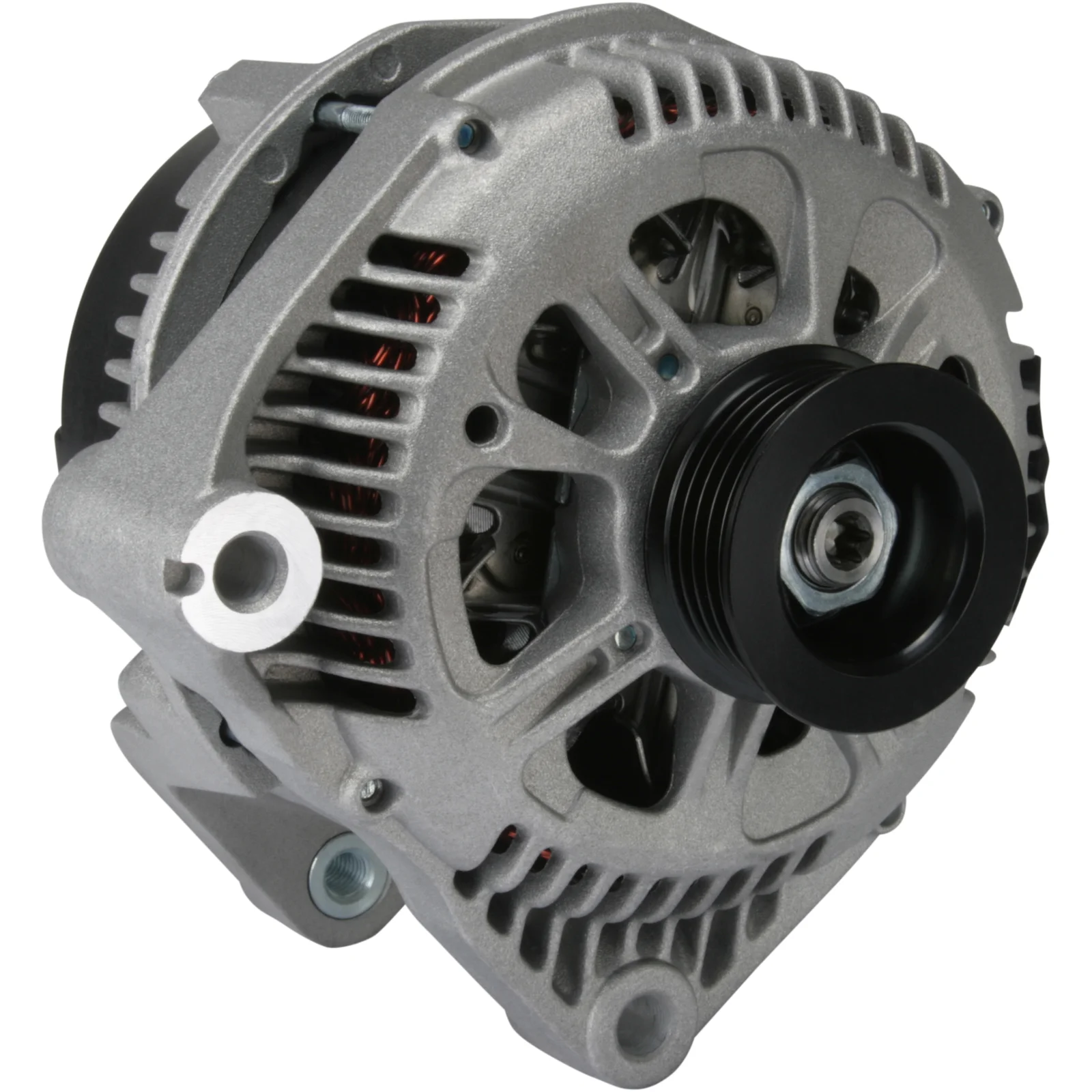

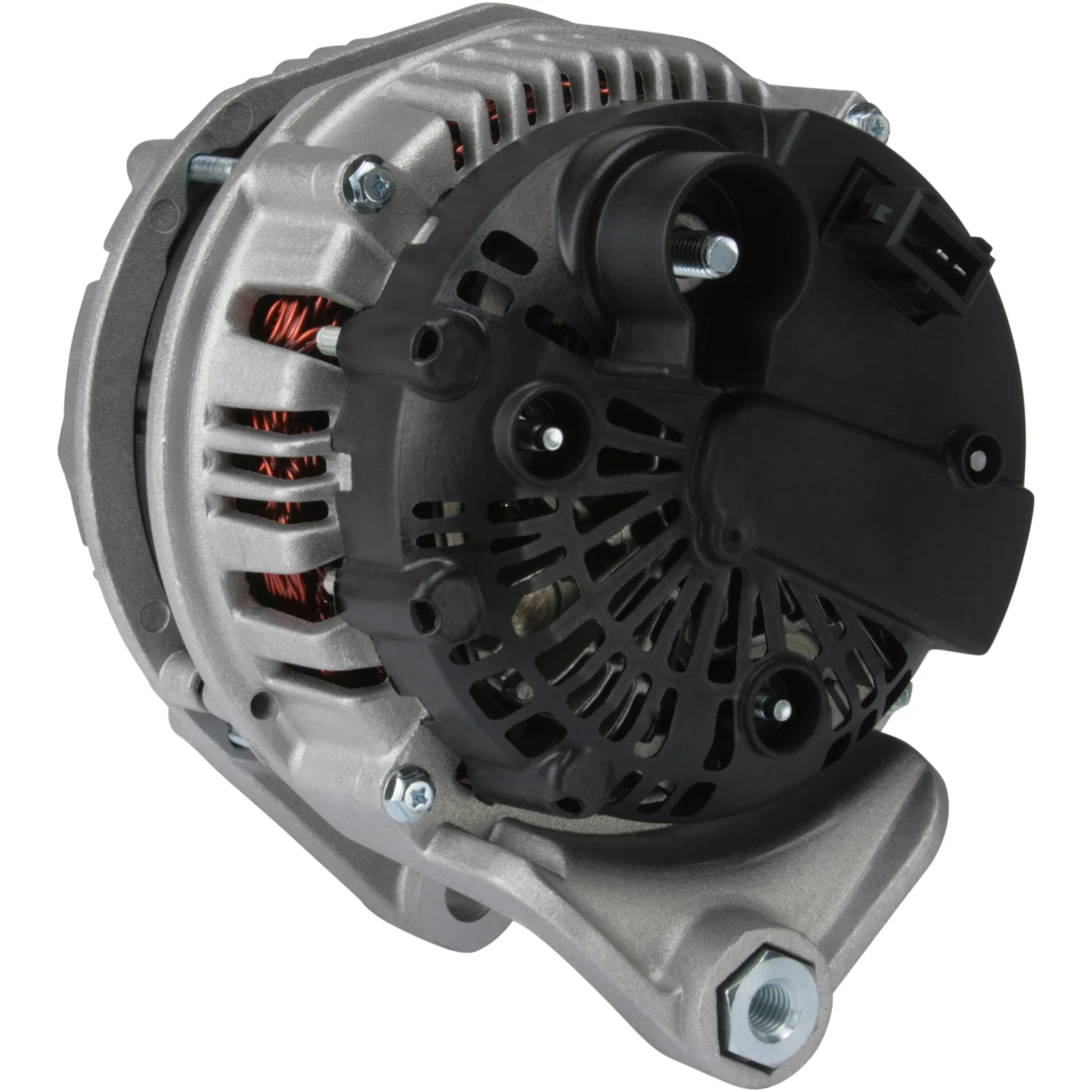

HC-Cargo Generator

Tekniske oplysninger:

Spænding: 14, Amp: 150, Rotation: CCW, Montering. bøjle afstand: 75,00

Beskrivelse

Spænding: 14
Amp: 150
Remskive afstand: 60.70
Bredde/holder arm: 27.80
Fastgørelsesbeslag afstand: 75.00
Beslag hul: 10.70
Bæltejustering beslag hul position: 45
Bæltejustering beslag hul 1: 10.50
Remskive diameter: 53.50
Riller/remskive: 5
Radius: 93.50
Radius 2: 93.50
B+: M8
Position/B+ i min.: 55
D+ Størrelse: Stik
Rotation: mod uret
Stik nr.: PL215
Total længde mm: 190.00
Remskive: SP
Regul. type: IR
Produktion info: BN
Service: BMW

Filer

Specifikation

B+ M8
Mount. bracket dist. 75.00
Belt. adj. bracket hole 1 10.50
Belt. adj. brackethole pos. 45
Plug no. PL215
Bracket hole 10.70
Position/B+ in min. 55
Prod. info BN
Pulley SP
Pulley dia. 53.50
Pulley dist. 60.70
Radius 93.50
D+ Size Plug
Radius 2 93.50
Regulator type IR
Rotation CCW
Servicing BMW
Grooves/pulley 5
Voltage 14
Total length 190.00 mm
Width/holder arm 27.80
Amp 150

  • OEM
    A14S054, A14S055, a14vi29, A14VI52, A14VI53, F032112468, R1530057, SG15S030, YLE000051, yle500180, 1584ir, 2248296, 2248297, 2542264, 2542264B, 2542264D, 2542662, 2542662B, 2542686, 2542686B, 2542812, 2542812A, 2542824, 2542824A, 2542826, 2542826A, 6204161, 7792092, 9512805, 24451624, 93171935, 93175820, 93175968, 93184873, 12312248296, 12312248297, 12317792092

  • Konkurrentreferens
    A3094, ALT14038, CAL15127, DRA4065, LEA0454, LRA02076, LRA02261, 8EL011711-551, 8EL737866-001, 28-4512, 215.138.1502, 4179, 23076N, 23076R, 111113, 111356, 111648, 200129, 210669, 210669A, 301584RI, 437160, 437406, 437421, 439252, 439446, 439463, 746116, 746916, 839049, 9045031, 9213565, 12045030, 12090117, 944390450, 0986045031, 0986045033, 944390450310

  • NormaliseratArtNr
    a14s054, a14s055, a14vi29, a14vi52, a14vi53, a3094, alt14038, cal15127, dra4065, f032112468, lea0454, lra02076, lra02261, r1530057, sg15s030, yle000051, yle500180, 8el011711551, 8el737866001, 1584ir, 4179, 23076n, 23076r, 111113, 111356, 111648, 200129, 210669, 210669a, 284512, 301584ri, 437160, 437406, 437421, 439252, 439446, 439463, 746116, 746916, 839049, 2248296, 2248297, 2542264, 2542264b, 2542264d, 2542662, 2542662b, 2542686, 2542686b, 2542812, 2542812a, 2542824, 2542824a, 2542826, 2542826a, 6204161, 7792092, 9045031, 9213565, 9512805, 12045030, 12090117, 24451624, 93171935, 93175820, 93175968, 93184873, 944390450, 0986045031, 0986045033, 2151381502, 12312248296, 12312248297, 12317792092, 944390450310

  • Passar modeller
    BMW Model: 3 Model series: 330 Type of engine: Diesel Size of motor: 2.9 Brand of engine: M57D30 (306D1) Type description: E46 From date: 01-10-1999 To date: 01-02-2005 Fuel: Diesel Approved: Yes
    BMW Model: 3 Model series: 330 Type of engine: Diesel Size of motor: 2.9 Brand of engine: M57D30 Type description: E46 From date: 01-10-1999 To date: 01-02-2005 Fuel: Diesel Approved: Yes
    BMW Model: 5 Model series: 520 Type of engine: Diesel Size of motor: 2.0 Brand of engine: M47204D1 Type description: E39 Body: Estate From date: 01-02-2000 To date: 01-09-2003 Fuel: Diesel Approved: Yes Manufacture type: touring
    BMW Model: 5 Model series: 520 Type of engine: Diesel Size of motor: 2.0 Brand of engine: M47204D1 Type description: E39 From date: 01-02-2000 To date: 01-06-2003 Fuel: Diesel Approved: Yes
    BMW Model: 5 Model series: 520 Type of engine: Diesel Size of motor: 2.0 Brand of engine: M47D20 Type description: E39 Body: Estate From date: 01-02-2000 To date: 01-09-2003 Fuel: Diesel Approved: Yes Manufacture type: touring
    BMW Model: 5 Model series: 520 Type of engine: Diesel Size of motor: 2.0 Brand of engine: M47D20 Type description: E39 From date: 01-02-2000 To date: 01-06-2003 Fuel: Diesel Approved: Yes
    BMW Model: 5 Model series: 525 Type of engine: Diesel Size of motor: 2.5 Brand of engine: M57D25 (256D1) Type description: E39 Body: Estate From date: 01-02-2000 To date: 01-05-2004 Fuel: Diesel Approved: Yes Manufacture type: touring
    BMW Model: 5 Model series: 525 Type of engine: Diesel Size of motor: 2.5 Brand of engine: M57D25 (256D1) Type description: E39 From date: 01-02-2000 To date: 01-06-2003 Fuel: Diesel Approved: Yes
    BMW Model: 5 Model series: 525 Type of engine: Diesel Size of motor: 2.5 Brand of engine: M57D25 Type description: E39 Body: Estate From date: 01-02-2000 To date: 01-05-2004 Fuel: Diesel Approved: Yes Manufacture type: touring
    BMW Model: 5 Model series: 525 Type of engine: Diesel Size of motor: 2.5 Brand of engine: M57D25 Type description: E39 From date: 01-02-2000 To date: 01-06-2003 Fuel: Diesel Approved: Yes
    BMW Model: 5 Model series: 530 Type of engine: Diesel Size of motor: 2.9 Brand of engine: M57D30 (306D1) Type description: E39 Body: Estate From date: 01-09-2000 To date: 01-05-2004 Fuel: Diesel Approved: Yes Manufacture type: touring
    BMW Model: 5 Model series: 530 Type of engine: Diesel Size of motor: 2.9 Brand of engine: M57D30 (306D1) Type description: E39 From date: 01-08-1998 To date: 01-09-2000 Fuel: Diesel Approved: Yes
    BMW Model: 5 Model series: 530 Type of engine: Diesel Size of motor: 2.9 Brand of engine: M57D30 (306D1) Type description: E39 From date: 01-09-1998 To date: 01-06-2003 Fuel: Diesel Approved: Yes
    BMW Model: 5 Model series: 530 Type of engine: TD Size of motor: 2.9 Brand of engine: M57D30 (306D1) Type description: E39 Body: Estate From date: 01-08-1998 To date: 01-09-2000 Fuel: Diesel Approved: Yes Manufacture type: touring
    BMW Model: 7 Model series: 730 Type of engine: Diesel Size of motor: 3.0 Brand of engine: M57D30 (306D1) Type description: E38 From date: 01-04-2000 To date: 01-11-2001 Fuel: Diesel Approved: Yes
    BMW Model: 7 Model series: 730 Type of engine: Diesel Size of motor: 3.0 Brand of engine: M57D30 Type description: E38 From date: 01-08-1998 To date: 01-04-2000 Fuel: Diesel Approved: Yes
    BMW Model: X5 Model series: X5 Type of engine: Diesel Size of motor: 3.0 Brand of engine: M57D30(306D1) Type description: E53 From date: 01-04-2001 To date: 01-09-2003 Fuel: Diesel Approved: Yes
    Opel Model: Omega Model series: Omega B Type of engine: DTi Size of motor: 2.5 Brand of engine: Y25DT Body: Estate From date: 01-09-2001 To date: 01-07-2003 Fuel: Diesel Approved: Yes Manufacture type: Caravan
    Opel Model: Omega Model series: Omega B Type of engine: DTi Size of motor: 2.5 Brand of engine: Y25DT From date: 01-09-2001 To date: 01-07-2003 Fuel: Diesel Approved: Yes
    1 / 4
  • Beskrivelse
    Spænding: 14
    Amp: 150
    Remskive afstand: 60.70
    Bredde/holder arm: 27.80
    Fastgørelsesbeslag afstand: 75.00
    Beslag hul: 10.70
    Bæltejustering beslag hul position: 45
    Bæltejustering beslag hul 1: 10.50
    Remskive diameter: 53.50
    Riller/remskive: 5
    Radius: 93.50
    Radius 2: 93.50
    B+: M8
    Position/B+ i min.: 55
    D+ Størrelse: Stik
    Rotation: mod uret
    Stik nr.: PL215
    Total længde mm: 190.00
    Remskive: SP
    Regul. type: IR
    Produktion info: BN
    Service: BMW

    Filer

  • Specifikation
    B+ M8
    Mount. bracket dist. 75.00
    Belt. adj. bracket hole 1 10.50
    Belt. adj. brackethole pos. 45
    Plug no. PL215
    Bracket hole 10.70
    Position/B+ in min. 55
    Prod. info BN
    Pulley SP
    Pulley dia. 53.50
    Pulley dist. 60.70
    Radius 93.50
    D+ Size Plug
    Radius 2 93.50
    Regulator type IR
    Rotation CCW
    Servicing BMW
    Grooves/pulley 5
    Voltage 14
    Total length 190.00 mm
    Width/holder arm 27.80
    Amp 150
  • Køretøjsmatchning

    • OEM
      A14S054, A14S055, a14vi29, A14VI52, A14VI53, F032112468, R1530057, SG15S030, YLE000051, yle500180, 1584ir, 2248296, 2248297, 2542264, 2542264B, 2542264D, 2542662, 2542662B, 2542686, 2542686B, 2542812, 2542812A, 2542824, 2542824A, 2542826, 2542826A, 6204161, 7792092, 9512805, 24451624, 93171935, 93175820, 93175968, 93184873, 12312248296, 12312248297, 12317792092

    • Konkurrentreferens
      A3094, ALT14038, CAL15127, DRA4065, LEA0454, LRA02076, LRA02261, 8EL011711-551, 8EL737866-001, 28-4512, 215.138.1502, 4179, 23076N, 23076R, 111113, 111356, 111648, 200129, 210669, 210669A, 301584RI, 437160, 437406, 437421, 439252, 439446, 439463, 746116, 746916, 839049, 9045031, 9213565, 12045030, 12090117, 944390450, 0986045031, 0986045033, 944390450310

    • NormaliseratArtNr
      a14s054, a14s055, a14vi29, a14vi52, a14vi53, a3094, alt14038, cal15127, dra4065, f032112468, lea0454, lra02076, lra02261, r1530057, sg15s030, yle000051, yle500180, 8el011711551, 8el737866001, 1584ir, 4179, 23076n, 23076r, 111113, 111356, 111648, 200129, 210669, 210669a, 284512, 301584ri, 437160, 437406, 437421, 439252, 439446, 439463, 746116, 746916, 839049, 2248296, 2248297, 2542264, 2542264b, 2542264d, 2542662, 2542662b, 2542686, 2542686b, 2542812, 2542812a, 2542824, 2542824a, 2542826, 2542826a, 6204161, 7792092, 9045031, 9213565, 9512805, 12045030, 12090117, 24451624, 93171935, 93175820, 93175968, 93184873, 944390450, 0986045031, 0986045033, 2151381502, 12312248296, 12312248297, 12317792092, 944390450310

    • Passar modeller
      BMW Model: 3 Model series: 330 Type of engine: Diesel Size of motor: 2.9 Brand of engine: M57D30 (306D1) Type description: E46 From date: 01-10-1999 To date: 01-02-2005 Fuel: Diesel Approved: Yes
      BMW Model: 3 Model series: 330 Type of engine: Diesel Size of motor: 2.9 Brand of engine: M57D30 Type description: E46 From date: 01-10-1999 To date: 01-02-2005 Fuel: Diesel Approved: Yes
      BMW Model: 5 Model series: 520 Type of engine: Diesel Size of motor: 2.0 Brand of engine: M47204D1 Type description: E39 Body: Estate From date: 01-02-2000 To date: 01-09-2003 Fuel: Diesel Approved: Yes Manufacture type: touring
      BMW Model: 5 Model series: 520 Type of engine: Diesel Size of motor: 2.0 Brand of engine: M47204D1 Type description: E39 From date: 01-02-2000 To date: 01-06-2003 Fuel: Diesel Approved: Yes
      BMW Model: 5 Model series: 520 Type of engine: Diesel Size of motor: 2.0 Brand of engine: M47D20 Type description: E39 Body: Estate From date: 01-02-2000 To date: 01-09-2003 Fuel: Diesel Approved: Yes Manufacture type: touring
      BMW Model: 5 Model series: 520 Type of engine: Diesel Size of motor: 2.0 Brand of engine: M47D20 Type description: E39 From date: 01-02-2000 To date: 01-06-2003 Fuel: Diesel Approved: Yes
      BMW Model: 5 Model series: 525 Type of engine: Diesel Size of motor: 2.5 Brand of engine: M57D25 (256D1) Type description: E39 Body: Estate From date: 01-02-2000 To date: 01-05-2004 Fuel: Diesel Approved: Yes Manufacture type: touring
      BMW Model: 5 Model series: 525 Type of engine: Diesel Size of motor: 2.5 Brand of engine: M57D25 (256D1) Type description: E39 From date: 01-02-2000 To date: 01-06-2003 Fuel: Diesel Approved: Yes
      BMW Model: 5 Model series: 525 Type of engine: Diesel Size of motor: 2.5 Brand of engine: M57D25 Type description: E39 Body: Estate From date: 01-02-2000 To date: 01-05-2004 Fuel: Diesel Approved: Yes Manufacture type: touring
      BMW Model: 5 Model series: 525 Type of engine: Diesel Size of motor: 2.5 Brand of engine: M57D25 Type description: E39 From date: 01-02-2000 To date: 01-06-2003 Fuel: Diesel Approved: Yes
      BMW Model: 5 Model series: 530 Type of engine: Diesel Size of motor: 2.9 Brand of engine: M57D30 (306D1) Type description: E39 Body: Estate From date: 01-09-2000 To date: 01-05-2004 Fuel: Diesel Approved: Yes Manufacture type: touring
      BMW Model: 5 Model series: 530 Type of engine: Diesel Size of motor: 2.9 Brand of engine: M57D30 (306D1) Type description: E39 From date: 01-08-1998 To date: 01-09-2000 Fuel: Diesel Approved: Yes
      BMW Model: 5 Model series: 530 Type of engine: Diesel Size of motor: 2.9 Brand of engine: M57D30 (306D1) Type description: E39 From date: 01-09-1998 To date: 01-06-2003 Fuel: Diesel Approved: Yes
      BMW Model: 5 Model series: 530 Type of engine: TD Size of motor: 2.9 Brand of engine: M57D30 (306D1) Type description: E39 Body: Estate From date: 01-08-1998 To date: 01-09-2000 Fuel: Diesel Approved: Yes Manufacture type: touring
      BMW Model: 7 Model series: 730 Type of engine: Diesel Size of motor: 3.0 Brand of engine: M57D30 (306D1) Type description: E38 From date: 01-04-2000 To date: 01-11-2001 Fuel: Diesel Approved: Yes
      BMW Model: 7 Model series: 730 Type of engine: Diesel Size of motor: 3.0 Brand of engine: M57D30 Type description: E38 From date: 01-08-1998 To date: 01-04-2000 Fuel: Diesel Approved: Yes
      BMW Model: X5 Model series: X5 Type of engine: Diesel Size of motor: 3.0 Brand of engine: M57D30(306D1) Type description: E53 From date: 01-04-2001 To date: 01-09-2003 Fuel: Diesel Approved: Yes
      Opel Model: Omega Model series: Omega B Type of engine: DTi Size of motor: 2.5 Brand of engine: Y25DT Body: Estate From date: 01-09-2001 To date: 01-07-2003 Fuel: Diesel Approved: Yes Manufacture type: Caravan
      Opel Model: Omega Model series: Omega B Type of engine: DTi Size of motor: 2.5 Brand of engine: Y25DT From date: 01-09-2001 To date: 01-07-2003 Fuel: Diesel Approved: Yes
