HC-Cargo Generator
HC-Cargo Generator
Vare nr.: F032114491

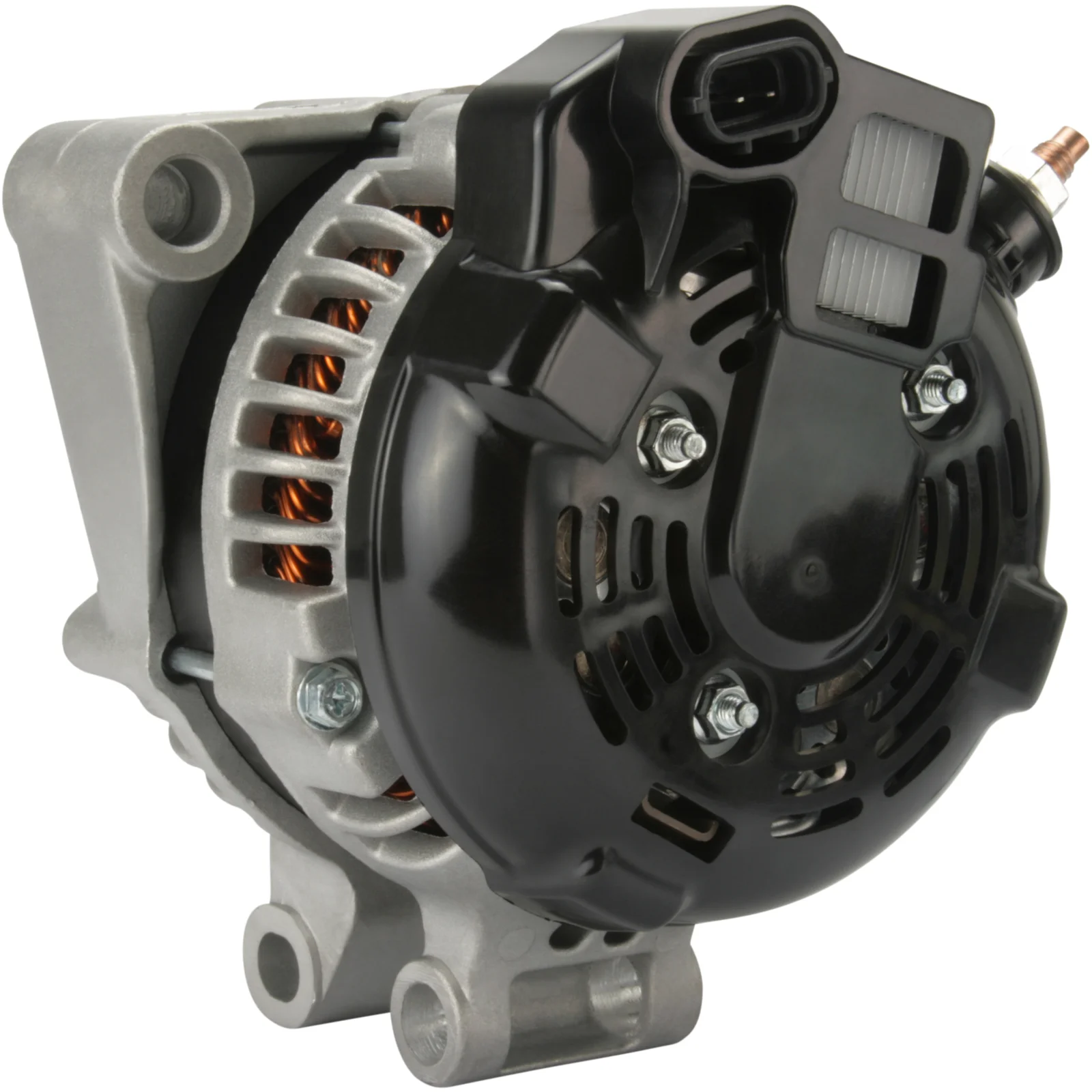

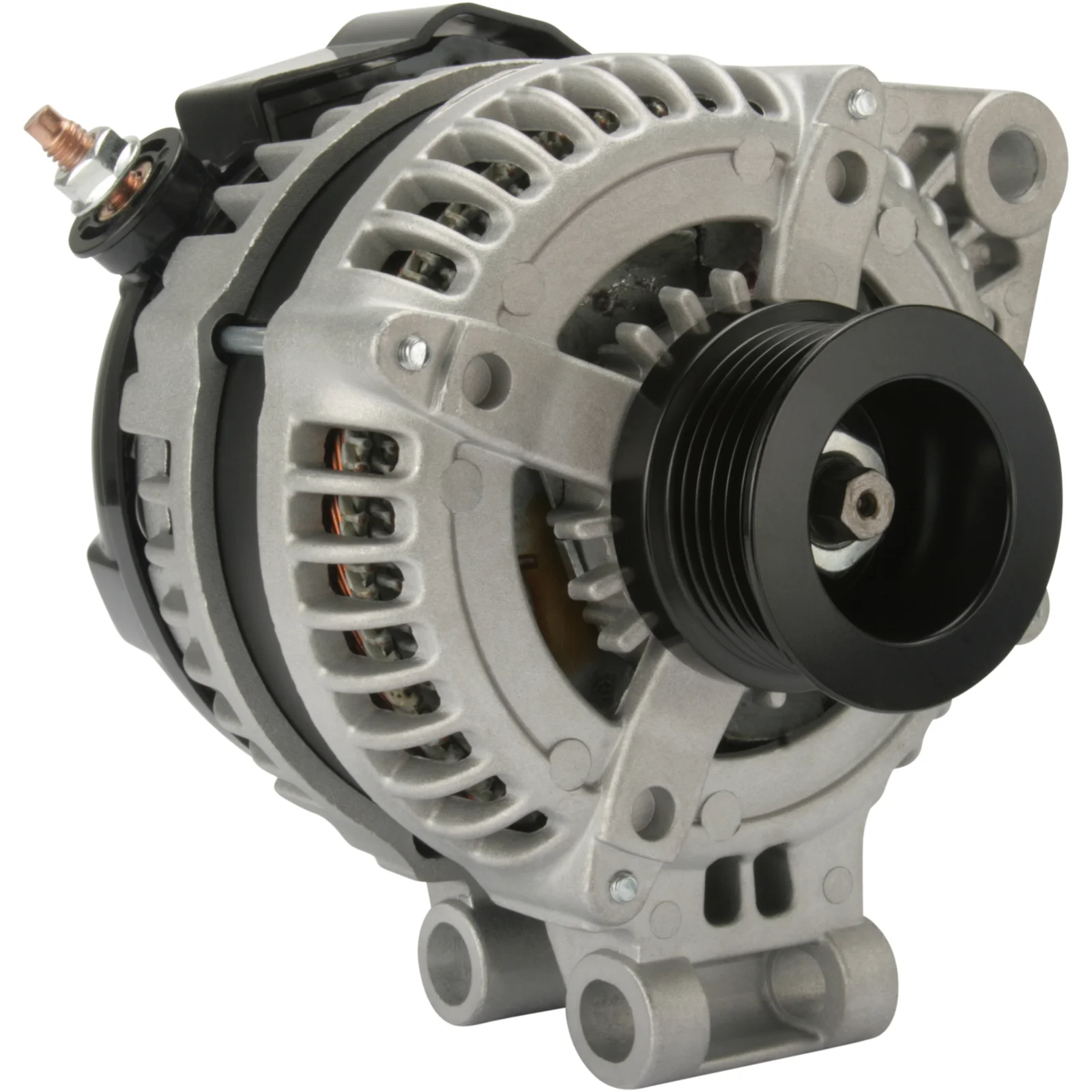

HC-Cargo Generator

Tekniske oplysninger:

Spænding: 14, Amp: 150, Rotation: CW, Monteringsbøjle fordeler: 45,00

Beskrivelse

Spænding: 14
Amp: 150
Remskive dist.: 28,50
Bredde/bærerarm: 50,50
Monteringsbeslag dist.: 45,00
Beslagshul: 12,00
Beslagshul 2: 14,00
Bælte. just. besk. hul st.: 10
Bælte. just. besk. hul 1: 11,00
Remskive dia.: 54,00
Riller/remskive: 6
Radius: 87,00
Radius 2: 84,00
B+: M8
Position/B+ i min.: 8
D+ Størrelse: Stikkontakt
Rotation: med uret
Stikket nr.: PL136
Total længde mm: 166,00
Remskive: SP
Regulator type: IR
Prod. info: BN

Filer

Specifikation

B+ M8
Mount. bracket dist. 45.00
Belt. adj. bracket hole 1 11.00
Belt. adj. brackethole pos. 10
Plug no. PL136
Bracket hole 12.00
Bracket hole 2 14.00
Position/B+ in min. 8
Prod. info BN
Pulley SP
Pulley dia. 54.00
Pulley dist. 28.50
Radius 87.00
D+ Size Plug
Radius 2 84.00
Regulator type IR
Rotation CW
Grooves/pulley 6
Voltage 14
Total length 166.00 mm
Width/holder arm 50.50
Amp 150

  • OEM
    F032114491, LR008860, yle500190, YLE500390, 1986A01326, 104210-3690, 104210-3691

  • Konkurrentreferens
    A6045, A6045(DENSO), CAL40220, DAN991, DRA0629, F042205236, 8EL015637-481, 28-4997, 214.146.1502, 11206, 11206R, 209291, 209291A, 439984, 440764, 12061095, 32009000

  • NormaliseratArtNr
    a6045, a6045denso, cal40220, dan991, dra0629, f032114491, f042205236, lr008860, yle500190, yle500390, 8el015637481, 1986a01326, 11206, 11206r, 209291, 209291a, 284997, 439984, 440764, 12061095, 32009000, 1042103690, 1042103691, 2141461502

  • Passar modeller
    Land Rover Model: Discovery Model series: Discovery Size of motor: 4.4 Brand of engine: 448PN Type description: TAA From date: 01-07-2004 To date: 01-09-2009 Fuel: Gasoline Approved: Yes
    Land Rover Model: Range Model series: Range Model type: 4x4 Size of motor: 4.2 Brand of engine: 428PS Type description: L320 Body: Closed Off-Road Vehicle From date: 01-01-2006 To date: 01-02-2010 Fuel: Gasoline Approved: Yes
    Land Rover Model: Range Rover Model series: Range Rover Model type: Sport Size of motor: 4.2 Brand of engine: 428PS From date: 01-02-2005 To date: 01-03-2013 Fuel: Gasoline Approved: Yes
    Land Rover Model: Range Rover Model series: Range Rover Model type: Sport Size of motor: 4.4 Brand of engine: 448PN From date: 01-02-2005 To date: 01-03-2013 Fuel: Gasoline Approved: Yes
    Land Rover Model: Range Rover Model series: Range Rover Model type: Supercharged 4x4 Size of motor: 4.2 Brand of engine: 428PS Type description: L322 Body: Closed Off-Road Vehicle From date: 01-09-2005 To date: 01-12-2009 Fuel: Petrol Approved: Yes
    Land Rover Model: Range Rover Model series: Range Rover Size of motor: 4.2 Brand of engine: 428PS Type description: LM From date: 01-05-2005 To date: 01-08-2012 Fuel: Gasoline Approved: Yes
    Land Rover Model: Range Rover Model series: Range Rover Sport Model type: 4x4 Size of motor: 4.2 Brand of engine: 428PS Type description: L320 Body: SUV From date: 01-09-2005 To date: 01-02-2010 Fuel: Petrol Approved: Yes
    Land Rover Model: Range Rover Sport Model series: Range Rover Sport Model type: 4x4 Size of motor: 4.2 Brand of engine: 428PS (AJV8) Type description: L320 Body: SUV Fuel: Petrol Approved: Yes
    1 / 2
  • Beskrivelse
    Spænding: 14
    Amp: 150
    Remskive dist.: 28,50
    Bredde/bærerarm: 50,50
    Monteringsbeslag dist.: 45,00
    Beslagshul: 12,00
    Beslagshul 2: 14,00
    Bælte. just. besk. hul st.: 10
    Bælte. just. besk. hul 1: 11,00
    Remskive dia.: 54,00
    Riller/remskive: 6
    Radius: 87,00
    Radius 2: 84,00
    B+: M8
    Position/B+ i min.: 8
    D+ Størrelse: Stikkontakt
    Rotation: med uret
    Stikket nr.: PL136
    Total længde mm: 166,00
    Remskive: SP
    Regulator type: IR
    Prod. info: BN

    Filer

  • Specifikation
    B+ M8
    Mount. bracket dist. 45.00
    Belt. adj. bracket hole 1 11.00
    Belt. adj. brackethole pos. 10
    Plug no. PL136
    Bracket hole 12.00
    Bracket hole 2 14.00
    Position/B+ in min. 8
    Prod. info BN
    Pulley SP
    Pulley dia. 54.00
    Pulley dist. 28.50
    Radius 87.00
    D+ Size Plug
    Radius 2 84.00
    Regulator type IR
    Rotation CW
    Grooves/pulley 6
    Voltage 14
    Total length 166.00 mm
    Width/holder arm 50.50
    Amp 150
  • Køretøjsmatchning

    • OEM
      F032114491, LR008860, yle500190, YLE500390, 1986A01326, 104210-3690, 104210-3691

    • Konkurrentreferens
      A6045, A6045(DENSO), CAL40220, DAN991, DRA0629, F042205236, 8EL015637-481, 28-4997, 214.146.1502, 11206, 11206R, 209291, 209291A, 439984, 440764, 12061095, 32009000

    • NormaliseratArtNr
      a6045, a6045denso, cal40220, dan991, dra0629, f032114491, f042205236, lr008860, yle500190, yle500390, 8el015637481, 1986a01326, 11206, 11206r, 209291, 209291a, 284997, 439984, 440764, 12061095, 32009000, 1042103690, 1042103691, 2141461502

    • Passar modeller
      Land Rover Model: Discovery Model series: Discovery Size of motor: 4.4 Brand of engine: 448PN Type description: TAA From date: 01-07-2004 To date: 01-09-2009 Fuel: Gasoline Approved: Yes
      Land Rover Model: Range Model series: Range Model type: 4x4 Size of motor: 4.2 Brand of engine: 428PS Type description: L320 Body: Closed Off-Road Vehicle From date: 01-01-2006 To date: 01-02-2010 Fuel: Gasoline Approved: Yes
      Land Rover Model: Range Rover Model series: Range Rover Model type: Sport Size of motor: 4.2 Brand of engine: 428PS From date: 01-02-2005 To date: 01-03-2013 Fuel: Gasoline Approved: Yes
      Land Rover Model: Range Rover Model series: Range Rover Model type: Sport Size of motor: 4.4 Brand of engine: 448PN From date: 01-02-2005 To date: 01-03-2013 Fuel: Gasoline Approved: Yes
      Land Rover Model: Range Rover Model series: Range Rover Model type: Supercharged 4x4 Size of motor: 4.2 Brand of engine: 428PS Type description: L322 Body: Closed Off-Road Vehicle From date: 01-09-2005 To date: 01-12-2009 Fuel: Petrol Approved: Yes
      Land Rover Model: Range Rover Model series: Range Rover Size of motor: 4.2 Brand of engine: 428PS Type description: LM From date: 01-05-2005 To date: 01-08-2012 Fuel: Gasoline Approved: Yes
      Land Rover Model: Range Rover Model series: Range Rover Sport Model type: 4x4 Size of motor: 4.2 Brand of engine: 428PS Type description: L320 Body: SUV From date: 01-09-2005 To date: 01-02-2010 Fuel: Petrol Approved: Yes
      Land Rover Model: Range Rover Sport Model series: Range Rover Sport Model type: 4x4 Size of motor: 4.2 Brand of engine: 428PS (AJV8) Type description: L320 Body: SUV Fuel: Petrol Approved: Yes
