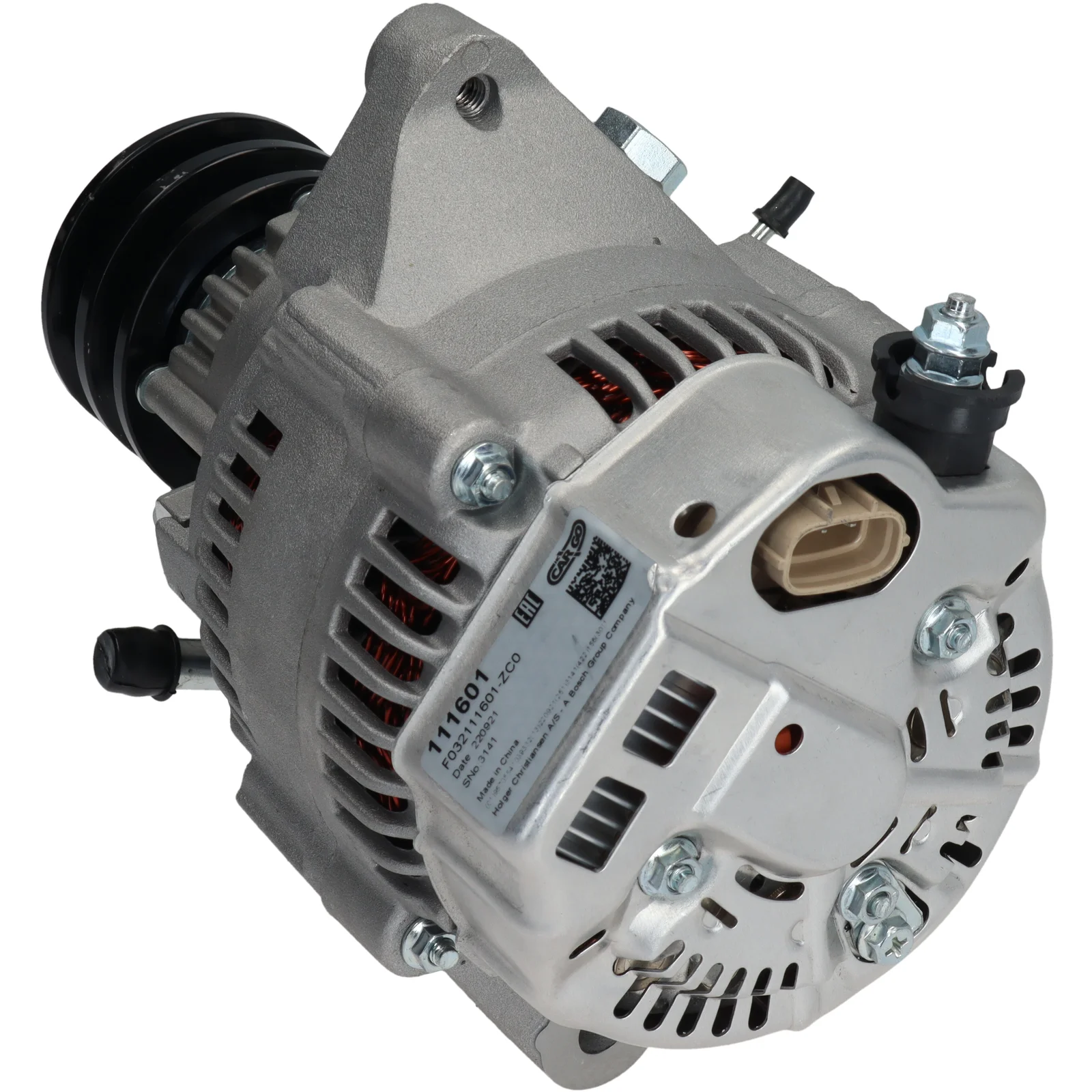

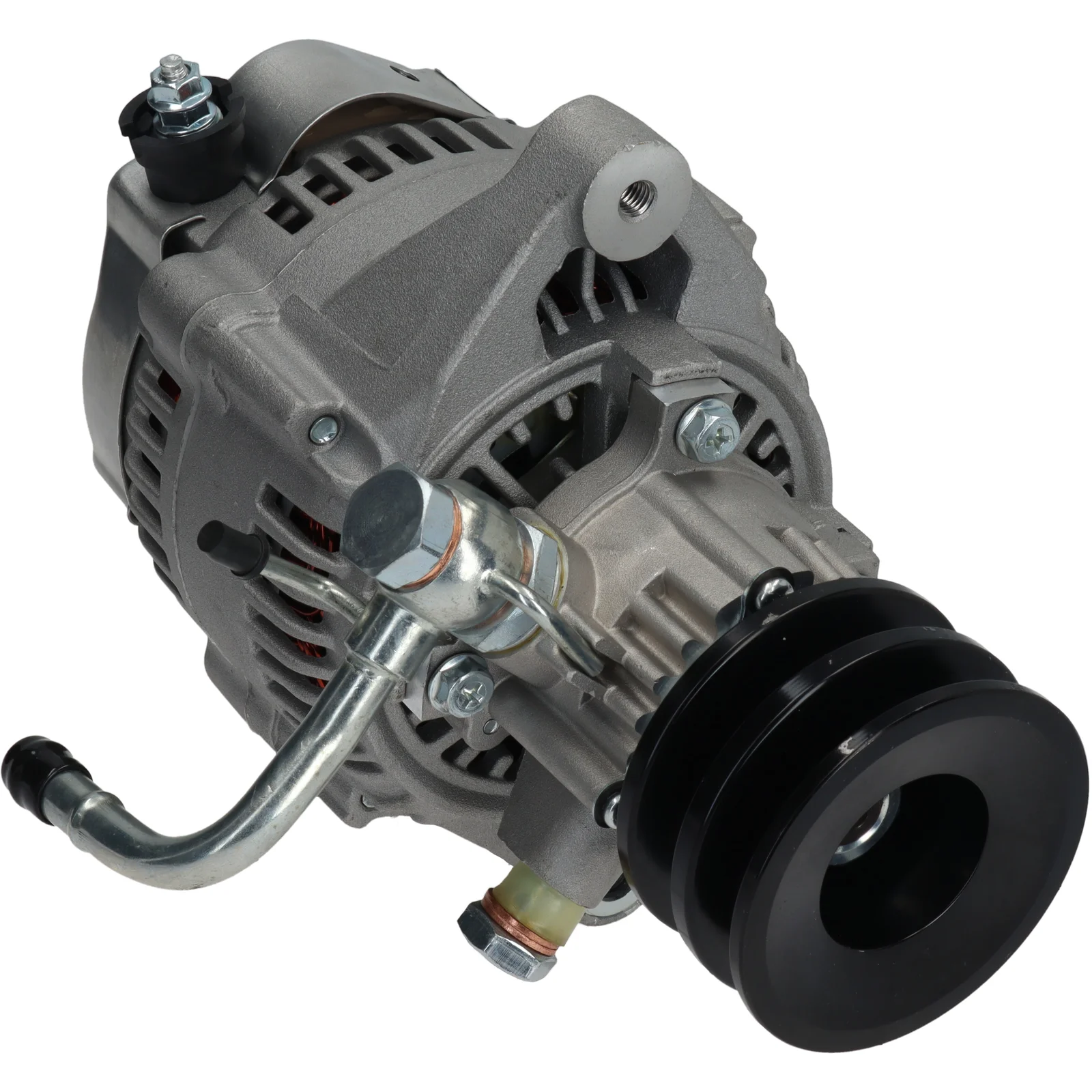

HC-Cargo Generator
HC-Cargo Generator
Vare nr.: F032111601

HC-Cargo Generator

Tekniske oplysninger:

Spænding: 14, Amp: 70, Rotation: CW, Remskive diameter: 74,50

Beskrivelse

Generator 12V-70A 1993-95 12V - 70A, 2V, (S, IG, L) Til Yourex produktbestilling 90-555-5434 Spænding: 14 Ampere: 70 Remskivens afstand: 146,50 Bredde/holderarm: 70,00 Bøsninghulsstørrelse: 10,30 Bæltejuster. bøsninghulspos.: 2 Bæltejuster. bøsninghuls 1: M8 Remskivens diameter: 74,50 Riller/remskive: 2 Radius: 80,00 Radius 2: 84,00 B+: M6 Position/B+ i min.: 5 D+ Størrelse: Stik Rotation: CW Stiknr.: PL42 Samlet længde mm: 226,00 Remskive: DP Regulator type: IR Kølepumpe: Ja Produktoplysninger: BN Service: Toyota

Filer

Specifikation

B+ M6
Belt. adj. bracket hole 1 M8
Belt. adj. brackethole pos. 2
Plug no. PL42
Bracket hole 10.30
Position/B+ in min. 5
Prod. info BN
Pulley DP
Pulley dia. 74.50
Pulley dist. 146.50
Radius 80.00
D+ Size Plug
Radius 2 84.00
Regulator type IR
Rotation CW
Servicing Toyota
Grooves/pulley 2
Vac. pump Yes
Voltage 14
Total length 226.00 mm
Width/holder arm 70.00
Amp 70

  • OEM
    F032111601, ja989ir, 27040-54320, 27040-54340, 27060-54150, 27060-54210, 100211-5250, 100211-5251, 100211-5252, 100213-1900, 100213-1910, 100213-1911, 100213-2441, 111601

  • Konkurrentreferens
    dra3745, DRA3745N, 8EL012429-301, 8el737064-001, 28-2629, 235.155.702, 5479, 21311R, 40989RI, 119548, 437776, 12060418, 0986046381, 943354058010

  • Bilmärken
    Toyota

  • NormaliseratArtNr
    dra3745, dra3745n, f032111601, ja989ir, 8el012429301, 8el737064001, 5479, 21311r, 40989ri, 111601, 119548, 282629, 437776, 12060418, 235155702, 0986046381, 1002115250, 1002115251, 1002115252, 1002131900, 1002131910, 1002131911, 1002132441, 2704054320, 2704054340, 2706054150, 2706054210, 943354058010

  • Passar modeller
    Toyota Model: Hiace Model series: Hiace Model type: 4WD Type of engine: Diesel Size of motor: 2.4 Brand of engine: 2L Type description: _H10_ Body: Bus From date: 01-08-1987 To date: 01-08-1995 Fuel: Diesel Approved: Yes Manufacture type: wagon
    Toyota Model: Hiace Model series: Hiace Model type: 4WD Type of engine: Diesel Size of motor: 2.4 Brand of engine: 2L Type description: _H10_ Body: Van From date: 01-08-1989 To date: 01-07-1999 Fuel: Diesel Approved: Yes
    Toyota Model: Hiace Model series: Hiace Type of engine: Diesel Size of motor: 2.4 Brand of engine: 2L Body: Bus From date: 01-08-1989 To date: 01-12-2004 Fuel: Diesel Approved: Yes
    Toyota Model: Hiace Model series: Hiace Type of engine: Diesel Size of motor: 2.4 Brand of engine: 2L Type description: LH102 Body: Bus From date: 01-08-1989 To date: 01-08-1995 Fuel: Diesel Approved: Yes
    Toyota Model: Hiace Model series: Hiace Type of engine: Diesel Size of motor: 2.4 Brand of engine: 2L Type description: _H10_ Body: Van From date: 01-08-1989 To date: 01-08-2004 Fuel: Diesel Approved: Yes
    Toyota Series: HIACE IV Skåp Model: 2.4 D 4WD Engine volume: 2.4 Year: 08.89-07.95
    Toyota Series: HIACE IV Skåp Model: 2.4 D Engine volume: 2.4 Engine type: 2L Year: 09.89-08.95
    Toyota Series: HIACE IV Skåp Model: 2.8 D Engine volume: 2.8 Engine type: 3L Year: 08.89-08.00
    1 / 2
