Vare nr.: F032111240

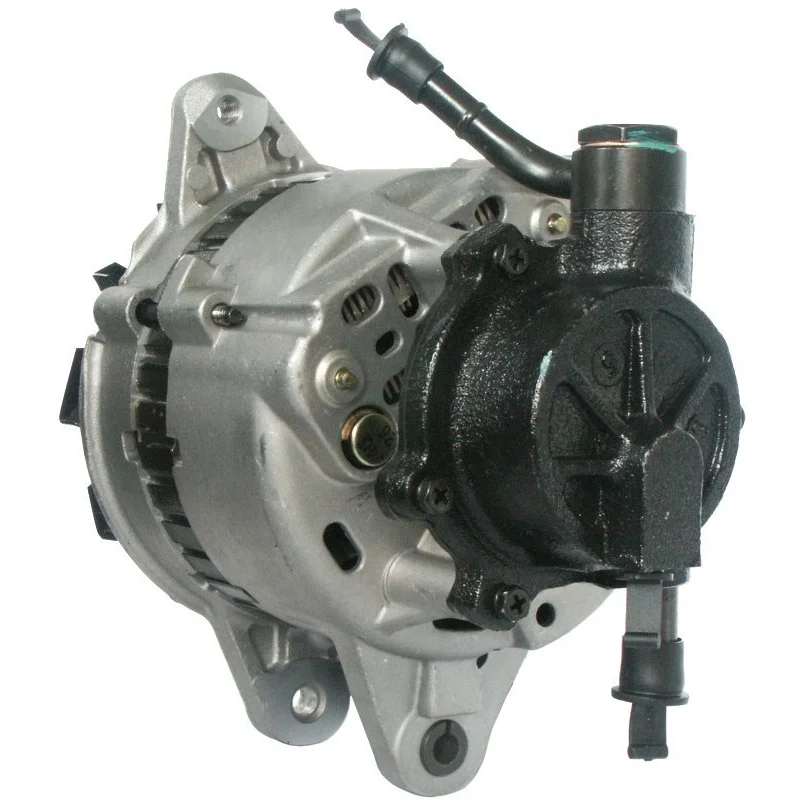

HC-Cargo Generator

Tekniske oplysninger:

Spænding: 14, Amp: 50, Rotation: CW, Monteringsbeslag forfordeling: 54,50

Beskrivelse

Mitsub. 2,5 Diesel Generator 12V-60A 12V - 60A For Yourex produktordre 90-380-0027

Spænding: 14
Amp: 50
Skivedybde: 44,70
Bredde/holderarm: 13,20
Monteringsbeslagets afstand: 54,50
Beslagshul: 8,50
Bæltejustering beslags hul position: 4
Bæltejustering beslags hul 1: M8
Skivedybde: 95,00
Riller/skive: 1
Radius: 91,50
Radius 2: 87,50
B+: M6
Position/B+ i min.: 8
Rotation: med uret
Stik no.: PL07
Total længde mm: 219,50
Skive: P
Regulatorstype: IR
Kølevæskepumpe: Ja
Produktoplysninger: BN
Service: Mitsubishi

Filer

Specifikation

B+ M6
Mount. bracket dist. 54.50
Belt. adj. bracket hole 1 M8
Belt. adj. brackethole pos. 4
Plug no. PL07
Bracket hole 8.50
Position/B+ in min. 8
Prod. info BN
Pulley P
Pulley dia. 95.00
Pulley dist. 44.70
Radius 91.50
Radius 2 87.50
Regulator type IR
Rotation CW
Servicing Mitsubishi
Grooves/pulley 1
Vac. pump Yes
Voltage 14
Total length 219.50 mm
Width/holder arm 13.20
Amp 50

  • OEM
    A002T01384, A002T02084, A002T06384, A002T09884, A2T-01384, A2T-01483, A2T-01583, A2T-01683, A2T-01783, a2t01384, a2t02084, a2t06384, a2t09884, AD 165309, AD 165320, APR 165AA, F032111240, ja775ir, LRA 706, MD 103373, MD 103564, MD 106319, MD 106320, md103372, md106332, md112318, MD12318, md124234, 37300-42200, 37300-42202, 37300-42203, 37300-42204, 37300-42206, 111240

  • Konkurrentreferens
    A5342, aca-948, CAL35113, dra3038, dra3316, DRA3316N, lra00706, LRA02618, 8EL012426-341, 8el730109-001, 27-51.524, 28-1521, 155.803.050, 226.108.502, 226.108.602, 5405, 9018, 12642N, 40775RI, 56242, 119166, 210262, 210262A, 439407, 440112, 747907, 0986042241

  • Bilmärken
    Hyundai, Mitsubishi

  • NormaliseratArtNr
    a002t01384, a002t02084, a002t06384, a002t09884, a2t01384, a2t01483, a2t01583, a2t01683, a2t01783, a2t02084, a2t06384, a2t09884, a5342, aca948, ad165309, ad165320, apr165aa, cal35113, dra3038, dra3316, dra3316n, f032111240, ja775ir, lra00706, lra02618, lra706, md103372, md103373, md103564, md106319, md106320, md106332, md112318, md12318, md124234, 8el012426341, 8el730109001, 5405, 9018, 12642n, 40775ri, 56242, 111240, 119166, 210262, 210262a, 281521, 439407, 440112, 747907, 2751524, 155803050, 226108502, 226108602, 0986042241, 3730042200, 3730042202, 3730042203, 3730042204, 3730042206

  • Passar modeller
    Mitsubishi Model: L 300 Model series: L 300 Type of engine: Diesel Size of motor: 2.5 Brand of engine: 4D56 Body: Platform / Chassis From date: 01-11-1986 To date: 01-04-1994 Fuel: Diesel Approved: Yes
    Mitsubishi Model: Pajero Model series: Pajero Type of engine: TD Size of motor: 2.5 Brand of engine: 4D56T Type description: L044G Body: Convertible From date: 01-05-1986 To date: 01-10-1989 Fuel: Diesel Approved: Yes
    Mitsubishi Model: Pajero Model series: Pajero Type of engine: TD Size of motor: 2.5 Brand of engine: 4D56T Type description: L044G Body: Convertible From date: 01-11-1989 To date: 01-11-1990 Fuel: Diesel Approved: Yes
    Mitsubishi Model: Pajero Model series: Pajero Type of engine: TD Size of motor: 2.5 Brand of engine: 4D56T Type description: L044G From date: 01-04-1987 To date: 01-12-1991 Fuel: Diesel Approved: Yes
    Mitsubishi Model: Pajero Model series: Pajero Type of engine: TD Size of motor: 2.5 Brand of engine: 4D56T Type description: L044G From date: 01-11-1989 To date: 01-11-1990 Fuel: Diesel Approved: Yes
    Mitsubishi Model: Pajero Model series: Pajero Type of engine: TD Size of motor: 2.5 Brand of engine: 4D56T Type description: L049G Body: Convertible From date: 01-05-1986 To date: 01-10-1989 Fuel: Diesel Approved: Yes
    Mitsubishi Model: Pajero Model series: Pajero Type of engine: TD Size of motor: 2.5 Brand of engine: 4D56T Type description: L049G From date: 01-04-1987 To date: 01-12-1991 Fuel: Diesel Approved: Yes
    Mitsubishi Model: Pajero Model series: Pajero Type of engine: TD Size of motor: 2.5 Brand of engine: 4D56T Type description: L049G From date: 01-11-1989 To date: 01-11-1990 Fuel: Diesel Approved: Yes
    Mitsubishi Series: L 200 (K_4T) Model: 2.5 D 4WD Engine volume: 2.5 Engine type: 4 D 56 (8V) Year: 12.87-05.93
    Mitsubishi Series: L 200 (K_4T) Model: 2.5 D Engine volume: 2.5 Engine type: 4 D 56 Year: 11.86-08.96
    Mitsubishi Series: L 200 (K_4T) Model: 2.5 TD 4WD Engine volume: 2.5 Engine type: 4 D 56 T Year: 11.92-08.96
    Mitsubishi Series: L 300 (LO__P) Model: 2.5 D Engine volume: 2.5 Year: 11.86-04.94
    Mitsubishi Series: L 300 (P0__W) Model: 2.5 D Engine volume: 2.5 Engine type: 4 D 56 Year: 11.86-10.88
    Mitsubishi Series: Pajero I Model: 2.5 TD Engine volume: 2.5 Engine type: 4 D 56 T Year: 05.86-12.91
    Mitsubishi Series: Shogun Model: 2.5 D (P25W) Engine volume: 2.5 Engine type: 4D56 Year: 12.87-11.88
    1 / 3
  • Beskrivelse
    Mitsub. 2,5 Diesel Generator 12V-60A 12V - 60A For Yourex produktordre 90-380-0027

    Spænding: 14
    Amp: 50
    Skivedybde: 44,70
    Bredde/holderarm: 13,20
    Monteringsbeslagets afstand: 54,50
    Beslagshul: 8,50
    Bæltejustering beslags hul position: 4
    Bæltejustering beslags hul 1: M8
    Skivedybde: 95,00
    Riller/skive: 1
    Radius: 91,50
    Radius 2: 87,50
    B+: M6
    Position/B+ i min.: 8
    Rotation: med uret
    Stik no.: PL07
    Total længde mm: 219,50
    Skive: P
    Regulatorstype: IR
    Kølevæskepumpe: Ja
    Produktoplysninger: BN
    Service: Mitsubishi

    Filer

  • Specifikation
    B+ M6
    Mount. bracket dist. 54.50
    Belt. adj. bracket hole 1 M8
    Belt. adj. brackethole pos. 4
    Plug no. PL07
    Bracket hole 8.50
    Position/B+ in min. 8
    Prod. info BN
    Pulley P
    Pulley dia. 95.00
    Pulley dist. 44.70
    Radius 91.50
    Radius 2 87.50
    Regulator type IR
    Rotation CW
    Servicing Mitsubishi
    Grooves/pulley 1
    Vac. pump Yes
    Voltage 14
    Total length 219.50 mm
    Width/holder arm 13.20
    Amp 50
  • Køretøjsmatchning

    • OEM
      A002T01384, A002T02084, A002T06384, A002T09884, A2T-01384, A2T-01483, A2T-01583, A2T-01683, A2T-01783, a2t01384, a2t02084, a2t06384, a2t09884, AD 165309, AD 165320, APR 165AA, F032111240, ja775ir, LRA 706, MD 103373, MD 103564, MD 106319, MD 106320, md103372, md106332, md112318, MD12318, md124234, 37300-42200, 37300-42202, 37300-42203, 37300-42204, 37300-42206, 111240

    • Konkurrentreferens
      A5342, aca-948, CAL35113, dra3038, dra3316, DRA3316N, lra00706, LRA02618, 8EL012426-341, 8el730109-001, 27-51.524, 28-1521, 155.803.050, 226.108.502, 226.108.602, 5405, 9018, 12642N, 40775RI, 56242, 119166, 210262, 210262A, 439407, 440112, 747907, 0986042241

    • Bilmärken
      Hyundai, Mitsubishi

    • NormaliseratArtNr
      a002t01384, a002t02084, a002t06384, a002t09884, a2t01384, a2t01483, a2t01583, a2t01683, a2t01783, a2t02084, a2t06384, a2t09884, a5342, aca948, ad165309, ad165320, apr165aa, cal35113, dra3038, dra3316, dra3316n, f032111240, ja775ir, lra00706, lra02618, lra706, md103372, md103373, md103564, md106319, md106320, md106332, md112318, md12318, md124234, 8el012426341, 8el730109001, 5405, 9018, 12642n, 40775ri, 56242, 111240, 119166, 210262, 210262a, 281521, 439407, 440112, 747907, 2751524, 155803050, 226108502, 226108602, 0986042241, 3730042200, 3730042202, 3730042203, 3730042204, 3730042206

    • Passar modeller
      Mitsubishi Model: L 300 Model series: L 300 Type of engine: Diesel Size of motor: 2.5 Brand of engine: 4D56 Body: Platform / Chassis From date: 01-11-1986 To date: 01-04-1994 Fuel: Diesel Approved: Yes
      Mitsubishi Model: Pajero Model series: Pajero Type of engine: TD Size of motor: 2.5 Brand of engine: 4D56T Type description: L044G Body: Convertible From date: 01-05-1986 To date: 01-10-1989 Fuel: Diesel Approved: Yes
      Mitsubishi Model: Pajero Model series: Pajero Type of engine: TD Size of motor: 2.5 Brand of engine: 4D56T Type description: L044G Body: Convertible From date: 01-11-1989 To date: 01-11-1990 Fuel: Diesel Approved: Yes
      Mitsubishi Model: Pajero Model series: Pajero Type of engine: TD Size of motor: 2.5 Brand of engine: 4D56T Type description: L044G From date: 01-04-1987 To date: 01-12-1991 Fuel: Diesel Approved: Yes
      Mitsubishi Model: Pajero Model series: Pajero Type of engine: TD Size of motor: 2.5 Brand of engine: 4D56T Type description: L044G From date: 01-11-1989 To date: 01-11-1990 Fuel: Diesel Approved: Yes
      Mitsubishi Model: Pajero Model series: Pajero Type of engine: TD Size of motor: 2.5 Brand of engine: 4D56T Type description: L049G Body: Convertible From date: 01-05-1986 To date: 01-10-1989 Fuel: Diesel Approved: Yes
      Mitsubishi Model: Pajero Model series: Pajero Type of engine: TD Size of motor: 2.5 Brand of engine: 4D56T Type description: L049G From date: 01-04-1987 To date: 01-12-1991 Fuel: Diesel Approved: Yes
      Mitsubishi Model: Pajero Model series: Pajero Type of engine: TD Size of motor: 2.5 Brand of engine: 4D56T Type description: L049G From date: 01-11-1989 To date: 01-11-1990 Fuel: Diesel Approved: Yes
      Mitsubishi Series: L 200 (K_4T) Model: 2.5 D 4WD Engine volume: 2.5 Engine type: 4 D 56 (8V) Year: 12.87-05.93
      Mitsubishi Series: L 200 (K_4T) Model: 2.5 D Engine volume: 2.5 Engine type: 4 D 56 Year: 11.86-08.96
      Mitsubishi Series: L 200 (K_4T) Model: 2.5 TD 4WD Engine volume: 2.5 Engine type: 4 D 56 T Year: 11.92-08.96
      Mitsubishi Series: L 300 (LO__P) Model: 2.5 D Engine volume: 2.5 Year: 11.86-04.94
      Mitsubishi Series: L 300 (P0__W) Model: 2.5 D Engine volume: 2.5 Engine type: 4 D 56 Year: 11.86-10.88
      Mitsubishi Series: Pajero I Model: 2.5 TD Engine volume: 2.5 Engine type: 4 D 56 T Year: 05.86-12.91
      Mitsubishi Series: Shogun Model: 2.5 D (P25W) Engine volume: 2.5 Engine type: 4D56 Year: 12.87-11.88
