Vare nr.: F032113517

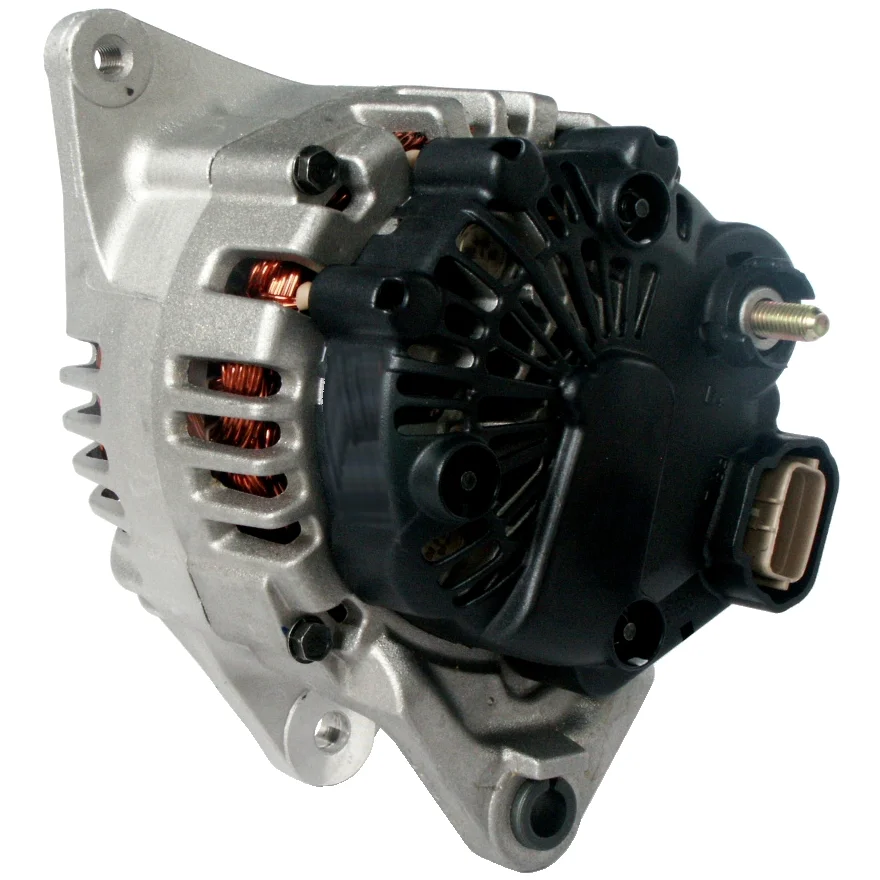

HC-Cargo Generator

Tekniske oplysninger:

Spænding: 14, Amp: 110, Rotation: CW, Monteringsbeslag forfordeling: 66,50

Beskrivelse

Spænding: 14
Amp: 110
Remskive dist.: 38,20
Bredde/holder arm: 13,00
Monteringsbeslag dist.: 66,50
Beslagshul: 10,20
Bælte justering beskalls hul pos.: 7
Bælte justering beskalls hul 1: M8
Remskive dia.: 59,70
Riller/remskive: 4
Radius: 88,50
Radius 2: 95,50
B+: M8
Position/B+ i min.: 10
D+ Størrelse: Stolpe
Rotation: CW
Stik nr.: PL68
Total længde mm: 176,50
Remskive: SP
Regulator type: IR
Prod. info: BN
Servicing: Hyundai

Filer

Specifikation

B+ M8
Mount. bracket dist. 66.50
Belt. adj. bracket hole 1 M8
Belt. adj. brackethole pos. 7
Plug no. PL68
Bracket hole 10.20
Position/B+ in min. 10
Prod. info BN
Pulley SP
Pulley dia. 59.70
Pulley dist. 38.20
Radius 88.50
D+ Size Plug
Radius 2 95.50
Regulator type IR
Rotation CW
Servicing Hyundai
Grooves/pulley 4
Voltage 14
Total length 176.50 mm
Width/holder arm 13.00
Amp 110

  • OEM
    AB195141, F032113517, ja1718ir, TA000A44301, 37300-38700, 37300-38710

  • Konkurrentreferens
    A9017, DRA4177, 28-4597, 226.164.952, 0986ar0761, 11001, 11001N, 11001R, 11027N, 11027R, 12311, 111849, 401718RI, 600849, 9212556, 12060877, 944390605110

  • NormaliseratArtNr
    a9017, ab195141, dra4177, f032113517, ja1718ir, ta000a44301, 0986ar0761, 11001, 11001n, 11001r, 11027n, 11027r, 12311, 111849, 284597, 401718ri, 600849, 9212556, 12060877, 226164952, 3730038700, 3730038710, 944390605110

  • Passar modeller
    Hyundai Model: Highway Van Model series: Highway Van Model type: 16V Size of motor: 2.0 Brand of engine: G4JP Body: Box Body/MPV From date: 01-03-2000 To date: 01-03-2004 Fuel: Petrol Approved: Yes
    Hyundai Model: Santa F Model series: Santa F Model type: 4WD Type of engine: 16V Size of motor: 2.4 Brand of engine: G4JS-G Type description: SM Body: SUV From date: 01-02-2001 To date: 01-03-2006 Fuel: Gasoline Approved: Yes
    Hyundai Model: Santa F Model series: Santa F Model type: 4WD Type of engine: CRDi Size of motor: 2.0 Brand of engine: D4EA Type description: SM Body: SUV From date: 01-04-2001 To date: 01-03-2006 Fuel: Diesel Approved: Yes
    Hyundai Model: Santa F Model series: Santa F Model type: 4X4 Size of motor: 2.4 Brand of engine: G4JS Type description: SM Body: Box Body / Estate From date: 01-08-2000 To date: 01-12-2005 Fuel: Petrol Approved: Yes
    Hyundai Model: Santa F Model series: Santa F Size of motor: 2.0 Brand of engine: G4BP Type description: SM Body: SUV From date: 01-08-2001 To date: 01-03-2006 Fuel: Gasoline Approved: Yes
    Hyundai Model: Santa F Model series: Santa F Type of engine: 16V Size of motor: 2.4 Brand of engine: G4JS-G Type description: SM Body: SUV From date: 01-02-2001 To date: 01-03-2006 Fuel: Gasoline Approved: Yes
    Hyundai Model: Santa F Model series: Santa F Type of engine: CRDi Size of motor: 2.0 Brand of engine: D4EA Type description: SM Body: SUV From date: 01-08-2001 To date: 01-03-2006 Fuel: Diesel Approved: Yes
    Hyundai Model: Trajet Model series: Trajet Box Body/MPV Size of motor: 2.0 Brand of engine: G4JP Type description: FO Body: Van From date: 01-09-1999 To date: 01-07-2008 Fuel: Petrol Approved: Yes
    Hyundai Model: Trajet Model series: Trajet Size of motor: 2.0 Brand of engine: G4GC-G Type description: FO Body: MPV From date: 01-01-2004 To date: 01-07-2008 Fuel: Gasoline Approved: Yes
    Hyundai Model: Trajet Model series: Trajet Size of motor: 2.0 Brand of engine: G4JP-G Body: MPV From date: 01-03-2000 To date: 01-07-2008 Fuel: Gasoline Approved: Yes
    1 / 2
  • Beskrivelse
    Spænding: 14
    Amp: 110
    Remskive dist.: 38,20
    Bredde/holder arm: 13,00
    Monteringsbeslag dist.: 66,50
    Beslagshul: 10,20
    Bælte justering beskalls hul pos.: 7
    Bælte justering beskalls hul 1: M8
    Remskive dia.: 59,70
    Riller/remskive: 4
    Radius: 88,50
    Radius 2: 95,50
    B+: M8
    Position/B+ i min.: 10
    D+ Størrelse: Stolpe
    Rotation: CW
    Stik nr.: PL68
    Total længde mm: 176,50
    Remskive: SP
    Regulator type: IR
    Prod. info: BN
    Servicing: Hyundai

    Filer

  • Specifikation
    B+ M8
    Mount. bracket dist. 66.50
    Belt. adj. bracket hole 1 M8
    Belt. adj. brackethole pos. 7
    Plug no. PL68
    Bracket hole 10.20
    Position/B+ in min. 10
    Prod. info BN
    Pulley SP
    Pulley dia. 59.70
    Pulley dist. 38.20
    Radius 88.50
    D+ Size Plug
    Radius 2 95.50
    Regulator type IR
    Rotation CW
    Servicing Hyundai
    Grooves/pulley 4
    Voltage 14
    Total length 176.50 mm
    Width/holder arm 13.00
    Amp 110
  • Køretøjsmatchning

    • OEM
      AB195141, F032113517, ja1718ir, TA000A44301, 37300-38700, 37300-38710

    • Konkurrentreferens
      A9017, DRA4177, 28-4597, 226.164.952, 0986ar0761, 11001, 11001N, 11001R, 11027N, 11027R, 12311, 111849, 401718RI, 600849, 9212556, 12060877, 944390605110

    • NormaliseratArtNr
      a9017, ab195141, dra4177, f032113517, ja1718ir, ta000a44301, 0986ar0761, 11001, 11001n, 11001r, 11027n, 11027r, 12311, 111849, 284597, 401718ri, 600849, 9212556, 12060877, 226164952, 3730038700, 3730038710, 944390605110

    • Passar modeller
      Hyundai Model: Highway Van Model series: Highway Van Model type: 16V Size of motor: 2.0 Brand of engine: G4JP Body: Box Body/MPV From date: 01-03-2000 To date: 01-03-2004 Fuel: Petrol Approved: Yes
      Hyundai Model: Santa F Model series: Santa F Model type: 4WD Type of engine: 16V Size of motor: 2.4 Brand of engine: G4JS-G Type description: SM Body: SUV From date: 01-02-2001 To date: 01-03-2006 Fuel: Gasoline Approved: Yes
      Hyundai Model: Santa F Model series: Santa F Model type: 4WD Type of engine: CRDi Size of motor: 2.0 Brand of engine: D4EA Type description: SM Body: SUV From date: 01-04-2001 To date: 01-03-2006 Fuel: Diesel Approved: Yes
      Hyundai Model: Santa F Model series: Santa F Model type: 4X4 Size of motor: 2.4 Brand of engine: G4JS Type description: SM Body: Box Body / Estate From date: 01-08-2000 To date: 01-12-2005 Fuel: Petrol Approved: Yes
      Hyundai Model: Santa F Model series: Santa F Size of motor: 2.0 Brand of engine: G4BP Type description: SM Body: SUV From date: 01-08-2001 To date: 01-03-2006 Fuel: Gasoline Approved: Yes
      Hyundai Model: Santa F Model series: Santa F Type of engine: 16V Size of motor: 2.4 Brand of engine: G4JS-G Type description: SM Body: SUV From date: 01-02-2001 To date: 01-03-2006 Fuel: Gasoline Approved: Yes
      Hyundai Model: Santa F Model series: Santa F Type of engine: CRDi Size of motor: 2.0 Brand of engine: D4EA Type description: SM Body: SUV From date: 01-08-2001 To date: 01-03-2006 Fuel: Diesel Approved: Yes
      Hyundai Model: Trajet Model series: Trajet Box Body/MPV Size of motor: 2.0 Brand of engine: G4JP Type description: FO Body: Van From date: 01-09-1999 To date: 01-07-2008 Fuel: Petrol Approved: Yes
      Hyundai Model: Trajet Model series: Trajet Size of motor: 2.0 Brand of engine: G4GC-G Type description: FO Body: MPV From date: 01-01-2004 To date: 01-07-2008 Fuel: Gasoline Approved: Yes
      Hyundai Model: Trajet Model series: Trajet Size of motor: 2.0 Brand of engine: G4JP-G Body: MPV From date: 01-03-2000 To date: 01-07-2008 Fuel: Gasoline Approved: Yes
