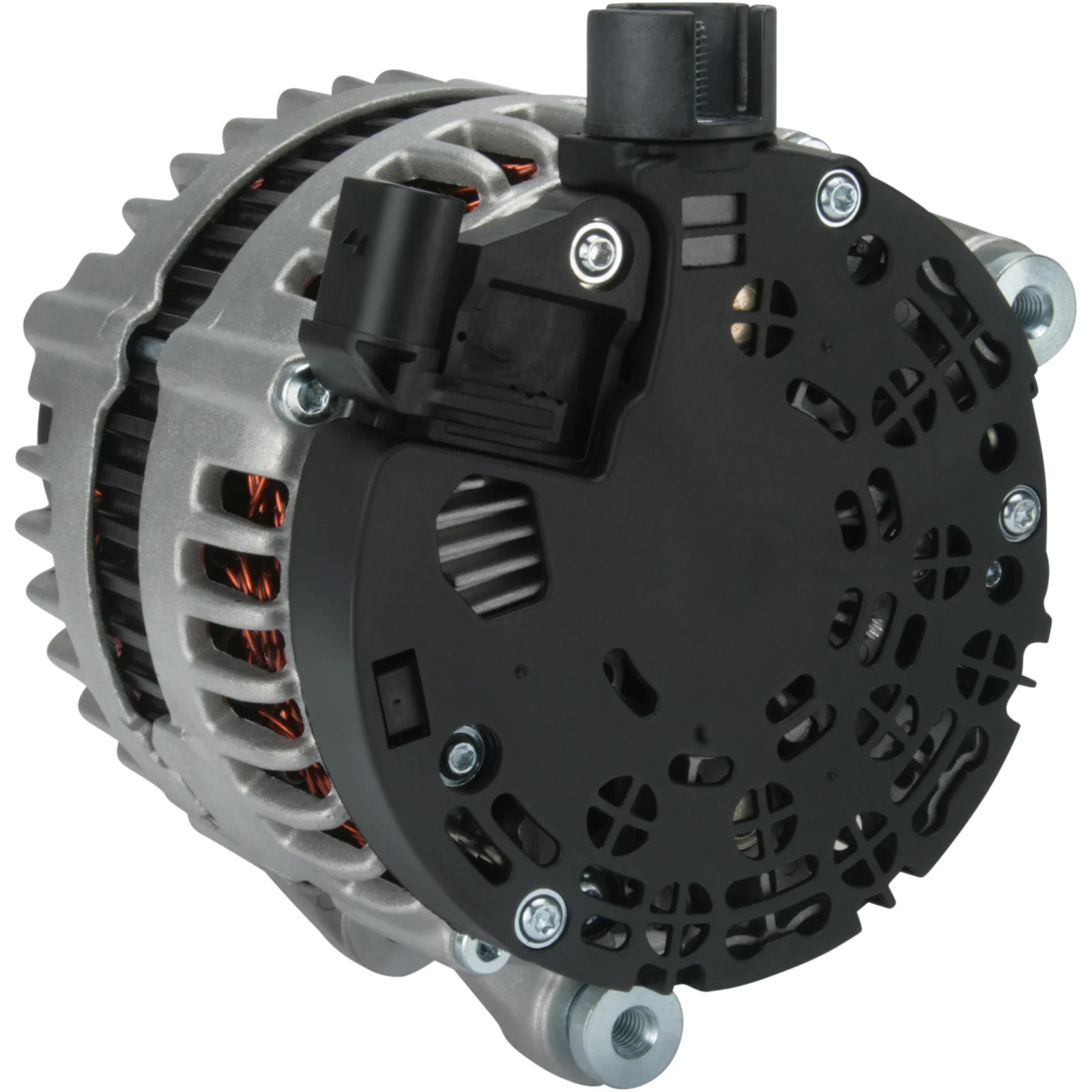

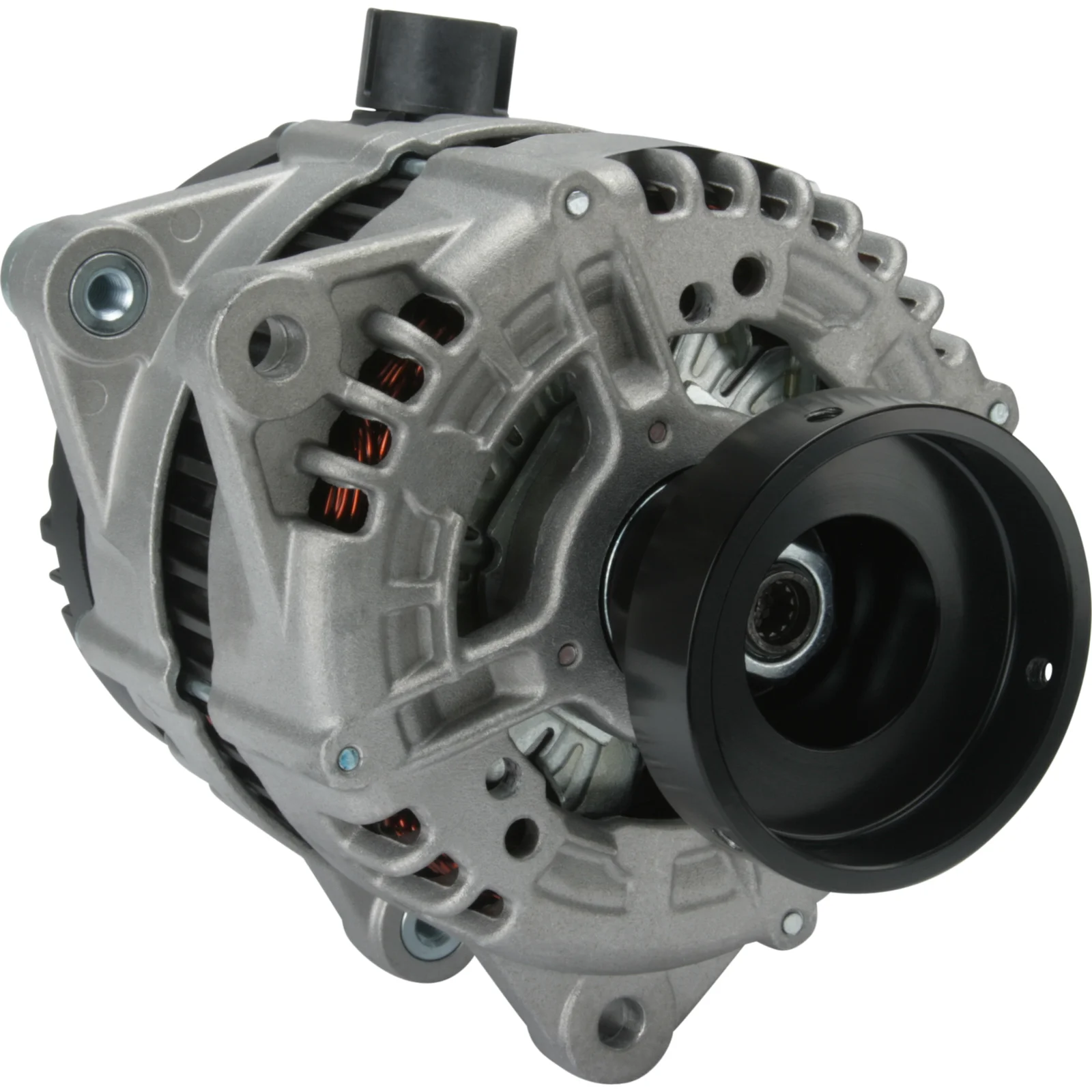

HC-Cargo Generator
HC-Cargo Generator
Vare nr.: F032114898

HC-Cargo Generator

Tekniske oplysninger:

Voltage: 14, Amp: 150, Rotation: CW, Mount. bøsning dist.: 51.50

Beskrivelse

Spænding: 14
Amp: 150
Remskive dist.: 80,00
Bredde/beslag arm: 14,50
Monteringsbeslag dist.: 51,50
Beslagshul: 8,50
Bælte. just. beslag hul position.: 10
Bælte. just. beslag hul 1: 8,00
Remskive dia.: 78,00
Radius: 85,00
Radius 2: 82,00
B+: M8
Position/B+ i min.: 18
Rotation: CW
Stiknr.: PL137
Terminaltype: COM
Kommunikation: LIN
Regulator type: IR
Bemærkninger: Denne Generator har en COM-terminal på regulatoren. Det anbefales at bruge OEM-nummeret til at kontrollere egnethed, før der bestilles.

Filer

Specifikation

B+ M8
Communication LIN
Mount. bracket dist. 51.50
Belt. adj. bracket hole 1 8.00
Belt. adj. brackethole pos. 10
Plug no. PL137
Bracket hole 8.50
Position/B+ in min. 18
Pulley dia. 78.00
Pulley dist. 80.00
Radius 85.00
Radius 2 82.00
Regulator type IR
Remarks This Alternator has a COM terminal on the regulator. It is recommended that the OEM number is used to check suitability before ordering.
Rotation CW
Terminal type COM
Voltage 14
Width/holder arm 14.50
Amp 150

  • OEM
    F032114898, 6G9J10300UA, 6g9n10300tc, 6g9n10300td, 6g9n10300ua, 6g9n10300ub, 6g9n10300uc, 6g9n10300ud, 01210AA7PB, 1919ir, 1986A00762, 1420869, 1420871, 1490845, 1757316, 2099451, 2541814, 0121615008, 0121615108

  • Konkurrentreferens
    A0283, CAL10310, dra0296, DRB8380, DRB8380N, LRA02979, 8EL011712-331, 8EL012240-521, 8EL738211-921, 28-5593, 219.195.1502, 595.562.150, 4726, 23979N, 112245, 112664, 200248, 210423, 210423A, 210435, 210435A, 301919RI, 440421, 553301RI, 9048380, 12048380, 12090248, 32048380, 944390483, 0986048380, 944390483800, 944390904720

  • NormaliseratArtNr
    a0283, cal10310, dra0296, drb8380, drb8380n, f032114898, lra02979, 6g9j10300ua, 6g9n10300tc, 6g9n10300td, 6g9n10300ua, 6g9n10300ub, 6g9n10300uc, 6g9n10300ud, 8el011712331, 8el012240521, 8el738211921, 01210aa7pb, 1919ir, 1986a00762, 4726, 23979n, 112245, 112664, 200248, 210423, 210423a, 210435, 210435a, 285593, 301919ri, 440421, 553301ri, 1420869, 1420871, 1490845, 1757316, 2099451, 2541814, 9048380, 12048380, 12090248, 32048380, 0121615008, 0121615108, 595562150, 944390483, 0986048380, 2191951502, 944390483800, 944390904720

  • Passar modeller
    Ford Model: Galaxy Model series: Galaxy Type of engine: TDCi Size of motor: 1.8 Brand of engine: FFWA Body: MPV From date: 01-05-2006 To date: 01-06-2015 Fuel: Diesel Approved: Yes
    Ford Model: Galaxy Model series: Galaxy Type of engine: TDCi Size of motor: 1.8 Brand of engine: QYWA Body: MPV From date: 01-05-2006 To date: 01-06-2015 Fuel: Diesel Approved: Yes
    Ford Model: Mondeo Model series: Mondeo Type of engine: TDCi Size of motor: 1.8 Brand of engine: FFBA Body: Estate From date: 01-03-2007 To date: 01-12-2012 Fuel: Diesel Approved: Yes Manufacture type: turnier
    Ford Model: Mondeo Model series: Mondeo Type of engine: TDCi Size of motor: 1.8 Brand of engine: FFBA Body: Hatchback From date: 01-03-2007 To date: 01-01-2015 Fuel: Diesel Approved: Yes
    Ford Model: Mondeo Model series: Mondeo Type of engine: TDCi Size of motor: 1.8 Brand of engine: FFBA Type description: BD_ From date: 01-03-2007 To date: 01-01-2015 Fuel: Diesel Approved: Yes
    Ford Model: Mondeo Model series: Mondeo Type of engine: TDCi Size of motor: 1.8 Brand of engine: KHBA Type description: BD_ From date: 01-06-2007 To date: 01-01-2015 Fuel: Diesel Approved: Yes
    Ford Model: Mondeo Model series: Mondeo Type of engine: TDCi Size of motor: 1.8 Brand of engine: KHBA Type description: BE_ Body: Hatchback From date: 01-06-2007 To date: 01-01-2015 Fuel: Diesel Approved: Yes
    Ford Model: Mondeo Model series: Mondeo Type of engine: TDCi Size of motor: 1.8 Brand of engine: KHBA Type description: BG_ Body: Estate From date: 01-06-2007 To date: 01-12-2012 Fuel: Diesel Approved: Yes Manufacture type: Turnier
    Ford Model: Mondeo Model series: Mondeo Type of engine: TDCi Size of motor: 1.8 Brand of engine: QYBA Type description: BD_ From date: 01-06-2007 To date: 01-01-2015 Fuel: Diesel Approved: Yes
    Ford Model: Mondeo Model series: Mondeo Type of engine: TDCi Size of motor: 1.8 Brand of engine: QYBA Type description: BE_ Body: Hatchback From date: 01-06-2007 To date: 01-01-2015 Fuel: Diesel Approved: Yes
    Ford Model: Mondeo Model series: Mondeo Type of engine: TDCi Size of motor: 1.8 Brand of engine: QYBA Type description: BG_ Body: Estate From date: 01-06-2007 To date: 01-12-2012 Fuel: Diesel Approved: Yes Manufacture type: Turnier
    Ford Model: S-Max Model series: S-Max Type of engine: TDCi Size of motor: 1.8 Brand of engine: FFWA Type description: WA_ Body: MPV From date: 01-01-2007 To date: 01-12-2010 Fuel: Diesel Approved: Yes
    Ford Model: S-Max Model series: S-Max Type of engine: TDCi Size of motor: 1.8 Brand of engine: QYWA Body: MPV From date: 01-05-2006 To date: 01-12-2014 Fuel: Diesel Approved: Yes
    1 / 3
  • Beskrivelse
    Spænding: 14
    Amp: 150
    Remskive dist.: 80,00
    Bredde/beslag arm: 14,50
    Monteringsbeslag dist.: 51,50
    Beslagshul: 8,50
    Bælte. just. beslag hul position.: 10
    Bælte. just. beslag hul 1: 8,00
    Remskive dia.: 78,00
    Radius: 85,00
    Radius 2: 82,00
    B+: M8
    Position/B+ i min.: 18
    Rotation: CW
    Stiknr.: PL137
    Terminaltype: COM
    Kommunikation: LIN
    Regulator type: IR
    Bemærkninger: Denne Generator har en COM-terminal på regulatoren. Det anbefales at bruge OEM-nummeret til at kontrollere egnethed, før der bestilles.

    Filer

  • Specifikation
    B+ M8
    Communication LIN
    Mount. bracket dist. 51.50
    Belt. adj. bracket hole 1 8.00
    Belt. adj. brackethole pos. 10
    Plug no. PL137
    Bracket hole 8.50
    Position/B+ in min. 18
    Pulley dia. 78.00
    Pulley dist. 80.00
    Radius 85.00
    Radius 2 82.00
    Regulator type IR
    Remarks This Alternator has a COM terminal on the regulator. It is recommended that the OEM number is used to check suitability before ordering.
    Rotation CW
    Terminal type COM
    Voltage 14
    Width/holder arm 14.50
    Amp 150
  • Køretøjsmatchning

    • OEM
      F032114898, 6G9J10300UA, 6g9n10300tc, 6g9n10300td, 6g9n10300ua, 6g9n10300ub, 6g9n10300uc, 6g9n10300ud, 01210AA7PB, 1919ir, 1986A00762, 1420869, 1420871, 1490845, 1757316, 2099451, 2541814, 0121615008, 0121615108

    • Konkurrentreferens
      A0283, CAL10310, dra0296, DRB8380, DRB8380N, LRA02979, 8EL011712-331, 8EL012240-521, 8EL738211-921, 28-5593, 219.195.1502, 595.562.150, 4726, 23979N, 112245, 112664, 200248, 210423, 210423A, 210435, 210435A, 301919RI, 440421, 553301RI, 9048380, 12048380, 12090248, 32048380, 944390483, 0986048380, 944390483800, 944390904720

    • NormaliseratArtNr
      a0283, cal10310, dra0296, drb8380, drb8380n, f032114898, lra02979, 6g9j10300ua, 6g9n10300tc, 6g9n10300td, 6g9n10300ua, 6g9n10300ub, 6g9n10300uc, 6g9n10300ud, 8el011712331, 8el012240521, 8el738211921, 01210aa7pb, 1919ir, 1986a00762, 4726, 23979n, 112245, 112664, 200248, 210423, 210423a, 210435, 210435a, 285593, 301919ri, 440421, 553301ri, 1420869, 1420871, 1490845, 1757316, 2099451, 2541814, 9048380, 12048380, 12090248, 32048380, 0121615008, 0121615108, 595562150, 944390483, 0986048380, 2191951502, 944390483800, 944390904720

    • Passar modeller
      Ford Model: Galaxy Model series: Galaxy Type of engine: TDCi Size of motor: 1.8 Brand of engine: FFWA Body: MPV From date: 01-05-2006 To date: 01-06-2015 Fuel: Diesel Approved: Yes
      Ford Model: Galaxy Model series: Galaxy Type of engine: TDCi Size of motor: 1.8 Brand of engine: QYWA Body: MPV From date: 01-05-2006 To date: 01-06-2015 Fuel: Diesel Approved: Yes
      Ford Model: Mondeo Model series: Mondeo Type of engine: TDCi Size of motor: 1.8 Brand of engine: FFBA Body: Estate From date: 01-03-2007 To date: 01-12-2012 Fuel: Diesel Approved: Yes Manufacture type: turnier
      Ford Model: Mondeo Model series: Mondeo Type of engine: TDCi Size of motor: 1.8 Brand of engine: FFBA Body: Hatchback From date: 01-03-2007 To date: 01-01-2015 Fuel: Diesel Approved: Yes
      Ford Model: Mondeo Model series: Mondeo Type of engine: TDCi Size of motor: 1.8 Brand of engine: FFBA Type description: BD_ From date: 01-03-2007 To date: 01-01-2015 Fuel: Diesel Approved: Yes
      Ford Model: Mondeo Model series: Mondeo Type of engine: TDCi Size of motor: 1.8 Brand of engine: KHBA Type description: BD_ From date: 01-06-2007 To date: 01-01-2015 Fuel: Diesel Approved: Yes
      Ford Model: Mondeo Model series: Mondeo Type of engine: TDCi Size of motor: 1.8 Brand of engine: KHBA Type description: BE_ Body: Hatchback From date: 01-06-2007 To date: 01-01-2015 Fuel: Diesel Approved: Yes
      Ford Model: Mondeo Model series: Mondeo Type of engine: TDCi Size of motor: 1.8 Brand of engine: KHBA Type description: BG_ Body: Estate From date: 01-06-2007 To date: 01-12-2012 Fuel: Diesel Approved: Yes Manufacture type: Turnier
      Ford Model: Mondeo Model series: Mondeo Type of engine: TDCi Size of motor: 1.8 Brand of engine: QYBA Type description: BD_ From date: 01-06-2007 To date: 01-01-2015 Fuel: Diesel Approved: Yes
      Ford Model: Mondeo Model series: Mondeo Type of engine: TDCi Size of motor: 1.8 Brand of engine: QYBA Type description: BE_ Body: Hatchback From date: 01-06-2007 To date: 01-01-2015 Fuel: Diesel Approved: Yes
      Ford Model: Mondeo Model series: Mondeo Type of engine: TDCi Size of motor: 1.8 Brand of engine: QYBA Type description: BG_ Body: Estate From date: 01-06-2007 To date: 01-12-2012 Fuel: Diesel Approved: Yes Manufacture type: Turnier
      Ford Model: S-Max Model series: S-Max Type of engine: TDCi Size of motor: 1.8 Brand of engine: FFWA Type description: WA_ Body: MPV From date: 01-01-2007 To date: 01-12-2010 Fuel: Diesel Approved: Yes
      Ford Model: S-Max Model series: S-Max Type of engine: TDCi Size of motor: 1.8 Brand of engine: QYWA Body: MPV From date: 01-05-2006 To date: 01-12-2014 Fuel: Diesel Approved: Yes
      1 / 3
