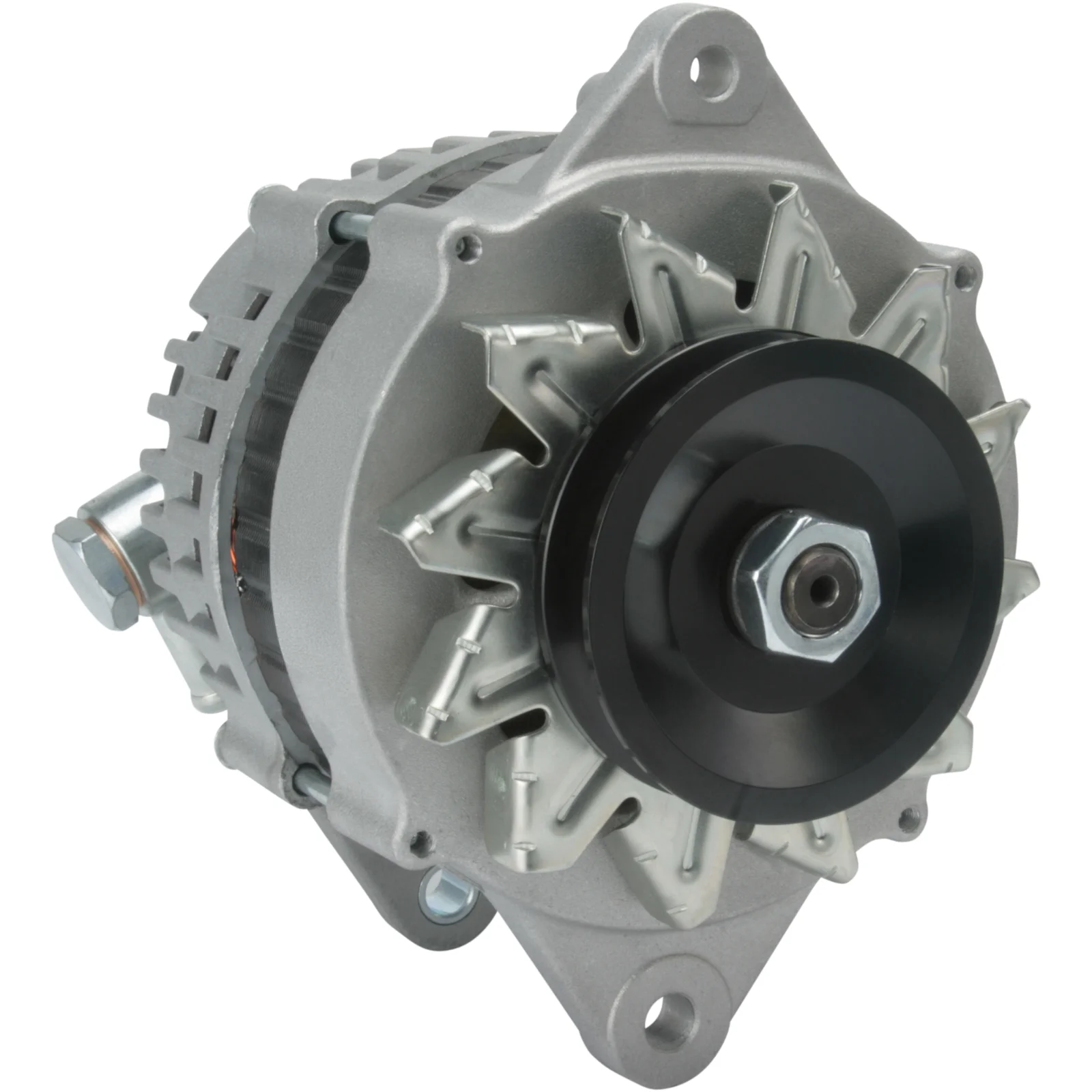

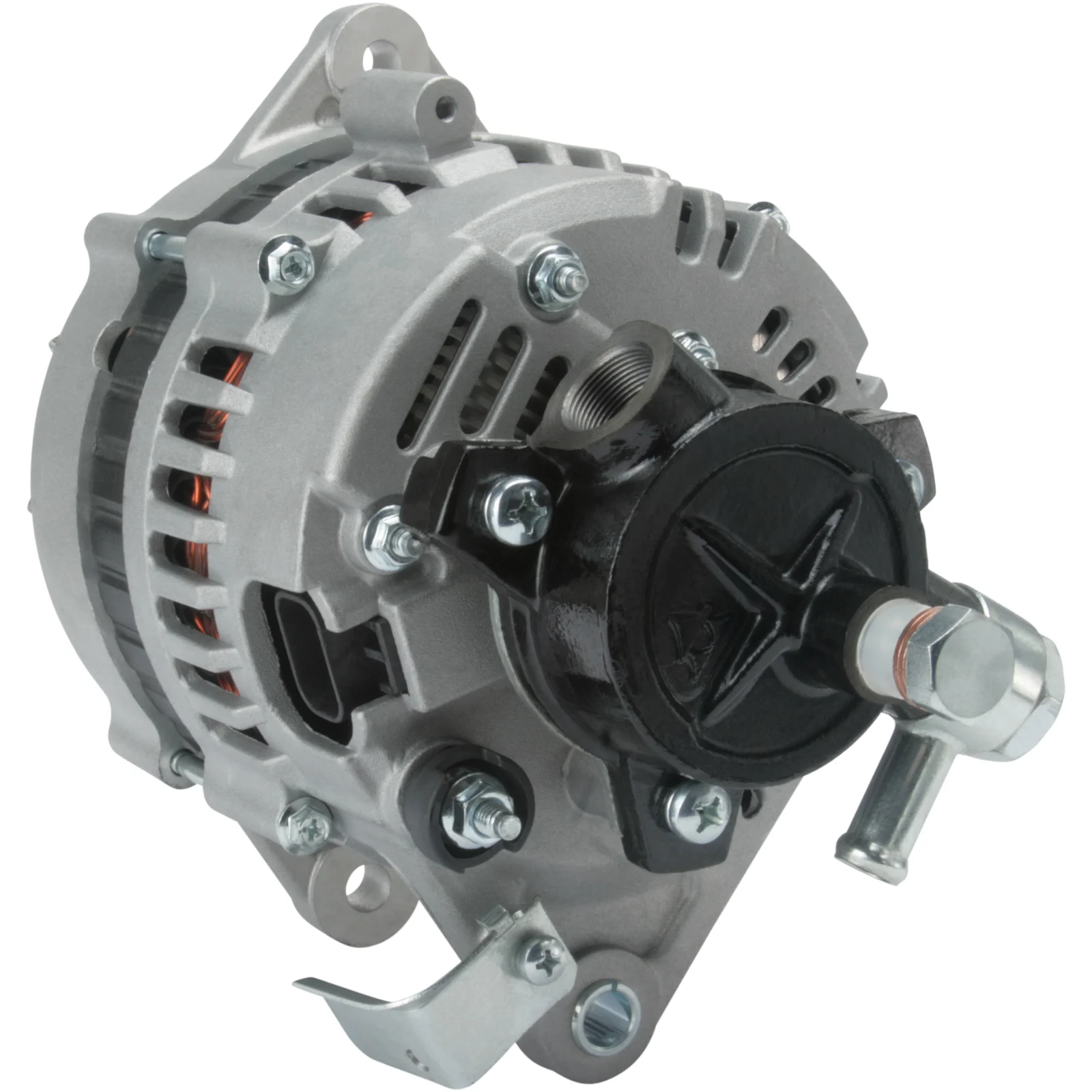

HC-Cargo Generator
HC-Cargo Generator
Vare nr.: F032111294

HC-Cargo Generator

Tekniske oplysninger:

Spænding: 14, Amp: 70, Rotation: CW, Mount. bracket dist.: 80.50

Beskrivelse

Primera Diesel gen. 12V - 70A Til Yourex produktordre 90-400-0502

Spænding: 14
Amp: 70
Remskives afstanden: 41,50
Bredde/holderarm: 13,20
Monteringsbeslagets afstand: 80,50
Beslagshul: 10,30
Remstrammer pos.: 60
Remstrammer hul 1: 8,50
Remskive diameter: 85,50
Riller/remskive: 1
Radius: 91,00
Radius 2: 84,50
B+: M6
Position/B+ i min.: 45
Rotation: CW
Stik nr.: PL07
Samlet længde mm: 246,00
Remskive: P
Regulator type: IR
Kølervæskepumpe: Ja
Produktinfo: BN
Service: Nissan

Filer

Specifikation

B+ M6
Mount. bracket dist. 80.50
Belt. adj. bracket hole 1 8.50
Belt. adj. brackethole pos. 60
Plug no. PL07
Bracket hole 10.30
Position/B+ in min. 45
Prod. info BN
Pulley P
Pulley dia. 85.50
Pulley dist. 41.50
Radius 91.00
Radius 2 84.50
Regulator type IR
Rotation CW
Servicing Nissan
Grooves/pulley 1
Vac. pump Yes
Voltage 14
Total length 246.00 mm
Width/holder arm 13.20
Amp 70

  • OEM
    F032111294, ja769ir, LR 170-417, LR 170-502, LR170-417, LR170-417B, lr170-417b, lr170-417c, LR170-417D, lr170-417e, lr170-417f, LR170-502, lr170-502b, lr170-502c, lr170-502p, lr170-502q, lr170-504, lr170-504b, LR170-504C, LT 170-417, 23100-0e400, 23100-0e402, 23100-0E4R2EX, 23100-0m900, 23100-0m901, 23100-57J01, 23100-57j01, 23100-57J02, 23100-57j02, 23100-57j03, 23100-57J04, 23100-57j04, 23100-70n00, 23100-70n01, 111294

  • Konkurrentreferens
    A2009, A2076, ada-395, ada-396, ALT-V003, ALT32078, ALT32098, ALTV003, ALTV112, BAO3069, CAL20120, CAL20128, dra3279, DRA3279N, F042305030, F042A05030, FRA855, IA9014, J5111059, J5111073, LRA01715, LRA01760, lrb00194, MG455, QA1685, 8EL011360-771, 8EL012427-521, 8el730103-001, 28-1747, 28-2978, 28-3556, 28-51.152, 227.128.702, 227.145.702, 227.154.702, 5400, 9096, 20192N, 20192R, 40769RI, 56340, 119056, 119778, 210537, 210537A, 437152, 747901, 12060261, 12060281, 12060293, 0986040581, 0986045631, 943311380010, 943346158010, 943355168010, 943355170010, 944390511590, 944390511730

  • Bilmärken
    Nissan

  • NormaliseratArtNr
    a2009, a2076, ada395, ada396, alt32078, alt32098, altv003, altv112, bao3069, cal20120, cal20128, dra3279, dra3279n, f032111294, f042305030, f042a05030, fra855, ia9014, j5111059, j5111073, ja769ir, lr170417, lr170417b, lr170417c, lr170417d, lr170417e, lr170417f, lr170502, lr170502b, lr170502c, lr170502p, lr170502q, lr170504, lr170504b, lr170504c, lra01715, lra01760, lrb00194, lt170417, mg455, qa1685, 8el011360771, 8el012427521, 8el730103001, 5400, 9096, 20192n, 20192r, 40769ri, 56340, 111294, 119056, 119778, 210537, 210537a, 231000e400, 231000e402, 231000e4r2ex, 231000m900, 231000m901, 281747, 282978, 283556, 437152, 747901, 2310057j01, 2310057j02, 2310057j03, 2310057j04, 2310070n00, 2310070n01, 2851152, 12060261, 12060281, 12060293, 227128702, 227145702, 227154702, 0986040581, 0986045631, 943311380010, 943346158010, 943355168010, 943355170010, 944390511590, 944390511730

  • Passar modeller
    Nissan Model: Almera Model series: Almera Type of engine: Diesel Size of motor: 2.0 Brand of engine: CD20 Type description: N15 Body: Hatchback From date: 01-11-1995 To date: 01-03-2000 Fuel: Diesel Approved: Yes
    Nissan Model: Almera Model series: Almera Type of engine: Diesel Size of motor: 2.0 Brand of engine: CD20 Type description: N15 From date: 01-11-1995 To date: 01-07-2000 Fuel: Diesel Approved: Yes
    Nissan Model: Primera Model series: Primera Type of engine: Diesel Size of motor: 2.0 Brand of engine: CD20 Body: Hatchback From date: 01-01-1991 To date: 01-01-1996 Fuel: Diesel Approved: Yes
    Nissan Model: Primera Model series: Primera Type of engine: Diesel Size of motor: 2.0 Brand of engine: CD20 Type description: P10 From date: 01-01-1991 To date: 01-01-1996 Fuel: Diesel Approved: Yes
    Nissan Model: Primera Model series: Primera Type of engine: Diesel Size of motor: 2.0 Brand of engine: CD20 Type description: W10 Body: Estate From date: 01-07-1990 To date: 01-12-1995 Fuel: Diesel Approved: Yes
    Nissan Model: Sunny Model series: Sunny Type of engine: Diesel Size of motor: 2.0 Brand of engine: CD20 Type description: N14 Body: Hatchback From date: 01-10-1990 To date: 01-05-1995 Fuel: Diesel Approved: Yes
    Nissan Model: Sunny Model series: Sunny Type of engine: Diesel Size of motor: 2.0 Brand of engine: CD20 Type description: N14 From date: 01-10-1990 To date: 01-05-1995 Fuel: Diesel Approved: Yes
    Nissan Model: Sunny Model series: Sunny Type of engine: Diesel Size of motor: 2.0 Brand of engine: CD20 Type description: Y10 Body: Estate From date: 01-06-1991 To date: 01-03-2000 Fuel: Diesel Approved: Yes
    Nissan Series: Almera I (N15) Model: 2.0 D Engine volume: 2.0 Engine type: CD 20 Year: 11.95-07.00
    Nissan Series: Primera (P/W10) Model: 2.0 D Engine volume: 2.0 Engine type: CD 20 Year: 01.91-01.96
    Nissan Series: Sunny III (N14) Model: 2.0 D Engine volume: 2.0 Engine type: CD 20 Year: 10.90-05.95
    Nissan Series: Sunny III Kombi Model: 2.0 D Engine volume: 2.0 Engine type: CD 20 Year: 06.91-
    1 / 3
  • Beskrivelse
    Primera Diesel gen. 12V - 70A Til Yourex produktordre 90-400-0502

    Spænding: 14
    Amp: 70
    Remskives afstanden: 41,50
    Bredde/holderarm: 13,20
    Monteringsbeslagets afstand: 80,50
    Beslagshul: 10,30
    Remstrammer pos.: 60
    Remstrammer hul 1: 8,50
    Remskive diameter: 85,50
    Riller/remskive: 1
    Radius: 91,00
    Radius 2: 84,50
    B+: M6
    Position/B+ i min.: 45
    Rotation: CW
    Stik nr.: PL07
    Samlet længde mm: 246,00
    Remskive: P
    Regulator type: IR
    Kølervæskepumpe: Ja
    Produktinfo: BN
    Service: Nissan

    Filer

  • Specifikation
    B+ M6
    Mount. bracket dist. 80.50
    Belt. adj. bracket hole 1 8.50
    Belt. adj. brackethole pos. 60
    Plug no. PL07
    Bracket hole 10.30
    Position/B+ in min. 45
    Prod. info BN
    Pulley P
    Pulley dia. 85.50
    Pulley dist. 41.50
    Radius 91.00
    Radius 2 84.50
    Regulator type IR
    Rotation CW
    Servicing Nissan
    Grooves/pulley 1
    Vac. pump Yes
    Voltage 14
    Total length 246.00 mm
    Width/holder arm 13.20
    Amp 70
  • Køretøjsmatchning

    • OEM
      F032111294, ja769ir, LR 170-417, LR 170-502, LR170-417, LR170-417B, lr170-417b, lr170-417c, LR170-417D, lr170-417e, lr170-417f, LR170-502, lr170-502b, lr170-502c, lr170-502p, lr170-502q, lr170-504, lr170-504b, LR170-504C, LT 170-417, 23100-0e400, 23100-0e402, 23100-0E4R2EX, 23100-0m900, 23100-0m901, 23100-57J01, 23100-57j01, 23100-57J02, 23100-57j02, 23100-57j03, 23100-57J04, 23100-57j04, 23100-70n00, 23100-70n01, 111294

    • Konkurrentreferens
      A2009, A2076, ada-395, ada-396, ALT-V003, ALT32078, ALT32098, ALTV003, ALTV112, BAO3069, CAL20120, CAL20128, dra3279, DRA3279N, F042305030, F042A05030, FRA855, IA9014, J5111059, J5111073, LRA01715, LRA01760, lrb00194, MG455, QA1685, 8EL011360-771, 8EL012427-521, 8el730103-001, 28-1747, 28-2978, 28-3556, 28-51.152, 227.128.702, 227.145.702, 227.154.702, 5400, 9096, 20192N, 20192R, 40769RI, 56340, 119056, 119778, 210537, 210537A, 437152, 747901, 12060261, 12060281, 12060293, 0986040581, 0986045631, 943311380010, 943346158010, 943355168010, 943355170010, 944390511590, 944390511730

    • Bilmärken
      Nissan

    • NormaliseratArtNr
      a2009, a2076, ada395, ada396, alt32078, alt32098, altv003, altv112, bao3069, cal20120, cal20128, dra3279, dra3279n, f032111294, f042305030, f042a05030, fra855, ia9014, j5111059, j5111073, ja769ir, lr170417, lr170417b, lr170417c, lr170417d, lr170417e, lr170417f, lr170502, lr170502b, lr170502c, lr170502p, lr170502q, lr170504, lr170504b, lr170504c, lra01715, lra01760, lrb00194, lt170417, mg455, qa1685, 8el011360771, 8el012427521, 8el730103001, 5400, 9096, 20192n, 20192r, 40769ri, 56340, 111294, 119056, 119778, 210537, 210537a, 231000e400, 231000e402, 231000e4r2ex, 231000m900, 231000m901, 281747, 282978, 283556, 437152, 747901, 2310057j01, 2310057j02, 2310057j03, 2310057j04, 2310070n00, 2310070n01, 2851152, 12060261, 12060281, 12060293, 227128702, 227145702, 227154702, 0986040581, 0986045631, 943311380010, 943346158010, 943355168010, 943355170010, 944390511590, 944390511730

    • Passar modeller
      Nissan Model: Almera Model series: Almera Type of engine: Diesel Size of motor: 2.0 Brand of engine: CD20 Type description: N15 Body: Hatchback From date: 01-11-1995 To date: 01-03-2000 Fuel: Diesel Approved: Yes
      Nissan Model: Almera Model series: Almera Type of engine: Diesel Size of motor: 2.0 Brand of engine: CD20 Type description: N15 From date: 01-11-1995 To date: 01-07-2000 Fuel: Diesel Approved: Yes
      Nissan Model: Primera Model series: Primera Type of engine: Diesel Size of motor: 2.0 Brand of engine: CD20 Body: Hatchback From date: 01-01-1991 To date: 01-01-1996 Fuel: Diesel Approved: Yes
      Nissan Model: Primera Model series: Primera Type of engine: Diesel Size of motor: 2.0 Brand of engine: CD20 Type description: P10 From date: 01-01-1991 To date: 01-01-1996 Fuel: Diesel Approved: Yes
      Nissan Model: Primera Model series: Primera Type of engine: Diesel Size of motor: 2.0 Brand of engine: CD20 Type description: W10 Body: Estate From date: 01-07-1990 To date: 01-12-1995 Fuel: Diesel Approved: Yes
      Nissan Model: Sunny Model series: Sunny Type of engine: Diesel Size of motor: 2.0 Brand of engine: CD20 Type description: N14 Body: Hatchback From date: 01-10-1990 To date: 01-05-1995 Fuel: Diesel Approved: Yes
      Nissan Model: Sunny Model series: Sunny Type of engine: Diesel Size of motor: 2.0 Brand of engine: CD20 Type description: N14 From date: 01-10-1990 To date: 01-05-1995 Fuel: Diesel Approved: Yes
      Nissan Model: Sunny Model series: Sunny Type of engine: Diesel Size of motor: 2.0 Brand of engine: CD20 Type description: Y10 Body: Estate From date: 01-06-1991 To date: 01-03-2000 Fuel: Diesel Approved: Yes
      Nissan Series: Almera I (N15) Model: 2.0 D Engine volume: 2.0 Engine type: CD 20 Year: 11.95-07.00
      Nissan Series: Primera (P/W10) Model: 2.0 D Engine volume: 2.0 Engine type: CD 20 Year: 01.91-01.96
      Nissan Series: Sunny III (N14) Model: 2.0 D Engine volume: 2.0 Engine type: CD 20 Year: 10.90-05.95
      Nissan Series: Sunny III Kombi Model: 2.0 D Engine volume: 2.0 Engine type: CD 20 Year: 06.91-
      1 / 3
