Vare nr.: F032111339

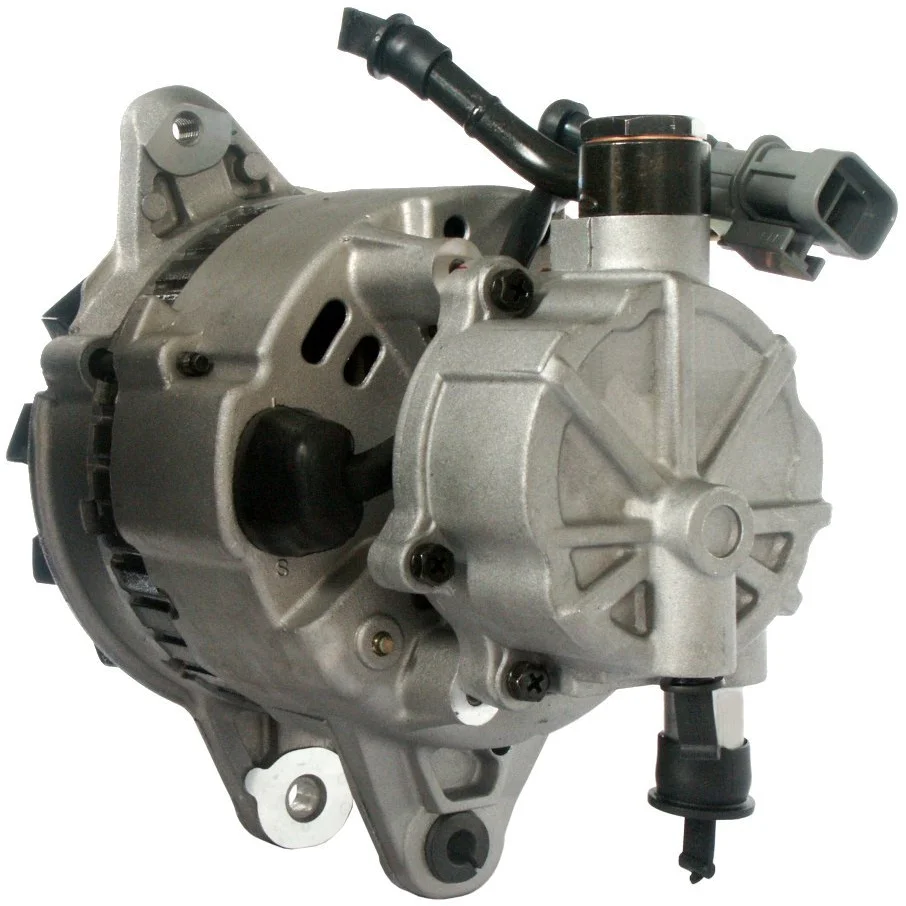

HC-Cargo Generator

Tekniske oplysninger:

Spænding: 14, Amp: 65, Rotation: CW, Mountingsbracket afstand: 54,00

Beskrivelse

Mitsubishi Generator 12V-65A 12V - 65A, 1V, (S, L) Til Yourex produktbestilling 90-380-0674

Spenning: 14
Ampere: 65
Drevskive afstand: 44,50
Bredde/holderarm: 13,00
Monteringsbeslag afstand: 54,00
Beslagshulder: 8,20
Bæltejusteringsbeslag hul placering: 3
Bæltejusteringsbeslag hul 1: M8
Drevskive diameter: 82,00
Riller/dreven: 1
Radius: 90,00
Radius 2: 87,00
B+: M6
Position/B+ i min.: 7
Rotation: med uret
Stik nr.: PL07
Samlet længde mm: 275,00
Drevskive: P
Regulator type: IR
Vakuumpumpe: Ja
Produkt info: BN
Service: Mitsubishi

Filer

Specifikation

B+ M6
Mount. bracket dist. 54.00
Belt. adj. bracket hole 1 M8
Belt. adj. brackethole pos. 3
Plug no. PL07
Bracket hole 8.20
Position/B+ in min. 7
Prod. info BN
Pulley P
Pulley dia. 82.00
Pulley dist. 44.50
Radius 90.00
Radius 2 87.00
Regulator type IR
Rotation CW
Servicing Mitsubishi
Grooves/pulley 1
Vac. pump Yes
Voltage 14
Total length 275.00 mm
Width/holder arm 13.00
Amp 65

  • OEM
    A002T17783, A002T27883, A2T-17783, A2T11783, a2t17783, A2T27883, a2t27883, F032111339, had165504, ja674ir, MD 147245, MD140189, md140189, md147245, TA000A61901, 111339

  • Konkurrentreferens
    A5018, ALT-H037, ALT31056, CAL35117, dra3194, DRA3194N, F042A0H037, J5115047, LEA0204, lrb00225, QA3190, 8EL011711-401, 8el726389-001, 27-51.524, 28-1701, 155.809.065, 226.123.652, 226.126.652, 5359, 12627N, 40674RI, 119436, 210281, 210281A, 600003, 12060166, 0986042311, 943354007010

  • Bilmärken
    Mitsubishi

  • NormaliseratArtNr
    a002t17783, a002t27883, a2t11783, a2t17783, a2t27883, a5018, alt31056, alth037, cal35117, dra3194, dra3194n, f032111339, f042a0h037, had165504, j5115047, ja674ir, lea0204, lrb00225, md140189, md147245, qa3190, ta000a61901, 8el011711401, 8el726389001, 5359, 12627n, 40674ri, 111339, 119436, 210281, 210281a, 281701, 600003, 2751524, 12060166, 155809065, 226123652, 226126652, 0986042311, 943354007010

  • Passar modeller
    Mitsubishi Model: Galant Model series: Galant Type of engine: TD Size of motor: 1.8 Brand of engine: 4D65T Type description: E34A Body: Hatchback From date: 01-11-1988 To date: 01-10-1992 Fuel: Diesel Approved: Yes
    Mitsubishi Model: L 300 Model series: L 300 Model type: 4WD Type of engine: TD Size of motor: 2.5 Brand of engine: 4D56T Type description: P25V, P25W, P45V Body: Bus From date: 01-11-1988 To date: 01-05-2004 Fuel: Diesel Approved: Yes
    Mitsubishi Model: L 300 Model series: L 300 Type of engine: Diesel Size of motor: 2.5 Brand of engine: 4D56 Body: Platform / Chassis From date: 01-11-1986 To date: 01-04-1994 Fuel: Diesel Approved: Yes
    Mitsubishi Model: L 300 Model series: L 300 Type of engine: Diesel Size of motor: 2.5 Brand of engine: 4D56 Type description: PO5V, PO5W, P15V Body: Van From date: 01-11-1986 To date: 01-02-2006 Fuel: Diesel Approved: Yes
    Mitsubishi Model: L 300 Model series: L 300 Type of engine: Diesel V8 Size of motor: 2.5 Brand of engine: 4D56 Type description: P05V, W, 15V Body: Bus From date: 01-11-1986 To date: 01-05-2004 Fuel: Diesel Approved: Yes
    Mitsubishi Model: Pajero Model series: Pajero Type of engine: TD Size of motor: 2.5 Brand of engine: 4D56T Type description: L044G Body: Convertible From date: 01-05-1986 To date: 01-10-1989 Fuel: Diesel Approved: Yes
    Mitsubishi Model: Pajero Model series: Pajero Type of engine: TD Size of motor: 2.5 Brand of engine: 4D56T Type description: L044G Body: Convertible From date: 01-11-1989 To date: 01-11-1990 Fuel: Diesel Approved: Yes
    Mitsubishi Model: Pajero Model series: Pajero Type of engine: TD Size of motor: 2.5 Brand of engine: 4D56T Type description: L044G From date: 01-04-1987 To date: 01-12-1991 Fuel: Diesel Approved: Yes
    Mitsubishi Model: Pajero Model series: Pajero Type of engine: TD Size of motor: 2.5 Brand of engine: 4D56T Type description: L044G From date: 01-11-1989 To date: 01-11-1990 Fuel: Diesel Approved: Yes
    Mitsubishi Model: Pajero Model series: Pajero Type of engine: TD Size of motor: 2.5 Brand of engine: 4D56T Type description: L049G Body: Convertible From date: 01-05-1986 To date: 01-10-1989 Fuel: Diesel Approved: Yes
    Mitsubishi Model: Pajero Model series: Pajero Type of engine: TD Size of motor: 2.5 Brand of engine: 4D56T Type description: L049G Body: Convertible From date: 01-11-1989 To date: 01-11-1990 Fuel: Diesel Approved: Yes
    Mitsubishi Model: Pajero Model series: Pajero Type of engine: TD Size of motor: 2.5 Brand of engine: 4D56T Type description: L049G From date: 01-04-1987 To date: 01-12-1991 Fuel: Diesel Approved: Yes
    Mitsubishi Model: Pajero Model series: Pajero Type of engine: TD Size of motor: 2.5 Brand of engine: 4D56T Type description: L049G From date: 01-11-1989 To date: 01-11-1990 Fuel: Diesel Approved: Yes
    Mitsubishi Model: Pajero Model series: Pajero Type of engine: TD Size of motor: 2.5 Brand of engine: 4D56TD Type description: V24C,W Body: Convertible From date: 01-12-1990 To date: 01-04-2000 Fuel: Diesel Approved: Yes
    Mitsubishi Model: Pajero Model series: Pajero Type of engine: TD Size of motor: 2.5 Brand of engine: 4D56TD Type description: V24C,W From date: 01-12-1990 To date: 01-10-1999 Fuel: Diesel Approved: Yes
    Mitsubishi Model: Shogun Model series: Shogun Type of engine: TD Size of motor: 2.5 Brand of engine: 4D56 Type description: P25W From date: 01-06-1986 To date: 01-12-1996 Fuel: Diesel Approved: Yes
    Mitsubishi Series: L 300 (P0__W) Model: 2.5 D Engine volume: 2.5 Engine type: 4 D 56 Year: 11.88-04.94
    Mitsubishi Series: L 300 (P0__W) Model: 2.5 TD 4WD Engine volume: 2.5 Engine type: 4 D 56 T Year: 11.88-11.91
    Mitsubishi Series: Pajero II Model: 2.5 TD Engine volume: 2.5 Engine type: 4 D 56 TD Year: 12.90-10.93
    Mitsubishi Series: Shogun Model: 2.5 D Engine volume: 2.5 Year: 11.88-
