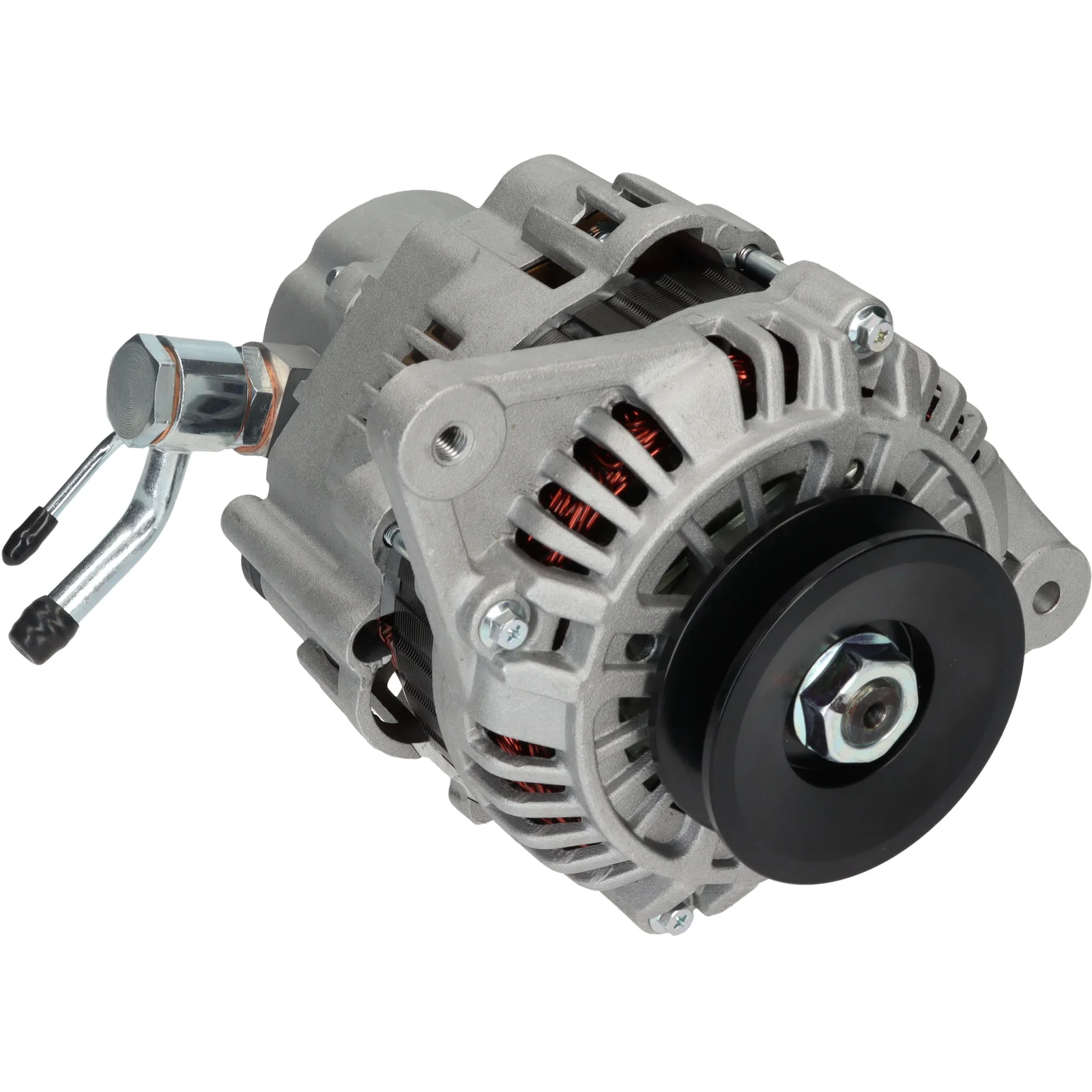

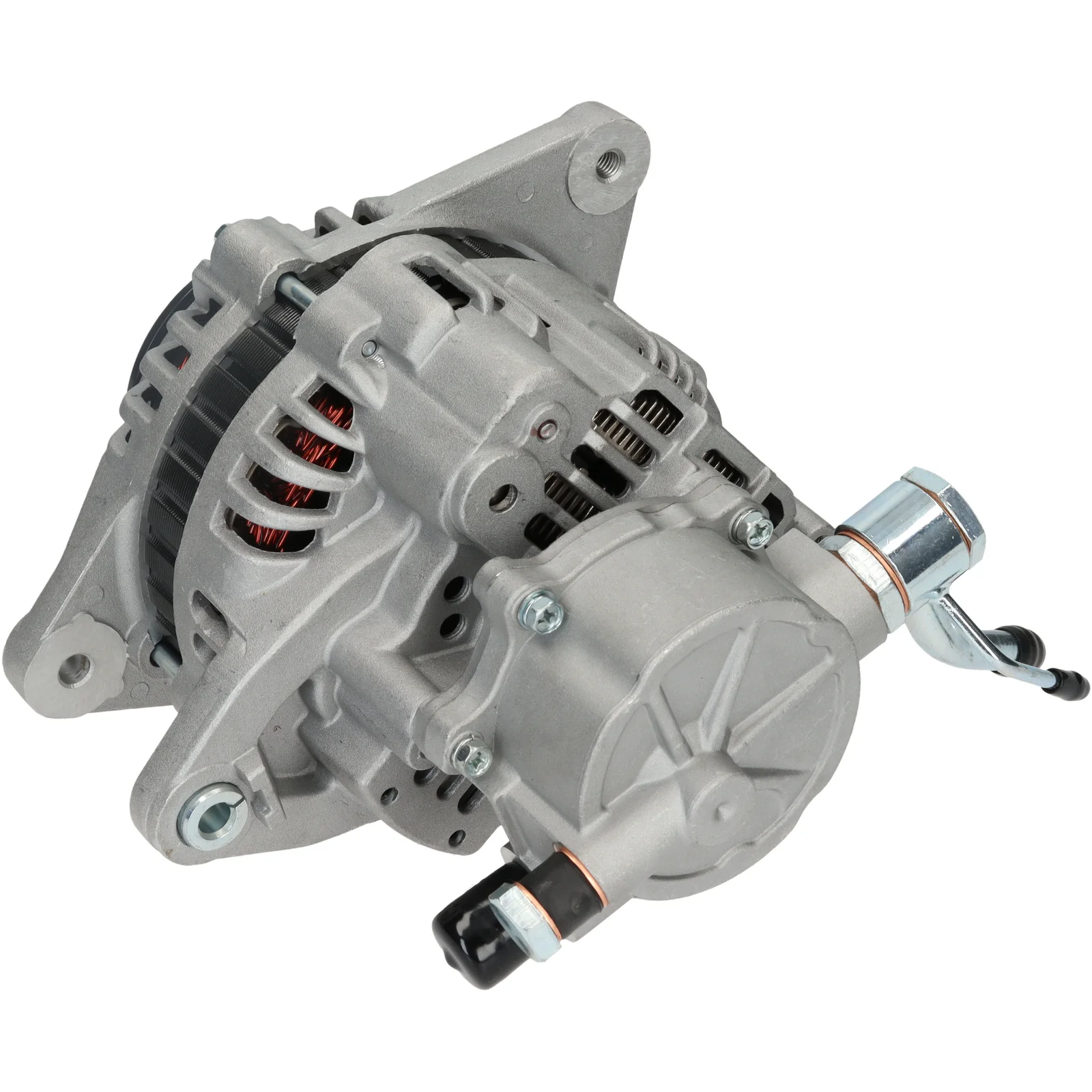

HC-Cargo Generator
HC-Cargo Generator
Vare nr.: F032112129

HC-Cargo Generator

Tekniske oplysninger:

Spænding: 14, Amp: 90, Rotation: CW, Mount. bøjle afstand: 55,00

Beskrivelse

Spænding: 14
Ampere: 90
Skiveafdragering: 45.60
Bredde/holderarm: 13.00
monteringsbeslag afstanden: 55.00
Beslaghul: 8.50
Bæltejusteringsbeslag hul pos.: 5
Bæltejusteringsbeslag hul 1: M8
Skivediameter: 85.20
Riller/skive: 1
Radius: 92.00
Radius 2: 96.00
B+: M8
Position/B+ i min.: 20
Rotation: med uret
Stik nr.: PL07
Total længde mm: 239.00
Skive: P
Regulator type: IR
Kompresor: Ja
Produktinfo: BN
Servicing: Mitsubishi

Filer

Specifikation

B+ M8
Mount. bracket dist. 55.00
Belt. adj. bracket hole 1 M8
Belt. adj. brackethole pos. 5
Plug no. PL07
Bracket hole 8.50
Position/B+ in min. 20
Prod. info BN
Pulley P
Pulley dia. 85.20
Pulley dist. 45.60
Radius 92.00
Radius 2 96.00
Regulator type IR
Rotation CW
Servicing Mitsubishi
Grooves/pulley 1
Vac. pump Yes
Voltage 14
Total length 239.00 mm
Width/holder arm 13.00
Amp 90

  • OEM
    A003T07483, a3t07483, F032112129, ja1184ir, md162964, md339609

  • Konkurrentreferens
    A5004, ALT-V026, ALT31011, CAL35108, dra3695, DRA3695N, F042303103, F042A03103, LEA0645, LRA02717, QA4211, 8EL012428-961, 8el737339-001, 27-51.538, 28-2804, 226.137.902, 5672, 23718N, 119825, 210461, 210461A, 401184RI, 12060194, 0986080880

  • NormaliseratArtNr
    a003t07483, a3t07483, a5004, alt31011, altv026, cal35108, dra3695, dra3695n, f032112129, f042303103, f042a03103, ja1184ir, lea0645, lra02717, md162964, md339609, qa4211, 8el012428961, 8el737339001, 5672, 23718n, 119825, 210461, 210461a, 282804, 401184ri, 2751538, 12060194, 226137902, 0986080880

  • Passar modeller
    Mitsubishi Model: Pajero Model series: Pajero Type of engine: TD Size of motor: 2.5 Brand of engine: 4D56TD Type description: V24C,W Body: Convertible From date: 01-12-1990 To date: 01-04-2000 Fuel: Diesel Approved: Yes
    Mitsubishi Model: Pajero Model series: Pajero Type of engine: TD Size of motor: 2.5 Brand of engine: 4D56TD Type description: V24C,W From date: 01-12-1990 To date: 01-10-1999 Fuel: Diesel Approved: Yes
  • Beskrivelse
    Spænding: 14
    Ampere: 90
    Skiveafdragering: 45.60
    Bredde/holderarm: 13.00
    monteringsbeslag afstanden: 55.00
    Beslaghul: 8.50
    Bæltejusteringsbeslag hul pos.: 5
    Bæltejusteringsbeslag hul 1: M8
    Skivediameter: 85.20
    Riller/skive: 1
    Radius: 92.00
    Radius 2: 96.00
    B+: M8
    Position/B+ i min.: 20
    Rotation: med uret
    Stik nr.: PL07
    Total længde mm: 239.00
    Skive: P
    Regulator type: IR
    Kompresor: Ja
    Produktinfo: BN
    Servicing: Mitsubishi

    Filer

  • Specifikation
    B+ M8
    Mount. bracket dist. 55.00
    Belt. adj. bracket hole 1 M8
    Belt. adj. brackethole pos. 5
    Plug no. PL07
    Bracket hole 8.50
    Position/B+ in min. 20
    Prod. info BN
    Pulley P
    Pulley dia. 85.20
    Pulley dist. 45.60
    Radius 92.00
    Radius 2 96.00
    Regulator type IR
    Rotation CW
    Servicing Mitsubishi
    Grooves/pulley 1
    Vac. pump Yes
    Voltage 14
    Total length 239.00 mm
    Width/holder arm 13.00
    Amp 90
  • Køretøjsmatchning

    • OEM
      A003T07483, a3t07483, F032112129, ja1184ir, md162964, md339609

    • Konkurrentreferens
      A5004, ALT-V026, ALT31011, CAL35108, dra3695, DRA3695N, F042303103, F042A03103, LEA0645, LRA02717, QA4211, 8EL012428-961, 8el737339-001, 27-51.538, 28-2804, 226.137.902, 5672, 23718N, 119825, 210461, 210461A, 401184RI, 12060194, 0986080880

    • NormaliseratArtNr
      a003t07483, a3t07483, a5004, alt31011, altv026, cal35108, dra3695, dra3695n, f032112129, f042303103, f042a03103, ja1184ir, lea0645, lra02717, md162964, md339609, qa4211, 8el012428961, 8el737339001, 5672, 23718n, 119825, 210461, 210461a, 282804, 401184ri, 2751538, 12060194, 226137902, 0986080880

    • Passar modeller
      Mitsubishi Model: Pajero Model series: Pajero Type of engine: TD Size of motor: 2.5 Brand of engine: 4D56TD Type description: V24C,W Body: Convertible From date: 01-12-1990 To date: 01-04-2000 Fuel: Diesel Approved: Yes
      Mitsubishi Model: Pajero Model series: Pajero Type of engine: TD Size of motor: 2.5 Brand of engine: 4D56TD Type description: V24C,W From date: 01-12-1990 To date: 01-10-1999 Fuel: Diesel Approved: Yes
