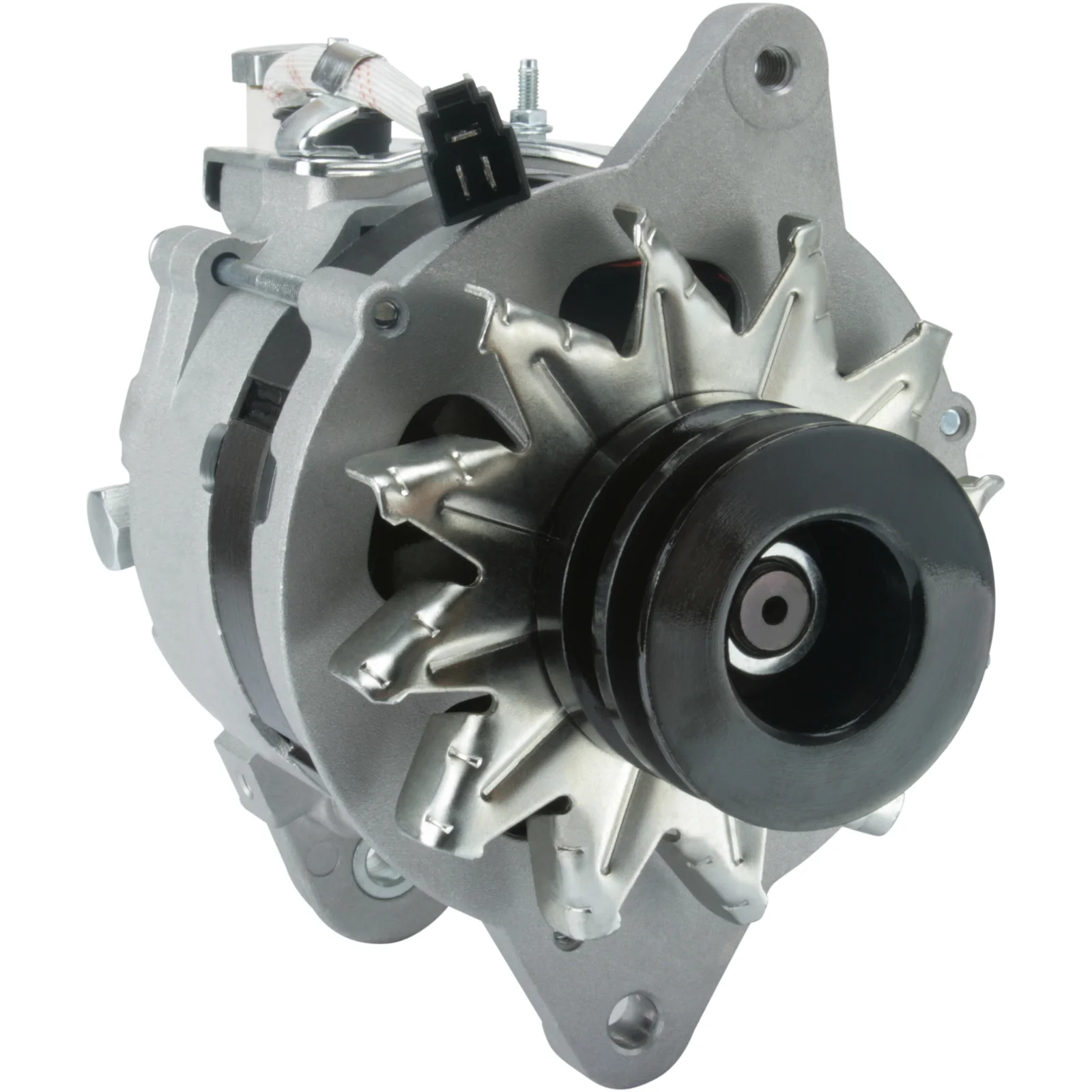

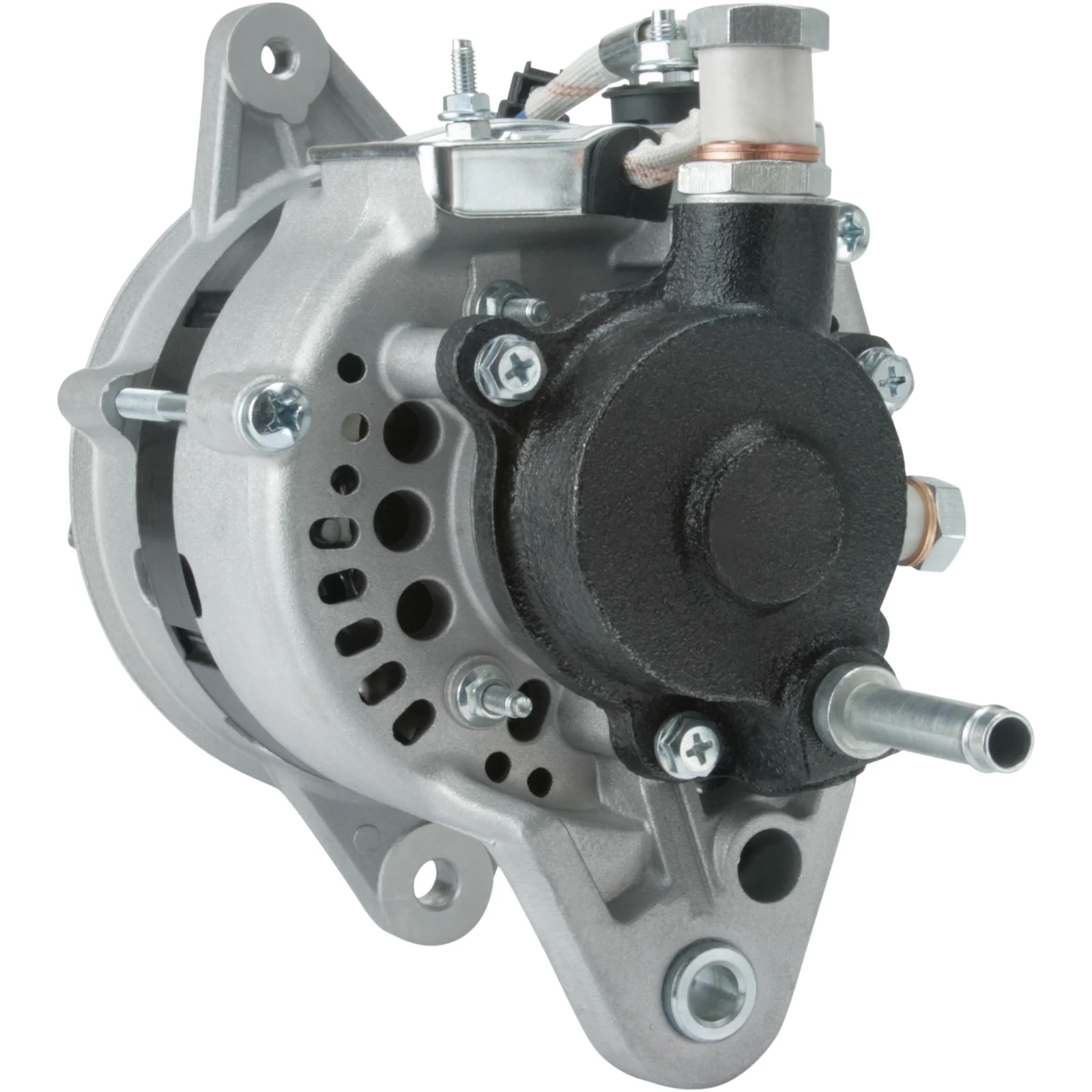

HC-Cargo Generator
HC-Cargo Generator
Vare nr.: F032114288

HC-Cargo Generator

Tekniske oplysninger:

Spænding: 14, Amp: 50, Rotation: med uret, Monteringsbeslag forfordeling: 97.00

Beskrivelse

Spænding: 14
Amp: 50
Skive afst.: 49,50
Bredde/beslag arm: 14,50
Monteringsbeslag afst.: 97,00
Beslags hul: 10,50
Bælte just. beslags hulpos.: 3
Bælte just. beslags hul 1: M8
Skive dia.: 68,00
Riller/skive: 2
Radius: 88,00
Radius 2: 90,00
B+: M6
Position/B+ i min.: 2
D+ Størrelse: Stik
Rotation: CW
Stik nr.: PL15
Samlet længde mm: 263,00
Skive: DP
Vakuumpumpe: Ja
Bemærkninger: Regulator: HC-CARGO 132111.

Filer

Specifikation

B+ M6
Mount. bracket dist. 97.00
Belt. adj. bracket hole 1 M8
Belt. adj. brackethole pos. 3
Plug no. PL15
Bracket hole 10.50
Position/B+ in min. 2
Pulley DP
Pulley dia. 68.00
Pulley dist. 49.50
Radius 88.00
D+ Size Plug
Radius 2 90.00
Remarks Regulator: HC-CARGO 132111.
Rotation CW
Grooves/pulley 2
Vac. pump Yes
Voltage 14
Total length 263.00 mm
Width/holder arm 14.50
Amp 50

  • OEM
    F032114288, ja193, 27020-54160, 27020-54210, 27030-54130, 27030-54140, 27030-54150, 27030-54160, 27030-54210, 100210-2600, 100210-2660, 100210-2700, 100210-2750, 100210-3080, 121000-0820, 121000-0830, 121000-0930

  • Konkurrentreferens
    A6349, CAL44103, dra3064, F042205170, 8EL012427-691, 8el726338-001, 27-0842, 27-1941, 39-51.247, 235.014.402, 235.014.552, 5331, 22070N, 22070R, 40193, 56062, 210797, 210797A, 12060342, 12060343, 20130103, 0986035561, 0986036311

  • NormaliseratArtNr
    a6349, cal44103, dra3064, f032114288, f042205170, ja193, 8el012427691, 8el726338001, 5331, 22070n, 22070r, 40193, 56062, 210797, 210797a, 270842, 271941, 3951247, 12060342, 12060343, 20130103, 235014402, 235014552, 0986035561, 0986036311, 1002102600, 1002102660, 1002102700, 1002102750, 1002103080, 1210000820, 1210000830, 1210000930, 2702054160, 2702054210, 2703054130, 2703054140, 2703054150, 2703054160, 2703054210

  • Passar modeller
    Toyota Model: Dyna Model series: Dyna 100 Type of engine: Diesel Size of motor: 2.4 Brand of engine: 2L Type description: LH80 From date: 01-01-1984 To date: 01-05-1995 Fuel: Diesel Approved: Yes
    Toyota Model: Dyna Model series: Dyna 150 Type of engine: Diesel Size of motor: 2.8 Brand of engine: 3L Type description: LY61 From date: 01-08-1985 To date: 01-05-1995 Fuel: Diesel Approved: Yes
    Toyota Model: Hiace Model series: Hiace Model type: 4WD Type of engine: Diesel Size of motor: 2.4 Brand of engine: 2L Type description: H5F Body: Bus From date: 01-01-1987 To date: 01-08-1989 Fuel: Diesel Approved: Yes
    Toyota Model: Hiace Model series: Hiace Type of engine: Diesel Size of motor: 2.2 Brand of engine: L Body: Van From date: 01-01-1979 To date: 01-03-1983 Fuel: Diesel Approved: Yes
    Toyota Model: Hiace Model series: Hiace Type of engine: Diesel Size of motor: 2.2 Brand of engine: L Body: Van From date: 01-12-1982 To date: 01-11-1989 Fuel: Diesel Approved: Yes
    Toyota Model: Hiace Model series: Hiace Type of engine: Diesel Size of motor: 2.2 Brand of engine: L Type description: H5G Body: Bus From date: 01-12-1982 To date: 01-11-1989 Fuel: Diesel Approved: Yes
    Toyota Model: Hiace Model series: Hiace Type of engine: Diesel Size of motor: 2.4 Brand of engine: 2L Body: Van From date: 01-12-1982 To date: 01-11-1989 Fuel: Diesel Approved: Yes
    Toyota Model: Hiace Model series: Hiace Type of engine: Diesel Size of motor: 2.4 Brand of engine: 2L Type description: H5G Body: Bus From date: 01-04-1984 To date: 01-08-1989 Fuel: Diesel Approved: Yes
    Toyota Model: Land Cruiser Model series: Land Cruiser Type of engine: Diesel Size of motor: 2.4 Brand of engine: 2L Type description: LJ70 From date: 01-11-1984 To date: 01-10-1985 Fuel: Diesel Approved: Yes
    Toyota Model: Land Cruiser Model series: Land Cruiser Type of engine: TD Size of motor: 2.4 Brand of engine: 2L-T Type description: LJ70 From date: 01-01-1990 To date: 01-05-1993 Fuel: Diesel Approved: Yes
    Toyota Model: Land Cruiser Model series: Land Cruiser Type of engine: TD Size of motor: 2.4 Brand of engine: 2L-T Type description: LJ70,73 From date: 01-10-1985 To date: 01-05-1990 Fuel: Diesel Approved: Yes
    1 / 3
  • Beskrivelse
    Spænding: 14
    Amp: 50
    Skive afst.: 49,50
    Bredde/beslag arm: 14,50
    Monteringsbeslag afst.: 97,00
    Beslags hul: 10,50
    Bælte just. beslags hulpos.: 3
    Bælte just. beslags hul 1: M8
    Skive dia.: 68,00
    Riller/skive: 2
    Radius: 88,00
    Radius 2: 90,00
    B+: M6
    Position/B+ i min.: 2
    D+ Størrelse: Stik
    Rotation: CW
    Stik nr.: PL15
    Samlet længde mm: 263,00
    Skive: DP
    Vakuumpumpe: Ja
    Bemærkninger: Regulator: HC-CARGO 132111.

    Filer

  • Specifikation
    B+ M6
    Mount. bracket dist. 97.00
    Belt. adj. bracket hole 1 M8
    Belt. adj. brackethole pos. 3
    Plug no. PL15
    Bracket hole 10.50
    Position/B+ in min. 2
    Pulley DP
    Pulley dia. 68.00
    Pulley dist. 49.50
    Radius 88.00
    D+ Size Plug
    Radius 2 90.00
    Remarks Regulator: HC-CARGO 132111.
    Rotation CW
    Grooves/pulley 2
    Vac. pump Yes
    Voltage 14
    Total length 263.00 mm
    Width/holder arm 14.50
    Amp 50
  • Køretøjsmatchning

    • OEM
      F032114288, ja193, 27020-54160, 27020-54210, 27030-54130, 27030-54140, 27030-54150, 27030-54160, 27030-54210, 100210-2600, 100210-2660, 100210-2700, 100210-2750, 100210-3080, 121000-0820, 121000-0830, 121000-0930

    • Konkurrentreferens
      A6349, CAL44103, dra3064, F042205170, 8EL012427-691, 8el726338-001, 27-0842, 27-1941, 39-51.247, 235.014.402, 235.014.552, 5331, 22070N, 22070R, 40193, 56062, 210797, 210797A, 12060342, 12060343, 20130103, 0986035561, 0986036311

    • NormaliseratArtNr
      a6349, cal44103, dra3064, f032114288, f042205170, ja193, 8el012427691, 8el726338001, 5331, 22070n, 22070r, 40193, 56062, 210797, 210797a, 270842, 271941, 3951247, 12060342, 12060343, 20130103, 235014402, 235014552, 0986035561, 0986036311, 1002102600, 1002102660, 1002102700, 1002102750, 1002103080, 1210000820, 1210000830, 1210000930, 2702054160, 2702054210, 2703054130, 2703054140, 2703054150, 2703054160, 2703054210

    • Passar modeller
      Toyota Model: Dyna Model series: Dyna 100 Type of engine: Diesel Size of motor: 2.4 Brand of engine: 2L Type description: LH80 From date: 01-01-1984 To date: 01-05-1995 Fuel: Diesel Approved: Yes
      Toyota Model: Dyna Model series: Dyna 150 Type of engine: Diesel Size of motor: 2.8 Brand of engine: 3L Type description: LY61 From date: 01-08-1985 To date: 01-05-1995 Fuel: Diesel Approved: Yes
      Toyota Model: Hiace Model series: Hiace Model type: 4WD Type of engine: Diesel Size of motor: 2.4 Brand of engine: 2L Type description: H5F Body: Bus From date: 01-01-1987 To date: 01-08-1989 Fuel: Diesel Approved: Yes
      Toyota Model: Hiace Model series: Hiace Type of engine: Diesel Size of motor: 2.2 Brand of engine: L Body: Van From date: 01-01-1979 To date: 01-03-1983 Fuel: Diesel Approved: Yes
      Toyota Model: Hiace Model series: Hiace Type of engine: Diesel Size of motor: 2.2 Brand of engine: L Body: Van From date: 01-12-1982 To date: 01-11-1989 Fuel: Diesel Approved: Yes
      Toyota Model: Hiace Model series: Hiace Type of engine: Diesel Size of motor: 2.2 Brand of engine: L Type description: H5G Body: Bus From date: 01-12-1982 To date: 01-11-1989 Fuel: Diesel Approved: Yes
      Toyota Model: Hiace Model series: Hiace Type of engine: Diesel Size of motor: 2.4 Brand of engine: 2L Body: Van From date: 01-12-1982 To date: 01-11-1989 Fuel: Diesel Approved: Yes
      Toyota Model: Hiace Model series: Hiace Type of engine: Diesel Size of motor: 2.4 Brand of engine: 2L Type description: H5G Body: Bus From date: 01-04-1984 To date: 01-08-1989 Fuel: Diesel Approved: Yes
      Toyota Model: Land Cruiser Model series: Land Cruiser Type of engine: Diesel Size of motor: 2.4 Brand of engine: 2L Type description: LJ70 From date: 01-11-1984 To date: 01-10-1985 Fuel: Diesel Approved: Yes
      Toyota Model: Land Cruiser Model series: Land Cruiser Type of engine: TD Size of motor: 2.4 Brand of engine: 2L-T Type description: LJ70 From date: 01-01-1990 To date: 01-05-1993 Fuel: Diesel Approved: Yes
      Toyota Model: Land Cruiser Model series: Land Cruiser Type of engine: TD Size of motor: 2.4 Brand of engine: 2L-T Type description: LJ70,73 From date: 01-10-1985 To date: 01-05-1990 Fuel: Diesel Approved: Yes
