HC-Cargo Generator

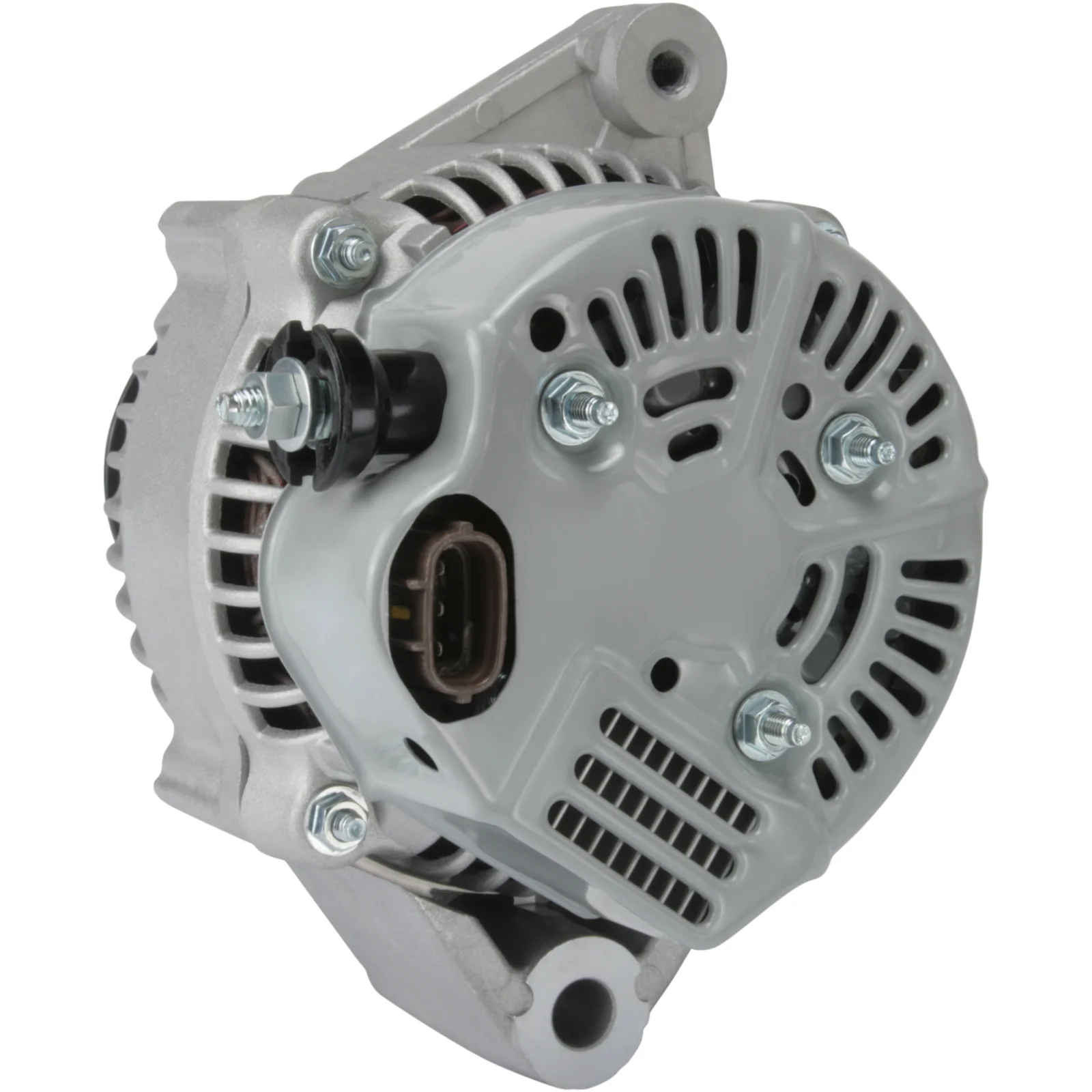

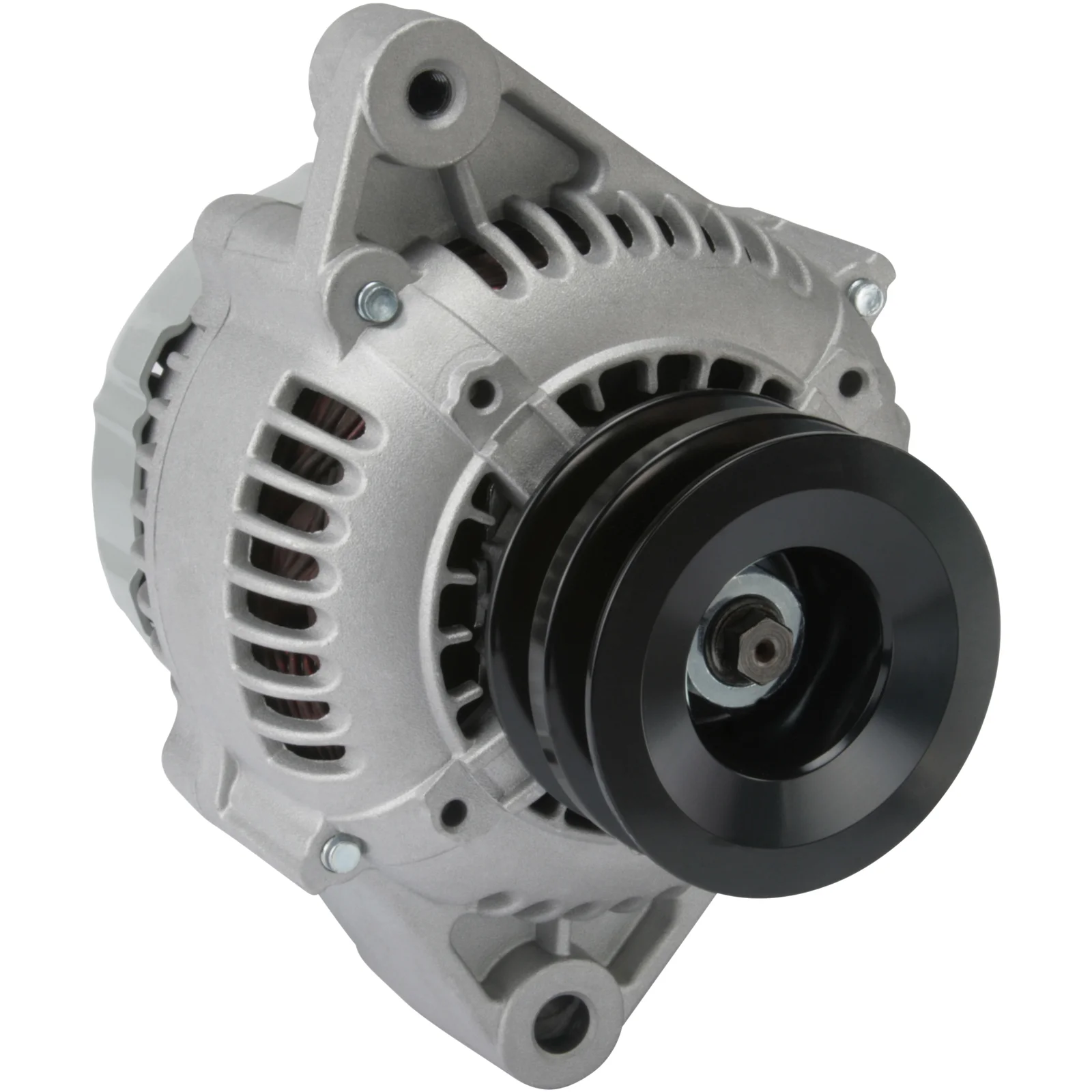

HC-Cargo Generator
Vare nr.: F032112063

HC-Cargo Generator

Tekniske oplysninger:

Spænding: 14, Amp: 70, Rotation: CW, Remskive dia.: 75.00

Beskrivelse

Spænding: 14
Amp: 70
Drevskive dist.: 94,00
Bredde/holderarm: 58,00
Hjørne til fæstehul: 10,30
Bæltejusteringsbøsningens position: 55
Bæltejusteringsbøsningens hul 1: M8
Drevskivens dia.: 75,00
Riller/drevskive: 2
Radius: 80,00
Radius 2: 83,00
B+: M6
Position/B+ i min.: 48
D+ Størrelse: Stik
Rotation: CW
Stik nr.: PL42
Samlet længde mm: 168,00
Drevskive: DP
Regulator type: IR
Prod. info: BN
Servicing: Toyota

Filer

Specifikation

B+ M6
Belt. adj. bracket hole 1 M8
Belt. adj. brackethole pos. 55
Plug no. PL42
Bracket hole 10.30
Position/B+ in min. 48
Prod. info BN
Pulley DP
Pulley dia. 75.00
Pulley dist. 94.00
Radius 80.00
D+ Size Plug
Radius 2 83.00
Regulator type IR
Rotation CW
Servicing Toyota
Grooves/pulley 2
Voltage 14
Total length 168.00 mm
Width/holder arm 58.00
Amp 70

  • OEM
    F032112063, ja1410ir, 27060-67010, 27060-67020, 27060-67030, 27060-67040, 27060-67060, 27060-67070, 27060-67080, 27060-67110, 27060-67120, 27060-67140, 101211-0480, 101211-0481, 101211-0570, 101211-0571, 101211-0962, 101211-0970, 101211-0971, 101211-0972, 101211-5630, 101211-5780, 101211-9620, 102211-1060, 102211-2010, 102211-5000, 102211-5001, 102211-5002, 102211-5003

  • Konkurrentreferens
    A6138, ALT30051, CAL40207, CAL40267, DRB5891, J5112094, LRA02053, 8EL012428-091, 8el737624-001, 28-3979, 195.545.070, 195.968.060, 535.135.552, 535.135.702, 5734, 23053R, 23054N, 23054R, 111142, 111540, 119748, 209250, 209250A, 401410RI, 444239, 9213354, 12060769, 0986045891, 944390458910, 944390512940

  • NormaliseratArtNr
    a6138, alt30051, cal40207, cal40267, drb5891, f032112063, j5112094, ja1410ir, lra02053, 8el012428091, 8el737624001, 5734, 23053r, 23054n, 23054r, 111142, 111540, 119748, 209250, 209250a, 283979, 401410ri, 444239, 9213354, 12060769, 195545070, 195968060, 535135552, 535135702, 0986045891, 1012110480, 1012110481, 1012110570, 1012110571, 1012110962, 1012110970, 1012110971, 1012110972, 1012115630, 1012115780, 1012119620, 1022111060, 1022112010, 1022115000, 1022115001, 1022115002, 1022115003, 2706067010, 2706067020, 2706067030, 2706067040, 2706067060, 2706067070, 2706067080, 2706067110, 2706067120, 2706067140, 944390458910, 944390512940

  • Passar modeller
    Toyota Model: Hilux Model series: Hilux Pickup Type of engine: Diesel Size of motor: 3.0 Brand of engine: 5L Type description: _N1_ Body: Pickup From date: 01-10-2001 To date: 01-01-2005 Fuel: Diesel Approved: Yes
    Toyota Model: Land Cruiser Model series: Land Cruiser Model type: 4WD Type of engine: TD Size of motor: 3.0 Brand of engine: 1KZ-TE From date: 01-04-1996 To date: 01-12-2002 Fuel: Diesel Approved: Yes
    Toyota Model: Land Cruiser Model series: Land Cruiser Type of engine: TD Size of motor: 3.0 Brand of engine: 1KZ-T Body: Convertible From date: 01-05-1993 To date: 01-05-1996 Fuel: Diesel Approved: Yes
    Toyota Model: Land Cruiser Model series: Land Cruiser Type of engine: TD Size of motor: 3.0 Brand of engine: 1KZ-T Type description: _J7_ Body: Closed Off-Road Vehicle From date: 01-05-1993 To date: 01-05-1996 Fuel: Diesel Approved: Yes
    Toyota Model: Land Model series: Land Type of engine: TD Size of motor: 3.0 Brand of engine: 1KZ-TE Type description: _J9_ Body: Closed Off-Road Vehicle From date: 01-03-2000 To date: 01-02-2003 Fuel: Diesel Approved: Yes
  • Beskrivelse
    Spænding: 14
    Amp: 70
    Drevskive dist.: 94,00
    Bredde/holderarm: 58,00
    Hjørne til fæstehul: 10,30
    Bæltejusteringsbøsningens position: 55
    Bæltejusteringsbøsningens hul 1: M8
    Drevskivens dia.: 75,00
    Riller/drevskive: 2
    Radius: 80,00
    Radius 2: 83,00
    B+: M6
    Position/B+ i min.: 48
    D+ Størrelse: Stik
    Rotation: CW
    Stik nr.: PL42
    Samlet længde mm: 168,00
    Drevskive: DP
    Regulator type: IR
    Prod. info: BN
    Servicing: Toyota

    Filer

  • Specifikation
    B+ M6
    Belt. adj. bracket hole 1 M8
    Belt. adj. brackethole pos. 55
    Plug no. PL42
    Bracket hole 10.30
    Position/B+ in min. 48
    Prod. info BN
    Pulley DP
    Pulley dia. 75.00
    Pulley dist. 94.00
    Radius 80.00
    D+ Size Plug
    Radius 2 83.00
    Regulator type IR
    Rotation CW
    Servicing Toyota
    Grooves/pulley 2
    Voltage 14
    Total length 168.00 mm
    Width/holder arm 58.00
    Amp 70
  • Køretøjsmatchning

    • OEM
      F032112063, ja1410ir, 27060-67010, 27060-67020, 27060-67030, 27060-67040, 27060-67060, 27060-67070, 27060-67080, 27060-67110, 27060-67120, 27060-67140, 101211-0480, 101211-0481, 101211-0570, 101211-0571, 101211-0962, 101211-0970, 101211-0971, 101211-0972, 101211-5630, 101211-5780, 101211-9620, 102211-1060, 102211-2010, 102211-5000, 102211-5001, 102211-5002, 102211-5003

    • Konkurrentreferens
      A6138, ALT30051, CAL40207, CAL40267, DRB5891, J5112094, LRA02053, 8EL012428-091, 8el737624-001, 28-3979, 195.545.070, 195.968.060, 535.135.552, 535.135.702, 5734, 23053R, 23054N, 23054R, 111142, 111540, 119748, 209250, 209250A, 401410RI, 444239, 9213354, 12060769, 0986045891, 944390458910, 944390512940

    • NormaliseratArtNr
      a6138, alt30051, cal40207, cal40267, drb5891, f032112063, j5112094, ja1410ir, lra02053, 8el012428091, 8el737624001, 5734, 23053r, 23054n, 23054r, 111142, 111540, 119748, 209250, 209250a, 283979, 401410ri, 444239, 9213354, 12060769, 195545070, 195968060, 535135552, 535135702, 0986045891, 1012110480, 1012110481, 1012110570, 1012110571, 1012110962, 1012110970, 1012110971, 1012110972, 1012115630, 1012115780, 1012119620, 1022111060, 1022112010, 1022115000, 1022115001, 1022115002, 1022115003, 2706067010, 2706067020, 2706067030, 2706067040, 2706067060, 2706067070, 2706067080, 2706067110, 2706067120, 2706067140, 944390458910, 944390512940

    • Passar modeller
      Toyota Model: Hilux Model series: Hilux Pickup Type of engine: Diesel Size of motor: 3.0 Brand of engine: 5L Type description: _N1_ Body: Pickup From date: 01-10-2001 To date: 01-01-2005 Fuel: Diesel Approved: Yes
      Toyota Model: Land Cruiser Model series: Land Cruiser Model type: 4WD Type of engine: TD Size of motor: 3.0 Brand of engine: 1KZ-TE From date: 01-04-1996 To date: 01-12-2002 Fuel: Diesel Approved: Yes
      Toyota Model: Land Cruiser Model series: Land Cruiser Type of engine: TD Size of motor: 3.0 Brand of engine: 1KZ-T Body: Convertible From date: 01-05-1993 To date: 01-05-1996 Fuel: Diesel Approved: Yes
      Toyota Model: Land Cruiser Model series: Land Cruiser Type of engine: TD Size of motor: 3.0 Brand of engine: 1KZ-T Type description: _J7_ Body: Closed Off-Road Vehicle From date: 01-05-1993 To date: 01-05-1996 Fuel: Diesel Approved: Yes
      Toyota Model: Land Model series: Land Type of engine: TD Size of motor: 3.0 Brand of engine: 1KZ-TE Type description: _J9_ Body: Closed Off-Road Vehicle From date: 01-03-2000 To date: 01-02-2003 Fuel: Diesel Approved: Yes
