HC-Cargo Generator
HC-Cargo Generator
Vare nr.: F032111846

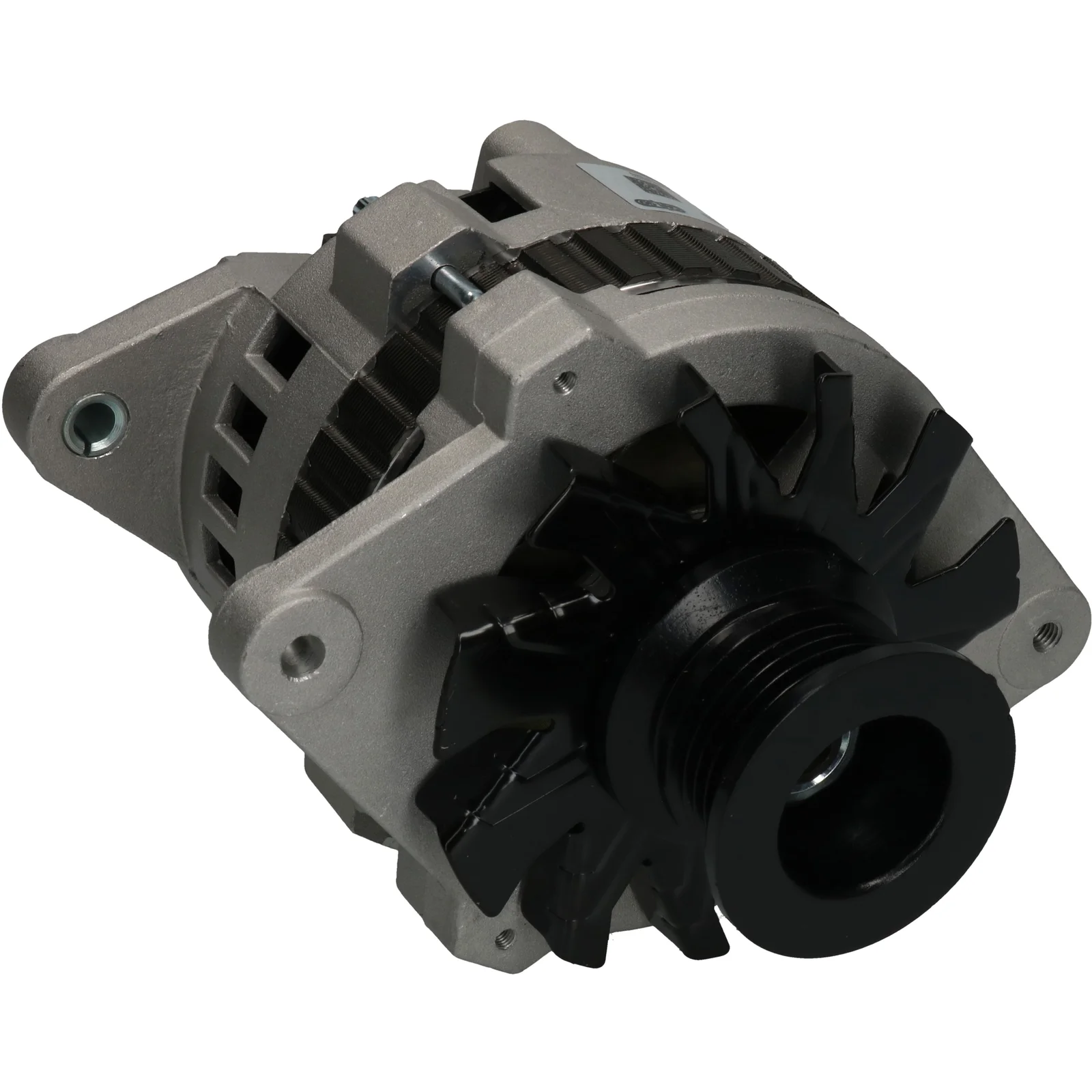

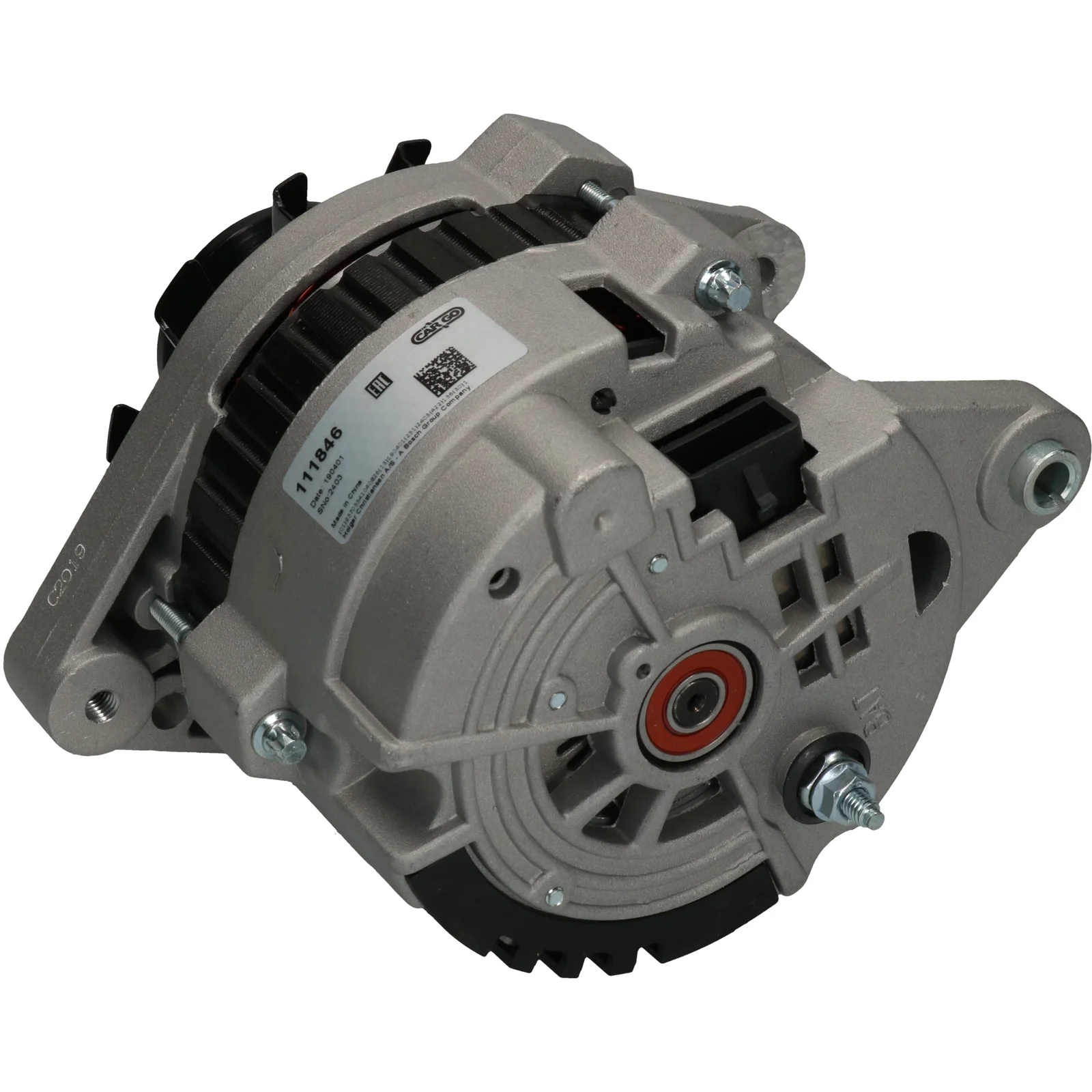

HC-Cargo Generator

Tekniske oplysninger:

Spænding: 14, Amp: 80, Rotation: CW, Monteringsbeslag fordelings.: 80,50

Beskrivelse

Spænding: 14
Amp: 80
Skive afstand: 46,50
Bredde/bærearm: 13,00
Monteringsbeslag afstand: 80,50
Beslagshul: 8,00
Bælte justering beslaghul position: 60
Bælte justering beslag hul 1: M8
Skivedia.: 49,50
Riller/skive: 5
Radius: 83,50
Radius 2: 85,50
B+: M6
Position/B+ i min.: 40
Rotation: CW
Stik nr.: PL24
Total længde mm: 190,00
Terminaltype: P-L-I-S
Skive: SP
Regulator type: IR
Produktoplysninger: BN
Service: Daewoo

Filer

Specifikation

B+ M6
Mount. bracket dist. 80.50
Belt. adj. bracket hole 1 M8
Belt. adj. brackethole pos. 60
Plug no. PL24
Bracket hole 8.00
Position/B+ in min. 40
Prod. info BN
Pulley SP
Pulley dia. 49.50
Pulley dist. 46.50
Radius 83.50
Radius 2 85.50
Regulator type IR
Rotation CW
Servicing Daewoo
Grooves/pulley 5
Terminal type P-L-I-S
Voltage 14
Total length 190.00 mm
Width/holder arm 13.00
Amp 80

  • OEM
    F032111846, 1396ir, 219187, 10480000, 10480073, 10490000, 10490073, 96224431, 96252547, 96252551, 30090100126

  • Konkurrentreferens
    A1002, A1002PR, A1002SR, A1013, A1051S, ALT-1211, ALT10045, ALT1211, ALT45201, BAO3187, CAL46100, CAL46108, dra3589, DRA3589N, dra3637, DRA3828, F042300072, F042A00072, FRA317, FRA858, lrb00249, QA1070, 8el737565-001, 8el737598-001, 28-2997, 235.520.085, 528.130.752, 528.130.852, 547.103.752, 547.103.852, 5715, 6025, 8005N, 8005R, 209461, 209461A, 210025, 210025A, 301385RI, 301396RI, 437651, 9051000, 9213558, 12060700, 20110249, 063532635, 944390510, 0986049470, 063532635010, 944390510000

  • NormaliseratArtNr
    a1002, a1002pr, a1002sr, a1013, a1051s, alt10045, alt1211, alt45201, bao3187, cal46100, cal46108, dra3589, dra3589n, dra3637, dra3828, f032111846, f042300072, f042a00072, fra317, fra858, lrb00249, qa1070, 8el737565001, 8el737598001, 1396ir, 5715, 6025, 8005n, 8005r, 209461, 209461a, 210025, 210025a, 219187, 282997, 301385ri, 301396ri, 437651, 9051000, 9213558, 10480000, 10480073, 10490000, 10490073, 12060700, 20110249, 063532635, 96224431, 96252547, 96252551, 235520085, 528130752, 528130852, 547103752, 547103852, 944390510, 0986049470, 30090100126, 063532635010, 944390510000

  • Passar modeller
    Daewoo Model: Espero Model series: Espero Type of engine: 16V Size of motor: 1.5 Brand of engine: A15MF From date: 01-02-1995 To date: 01-06-1999 Fuel: Gasoline Approved: Yes
    Daewoo Model: Nexia Model series: Nexia Size of motor: 1.5 Brand of engine: G15MF Body: Hatchback From date: 01-02-1995 To date: 01-08-1997 Fuel: Gasoline Approved: Yes
    Daewoo Model: Nexia Model series: Nexia Size of motor: 1.5 Brand of engine: G15MF Body: Hatchback From date: 01-08-1996 To date: 01-08-1997 Fuel: Gasoline Approved: Yes
    Daewoo Model: Nexia Model series: Nexia Size of motor: 1.5 Brand of engine: G15MF From date: 01-02-1995 To date: 01-08-1997 Fuel: Gasoline Approved: Yes
    Daewoo Model: Nexia Model series: Nexia Size of motor: 1.5 Brand of engine: G15MF From date: 01-08-1996 To date: 01-08-1997 Fuel: Gasoline Approved: Yes
    Daewoo Model: Nexia Model series: Nexia Type of engine: 16V Size of motor: 1.5 Brand of engine: A15MF Body: Hatchback From date: 01-02-1995 To date: 01-08-1997 Fuel: Gasoline Approved: Yes
    Daewoo Model: Nexia Model series: Nexia Type of engine: 16V Size of motor: 1.5 Brand of engine: A15MF From date: 01-02-1995 To date: 01-08-1997 Fuel: Gasoline Approved: Yes
    1 / 2
  • Beskrivelse
    Spænding: 14
    Amp: 80
    Skive afstand: 46,50
    Bredde/bærearm: 13,00
    Monteringsbeslag afstand: 80,50
    Beslagshul: 8,00
    Bælte justering beslaghul position: 60
    Bælte justering beslag hul 1: M8
    Skivedia.: 49,50
    Riller/skive: 5
    Radius: 83,50
    Radius 2: 85,50
    B+: M6
    Position/B+ i min.: 40
    Rotation: CW
    Stik nr.: PL24
    Total længde mm: 190,00
    Terminaltype: P-L-I-S
    Skive: SP
    Regulator type: IR
    Produktoplysninger: BN
    Service: Daewoo

    Filer

  • Specifikation
    B+ M6
    Mount. bracket dist. 80.50
    Belt. adj. bracket hole 1 M8
    Belt. adj. brackethole pos. 60
    Plug no. PL24
    Bracket hole 8.00
    Position/B+ in min. 40
    Prod. info BN
    Pulley SP
    Pulley dia. 49.50
    Pulley dist. 46.50
    Radius 83.50
    Radius 2 85.50
    Regulator type IR
    Rotation CW
    Servicing Daewoo
    Grooves/pulley 5
    Terminal type P-L-I-S
    Voltage 14
    Total length 190.00 mm
    Width/holder arm 13.00
    Amp 80
  • Køretøjsmatchning

    • OEM
      F032111846, 1396ir, 219187, 10480000, 10480073, 10490000, 10490073, 96224431, 96252547, 96252551, 30090100126

    • Konkurrentreferens
      A1002, A1002PR, A1002SR, A1013, A1051S, ALT-1211, ALT10045, ALT1211, ALT45201, BAO3187, CAL46100, CAL46108, dra3589, DRA3589N, dra3637, DRA3828, F042300072, F042A00072, FRA317, FRA858, lrb00249, QA1070, 8el737565-001, 8el737598-001, 28-2997, 235.520.085, 528.130.752, 528.130.852, 547.103.752, 547.103.852, 5715, 6025, 8005N, 8005R, 209461, 209461A, 210025, 210025A, 301385RI, 301396RI, 437651, 9051000, 9213558, 12060700, 20110249, 063532635, 944390510, 0986049470, 063532635010, 944390510000

    • NormaliseratArtNr
      a1002, a1002pr, a1002sr, a1013, a1051s, alt10045, alt1211, alt45201, bao3187, cal46100, cal46108, dra3589, dra3589n, dra3637, dra3828, f032111846, f042300072, f042a00072, fra317, fra858, lrb00249, qa1070, 8el737565001, 8el737598001, 1396ir, 5715, 6025, 8005n, 8005r, 209461, 209461a, 210025, 210025a, 219187, 282997, 301385ri, 301396ri, 437651, 9051000, 9213558, 10480000, 10480073, 10490000, 10490073, 12060700, 20110249, 063532635, 96224431, 96252547, 96252551, 235520085, 528130752, 528130852, 547103752, 547103852, 944390510, 0986049470, 30090100126, 063532635010, 944390510000

    • Passar modeller
      Daewoo Model: Espero Model series: Espero Type of engine: 16V Size of motor: 1.5 Brand of engine: A15MF From date: 01-02-1995 To date: 01-06-1999 Fuel: Gasoline Approved: Yes
      Daewoo Model: Nexia Model series: Nexia Size of motor: 1.5 Brand of engine: G15MF Body: Hatchback From date: 01-02-1995 To date: 01-08-1997 Fuel: Gasoline Approved: Yes
      Daewoo Model: Nexia Model series: Nexia Size of motor: 1.5 Brand of engine: G15MF Body: Hatchback From date: 01-08-1996 To date: 01-08-1997 Fuel: Gasoline Approved: Yes
      Daewoo Model: Nexia Model series: Nexia Size of motor: 1.5 Brand of engine: G15MF From date: 01-02-1995 To date: 01-08-1997 Fuel: Gasoline Approved: Yes
      Daewoo Model: Nexia Model series: Nexia Size of motor: 1.5 Brand of engine: G15MF From date: 01-08-1996 To date: 01-08-1997 Fuel: Gasoline Approved: Yes
      Daewoo Model: Nexia Model series: Nexia Type of engine: 16V Size of motor: 1.5 Brand of engine: A15MF Body: Hatchback From date: 01-02-1995 To date: 01-08-1997 Fuel: Gasoline Approved: Yes
      Daewoo Model: Nexia Model series: Nexia Type of engine: 16V Size of motor: 1.5 Brand of engine: A15MF From date: 01-02-1995 To date: 01-08-1997 Fuel: Gasoline Approved: Yes
