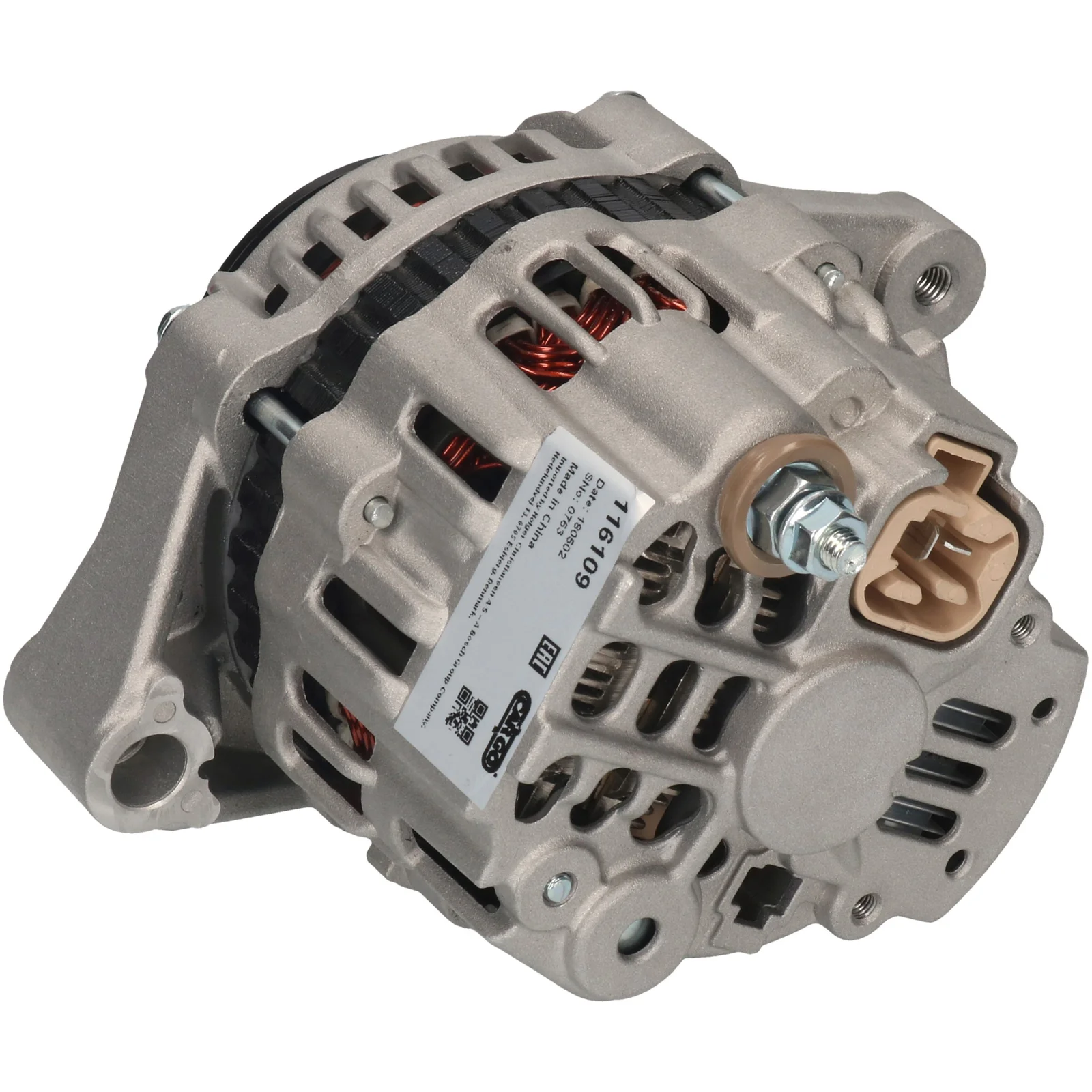

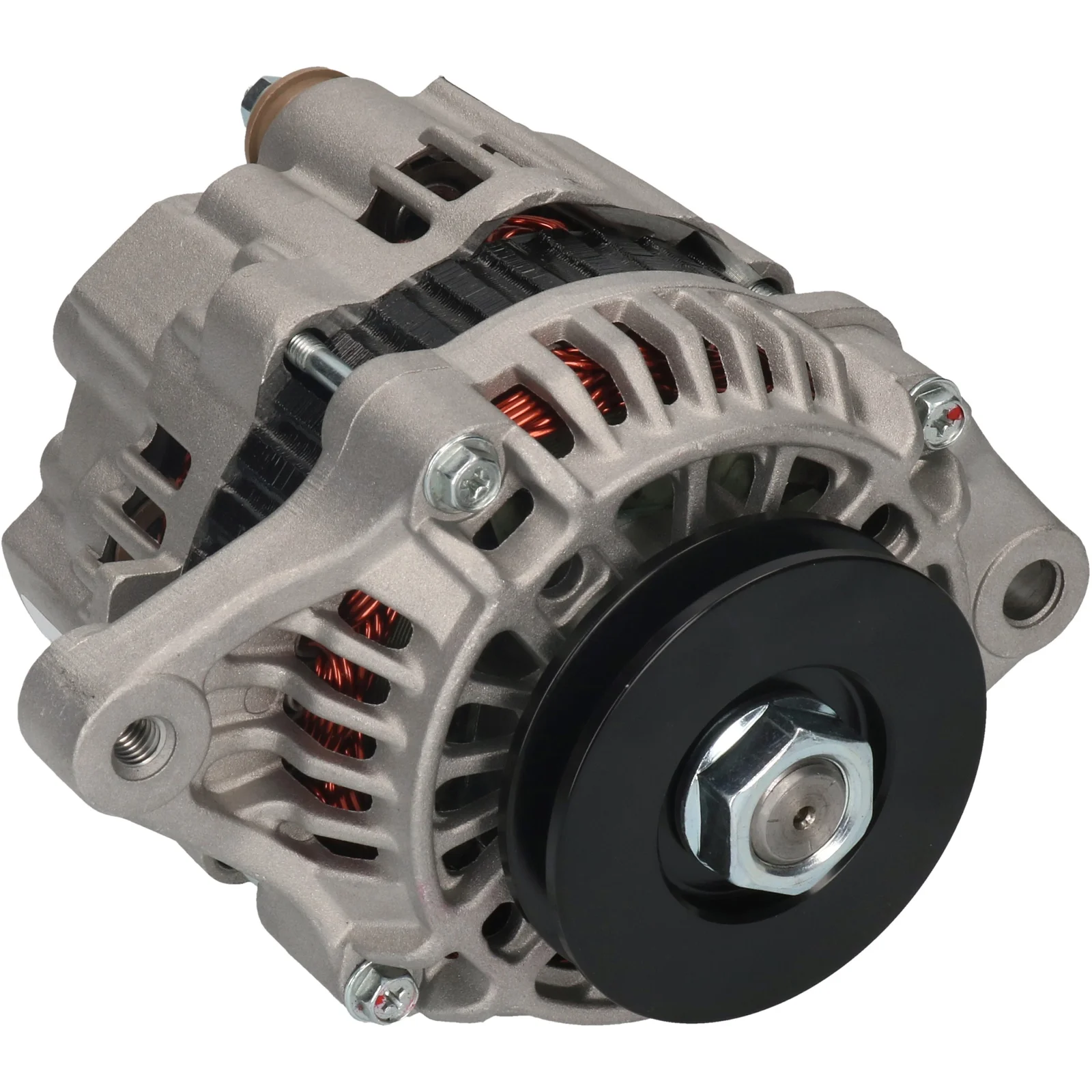

HC-Cargo Generator
HC-Cargo Generator
Vare nr.: F032116109

HC-Cargo Generator

Tekniske oplysninger:

Spænding: 14, Amp: 45, Rotation: CW, Remskive dia.: 74.00

Beskrivelse

Spænding: 14
Ampere: 45
Remskive dist.: 62.00
Bredde/forsyningsarme: 29.00
Brackethuls: 10.50
Bælte. just. bøjlehuls position.: 60
Bælte. just. bøjlehuls 1: M8
Remskivedi.: 74.00
Riller/remskive: 1
Radie: 78.00
Radie 2: 78.00
B+: M6
Position/B+ i min.: 45
D+ Størrelse: Stik
Rotation: med uret
Stik nr.: PL194
Total længde mm: 156.00
Terminaltype: R-L
Remskive: P
Regulator type: IR
Produktoplysninger: BN

Filer

Specifikation

B+ M6
Belt. adj. bracket hole 1 M8
Belt. adj. brackethole pos. 60
Plug no. PL194
Bracket hole 10.50
Position/B+ in min. 45
Prod. info BN
Pulley P
Pulley dia. 74.00
Pulley dist. 62.00
Radius 78.00
D+ Size Plug
Radius 2 78.00
Regulator type IR
Rotation CW
Grooves/pulley 1
Terminal type R-L
Voltage 14
Total length 156.00 mm
Width/holder arm 29.00
Amp 45

  • OEM
    A007TA1677, A007TA1677A, A7TA1677, A7TA1677A, A7TCA077, F032116109, 1C010-64010, 1C010-64011, 1C010-64012

  • Konkurrentreferens
    A5320, CAL35350, LRA04480, 28-8589, 695.510.045, 12363N, 600353

  • NormaliseratArtNr
    a007ta1677, a007ta1677a, a5320, a7ta1677, a7ta1677a, a7tca077, cal35350, f032116109, lra04480, 1c01064010, 1c01064011, 1c01064012, 12363n, 288589, 600353, 695510045

  • Passar modeller
    Kubota Model: Series-M Model series: 6800 Brand of engine: V3300 Body: Tractor From date: 01-01-2002 Fuel: Diesel Approved: Yes
    Kubota Model: Series-M Model series: 8200 Brand of engine: V3300 Body: Tractor From date: 01-01-2002 Fuel: Diesel Approved: Yes
    Kubota Model: Series-M Model series: 9000 Brand of engine: V3300 Body: Tractor From date: 01-01-2002 Fuel: Diesel Approved: Yes
  • Beskrivelse
    Spænding: 14
    Ampere: 45
    Remskive dist.: 62.00
    Bredde/forsyningsarme: 29.00
    Brackethuls: 10.50
    Bælte. just. bøjlehuls position.: 60
    Bælte. just. bøjlehuls 1: M8
    Remskivedi.: 74.00
    Riller/remskive: 1
    Radie: 78.00
    Radie 2: 78.00
    B+: M6
    Position/B+ i min.: 45
    D+ Størrelse: Stik
    Rotation: med uret
    Stik nr.: PL194
    Total længde mm: 156.00
    Terminaltype: R-L
    Remskive: P
    Regulator type: IR
    Produktoplysninger: BN

    Filer

  • Specifikation
    B+ M6
    Belt. adj. bracket hole 1 M8
    Belt. adj. brackethole pos. 60
    Plug no. PL194
    Bracket hole 10.50
    Position/B+ in min. 45
    Prod. info BN
    Pulley P
    Pulley dia. 74.00
    Pulley dist. 62.00
    Radius 78.00
    D+ Size Plug
    Radius 2 78.00
    Regulator type IR
    Rotation CW
    Grooves/pulley 1
    Terminal type R-L
    Voltage 14
    Total length 156.00 mm
    Width/holder arm 29.00
    Amp 45
  • Køretøjsmatchning

    • OEM
      A007TA1677, A007TA1677A, A7TA1677, A7TA1677A, A7TCA077, F032116109, 1C010-64010, 1C010-64011, 1C010-64012

    • Konkurrentreferens
      A5320, CAL35350, LRA04480, 28-8589, 695.510.045, 12363N, 600353

    • NormaliseratArtNr
      a007ta1677, a007ta1677a, a5320, a7ta1677, a7ta1677a, a7tca077, cal35350, f032116109, lra04480, 1c01064010, 1c01064011, 1c01064012, 12363n, 288589, 600353, 695510045

    • Passar modeller
      Kubota Model: Series-M Model series: 6800 Brand of engine: V3300 Body: Tractor From date: 01-01-2002 Fuel: Diesel Approved: Yes
      Kubota Model: Series-M Model series: 8200 Brand of engine: V3300 Body: Tractor From date: 01-01-2002 Fuel: Diesel Approved: Yes
      Kubota Model: Series-M Model series: 9000 Brand of engine: V3300 Body: Tractor From date: 01-01-2002 Fuel: Diesel Approved: Yes
