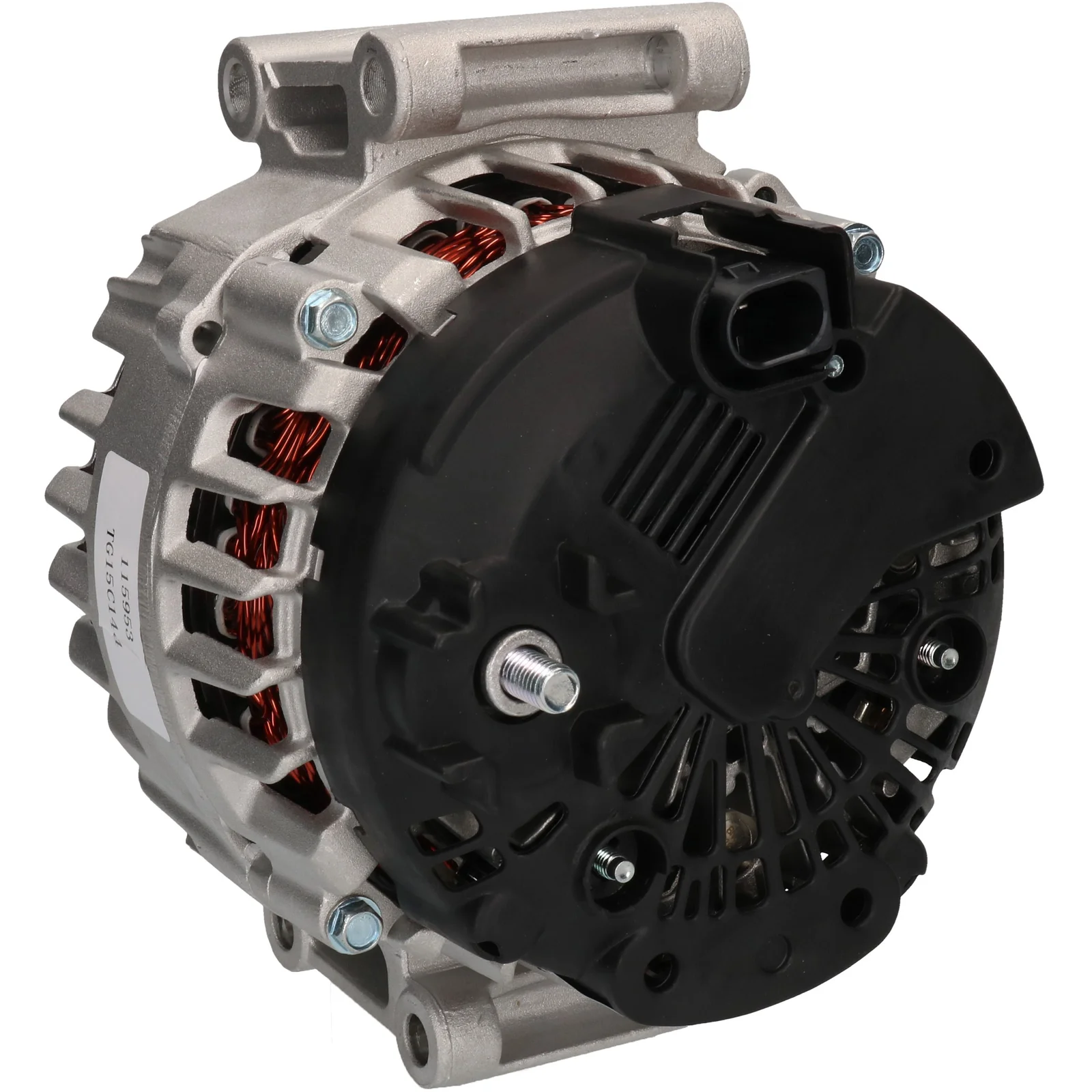

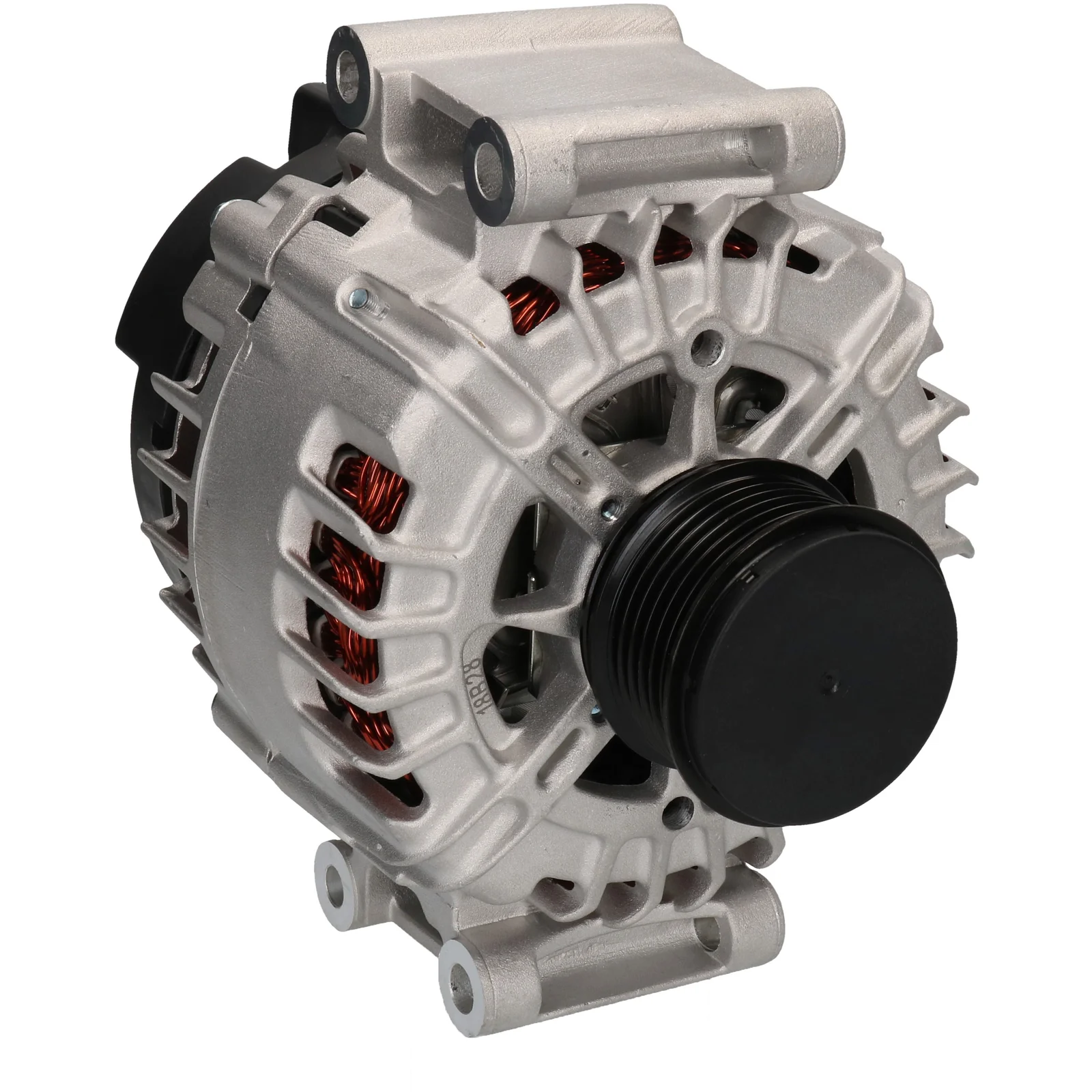

HC-Cargo Generator
HC-Cargo Generator
Vare nr.: F032115953

HC-Cargo Generator

Tekniske oplysninger:

Spænding: 14, Amp: 150, Rotation: CW, Monteringsbøsning for fordeling: 56,00

Beskrivelse

Spænding: 14
Amp: 150
Skive afstand: 30.00
Bredde / holderarm: 70.00
Montagebeslag afstand: 56.00
Beslagshul: 9.50
Bæltejustering beslagshul position: 60
Bæltejustering beslagshul 1: 9.50
Skivestørrelse: 56.00
Groove / skive: 6
Radius: 81.50
Radius 2: 81.50
B+: M8
Position / B+ i min.: 45
Rotation: Læsning: med uret
Stiknummer: PL86
Terminaltype: COM
Kommunikation: LIN
Skive: SP/FW
Regulator type: IR
Bemærkninger: Denne Generator har en COM-terminal på regulatoren. Det anbefales, at OEM-nummeret bruges til at kontrollere egnethed, før der bestilles.

Filer

Specifikation

B+ M8
Communication LIN
Mount. bracket dist. 56.00
Belt. adj. bracket hole 1 9.50
Belt. adj. brackethole pos. 60
Plug no. PL86
Bracket hole 9.50
Position/B+ in min. 45
Pulley SP/FW
Pulley dia. 56.00
Pulley dist. 30.00
Radius 81.50
Radius 2 81.50
Regulator type IR
Remarks This Alternator has a COM terminal on the regulator. It is recommended that the OEM number is used to check suitability before ordering.
Rotation CW
Grooves/pulley 6
Terminal type COM
Voltage 14
Width/holder arm 70.00
Amp 150

  • OEM
    F032115953, TG15C144, 06D903016D, 06D903016DX, 06E903016DX, 06H903017S, 2606017

  • Konkurrentreferens
    28-7832, 205.548.150, 211.555.1502, 20585N, 439656, 440242, 442134, 12090674, 12090880, 32000021

  • NormaliseratArtNr
    f032115953, tg15c144, 06d903016d, 06d903016dx, 06e903016dx, 06h903017s, 20585n, 287832, 439656, 440242, 442134, 2606017, 12090674, 12090880, 32000021, 205548150, 2115551502

  • Passar modeller
    Audi Model: A6 Model series: A6 Type of engine: TFSi Size of motor: 2.0 Brand of engine: BPJ Type description: 4F2 From date: 01-06-2005 To date: 01-03-2011 Fuel: Gasoline Approved: Yes
    Audi Model: A6 Model series: A6 Type of engine: TFSi Size of motor: 2.0 Brand of engine: BPJ Type description: 4F5 Body: Estate From date: 01-06-2005 To date: 01-08-2011 Fuel: Gasoline Approved: Yes Manufacture type: AVANT
    Audi Model: A6 Model series: A6 Type of engine: TFSi Size of motor: 2.0 Brand of engine: BYK Type description: 4F2 From date: 01-06-2005 To date: 01-03-2011 Fuel: Gasoline Approved: Yes
  • Beskrivelse
    Spænding: 14
    Amp: 150
    Skive afstand: 30.00
    Bredde / holderarm: 70.00
    Montagebeslag afstand: 56.00
    Beslagshul: 9.50
    Bæltejustering beslagshul position: 60
    Bæltejustering beslagshul 1: 9.50
    Skivestørrelse: 56.00
    Groove / skive: 6
    Radius: 81.50
    Radius 2: 81.50
    B+: M8
    Position / B+ i min.: 45
    Rotation: Læsning: med uret
    Stiknummer: PL86
    Terminaltype: COM
    Kommunikation: LIN
    Skive: SP/FW
    Regulator type: IR
    Bemærkninger: Denne Generator har en COM-terminal på regulatoren. Det anbefales, at OEM-nummeret bruges til at kontrollere egnethed, før der bestilles.

    Filer

  • Specifikation
    B+ M8
    Communication LIN
    Mount. bracket dist. 56.00
    Belt. adj. bracket hole 1 9.50
    Belt. adj. brackethole pos. 60
    Plug no. PL86
    Bracket hole 9.50
    Position/B+ in min. 45
    Pulley SP/FW
    Pulley dia. 56.00
    Pulley dist. 30.00
    Radius 81.50
    Radius 2 81.50
    Regulator type IR
    Remarks This Alternator has a COM terminal on the regulator. It is recommended that the OEM number is used to check suitability before ordering.
    Rotation CW
    Grooves/pulley 6
    Terminal type COM
    Voltage 14
    Width/holder arm 70.00
    Amp 150
  • Køretøjsmatchning

    • OEM
      F032115953, TG15C144, 06D903016D, 06D903016DX, 06E903016DX, 06H903017S, 2606017

    • Konkurrentreferens
      28-7832, 205.548.150, 211.555.1502, 20585N, 439656, 440242, 442134, 12090674, 12090880, 32000021

    • NormaliseratArtNr
      f032115953, tg15c144, 06d903016d, 06d903016dx, 06e903016dx, 06h903017s, 20585n, 287832, 439656, 440242, 442134, 2606017, 12090674, 12090880, 32000021, 205548150, 2115551502

    • Passar modeller
      Audi Model: A6 Model series: A6 Type of engine: TFSi Size of motor: 2.0 Brand of engine: BPJ Type description: 4F2 From date: 01-06-2005 To date: 01-03-2011 Fuel: Gasoline Approved: Yes
      Audi Model: A6 Model series: A6 Type of engine: TFSi Size of motor: 2.0 Brand of engine: BPJ Type description: 4F5 Body: Estate From date: 01-06-2005 To date: 01-08-2011 Fuel: Gasoline Approved: Yes Manufacture type: AVANT
      Audi Model: A6 Model series: A6 Type of engine: TFSi Size of motor: 2.0 Brand of engine: BYK Type description: 4F2 From date: 01-06-2005 To date: 01-03-2011 Fuel: Gasoline Approved: Yes
