Vare nr.: F032111613

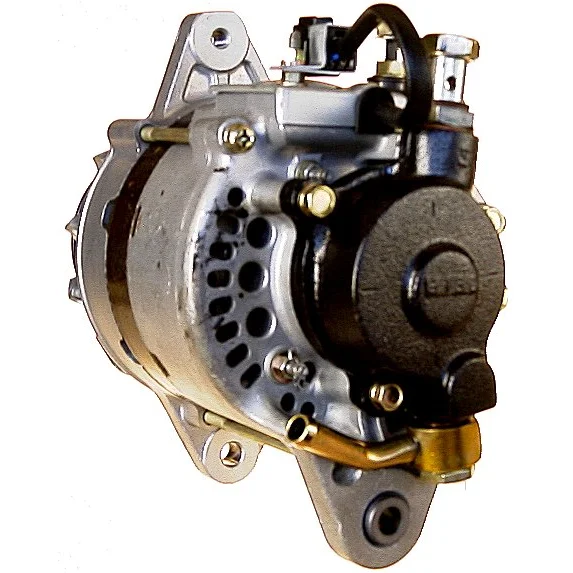

HC-Cargo Generator

Tekniske oplysninger:

Spænding: 28, Amp: 50, Rotation: CW, Monteringsbeslag afstand: 96,50

Beskrivelse

Spænding: 28
Amp: 50
Remskive afstand: 63,50
Bredde/holder arm: 13,00
Monteringsbeslag afstand: 96,50
Beslagshul: 10,00
Bælte. justering.beslagshul position.: 5
Bælte. justering.beslagshul 1: M8
Remskive dia.: 95,50
Riller/remskive: 1
Radius: 88,00
Radius 2: 90,50
B+: M6
Position/B+ i min.: 60
Rotation: med uret
Stik nr.: PL15
Total længde mm: 274,00
Remskive: P
Regulator: uden
Kølervætskpumpe: Ja
Produktinfo: BN
Servicing: Toyota
Bemærkninger: Regulator: HC-CARGO 135376

Filer

Specifikation

B+ M6
Mount. bracket dist. 96.50
Belt. adj. bracket hole 1 M8
Belt. adj. brackethole pos. 5
Plug no. PL15
Bracket hole 10.00
Position/B+ in min. 60
Prod. info BN
Pulley P
Pulley dia. 95.50
Pulley dist. 63.50
Radius 88.00
Radius 2 90.50
Regulator w/o
Remarks Regulator: HC-CARGO 135376
Rotation CW
Servicing Toyota
Grooves/pulley 1
Vac. pump Yes
Voltage 28
Total length 274.00 mm
Width/holder arm 13.00
Amp 50

  • OEM
    F032111613, 021000-9850, 021000-9851, 021000-9930, 021000-9931, 27020-56110, 27020-56230, 27030-56080, 27030-56090, 27030-56220, 27030-56250, 27030-56340, 100210-2210, 100210-2211, 100210-2250, 100210-2251, 100210-2570, 100210-2860, 100210-2861, 100210-2990, 100210-2991, 121000-0670

  • Konkurrentreferens
    A6620S, ALT30145, CAL40608, dra3064, dra3345, J5112039, 8el730065-001, 39-51.239, 47-0920, 47-1509, 47-2748, 235.023.254, 235.043.254, 5361, 40676, 56453, 119553, 12060346, 12060347, 12060352, 12060362, 0986037621

  • NormaliseratArtNr
    a6620s, alt30145, cal40608, dra3064, dra3345, f032111613, j5112039, 8el730065001, 5361, 40676, 56453, 119553, 470920, 471509, 472748, 3951239, 12060346, 12060347, 12060352, 12060362, 0210009850, 0210009851, 0210009930, 0210009931, 235023254, 235043254, 0986037621, 1002102210, 1002102211, 1002102250, 1002102251, 1002102570, 1002102860, 1002102861, 1002102990, 1002102991, 1210000670, 2702056110, 2702056230, 2703056080, 2703056090, 2703056220, 2703056250, 2703056340

  • Passar modeller
    Toyota Model: Dyna Model series: Dyna 200 Type of engine: Diesel Size of motor: 3.0 Brand of engine: B Type description: BU_ From date: 01-09-1984 To date: 01-08-1988 Fuel: Diesel Approved: Yes
    Toyota Model: Dyna Model series: Dyna 300 Type of engine: Diesel Size of motor: 3.4 Brand of engine: 13B Type description: BU85 From date: 01-09-1984 To date: 01-08-1987 Fuel: Diesel Approved: Yes
    Toyota Model: Dyna Model series: Dyna Type of engine: Diesel Size of motor: 3.4 Brand of engine: 13B Body: Bus From date: 01-08-1977 To date: 01-08-1987 Fuel: Diesel Approved: Yes
    Toyota Model: Dyna Model series: Dyna Type of engine: Diesel Size of motor: 3.4 Brand of engine: 13B Body: Platform / Chassis From date: 01-09-1984 To date: 01-08-1987 Fuel: Diesel Approved: Yes
    Toyota Model: Land Cruiser Model series: Land Cruiser Type of engine: Diesel Size of motor: 3.4 Brand of engine: 3B Type description: BJ60_V From date: 01-10-1981 To date: 01-08-1987 Fuel: Diesel Approved: Yes
  • Beskrivelse
    Spænding: 28
    Amp: 50
    Remskive afstand: 63,50
    Bredde/holder arm: 13,00
    Monteringsbeslag afstand: 96,50
    Beslagshul: 10,00
    Bælte. justering.beslagshul position.: 5
    Bælte. justering.beslagshul 1: M8
    Remskive dia.: 95,50
    Riller/remskive: 1
    Radius: 88,00
    Radius 2: 90,50
    B+: M6
    Position/B+ i min.: 60
    Rotation: med uret
    Stik nr.: PL15
    Total længde mm: 274,00
    Remskive: P
    Regulator: uden
    Kølervætskpumpe: Ja
    Produktinfo: BN
    Servicing: Toyota
    Bemærkninger: Regulator: HC-CARGO 135376

    Filer

  • Specifikation
    B+ M6
    Mount. bracket dist. 96.50
    Belt. adj. bracket hole 1 M8
    Belt. adj. brackethole pos. 5
    Plug no. PL15
    Bracket hole 10.00
    Position/B+ in min. 60
    Prod. info BN
    Pulley P
    Pulley dia. 95.50
    Pulley dist. 63.50
    Radius 88.00
    Radius 2 90.50
    Regulator w/o
    Remarks Regulator: HC-CARGO 135376
    Rotation CW
    Servicing Toyota
    Grooves/pulley 1
    Vac. pump Yes
    Voltage 28
    Total length 274.00 mm
    Width/holder arm 13.00
    Amp 50
  • Køretøjsmatchning

    • OEM
      F032111613, 021000-9850, 021000-9851, 021000-9930, 021000-9931, 27020-56110, 27020-56230, 27030-56080, 27030-56090, 27030-56220, 27030-56250, 27030-56340, 100210-2210, 100210-2211, 100210-2250, 100210-2251, 100210-2570, 100210-2860, 100210-2861, 100210-2990, 100210-2991, 121000-0670

    • Konkurrentreferens
      A6620S, ALT30145, CAL40608, dra3064, dra3345, J5112039, 8el730065-001, 39-51.239, 47-0920, 47-1509, 47-2748, 235.023.254, 235.043.254, 5361, 40676, 56453, 119553, 12060346, 12060347, 12060352, 12060362, 0986037621

    • NormaliseratArtNr
      a6620s, alt30145, cal40608, dra3064, dra3345, f032111613, j5112039, 8el730065001, 5361, 40676, 56453, 119553, 470920, 471509, 472748, 3951239, 12060346, 12060347, 12060352, 12060362, 0210009850, 0210009851, 0210009930, 0210009931, 235023254, 235043254, 0986037621, 1002102210, 1002102211, 1002102250, 1002102251, 1002102570, 1002102860, 1002102861, 1002102990, 1002102991, 1210000670, 2702056110, 2702056230, 2703056080, 2703056090, 2703056220, 2703056250, 2703056340

    • Passar modeller
      Toyota Model: Dyna Model series: Dyna 200 Type of engine: Diesel Size of motor: 3.0 Brand of engine: B Type description: BU_ From date: 01-09-1984 To date: 01-08-1988 Fuel: Diesel Approved: Yes
      Toyota Model: Dyna Model series: Dyna 300 Type of engine: Diesel Size of motor: 3.4 Brand of engine: 13B Type description: BU85 From date: 01-09-1984 To date: 01-08-1987 Fuel: Diesel Approved: Yes
      Toyota Model: Dyna Model series: Dyna Type of engine: Diesel Size of motor: 3.4 Brand of engine: 13B Body: Bus From date: 01-08-1977 To date: 01-08-1987 Fuel: Diesel Approved: Yes
      Toyota Model: Dyna Model series: Dyna Type of engine: Diesel Size of motor: 3.4 Brand of engine: 13B Body: Platform / Chassis From date: 01-09-1984 To date: 01-08-1987 Fuel: Diesel Approved: Yes
      Toyota Model: Land Cruiser Model series: Land Cruiser Type of engine: Diesel Size of motor: 3.4 Brand of engine: 3B Type description: BJ60_V From date: 01-10-1981 To date: 01-08-1987 Fuel: Diesel Approved: Yes
