Vare nr.: F032112360

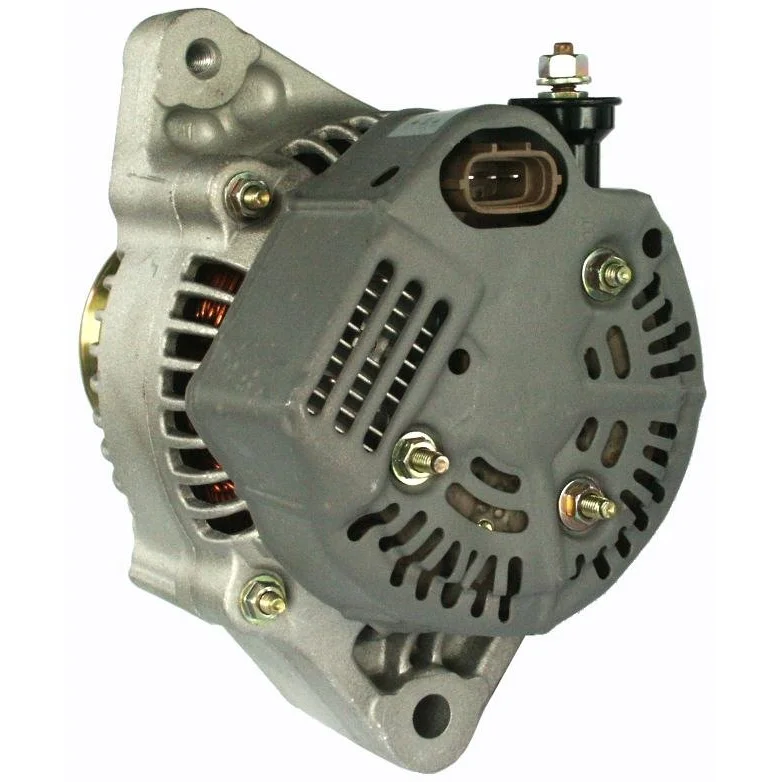

HC-Cargo Generator

Tekniske oplysninger:

Spænding: 14, Amp: 60, Rotation: CW, Remskive dia.: 71,40

Beskrivelse

Spænding: 14
Amp: 60
Drevskive dist.: 93,50
Bredde/holderarm: 58,30
Beslagshul: 10,30
Båndjust. beslagshul pos.: 4
Båndjust. beslagshul 1: M8
Drevskive dia.: 71,40
Vulster/drevskive: 2
Radius: 79,50
Radius 2: 83,00
B+: M6
Position/B+ i min.: 4
D+ Størrelse: Stik
Rotation: CW
Stik nr.: PL42
Total længde mm: 164,50
Drevskive: DP
Regulator type: IR
Produkts. info: Reman
Service: Toyota

Filer

Specifikation

B+ M6
Belt. adj. bracket hole 1 M8
Belt. adj. brackethole pos. 4
Plug no. PL42
Bracket hole 10.30
Position/B+ in min. 4
Prod. info Reman
Pulley DP
Pulley dia. 71.40
Pulley dist. 93.50
Radius 79.50
D+ Size Plug
Radius 2 83.00
Regulator type IR
Rotation CW
Servicing Toyota
Grooves/pulley 2
Voltage 14
Total length 164.50 mm
Width/holder arm 58.30
Amp 60

  • OEM
    F032112360, 27060-17160, 27060-17210, 101211-0270, 101211-0271, 101211-0272, 102211-5110, 102211-5111

  • Konkurrentreferens
    A6694S, DRA0335, J5112110, LRA02134, 28-4580, 535.121.602, 119952, 401597RI, 12060871

  • NormaliseratArtNr
    a6694s, dra0335, f032112360, j5112110, lra02134, 119952, 284580, 401597ri, 12060871, 535121602, 1012110270, 1012110271, 1012110272, 1022115110, 1022115111, 2706017160, 2706017210

  • Passar modeller
    Toyota Model: Land Cruiser Model series: Land Cruiser Type of engine: Diesel Size of motor: 4.2 Brand of engine: 1H-Z Type description: HZJ80_ From date: 01-01-1990 To date: 01-12-1997 Fuel: Diesel Approved: Yes
    Toyota Model: Land Cruiser Model series: Land Cruiser Type of engine: TD Size of motor: 4.2 Brand of engine: 1HD-T Type description: HJD80 From date: 01-01-1990 To date: 01-12-1997 Fuel: Diesel Approved: Yes
    Toyota Model: Land Cruiser Model series: Land Cruiser Type of engine: TD Size of motor: 4.2 Brand of engine: 1HD-T Type description: HJD80 From date: 01-10-1992 To date: 01-12-1997 Fuel: Diesel Approved: Yes
  • Beskrivelse
    Spænding: 14
    Amp: 60
    Drevskive dist.: 93,50
    Bredde/holderarm: 58,30
    Beslagshul: 10,30
    Båndjust. beslagshul pos.: 4
    Båndjust. beslagshul 1: M8
    Drevskive dia.: 71,40
    Vulster/drevskive: 2
    Radius: 79,50
    Radius 2: 83,00
    B+: M6
    Position/B+ i min.: 4
    D+ Størrelse: Stik
    Rotation: CW
    Stik nr.: PL42
    Total længde mm: 164,50
    Drevskive: DP
    Regulator type: IR
    Produkts. info: Reman
    Service: Toyota

    Filer

  • Specifikation
    B+ M6
    Belt. adj. bracket hole 1 M8
    Belt. adj. brackethole pos. 4
    Plug no. PL42
    Bracket hole 10.30
    Position/B+ in min. 4
    Prod. info Reman
    Pulley DP
    Pulley dia. 71.40
    Pulley dist. 93.50
    Radius 79.50
    D+ Size Plug
    Radius 2 83.00
    Regulator type IR
    Rotation CW
    Servicing Toyota
    Grooves/pulley 2
    Voltage 14
    Total length 164.50 mm
    Width/holder arm 58.30
    Amp 60
  • Køretøjsmatchning

    • OEM
      F032112360, 27060-17160, 27060-17210, 101211-0270, 101211-0271, 101211-0272, 102211-5110, 102211-5111

    • Konkurrentreferens
      A6694S, DRA0335, J5112110, LRA02134, 28-4580, 535.121.602, 119952, 401597RI, 12060871

    • NormaliseratArtNr
      a6694s, dra0335, f032112360, j5112110, lra02134, 119952, 284580, 401597ri, 12060871, 535121602, 1012110270, 1012110271, 1012110272, 1022115110, 1022115111, 2706017160, 2706017210

    • Passar modeller
      Toyota Model: Land Cruiser Model series: Land Cruiser Type of engine: Diesel Size of motor: 4.2 Brand of engine: 1H-Z Type description: HZJ80_ From date: 01-01-1990 To date: 01-12-1997 Fuel: Diesel Approved: Yes
      Toyota Model: Land Cruiser Model series: Land Cruiser Type of engine: TD Size of motor: 4.2 Brand of engine: 1HD-T Type description: HJD80 From date: 01-01-1990 To date: 01-12-1997 Fuel: Diesel Approved: Yes
      Toyota Model: Land Cruiser Model series: Land Cruiser Type of engine: TD Size of motor: 4.2 Brand of engine: 1HD-T Type description: HJD80 From date: 01-10-1992 To date: 01-12-1997 Fuel: Diesel Approved: Yes
