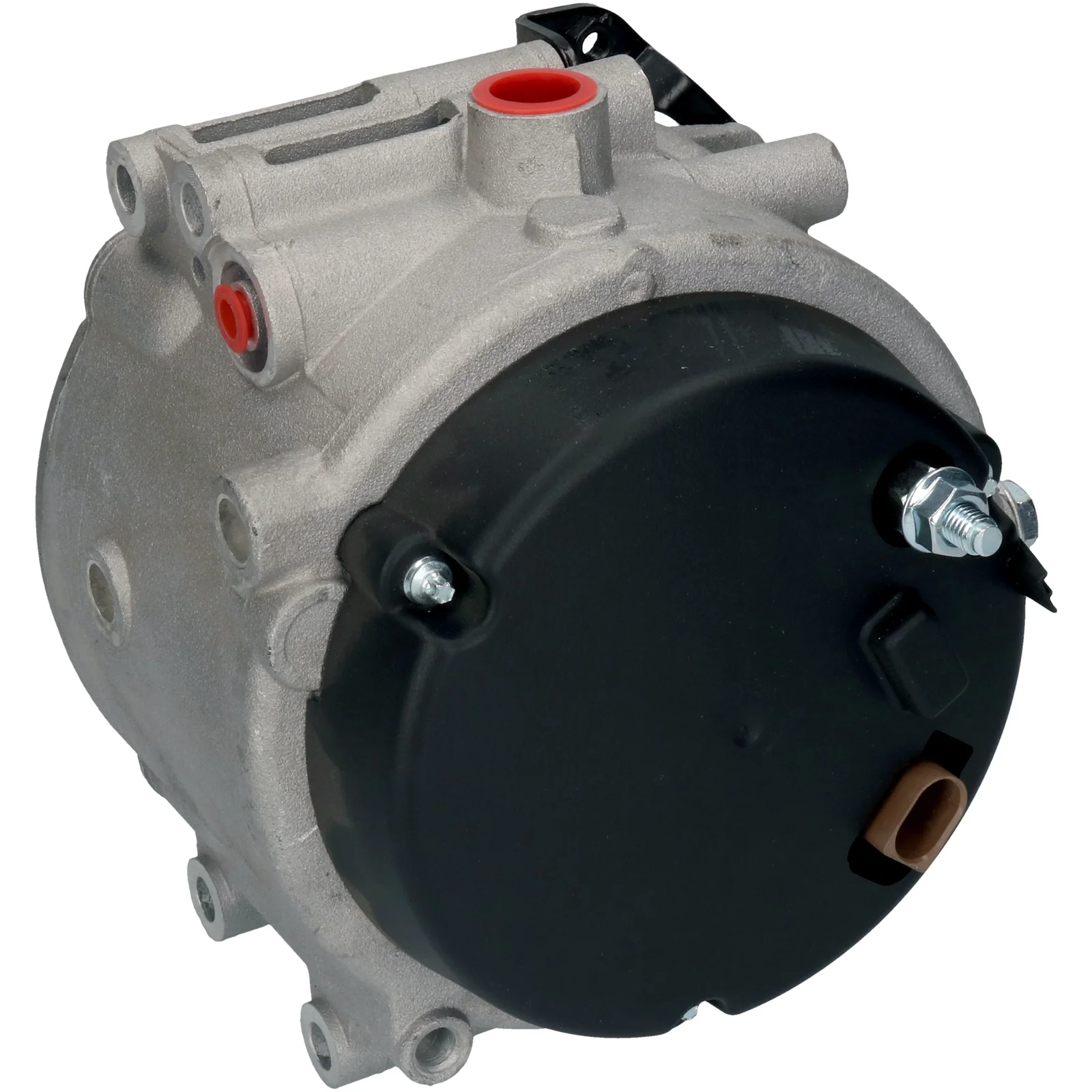

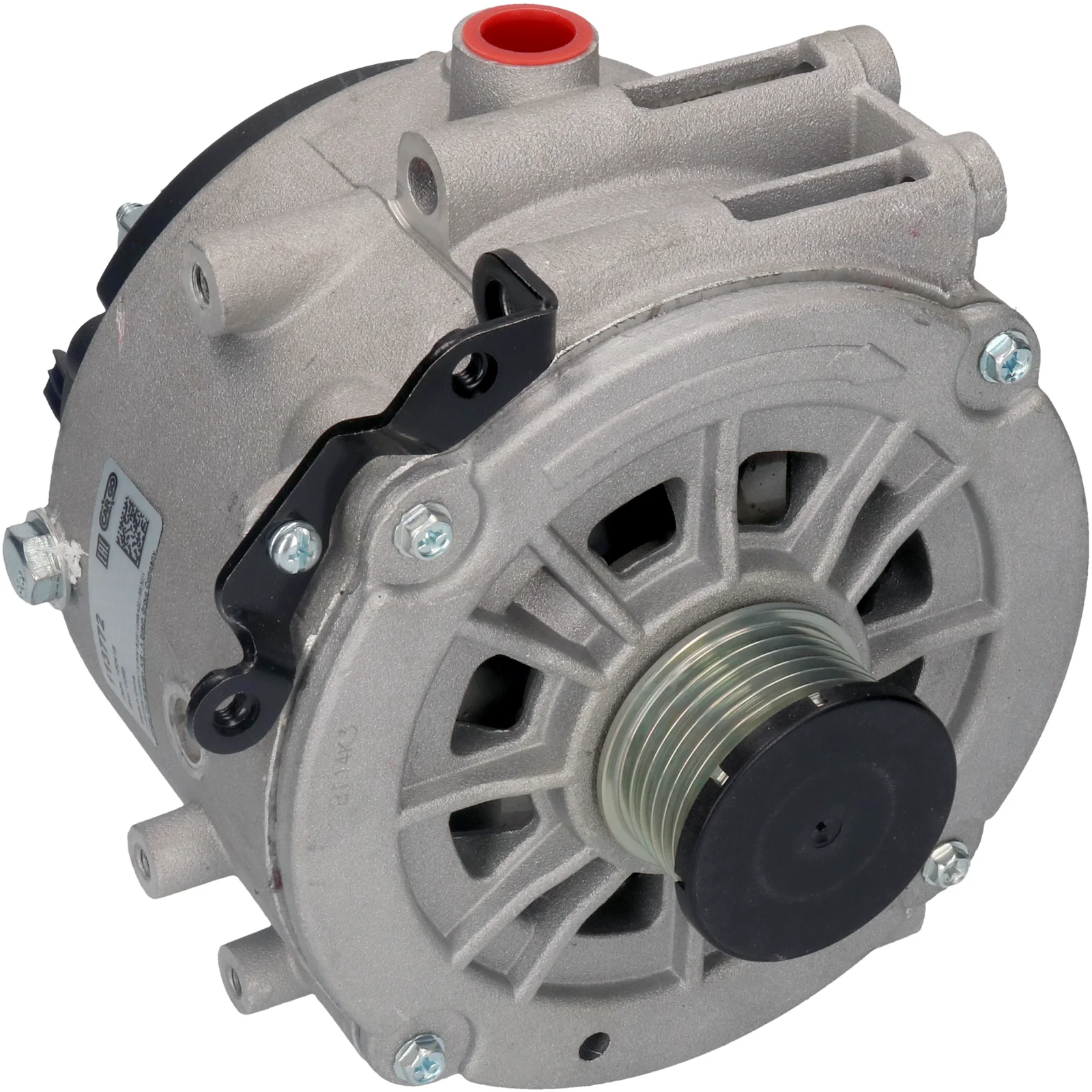

HC-Cargo Generator
HC-Cargo Generator
Vare nr.: F032113772

HC-Cargo Generator

Tekniske oplysninger:

Spænding: 14, Amp: 190, Rotation: CW, Mont. bøsning forford. : 56.00

Beskrivelse

Spænding: 14
Amp: 190
Drevskive dist.: 31.00
Bredde/holderarm: 93.50
Monteringsbracket dist.: 56.00
Bracket hul: 8.00
Bracket hul 2: 9.20
Bælte justering bracket hul pos.: 60
Bælte justering bracket hul 1: 8.00
Bælte justering bracket hul 2: 9.20
Drevskive dia.: 49.70
Grove/dreven: 6
B+: M8
Position/B+ i min.: 10
D+ Størrelse: Stik
Rotation: CW
Stik nr.: PL112
Total længde mm: 195.00
Drevskive: SP/FW
Regulator type: IR
Prod. info: BN
Servicing: Mercedes
Bemærkninger: Vandkølet.

Filer

Specifikation

B+ M8
Mount. bracket dist. 56.00
Belt. adj. bracket hole 1 8.00
Belt. adj. bracket hole 2 9.20
Belt. adj. brackethole pos. 60
Plug no. PL112
Bracket hole 8.00
Bracket hole 2 9.20
Position/B+ in min. 10
Prod. info BN
Pulley SP/FW
Pulley dia. 49.70
Pulley dist. 31.00
D+ Size Plug
Regulator type IR
Remarks Water cooled.
Rotation CW
Servicing Mercedes
Grooves/pulley 6
Voltage 14
Total length 195.00 mm
Width/holder arm 93.50
Amp 190

  • OEM
    A00011502550, A0001501750, A0001502550, aan7112, F032113772, 11.203.632, 1838ir, 0001501750, 0001502550, 10480404, 10480408, 00011502550

  • Konkurrentreferens
    A1015, A1015PR, A1015R, CAL12102, DRA4035, DRA4035N, IA1260, LRA02162, 8EL011710-821, 28-4616, 525.112.1902, 525.115.1902, 4817, 23162N, 23162R, 200241, 210383, 210383A, 301838RI, 440656, 12048990, 32041790, 0986042456, 0986048990, 0986048996

  • NormaliseratArtNr
    a00011502550, a0001501750, a0001502550, a1015, a1015pr, a1015r, aan7112, cal12102, dra4035, dra4035n, f032113772, ia1260, lra02162, 8el011710821, 1838ir, 4817, 23162n, 23162r, 200241, 210383, 210383a, 284616, 301838ri, 440656, 0001501750, 0001502550, 10480404, 10480408, 11203632, 00011502550, 12048990, 32041790, 0986042456, 0986048990, 0986048996, 5251121902, 5251151902

  • Passar modeller
    Mercedes-Benz Model: 200 Model series: C 200 Type of engine: CDi Size of motor: 2.1 Brand of engine: OM611.962 Type description: 203 Body: Estate From date: 01-03-2001 To date: 01-08-2007 Fuel: Diesel Approved: Yes
    Mercedes-Benz Model: 200 Model series: C 200 Type of engine: CDi Size of motor: 2.1 Brand of engine: OM611.962 Type description: 203 From date: 01-09-2000 To date: 01-06-2003 Fuel: Diesel Approved: Yes
    Mercedes-Benz Model: 200 Model series: E 200 Type of engine: CDi Size of motor: 2.1 Brand of engine: OM611.961 Type description: 210 From date: 01-07-1999 To date: 01-03-2002 Fuel: Diesel Approved: Yes
    Mercedes-Benz Model: 220 Model series: C 220 Type of engine: CDi Size of motor: 2.1 Brand of engine: OM611.962 Type description: 203 Body: Coupe From date: 01-03-2001 To date: 01-01-2004 Fuel: Diesel Approved: Yes
    Mercedes-Benz Model: 220 Model series: C 220 Type of engine: CDi Size of motor: 2.1 Brand of engine: OM611.962 Type description: 203 Body: Estate From date: 01-03-2001 To date: 01-08-2007 Fuel: Diesel Approved: Yes
    Mercedes-Benz Model: 220 Model series: C 220 Type of engine: CDi Size of motor: 2.1 Brand of engine: OM611.962 Type description: 203 From date: 01-05-2000 To date: 01-02-2007 Fuel: Diesel Approved: Yes
    Mercedes-Benz Model: 220 Model series: C 220 Type of engine: CDI Size of motor: 2.1 Brand of engine: OM611.962 Type description: W203 From date: 01-05-2000 To date: 01-02-2007 Fuel: Diesel Approved: Yes
    Mercedes-Benz Model: 220 Model series: E 220 Type of engine: CDi Size of motor: 2.2 Brand of engine: OM611.961 Type description: 210 Body: Estate From date: 01-07-1999 To date: 01-03-2003 Fuel: Diesel Approved: Yes
    Mercedes-Benz Model: 220 Model series: E 220 Type of engine: CDi Size of motor: 2.2 Brand of engine: OM611.961 Type description: 210 From date: 01-07-1999 To date: 01-03-2002 Fuel: Diesel Approved: Yes
    Mercedes-Benz Model: 270 Model series: 270 Type of engine: CDI Size of motor: 2.7 Brand of engine: OM612.967 Type description: A209 Body: Convertible From date: 01-02-2003 To date: 01-06-2005 Fuel: Diesel Approved: Yes
    Mercedes-Benz Model: 270 Model series: C 270 Type of engine: CDi Size of motor: 2.7 Brand of engine: OM612.962 Type description: 203 Body: Estate From date: 01-03-2001 To date: 01-08-2007 Fuel: Diesel Approved: Yes
    Mercedes-Benz Model: 270 Model series: C 270 Type of engine: CDi Size of motor: 2.7 Brand of engine: OM612.962 Type description: 203 From date: 01-12-2000 To date: 01-02-2007 Fuel: Diesel Approved: Yes
    Mercedes-Benz Model: 270 Model series: C 270 Type of engine: CDi Size of motor: 2.8 Brand of engine: OM612.962 Type description: S203 Body: Estate From date: 01-03-2001 To date: 01-08-2007 Fuel: Diesel Approved: Yes Manufacture type: T-model
    Mercedes-Benz Model: 270 Model series: C 270 Type of engine: CDi Size of motor: 2.8 Brand of engine: OM612.962 Type description: W203 From date: 01-12-2000 To date: 01-02-2007 Fuel: Diesel Approved: Yes
    Mercedes-Benz Model: 270 Model series: CLK 270 Type of engine: CDi Size of motor: 2.7 Brand of engine: OM612.962 Type description: 209 Body: Coupe From date: 01-10-2002 To date: 01-05-2009 Fuel: Diesel Approved: Yes
    Mercedes-Benz Model: 270 Model series: CLK 270 Type of engine: CDi Size of motor: 2.7 Brand of engine: OM612.967 Type description: 209 Body: Coupe From date: 01-10-2002 To date: 01-05-2009 Fuel: Diesel Approved: Yes
    Mercedes-Benz Model: 270 Model series: E 270 Type of engine: CDi Size of motor: 2.7 Brand of engine: OM612.961 Type description: 210 From date: 01-07-1999 To date: 01-03-2002 Fuel: Diesel Approved: Yes
    Mercedes-Benz Model: 270 Model series: G 270 Type of engine: CDi Size of motor: 2.7 Brand of engine: OM612.965 Type description: 463 From date: 01-10-2001 Fuel: Diesel Approved: Yes
    Mercedes-Benz Model: 270 Model series: ML 270 Type of engine: CDi Size of motor: 2.7 Brand of engine: OM612.963 Type description: 163 From date: 01-12-1999 To date: 01-06-2005 Fuel: Diesel Approved: Yes
    Mercedes-Benz Model: 320 Model series: E 320 T Type of engine: CDi Size of motor: 3.2 Brand of engine: OM613.961 Type description: 210 Body: Estate From date: 01-07-1999 To date: 01-03-2003 Fuel: Diesel Approved: Yes
    Mercedes-Benz Model: 320 Model series: E 320 Type of engine: CDi Size of motor: 3.2 Brand of engine: OM613.961 Type description: 210 From date: 01-07-1999 To date: 01-03-2002 Fuel: Diesel Approved: Yes
    Mercedes-Benz Model: 320 Model series: E 320 Type of engine: CDi Size of motor: 3.2 Brand of engine: OM648.961 Body: Estate From date: 01-03-2003 To date: 01-07-2009 Fuel: Diesel Approved: Yes
    Mercedes-Benz Model: 320 Model series: E 320 Type of engine: CDi Size of motor: 3.2 Brand of engine: OM648.961 From date: 01-11-2002 To date: 01-12-2008 Fuel: Diesel Approved: Yes
    Mercedes-Benz Model: 320 Model series: S 320 Type of engine: CDi Size of motor: 3.2 Brand of engine: OM613.960 Type description: 220 From date: 01-08-1999 To date: 01-09-2002 Fuel: Diesel Approved: Yes
    Mercedes-Benz Model: C-Class Coupe Model series: C 220 Type of engine: CDI Size of motor: 2.1 Brand of engine: OM611.962 Type description: CL203 Body: Coupe From date: 01-03-2001 To date: 01-01-2004 Fuel: Diesel Approved: Yes
    1 / 5
  • Beskrivelse
    Spænding: 14
    Amp: 190
    Drevskive dist.: 31.00
    Bredde/holderarm: 93.50
    Monteringsbracket dist.: 56.00
    Bracket hul: 8.00
    Bracket hul 2: 9.20
    Bælte justering bracket hul pos.: 60
    Bælte justering bracket hul 1: 8.00
    Bælte justering bracket hul 2: 9.20
    Drevskive dia.: 49.70
    Grove/dreven: 6
    B+: M8
    Position/B+ i min.: 10
    D+ Størrelse: Stik
    Rotation: CW
    Stik nr.: PL112
    Total længde mm: 195.00
    Drevskive: SP/FW
    Regulator type: IR
    Prod. info: BN
    Servicing: Mercedes
    Bemærkninger: Vandkølet.

    Filer

  • Specifikation
    B+ M8
    Mount. bracket dist. 56.00
    Belt. adj. bracket hole 1 8.00
    Belt. adj. bracket hole 2 9.20
    Belt. adj. brackethole pos. 60
    Plug no. PL112
    Bracket hole 8.00
    Bracket hole 2 9.20
    Position/B+ in min. 10
    Prod. info BN
    Pulley SP/FW
    Pulley dia. 49.70
    Pulley dist. 31.00
    D+ Size Plug
    Regulator type IR
    Remarks Water cooled.
    Rotation CW
    Servicing Mercedes
    Grooves/pulley 6
    Voltage 14
    Total length 195.00 mm
    Width/holder arm 93.50
    Amp 190
  • Køretøjsmatchning

    • OEM
      A00011502550, A0001501750, A0001502550, aan7112, F032113772, 11.203.632, 1838ir, 0001501750, 0001502550, 10480404, 10480408, 00011502550

    • Konkurrentreferens
      A1015, A1015PR, A1015R, CAL12102, DRA4035, DRA4035N, IA1260, LRA02162, 8EL011710-821, 28-4616, 525.112.1902, 525.115.1902, 4817, 23162N, 23162R, 200241, 210383, 210383A, 301838RI, 440656, 12048990, 32041790, 0986042456, 0986048990, 0986048996

    • NormaliseratArtNr
      a00011502550, a0001501750, a0001502550, a1015, a1015pr, a1015r, aan7112, cal12102, dra4035, dra4035n, f032113772, ia1260, lra02162, 8el011710821, 1838ir, 4817, 23162n, 23162r, 200241, 210383, 210383a, 284616, 301838ri, 440656, 0001501750, 0001502550, 10480404, 10480408, 11203632, 00011502550, 12048990, 32041790, 0986042456, 0986048990, 0986048996, 5251121902, 5251151902

    • Passar modeller
      Mercedes-Benz Model: 200 Model series: C 200 Type of engine: CDi Size of motor: 2.1 Brand of engine: OM611.962 Type description: 203 Body: Estate From date: 01-03-2001 To date: 01-08-2007 Fuel: Diesel Approved: Yes
      Mercedes-Benz Model: 200 Model series: C 200 Type of engine: CDi Size of motor: 2.1 Brand of engine: OM611.962 Type description: 203 From date: 01-09-2000 To date: 01-06-2003 Fuel: Diesel Approved: Yes
      Mercedes-Benz Model: 200 Model series: E 200 Type of engine: CDi Size of motor: 2.1 Brand of engine: OM611.961 Type description: 210 From date: 01-07-1999 To date: 01-03-2002 Fuel: Diesel Approved: Yes
      Mercedes-Benz Model: 220 Model series: C 220 Type of engine: CDi Size of motor: 2.1 Brand of engine: OM611.962 Type description: 203 Body: Coupe From date: 01-03-2001 To date: 01-01-2004 Fuel: Diesel Approved: Yes
      Mercedes-Benz Model: 220 Model series: C 220 Type of engine: CDi Size of motor: 2.1 Brand of engine: OM611.962 Type description: 203 Body: Estate From date: 01-03-2001 To date: 01-08-2007 Fuel: Diesel Approved: Yes
      Mercedes-Benz Model: 220 Model series: C 220 Type of engine: CDi Size of motor: 2.1 Brand of engine: OM611.962 Type description: 203 From date: 01-05-2000 To date: 01-02-2007 Fuel: Diesel Approved: Yes
      Mercedes-Benz Model: 220 Model series: C 220 Type of engine: CDI Size of motor: 2.1 Brand of engine: OM611.962 Type description: W203 From date: 01-05-2000 To date: 01-02-2007 Fuel: Diesel Approved: Yes
      Mercedes-Benz Model: 220 Model series: E 220 Type of engine: CDi Size of motor: 2.2 Brand of engine: OM611.961 Type description: 210 Body: Estate From date: 01-07-1999 To date: 01-03-2003 Fuel: Diesel Approved: Yes
      Mercedes-Benz Model: 220 Model series: E 220 Type of engine: CDi Size of motor: 2.2 Brand of engine: OM611.961 Type description: 210 From date: 01-07-1999 To date: 01-03-2002 Fuel: Diesel Approved: Yes
      Mercedes-Benz Model: 270 Model series: 270 Type of engine: CDI Size of motor: 2.7 Brand of engine: OM612.967 Type description: A209 Body: Convertible From date: 01-02-2003 To date: 01-06-2005 Fuel: Diesel Approved: Yes
      Mercedes-Benz Model: 270 Model series: C 270 Type of engine: CDi Size of motor: 2.7 Brand of engine: OM612.962 Type description: 203 Body: Estate From date: 01-03-2001 To date: 01-08-2007 Fuel: Diesel Approved: Yes
      Mercedes-Benz Model: 270 Model series: C 270 Type of engine: CDi Size of motor: 2.7 Brand of engine: OM612.962 Type description: 203 From date: 01-12-2000 To date: 01-02-2007 Fuel: Diesel Approved: Yes
      Mercedes-Benz Model: 270 Model series: C 270 Type of engine: CDi Size of motor: 2.8 Brand of engine: OM612.962 Type description: S203 Body: Estate From date: 01-03-2001 To date: 01-08-2007 Fuel: Diesel Approved: Yes Manufacture type: T-model
      Mercedes-Benz Model: 270 Model series: C 270 Type of engine: CDi Size of motor: 2.8 Brand of engine: OM612.962 Type description: W203 From date: 01-12-2000 To date: 01-02-2007 Fuel: Diesel Approved: Yes
      Mercedes-Benz Model: 270 Model series: CLK 270 Type of engine: CDi Size of motor: 2.7 Brand of engine: OM612.962 Type description: 209 Body: Coupe From date: 01-10-2002 To date: 01-05-2009 Fuel: Diesel Approved: Yes
      Mercedes-Benz Model: 270 Model series: CLK 270 Type of engine: CDi Size of motor: 2.7 Brand of engine: OM612.967 Type description: 209 Body: Coupe From date: 01-10-2002 To date: 01-05-2009 Fuel: Diesel Approved: Yes
      Mercedes-Benz Model: 270 Model series: E 270 Type of engine: CDi Size of motor: 2.7 Brand of engine: OM612.961 Type description: 210 From date: 01-07-1999 To date: 01-03-2002 Fuel: Diesel Approved: Yes
      Mercedes-Benz Model: 270 Model series: G 270 Type of engine: CDi Size of motor: 2.7 Brand of engine: OM612.965 Type description: 463 From date: 01-10-2001 Fuel: Diesel Approved: Yes
      Mercedes-Benz Model: 270 Model series: ML 270 Type of engine: CDi Size of motor: 2.7 Brand of engine: OM612.963 Type description: 163 From date: 01-12-1999 To date: 01-06-2005 Fuel: Diesel Approved: Yes
      Mercedes-Benz Model: 320 Model series: E 320 T Type of engine: CDi Size of motor: 3.2 Brand of engine: OM613.961 Type description: 210 Body: Estate From date: 01-07-1999 To date: 01-03-2003 Fuel: Diesel Approved: Yes
      Mercedes-Benz Model: 320 Model series: E 320 Type of engine: CDi Size of motor: 3.2 Brand of engine: OM613.961 Type description: 210 From date: 01-07-1999 To date: 01-03-2002 Fuel: Diesel Approved: Yes
      Mercedes-Benz Model: 320 Model series: E 320 Type of engine: CDi Size of motor: 3.2 Brand of engine: OM648.961 Body: Estate From date: 01-03-2003 To date: 01-07-2009 Fuel: Diesel Approved: Yes
      Mercedes-Benz Model: 320 Model series: E 320 Type of engine: CDi Size of motor: 3.2 Brand of engine: OM648.961 From date: 01-11-2002 To date: 01-12-2008 Fuel: Diesel Approved: Yes
      Mercedes-Benz Model: 320 Model series: S 320 Type of engine: CDi Size of motor: 3.2 Brand of engine: OM613.960 Type description: 220 From date: 01-08-1999 To date: 01-09-2002 Fuel: Diesel Approved: Yes
      Mercedes-Benz Model: C-Class Coupe Model series: C 220 Type of engine: CDI Size of motor: 2.1 Brand of engine: OM611.962 Type description: CL203 Body: Coupe From date: 01-03-2001 To date: 01-01-2004 Fuel: Diesel Approved: Yes
      1 / 5
