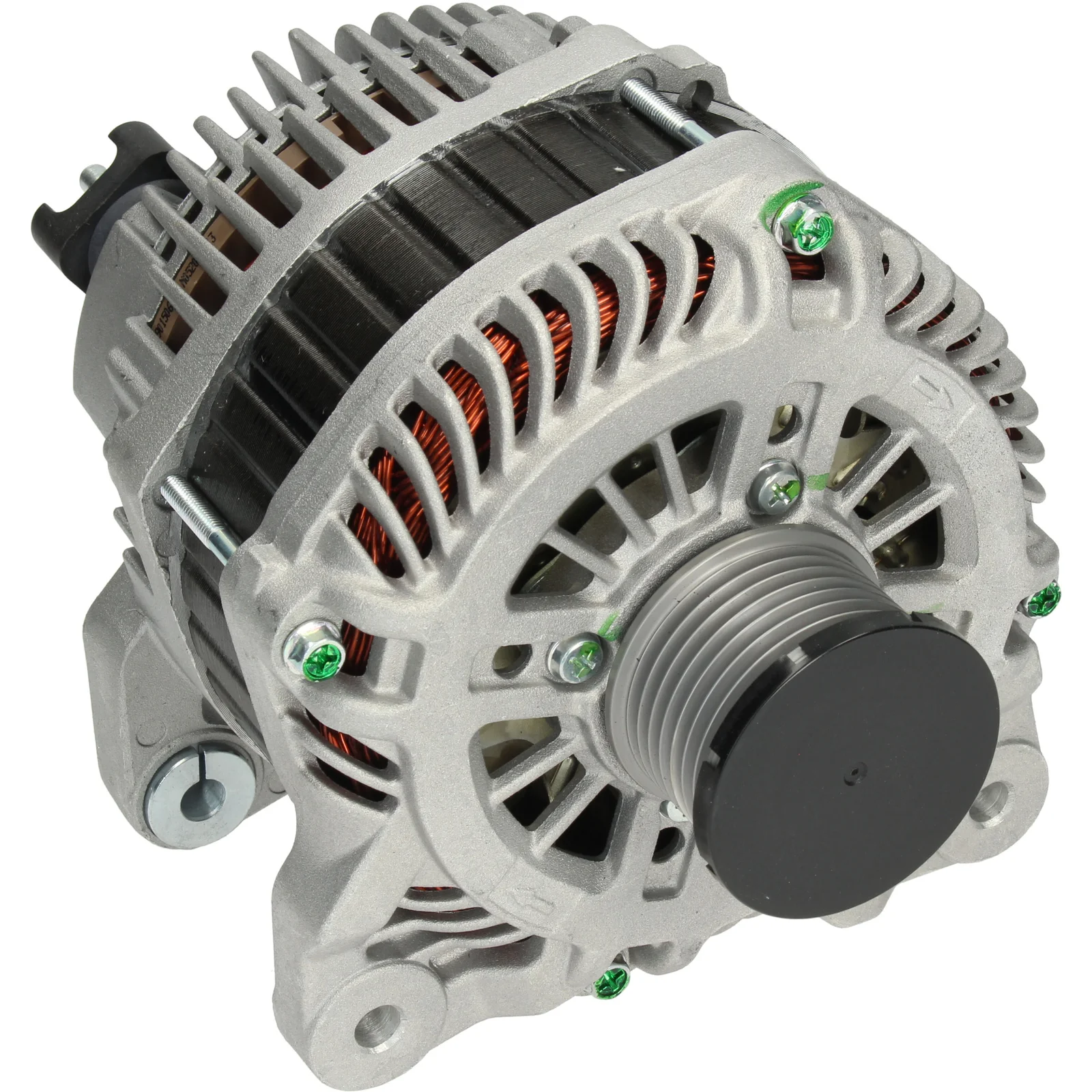

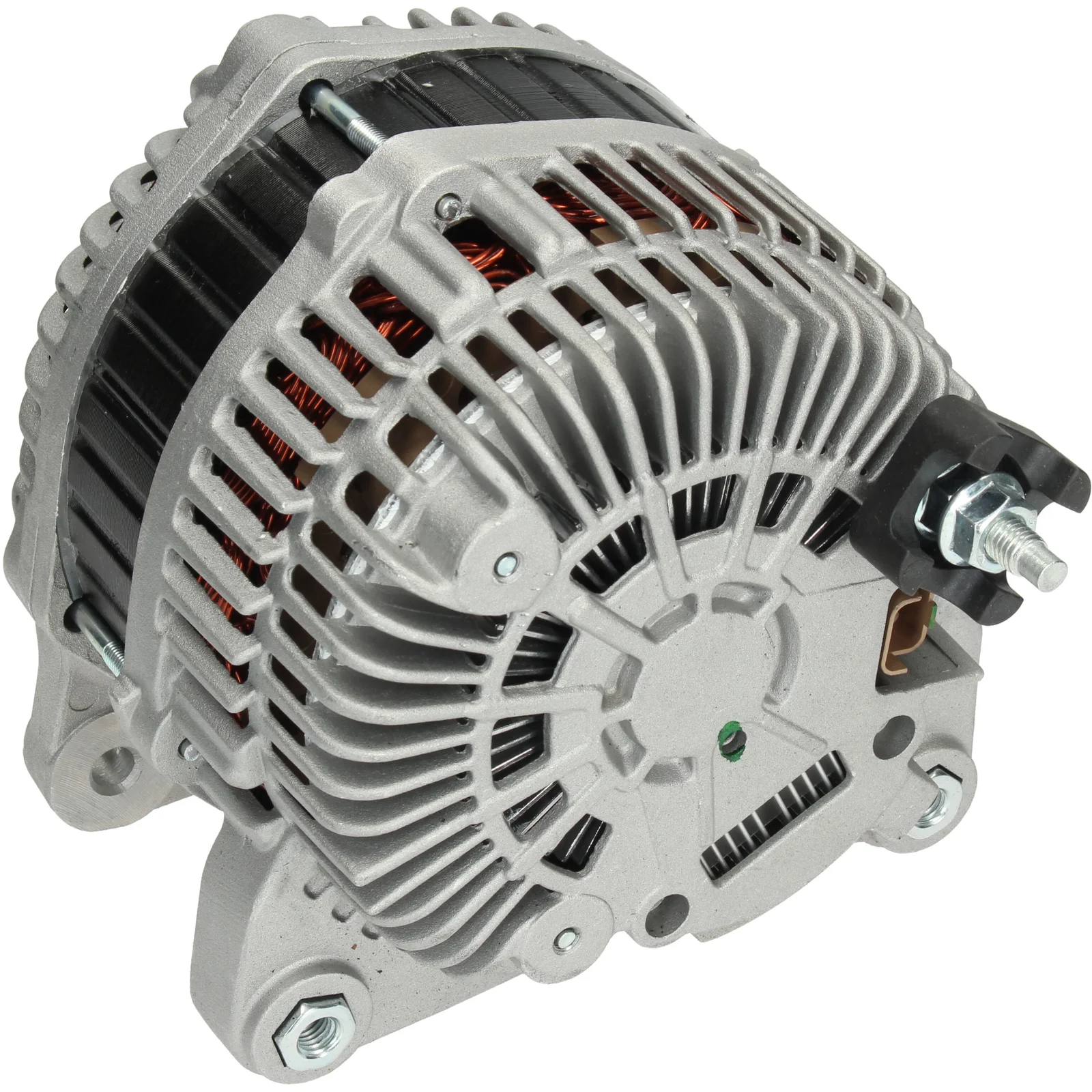

HC-Cargo Generator
HC-Cargo Generator
Vare nr.: F032114670

HC-Cargo Generator

Tekniske oplysninger:

Spænding: 14, Amp: 210, Rotation: CW, Remskive dia.: 49.00

Beskrivelse

Spænding: 14
Amp: 210
Remskive dist.: 33.00
Bredde/holderarm: 14.50
Bøsning hul: 8.70
Bæltespænd. justering bøsning pos.: 45
Bæltespænd. justering bøsning hul 1: 8.70
Remskive dia.: 49.00
Riller/remskive: 7
Radius: 90.00
Radius 2: 90.00
B+: M8
Position/B+ i min.: 3
D+ Størrelse: Pluggemøtrik
Rotation: CW
Plug nr.: PL72
Samlet længde mm: 198.50
Terminaltype: L-DF/DFM
Remskive: SP/FW
Vifte: IF
Regulator type: IR

Filer

Specifikation

B+ M8
Belt. adj. bracket hole 1 8.70
Belt. adj. brackethole pos. 45
Plug no. PL72
Bracket hole 8.70
Position/B+ in min. 3
Pulley SP/FW
Pulley dia. 49.00
Pulley dist. 33.00
Radius 90.00
D+ Size Plug
Radius 2 90.00
Regulator type IR
Rotation CW
Fan IF
Grooves/pulley 7
Terminal type L-DF/DFM
Voltage 14
Total length 198.50 mm
Width/holder arm 14.50
Amp 210

  • OEM
    A4TJ0381, a4tj0382, A4TJ0382ZE, F032114670, 7711368438, 8200404464, 8200654789, 8200960538

  • Konkurrentreferens
    A5410S, CAL35259, DRA1312, 28-6990, 230.336.2102, 20254R, 440898, 443373, 12090502

  • NormaliseratArtNr
    a4tj0381, a4tj0382, a4tj0382ze, a5410s, cal35259, dra1312, f032114670, 20254r, 286990, 440898, 443373, 12090502, 2303362102, 7711368438, 8200404464, 8200654789, 8200960538

  • Passar modeller
    Renault Model: Espace Model series: Espace Type of engine: DCi Size of motor: 2.0 Brand of engine: M9R740 Type description: JK0/1_ Body: MPV From date: 01-01-2006 Fuel: Diesel Approved: Yes
    Renault Model: Espace Model series: Espace Type of engine: DCi Size of motor: 2.0 Brand of engine: M9R750 Type description: JK0/1_ Body: MPV From date: 01-01-2006 Fuel: Diesel Approved: Yes
    Renault Model: Espace Model series: Espace Type of engine: DCi Size of motor: 2.0 Brand of engine: M9R760 Type description: JK0/1_ Body: MPV From date: 01-01-2006 Fuel: Diesel Approved: Yes
    Renault Model: Espace Model series: Espace Type of engine: DCi Size of motor: 2.0 Brand of engine: M9R761 Type description: JK0/1_ Body: MPV From date: 01-01-2006 Fuel: Diesel Approved: Yes
    Renault Model: Espace Model series: Espace Type of engine: DCi Size of motor: 2.0 Brand of engine: M9R762 Type description: JK0/1_ Body: MPV From date: 01-01-2006 Fuel: Diesel Approved: Yes
    Renault Model: Espace Model series: Espace Type of engine: DCi Size of motor: 2.0 Brand of engine: M9R763 Type description: JK0/1_ Body: MPV From date: 01-01-2006 Fuel: Diesel Approved: Yes
    Renault Model: Espace Model series: Espace Type of engine: DCi Size of motor: 2.0 Brand of engine: M9R802 Type description: JK0/1 Body: MPV From date: 01-01-2006 Fuel: Diesel Approved: Yes
    Renault Model: Espace Model series: Espace Type of engine: DCi Size of motor: 2.0 Brand of engine: M9R815 Type description: JK0/1_ Body: MPV From date: 01-01-2006 Fuel: Diesel Approved: Yes
    Renault Model: Laguna Model series: Laguna Type of engine: DCi Size of motor: 2.0 Brand of engine: M9R700 Type description: KG0/1_ Body: Estate From date: 01-08-2005 To date: 01-08-2006 Fuel: Diesel Approved: Yes Manufacture type: grandtour
    Renault Model: Laguna Model series: Laguna Type of engine: DCi Size of motor: 2.0 Brand of engine: M9R740 Type description: BG0/1_ Body: Hatchback From date: 01-08-2005 To date: 01-08-2006 Fuel: Diesel Approved: Yes
    Renault Model: Laguna Model series: Laguna Type of engine: DCi Size of motor: 2.0 Brand of engine: M9R740 Type description: KG0/1_ Body: Estate From date: 01-08-2005 To date: 01-08-2006 Fuel: Diesel Approved: Yes Manufacture type: grandtour
    Renault Model: Laguna Model series: Laguna Type of engine: DCi Size of motor: 2.0 Brand of engine: M9R760 Type description: BG0/1_ Body: Hatchback From date: 01-01-2006 To date: 01-08-2007 Fuel: Diesel Approved: Yes
    Renault Model: Laguna Model series: Laguna Type of engine: DCi Size of motor: 2.0 Brand of engine: M9R760 Type description: KG0/1_ Body: Estate From date: 01-01-2006 To date: 01-12-2007 Fuel: Diesel Approved: Yes Manufacture type: grandtour
    Renault Model: Vel Satis Model series: Vel Satis Type of engine: DCi Size of motor: 2.0 Brand of engine: M9R760 Type description: BJ0_ Body: MPV From date: 01-01-2006 Fuel: Diesel Approved: Yes
    Renault Model: Vel Satis Model series: Vel Satis Type of engine: DCi Size of motor: 2.0 Brand of engine: M9R760 Type description: BJ0_ Body: MPV From date: 01-08-2005 Fuel: Diesel Approved: Yes
    Renault Model: Vel Satis Model series: Vel Satis Type of engine: DCi Size of motor: 2.0 Brand of engine: M9R762 Type description: BJ0_ Body: MPV From date: 01-01-2006 Fuel: Diesel Approved: Yes
    Renault Model: Vel Satis Model series: Vel Satis Type of engine: DCi Size of motor: 2.0 Brand of engine: M9R763 Type description: BJ0_ Body: MPV From date: 01-01-2006 Fuel: Diesel Approved: Yes
