Vare nr.: F032116056

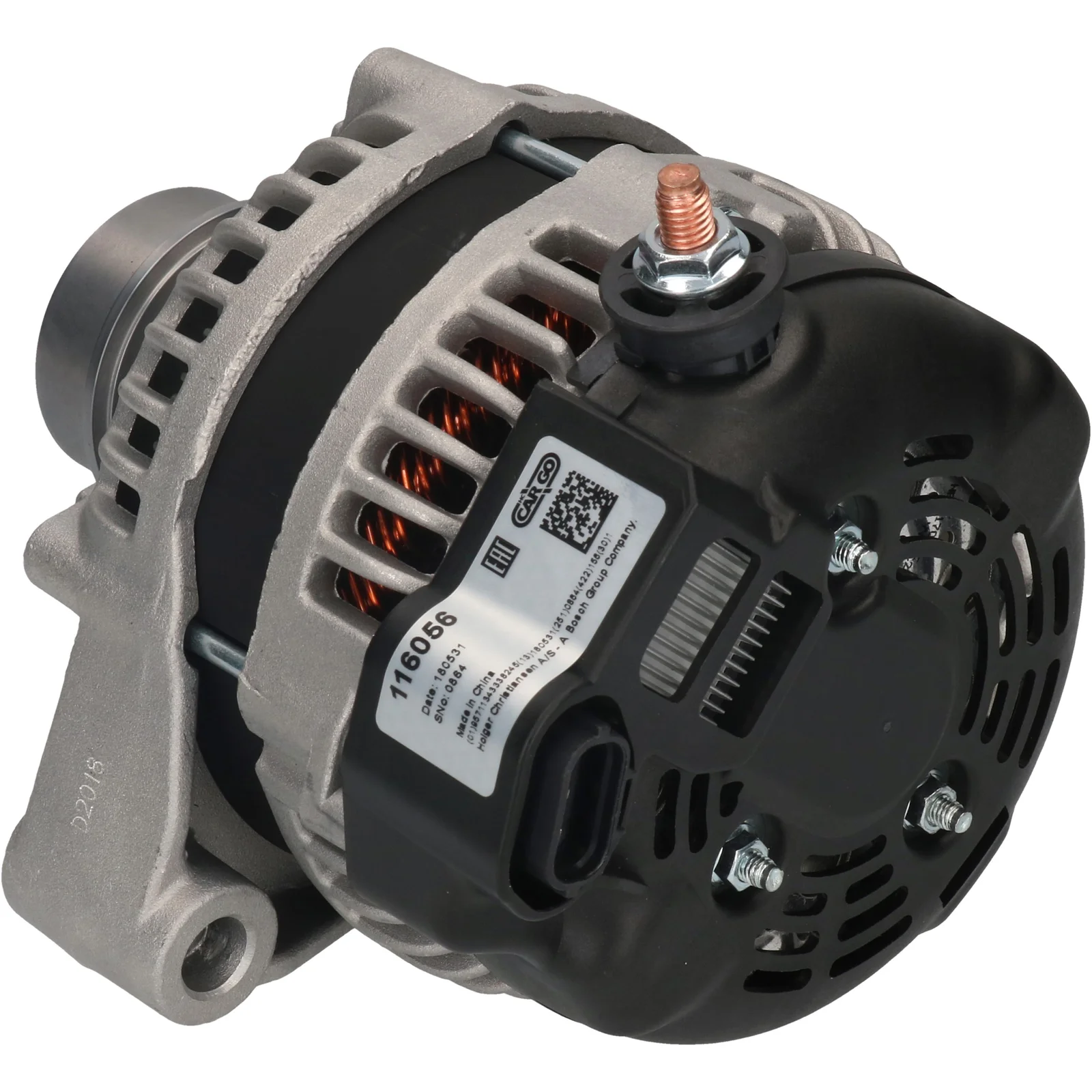

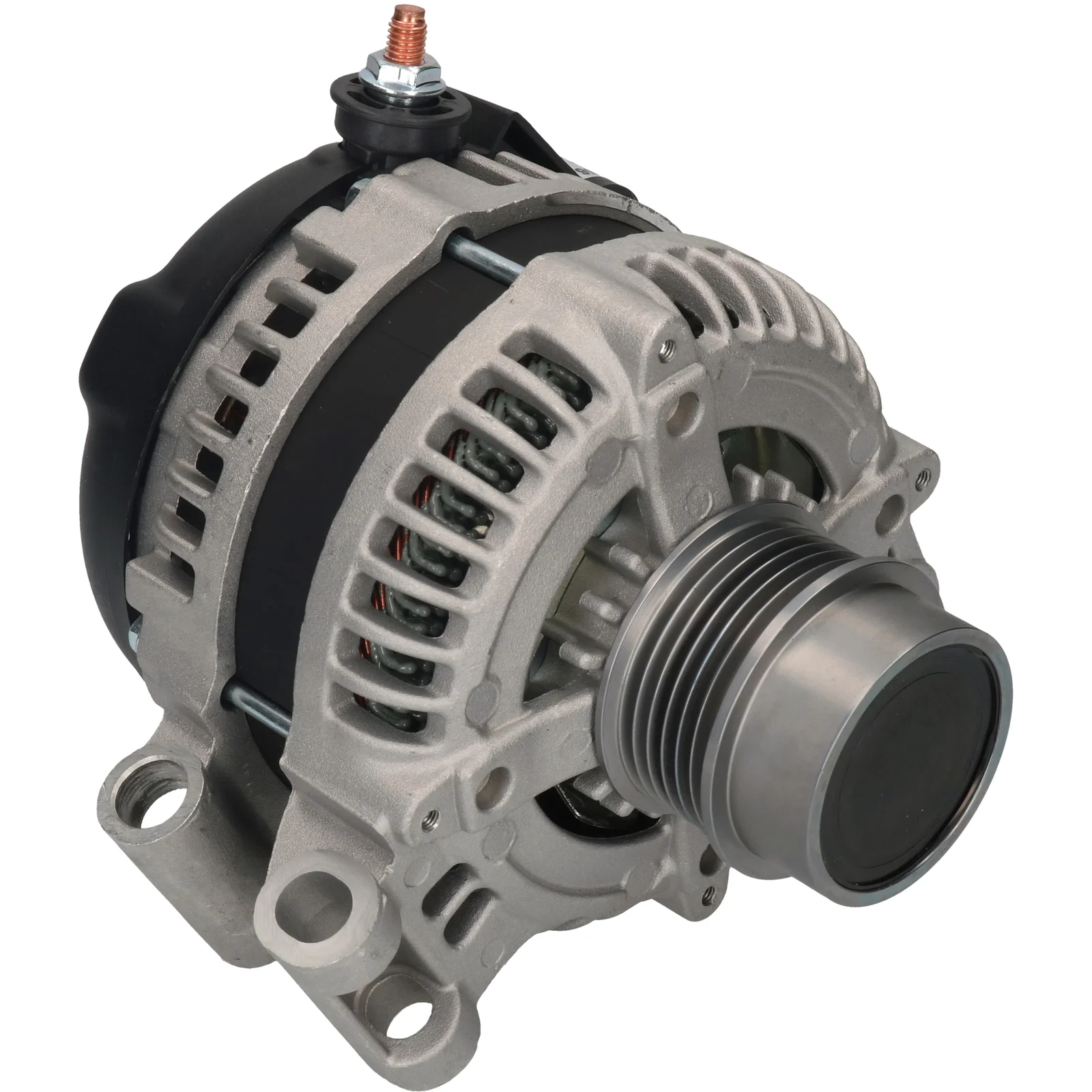

HC-Cargo Generator

Tekniske oplysninger:

Voltage: 14, Amp: 150, Rotation: CW, Mount. bøsning af dist.: 48.00

Beskrivelse

Spænding: 14
Amp: 150
Remskive dist.: 22,00
Bredde/festearm: 50,00
Beslag monteringsbeslag dist.: 48,00
Beslagshul: 12,00x14,60
Viskerremjusteringsbeslaghul position.: 8
Viskerremjusteringsbeslag hul 1: 11,50
Remskive dia.: 57,50
Groove/rimskive: 6
Radius: 84,00
Radius 2: 86,00
B+: M8
Position/B+ i min.: 8
D+ Størrelse: Stik
Rotation: CW
Stik nr.: PL136
Total længde mm: 183,00
Remskive: SP/FW
Regulator type: IR

Specifikation

B+ M8
Mount. bracket dist. 48.00
Belt. adj. bracket hole 1 11.50
Belt. adj. brackethole pos. 8
Plug no. PL136
Bracket hole 12.00x14.60
Position/B+ in min. 8
Pulley SP/FW
Pulley dia. 57.50
Pulley dist. 22.00
Radius 84.00
D+ Size Plug
Radius 2 86.00
Regulator type IR
Rotation CW
Grooves/pulley 6
Voltage 14
Total length 183.00 mm
Width/holder arm 50.00
Amp 150
  • OEM

    c2c20533, F032116056, 4R8310300AB, 104210-3720
  • Konkurrentreferens

    A6175, CAL40255, DRA0254, LRA03123, 28-5735, 214.165.1502, 845.505.150, 24123, 24123R, 553399RI, 12060980, 32010001
  • NormaliseratArtNr

    a6175, c2c20533, cal40255, dra0254, f032116056, lra03123, 4r8310300ab, 24123, 24123r, 285735, 553399ri, 12060980, 32010001, 845505150, 1042103720, 2141651502
  • Passar modeller

    Jaguar Model: S-type Model series: S-type Model type: L Type of engine: Diesel Size of motor: 2.7 Brand of engine: AJD Type description: CCX From date: 01-06-2004 To date: 01-10-2007 Fuel: Diesel Approved: Yes
    Jaguar Model: XJ Model series: XJ 6 Type of engine: Diesel Size of motor: 2.7 Brand of engine: AJD From date: 01-10-2005 To date: 01-03-2009 Fuel: Diesel Approved: Yes
  • Beskrivelse
    Spænding: 14
    Amp: 150
    Remskive dist.: 22,00
    Bredde/festearm: 50,00
    Beslag monteringsbeslag dist.: 48,00
    Beslagshul: 12,00x14,60
    Viskerremjusteringsbeslaghul position.: 8
    Viskerremjusteringsbeslag hul 1: 11,50
    Remskive dia.: 57,50
    Groove/rimskive: 6
    Radius: 84,00
    Radius 2: 86,00
    B+: M8
    Position/B+ i min.: 8
    D+ Størrelse: Stik
    Rotation: CW
    Stik nr.: PL136
    Total længde mm: 183,00
    Remskive: SP/FW
    Regulator type: IR
  • Specifikation
    B+ M8
    Mount. bracket dist. 48.00
    Belt. adj. bracket hole 1 11.50
    Belt. adj. brackethole pos. 8
    Plug no. PL136
    Bracket hole 12.00x14.60
    Position/B+ in min. 8
    Pulley SP/FW
    Pulley dia. 57.50
    Pulley dist. 22.00
    Radius 84.00
    D+ Size Plug
    Radius 2 86.00
    Regulator type IR
    Rotation CW
    Grooves/pulley 6
    Voltage 14
    Total length 183.00 mm
    Width/holder arm 50.00
    Amp 150
  • Køretøjsmatchning
    • OEM

      c2c20533, F032116056, 4R8310300AB, 104210-3720
    • Konkurrentreferens

      A6175, CAL40255, DRA0254, LRA03123, 28-5735, 214.165.1502, 845.505.150, 24123, 24123R, 553399RI, 12060980, 32010001
    • NormaliseratArtNr

      a6175, c2c20533, cal40255, dra0254, f032116056, lra03123, 4r8310300ab, 24123, 24123r, 285735, 553399ri, 12060980, 32010001, 845505150, 1042103720, 2141651502
    • Passar modeller

      Jaguar Model: S-type Model series: S-type Model type: L Type of engine: Diesel Size of motor: 2.7 Brand of engine: AJD Type description: CCX From date: 01-06-2004 To date: 01-10-2007 Fuel: Diesel Approved: Yes
      Jaguar Model: XJ Model series: XJ 6 Type of engine: Diesel Size of motor: 2.7 Brand of engine: AJD From date: 01-10-2005 To date: 01-03-2009 Fuel: Diesel Approved: Yes
