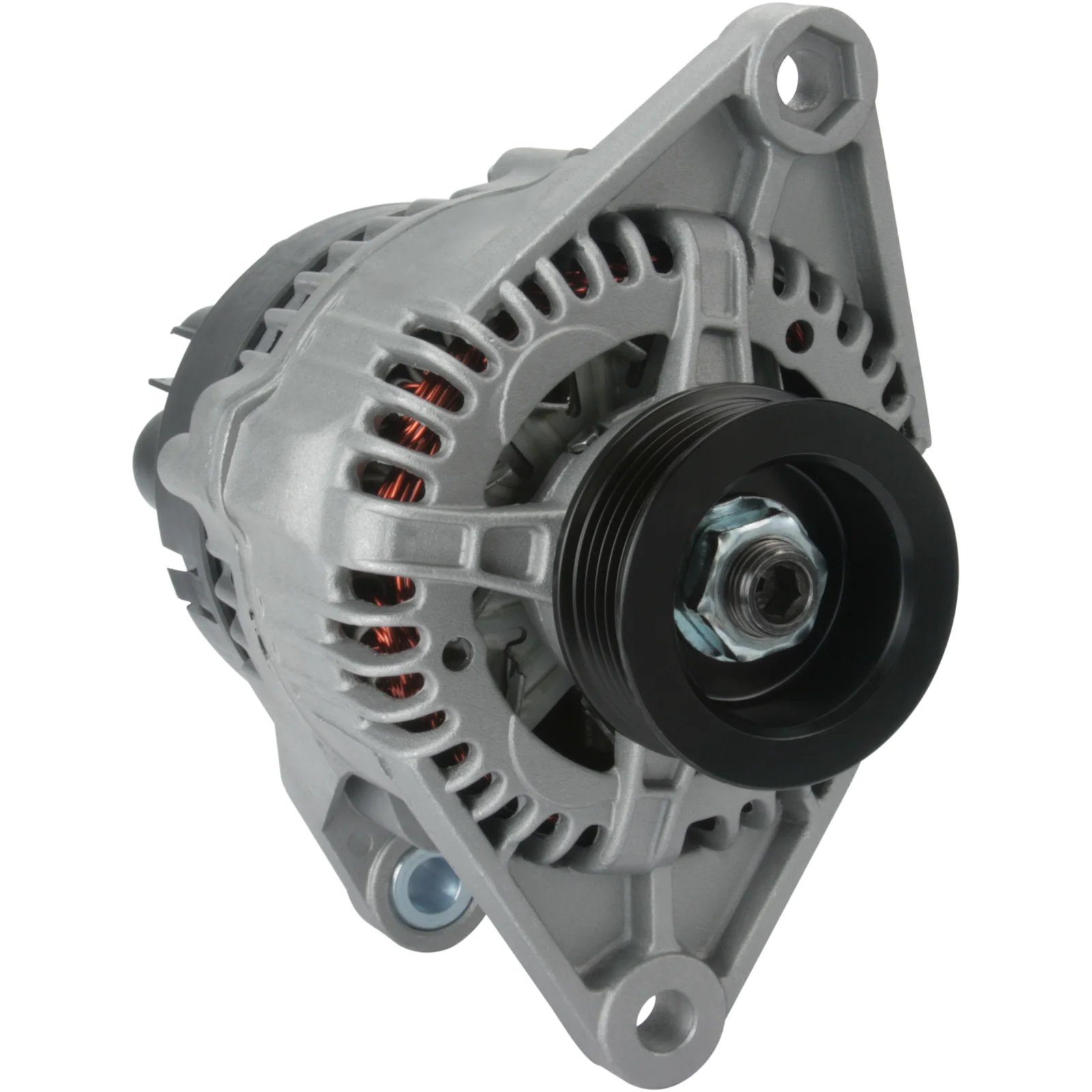

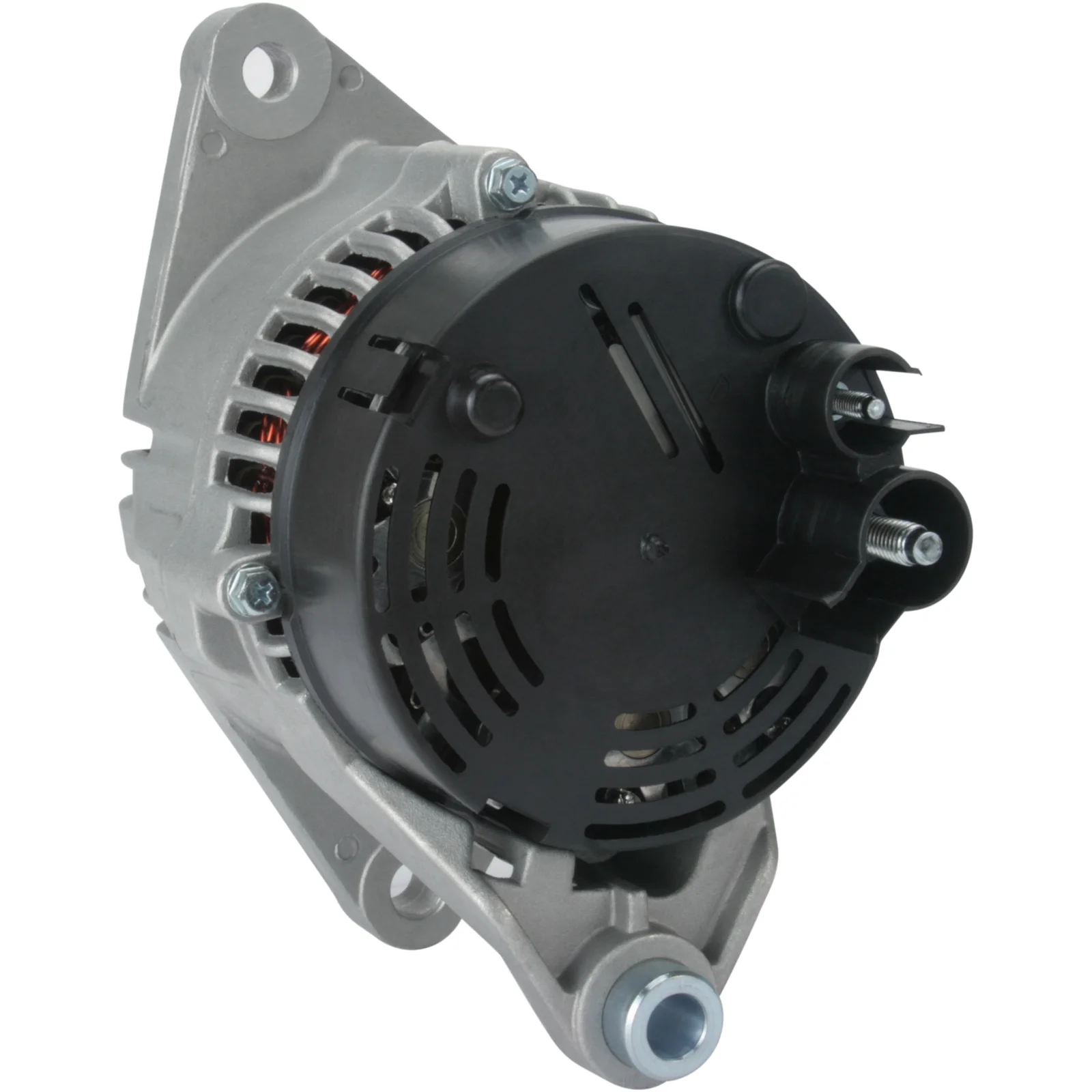

HC-Cargo Generator
HC-Cargo Generator
Vare nr.: F032111802

HC-Cargo Generator

Tekniske oplysninger:

Spænding: 14, Amp: 75, Rotation: CW, Montering. bøjning dist.: 81,80

Beskrivelse

"Spænding: 14
Amp: 75
Remskive disp.: 40,50
Bredde/beslag arm: 17,00
Monteringsbeslag disp.: 81,80
Beslagshul: 12,30
Bæltejustering beslagshul position: 3
Bæltejustering beslagshul 1: 11,30
Remskivens diameter: 62,40
Fordybninger/remskive: 5
Radius: 90,00
Radius 2: 90,00
B+: M8
Position/B+ i min.: 15
D+ Størrelse: M5
Rotation: CW
Samlet længde mm: 187,00
Remskive: SP
Regulator type: IR
Produktinfo: BN
Service: Fiat"

Filer

Specifikation

B+ M8
Mount. bracket dist. 81.80
Belt. adj. bracket hole 1 11.30
Belt. adj. brackethole pos. 3
Bracket hole 12.30
Position/B+ in min. 15
Prod. info BN
Pulley SP
Pulley dia. 62.40
Pulley dist. 40.50
Radius 90.00
D+ Size M5
Radius 2 90.00
Regulator type IR
Rotation CW
Servicing Fiat
Grooves/pulley 5
Voltage 14
Total length 187.00 mm
Width/holder arm 17.00
Amp 75

  • OEM
    A4006, A4006PR, A4006R, ALT12013, BAO3271, CAL30126, DAN627, DRA3424, dra3646, DRA3646, F032111802, FRA943, lrb00292, LRB00292, QA3187, 8el737405-001, 8EL737405001, 28-2845, 218.165.752, 1258ir, 5705GV, 5705GW, 5705S0, 5921, 21292N, 119702, 210079, 210079A, 301258RI, 437851, 5895030, 7769840, 7770084, 7798011, 12090028, 32321620, 46231763, 46420966, 46425517, 46430110, 46430111, 46434930, 46434933, 46442777, 46464276, 46540294, 46774413, 63321205, 63321276, 63321361, 63321617, 063321620, 943321617, 1305709080, 1315060080, 063321617010, 063321620010, 130570908080, 131506008080, 944390900310

  • Konkurrentreferens
    A4006, A4006PR, A4006R, ALT12013, BAO3271, CAL30126, DAN627, DRA3424, dra3646, FRA943, lrb00292, QA3187, 8el737405-001, 28-2845, 218.165.752, 5921, 21292N, 119702, 210079, 210079A, 301258RI, 437851, 12090028, 32321620, 063321620, 943321617, 063321617010, 063321620010, 944390900310

  • Bilmärken
    CITROËN, FIAT, PEUGEOT

  • NormaliseratArtNr
    a4006, a4006pr, a4006r, alt12013, bao3271, cal30126, dan627, dra3424, dra3646, f032111802, fra943, lrb00292, qa3187, 8el737405001, 1258ir, 5705gv, 5705gw, 5705s0, 5921, 21292n, 119702, 210079, 210079a, 282845, 301258ri, 437851, 5895030, 7769840, 7770084, 7798011, 12090028, 32321620, 46231763, 46420966, 46425517, 46430110, 46430111, 46434930, 46434933, 46442777, 46464276, 46540294, 46774413, 63321205, 63321276, 63321361, 63321617, 063321620, 218165752, 943321617, 1305709080, 1315060080, 063321617010, 063321620010, 130570908080, 131506008080, 944390900310

  • Passar modeller
    CITROËN JUMPY I (U6U_) 1.6 Engine volume: 1.6 Engine type: 1580 SPI, 220 A2.000 Year: 10.95-08.00
    CITROËN JUMPY I Skåp (BS_, BT_, BY_, BZ_) 1.6 i Engine volume: 1.6 Engine type: 1580 SPI, 220 A2.000 Year: 10.95-08.00
    FIAT DUCATO Buss (230_) 1.9 D Combinato Engine volume: 1.9 Engine type: 230 A2.000 Year: 06.95-04.02
    FIAT DUCATO Buss (230_) 1.9 D Engine volume: 1.9 Engine type: DJY Year: 04.98-04.02
    FIAT DUCATO Buss (230_) 1.9 TD Combinato Engine volume: 1.9 Engine type: 230 A4.000 Year: 08.94-04.02
    FIAT DUCATO Buss (230_) 1.9 TD Engine volume: 1.9 Engine type: DHX (XUD9TF/L), DHX Year: 04.98-04.02
    FIAT DUCATO Buss (230_) 1.9 TD Panorama/Combinato Engine volume: 1.9 Engine type: 230 A3.000 Year: 03.94-04.02
    FIAT DUCATO Flak/chassi (230_) 1.9 D Engine volume: 1.9 Engine type: 230 A2.000 Year: 03.94-04.02
    FIAT DUCATO Flak/chassi (230_) 1.9 D Engine volume: 1.9 Engine type: DJY Year: 04.98-04.02
    FIAT DUCATO Flak/chassi (230_) 1.9 TD CAT Engine volume: 1.9 Engine type: 230 A4.000 Year: 08.94-04.02
    FIAT DUCATO Flak/chassi (230_) 1.9 TD Engine volume: 1.9 Engine type: 230 A3.000 Year: 03.94-04.02
    FIAT DUCATO Flak/chassi (230_) 1.9 TD Engine volume: 1.9 Engine type: DHX (XUD9TF/L), DHX Year: 04.98-04.02
    FIAT DUCATO Skåp (230_) 1.9 D Engine volume: 1.9 Engine type: 230 A2.000 Year: 03.94-04.02
    FIAT DUCATO Skåp (230_) 1.9 D Engine volume: 1.9 Engine type: DJY Year: 04.98-04.02
    FIAT DUCATO Skåp (230_) 1.9 TD CAT Engine volume: 1.9 Engine type: 230 A4.000 Year: 08.94-04.02
    FIAT DUCATO Skåp (230_) 1.9 TD Engine volume: 1.9 Engine type: 230 A3.000 Year: 03.94-04.02
    FIAT DUCATO Skåp (230_) 1.9 TD Engine volume: 1.9 Engine type: DHX (XUD9TF/L), DHX Year: 04.98-04.02
    FIAT PALIO Weekend (178_, 173_, 373_, 374_, 171_) 1.7 TD Engine volume: 1.7 Engine type: 176 A3.000 Year: 04.96-03.01
    FIAT SCUDO Buss (220_) 1.6 Engine volume: 1.6 Engine type: 220 A 2.000 Year: 02.96-12.06
    FIAT SCUDO Flak/chassi (220_) 1.6 Engine volume: 1.6 Engine type: 220 A 2.000 Year: 09.96-12.06
    FIAT SCUDO Skåp (220_) 1.6 Engine volume: 1.6 Engine type: 220 A 2.000 Year: 02.96-12.06
    FIAT STRADA Pick-up (178_, 278_) 1.7 TD Engine volume: 1.7 Engine type: 176 A3.000 Year: 06.99-12.06
    PEUGEOT EXPERT (224_) 1.6 Engine volume: 1.6 Engine type: 222A2 (1580 SPI) Year: 02.96-09.00
    PEUGEOT EXPERT Flak/chassi (223) 1.6 Engine volume: 1.6 Engine type: 222A2 (1580 SPI) Year: 02.96-09.00
    PEUGEOT EXPERT Skåp (222) 1.6 Engine volume: 1.6 Engine type: 222A2 (1580 SPI) Year: 02.96-09.00
    1 / 5
