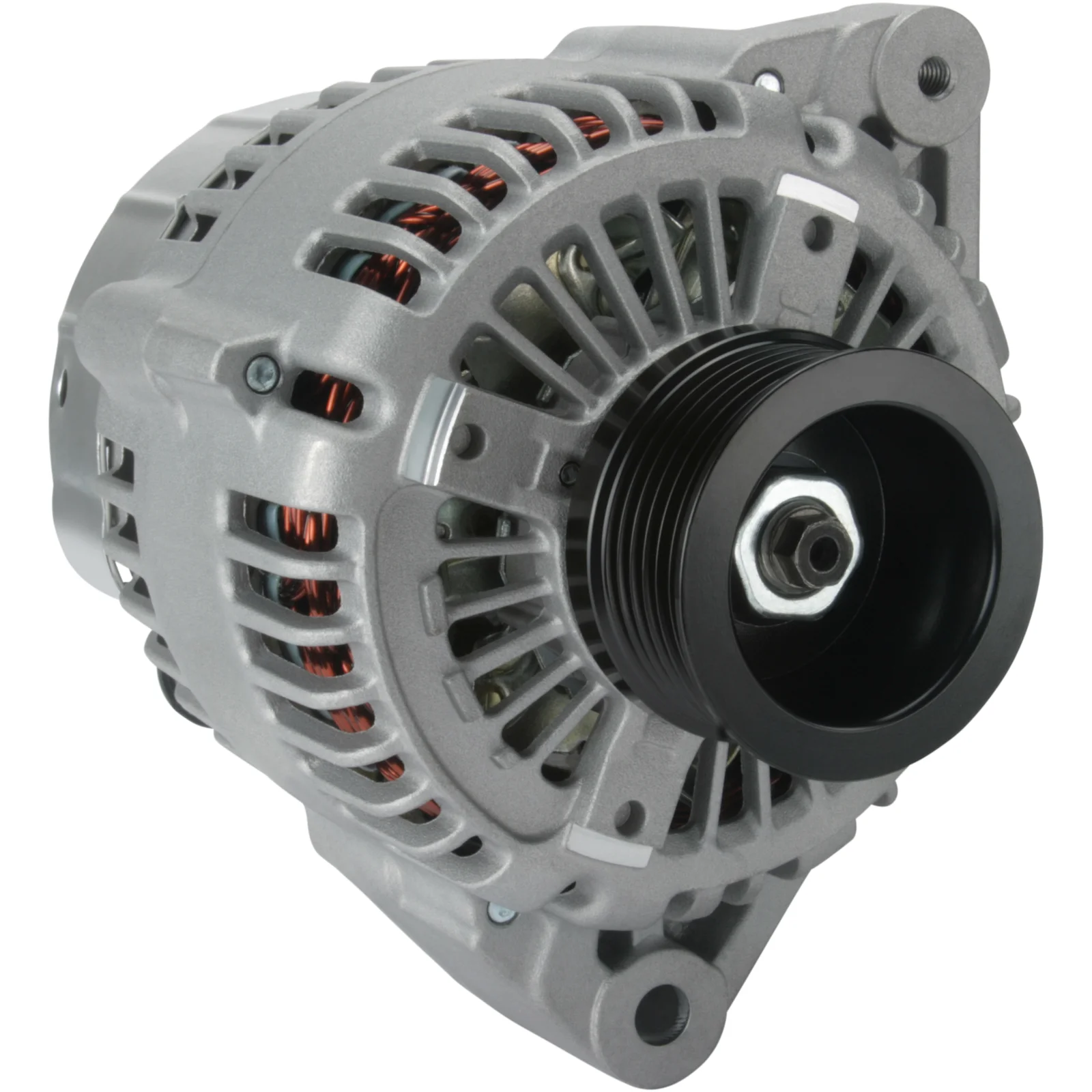

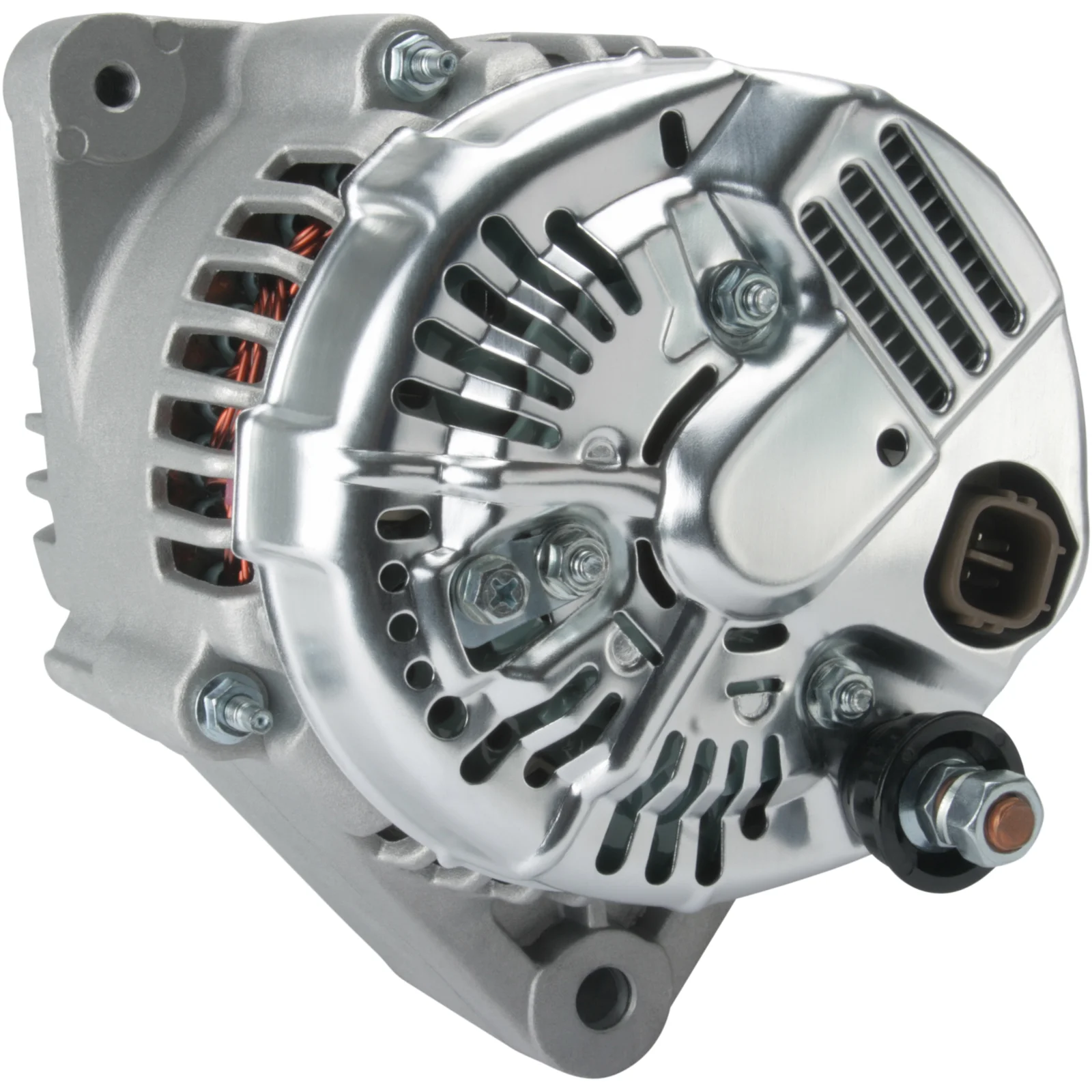

HC-Cargo Generator
HC-Cargo Generator
Vare nr.: F032115788

HC-Cargo Generator

Tekniske oplysninger:

Spenning: 14, Amp: 120, Rotation: CW, Remskive diameter: 59,00

Beskrivelse

Spænding: 14
Amp: 120
Remskive dist.: 97,00
Bredde/holderarm: 58,00
Bøjlehull: 10,50
Bælte. justering bøjlehull pos.: 7
Bælte. justering bøjlehull 1: M8
Remskive dia.: 59,00
Riller/remskive: 6
Radie: 86,00
Radie 2: 86,00
B+: M8
Position/B+ i min.: 25
D+ Størrelse: Prot
Rotation: CW
Prot.nr.: PL60
Samlet længde mm: 197,00
Remskive: SP
Spændingsregulator type: IR
Produktoplysninger: BN

Filer

Specifikation

B+ M8
Belt. adj. bracket hole 1 M8
Belt. adj. brackethole pos. 7
Plug no. PL60
Bracket hole 10.50
Position/B+ in min. 25
Prod. info BN
Pulley SP
Pulley dia. 59.00
Pulley dist. 97.00
Radius 86.00
D+ Size Plug
Radius 2 86.00
Regulator type IR
Rotation CW
Grooves/pulley 6
Voltage 14
Total length 197.00 mm
Width/holder arm 58.00
Amp 120

  • OEM
    c2s40072, F032115788, XR822418, 1X4310300BD, 102211-086, 102211-0860, 102211-0861

  • Konkurrentreferens
    A6029, ALT30134, CAL40224, DAN1407, DRA0433, LRA03195, 28-5807, 214.167.1202, 845.503.120, 13925, 13925R, 112996, 209411, 209411A, 9090664, 12060982

  • NormaliseratArtNr
    a6029, alt30134, c2s40072, cal40224, dan1407, dra0433, f032115788, lra03195, xr822418, 1x4310300bd, 13925, 13925r, 112996, 209411, 209411a, 285807, 9090664, 12060982, 102211086, 845503120, 1022110860, 1022110861, 2141671202

  • Passar modeller
    Jaguar Model: X-type Model series: X-type Type of engine: V6 Size of motor: 2.0 Brand of engine: YB (AJ-V6) Body: Estate From date: 01-11-2003 To date: 01-03-2009 Fuel: Gasoline Approved: Yes Manufacture type: estate
    Jaguar Model: X-type Model series: X-type Type of engine: V6 Size of motor: 2.0 Brand of engine: YB From date: 01-03-2002 To date: 01-11-2009 Fuel: Gasoline Approved: Yes
    Jaguar Model: X-type Model series: X-type Type of engine: V6 Size of motor: 2.5 Brand of engine: XB Body: Estate From date: 01-02-2004 To date: 01-12-2009 Fuel: Gasoline Approved: Yes Manufacture type: estate
    Jaguar Model: X-type Model series: X-type Type of engine: V6 Size of motor: 2.5 Brand of engine: XB Type description: CF1 From date: 01-06-2001 To date: 01-11-2009 Fuel: Gasoline Approved: Yes
    Jaguar Model: X-type Model series: X-type Type of engine: V6 Size of motor: 3.0 Brand of engine: AJ-V6 Body: Estate From date: 01-02-2004 To date: 01-12-2009 Fuel: Gasoline Approved: Yes Manufacture type: estate
    Jaguar Model: X-type Model series: X-type Type of engine: V6 Size of motor: 3.0 Brand of engine: AJ-V6 From date: 01-06-2001 To date: 01-12-2008 Fuel: Gasoline Approved: Yes
    1 / 2
  • Beskrivelse
    Spænding: 14
    Amp: 120
    Remskive dist.: 97,00
    Bredde/holderarm: 58,00
    Bøjlehull: 10,50
    Bælte. justering bøjlehull pos.: 7
    Bælte. justering bøjlehull 1: M8
    Remskive dia.: 59,00
    Riller/remskive: 6
    Radie: 86,00
    Radie 2: 86,00
    B+: M8
    Position/B+ i min.: 25
    D+ Størrelse: Prot
    Rotation: CW
    Prot.nr.: PL60
    Samlet længde mm: 197,00
    Remskive: SP
    Spændingsregulator type: IR
    Produktoplysninger: BN

    Filer

  • Specifikation
    B+ M8
    Belt. adj. bracket hole 1 M8
    Belt. adj. brackethole pos. 7
    Plug no. PL60
    Bracket hole 10.50
    Position/B+ in min. 25
    Prod. info BN
    Pulley SP
    Pulley dia. 59.00
    Pulley dist. 97.00
    Radius 86.00
    D+ Size Plug
    Radius 2 86.00
    Regulator type IR
    Rotation CW
    Grooves/pulley 6
    Voltage 14
    Total length 197.00 mm
    Width/holder arm 58.00
    Amp 120
  • Køretøjsmatchning

    • OEM
      c2s40072, F032115788, XR822418, 1X4310300BD, 102211-086, 102211-0860, 102211-0861

    • Konkurrentreferens
      A6029, ALT30134, CAL40224, DAN1407, DRA0433, LRA03195, 28-5807, 214.167.1202, 845.503.120, 13925, 13925R, 112996, 209411, 209411A, 9090664, 12060982

    • NormaliseratArtNr
      a6029, alt30134, c2s40072, cal40224, dan1407, dra0433, f032115788, lra03195, xr822418, 1x4310300bd, 13925, 13925r, 112996, 209411, 209411a, 285807, 9090664, 12060982, 102211086, 845503120, 1022110860, 1022110861, 2141671202

    • Passar modeller
      Jaguar Model: X-type Model series: X-type Type of engine: V6 Size of motor: 2.0 Brand of engine: YB (AJ-V6) Body: Estate From date: 01-11-2003 To date: 01-03-2009 Fuel: Gasoline Approved: Yes Manufacture type: estate
      Jaguar Model: X-type Model series: X-type Type of engine: V6 Size of motor: 2.0 Brand of engine: YB From date: 01-03-2002 To date: 01-11-2009 Fuel: Gasoline Approved: Yes
      Jaguar Model: X-type Model series: X-type Type of engine: V6 Size of motor: 2.5 Brand of engine: XB Body: Estate From date: 01-02-2004 To date: 01-12-2009 Fuel: Gasoline Approved: Yes Manufacture type: estate
      Jaguar Model: X-type Model series: X-type Type of engine: V6 Size of motor: 2.5 Brand of engine: XB Type description: CF1 From date: 01-06-2001 To date: 01-11-2009 Fuel: Gasoline Approved: Yes
      Jaguar Model: X-type Model series: X-type Type of engine: V6 Size of motor: 3.0 Brand of engine: AJ-V6 Body: Estate From date: 01-02-2004 To date: 01-12-2009 Fuel: Gasoline Approved: Yes Manufacture type: estate
      Jaguar Model: X-type Model series: X-type Type of engine: V6 Size of motor: 3.0 Brand of engine: AJ-V6 From date: 01-06-2001 To date: 01-12-2008 Fuel: Gasoline Approved: Yes
