HC-Cargo Generator
HC-Cargo Generator
Vare nr.: F032114206

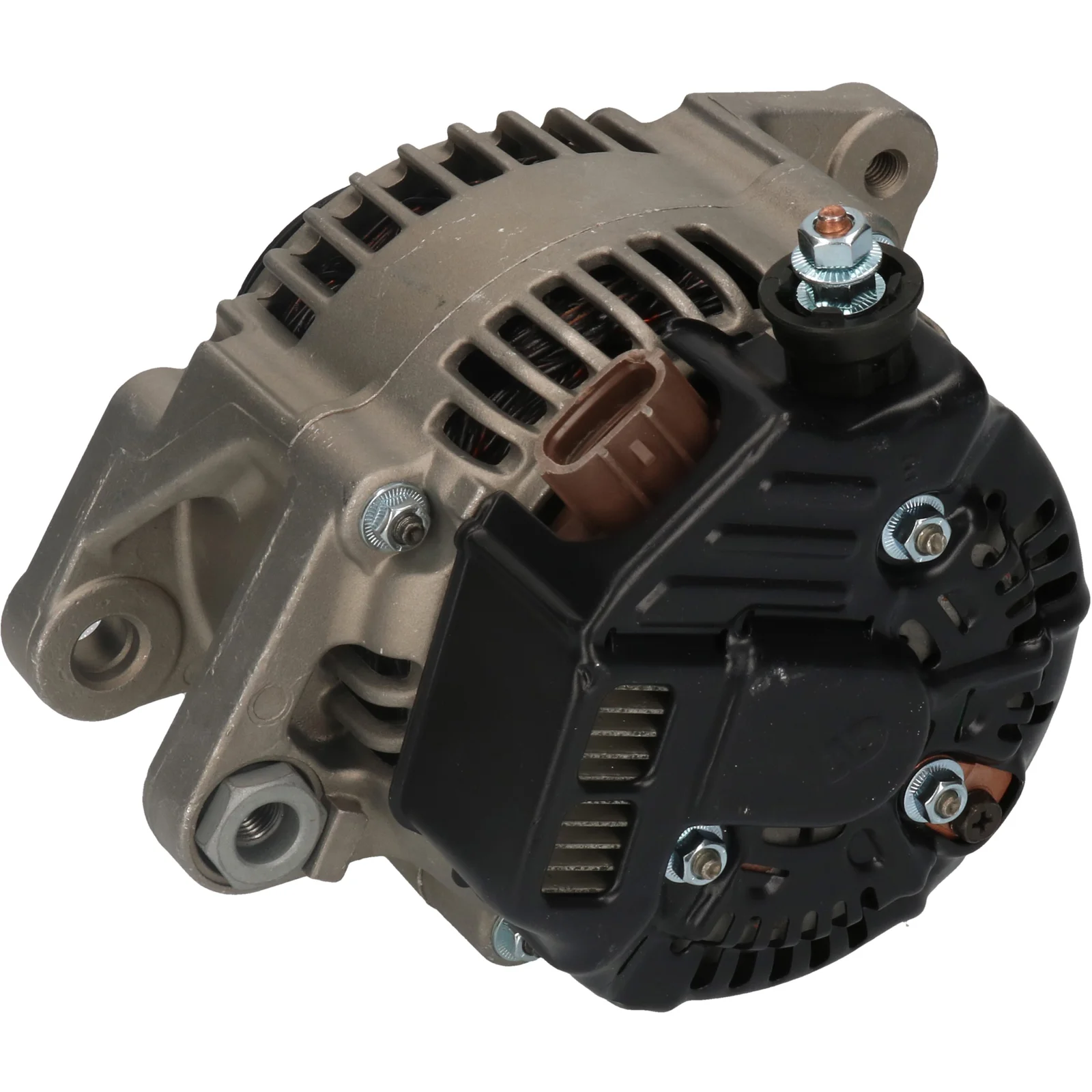

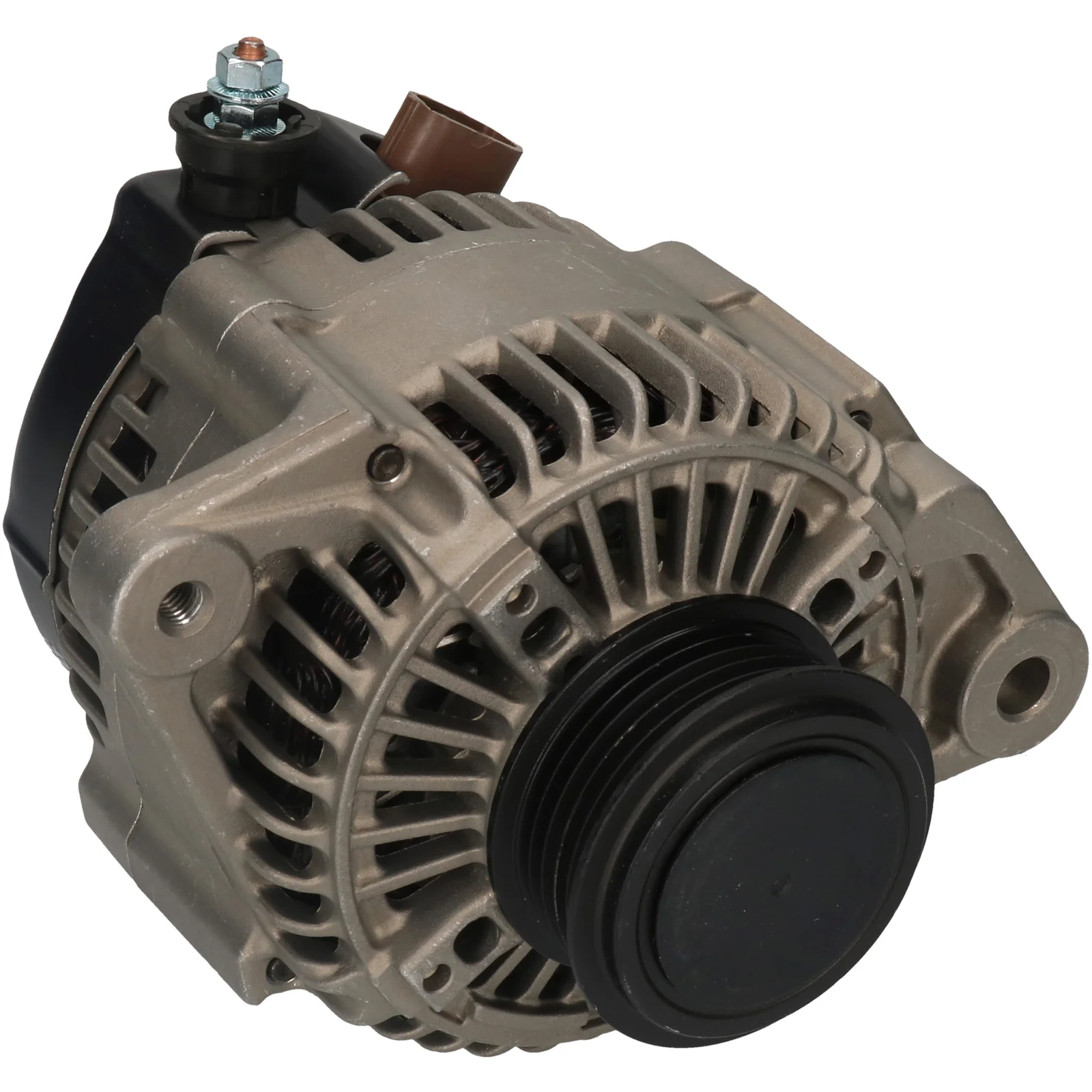

HC-Cargo Generator

Tekniske oplysninger:

Spænding: 14, Amp: 90, Rotation: CW, Montering. bøjle afstand: 42.00

Beskrivelse

Spænding: 14
Amp: 90
Remskive dist.: 31.50
Bredde/beslag arm: 18.00
Monteringsbeslag afst.: 42.00
Beslags hul: 11.00
Beslags hul 2: M10
Bælte-justering beslaghul pos.: 3
Bælte-justering beslaghul 1: M8
Remskive dia.: 68.00
Riller/remskive: 5
Radius: 81.00
Radius 2: 80.50
B+: M6
Pos./B+ i min.: 10
D+ Størrelse: Stik
Rotation: CW
Stik nr.: PL67
Samlet længde mm: 159.00
Remskive: SP/FW
Service: Toyota

Filer

Specifikation

B+ M6
Mount. bracket dist. 42.00
Belt. adj. bracket hole 1 M8
Belt. adj. brackethole pos. 3
Plug no. PL67
Bracket hole 11.00
Bracket hole 2 M10
Position/B+ in min. 10
Pulley SP/FW
Pulley dia. 68.00
Pulley dist. 31.50
Radius 81.00
D+ Size Plug
Radius 2 80.50
Rotation CW
Servicing Toyota
Grooves/pulley 5
Voltage 14
Total length 159.00 mm
Width/holder arm 18.00
Amp 90

  • OEM
    F032114206, ja1891ir, 27060-33040, 102211-2780

  • Konkurrentreferens
    A6015, CAL40158, DENDAN965, DRA0121, 8EL011711-361, 28-4922, 23859N, 23859R, 112610, 210677, 210677A, 401891RI, 440521, 9212696, 12060840, 0986082890, 063377505010

  • NormaliseratArtNr
    a6015, cal40158, dendan965, dra0121, f032114206, ja1891ir, 8el011711361, 23859n, 23859r, 112610, 210677, 210677a, 284922, 401891ri, 440521, 9212696, 12060840, 0986082890, 1022112780, 2706033040, 063377505010

  • Passar modeller
    Toyota Model: Yaris Model series: Yaris Type of engine: D-4D Size of motor: 1.4 Brand of engine: 1ND-TV Type description: NLP10 Body: Hatchback From date: 01-10-2001 To date: 01-09-2005 Fuel: Diesel Approved: Yes
    Toyota Model: Yaris Model series: Yaris Verso Type of engine: D-4D Size of motor: 1.4 Brand of engine: 1ND-TV Type description: NLP22 Body: MPV From date: 01-09-2000 To date: 01-09-2005 Fuel: Diesel Approved: Yes
    Toyota Model: Yaris Verso Model series: Yaris Verso Type of engine: D-4D Size of motor: 1.4 Brand of engine: 1ND-TV Type description: _P2_ Body: Box From date: 01-10-2001 To date: 01-09-2005 Fuel: Diesel Approved: Yes
  • Beskrivelse
    Spænding: 14
    Amp: 90
    Remskive dist.: 31.50
    Bredde/beslag arm: 18.00
    Monteringsbeslag afst.: 42.00
    Beslags hul: 11.00
    Beslags hul 2: M10
    Bælte-justering beslaghul pos.: 3
    Bælte-justering beslaghul 1: M8
    Remskive dia.: 68.00
    Riller/remskive: 5
    Radius: 81.00
    Radius 2: 80.50
    B+: M6
    Pos./B+ i min.: 10
    D+ Størrelse: Stik
    Rotation: CW
    Stik nr.: PL67
    Samlet længde mm: 159.00
    Remskive: SP/FW
    Service: Toyota

    Filer

  • Specifikation
    B+ M6
    Mount. bracket dist. 42.00
    Belt. adj. bracket hole 1 M8
    Belt. adj. brackethole pos. 3
    Plug no. PL67
    Bracket hole 11.00
    Bracket hole 2 M10
    Position/B+ in min. 10
    Pulley SP/FW
    Pulley dia. 68.00
    Pulley dist. 31.50
    Radius 81.00
    D+ Size Plug
    Radius 2 80.50
    Rotation CW
    Servicing Toyota
    Grooves/pulley 5
    Voltage 14
    Total length 159.00 mm
    Width/holder arm 18.00
    Amp 90
  • Køretøjsmatchning

    • OEM
      F032114206, ja1891ir, 27060-33040, 102211-2780

    • Konkurrentreferens
      A6015, CAL40158, DENDAN965, DRA0121, 8EL011711-361, 28-4922, 23859N, 23859R, 112610, 210677, 210677A, 401891RI, 440521, 9212696, 12060840, 0986082890, 063377505010

    • NormaliseratArtNr
      a6015, cal40158, dendan965, dra0121, f032114206, ja1891ir, 8el011711361, 23859n, 23859r, 112610, 210677, 210677a, 284922, 401891ri, 440521, 9212696, 12060840, 0986082890, 1022112780, 2706033040, 063377505010

    • Passar modeller
      Toyota Model: Yaris Model series: Yaris Type of engine: D-4D Size of motor: 1.4 Brand of engine: 1ND-TV Type description: NLP10 Body: Hatchback From date: 01-10-2001 To date: 01-09-2005 Fuel: Diesel Approved: Yes
      Toyota Model: Yaris Model series: Yaris Verso Type of engine: D-4D Size of motor: 1.4 Brand of engine: 1ND-TV Type description: NLP22 Body: MPV From date: 01-09-2000 To date: 01-09-2005 Fuel: Diesel Approved: Yes
      Toyota Model: Yaris Verso Model series: Yaris Verso Type of engine: D-4D Size of motor: 1.4 Brand of engine: 1ND-TV Type description: _P2_ Body: Box From date: 01-10-2001 To date: 01-09-2005 Fuel: Diesel Approved: Yes
