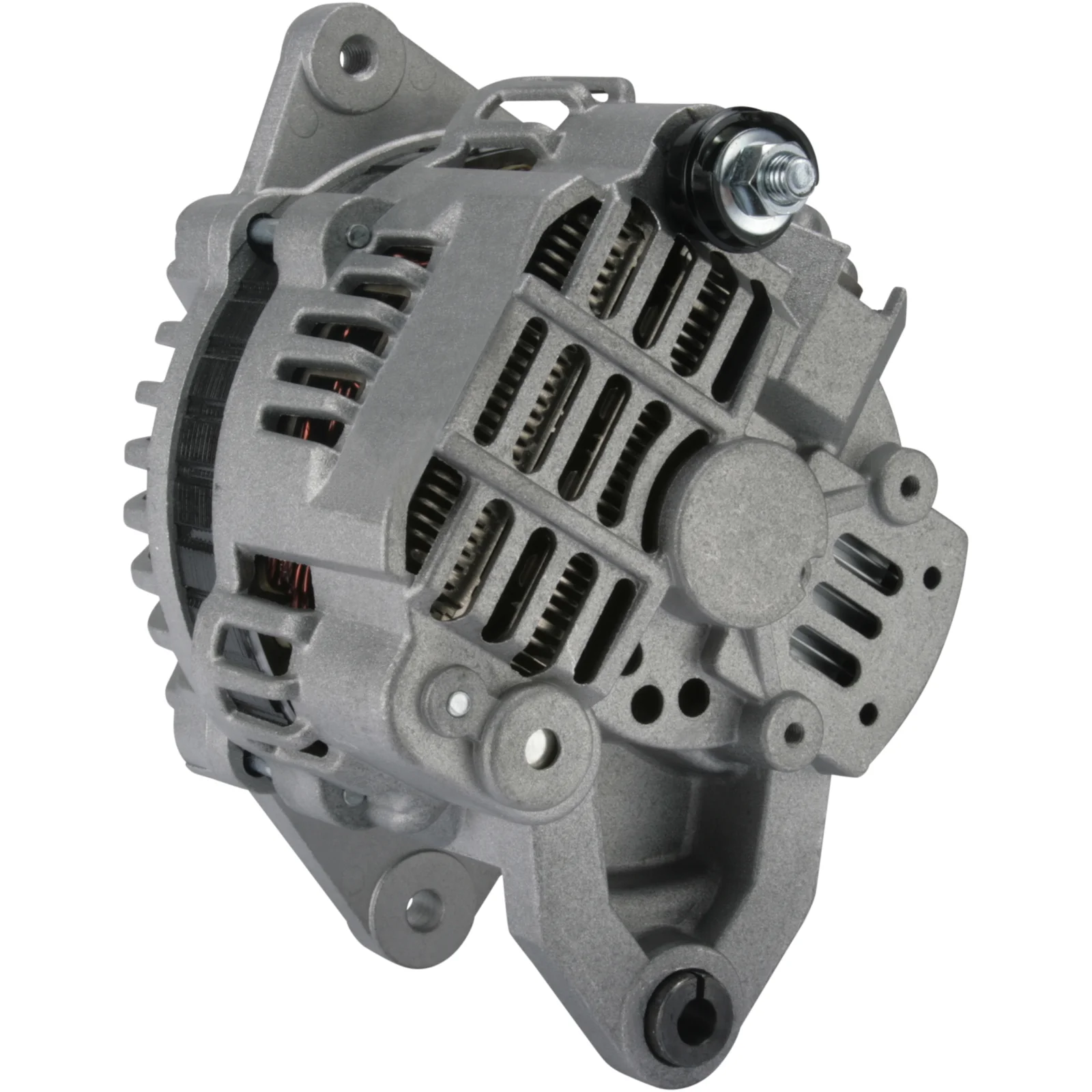

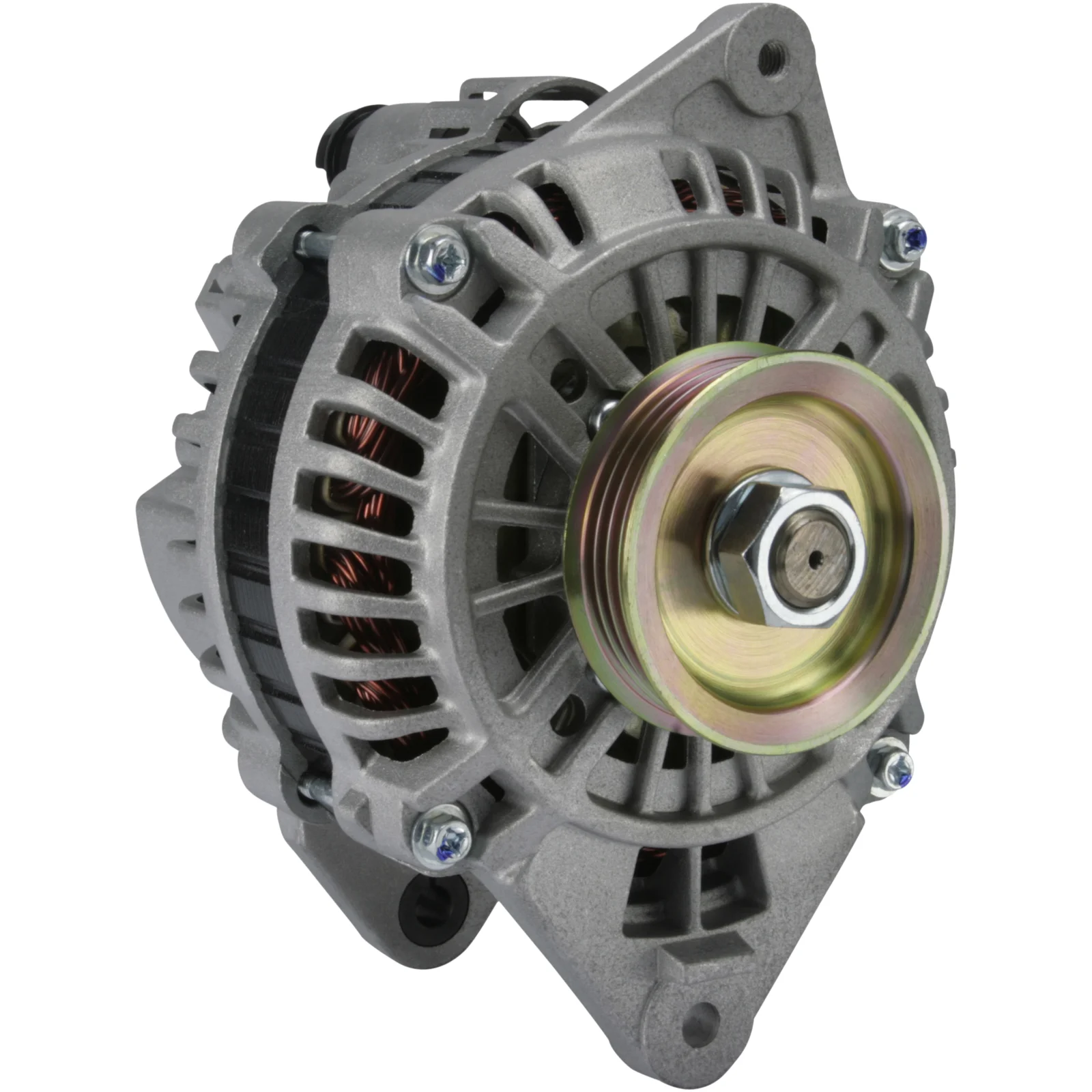

HC-Cargo Generator
HC-Cargo Generator
Vare nr.: F032114432

HC-Cargo Generator

Tekniske oplysninger:

Spænding: 14, Amp: 100, Rotation: CW, Monter. armatur fordel.: 79,60

Beskrivelse

Voltage: 14
Amp: 100
Remskive fordeling: 23,20
Bredde/fæstearm: 13,00
Monteringsbeslag afstand: 79,60
Beslagshulder: 8,30
Bæltejustering beslagshul: 5
Bæltejustering beslagshul 1: M8
Remskive diameter: 64,00
Riller/remskive: 4
Radius: 90,00
Radius 2: 88,00
B+ længde mm: 14,00
B+: M8
Position/B+ i min.: 60
D+ størrelse: Stik
Rotation: CW
Stik nr.: PL07
Samlet længde mm: 170,00
Remskive: SP
Regulator type: IR
Produktinfo: BN

Filer

Specifikation

B+ M8
Mount. bracket dist. 79.60
Belt. adj. bracket hole 1 M8
Belt. adj. brackethole pos. 5
Plug no. PL07
Bracket hole 8.30
Position/B+ in min. 60
Prod. info BN
Pulley SP
Pulley dia. 64.00
Pulley dist. 23.20
Radius 90.00
D+ Size Plug
Radius 2 88.00
Regulator type IR
Rotation CW
Grooves/pulley 4
Voltage 14
Total length 170.00 mm
Width/holder arm 13.00
Amp 100
B+ Length 14.00 mm

  • OEM
    A003TA0491, A003TA2391, a3ta0491, a3ta2391, a3ta2391a, F032114432, md313384, MD318460, MD354804, S113701110FA

  • Konkurrentreferens
    A5200, ALT-3515, CAL35266, DRA0586, F042303072, F042A03072, 28-2947, 155.542.090, 12647N, 12647R, 209335, 209335A, 553389RI, 12060766

  • NormaliseratArtNr
    a003ta0491, a003ta2391, a3ta0491, a3ta2391, a3ta2391a, a5200, alt3515, cal35266, dra0586, f032114432, f042303072, f042a03072, md313384, md318460, md354804, s113701110fa, 12647n, 12647r, 209335, 209335a, 282947, 553389ri, 12060766, 155542090

  • Passar modeller
    Mitsubishi Model: Delica Model series: Delica Size of motor: 2.0 Brand of engine: 4G63(SOHC16V) Body: MPV From date: 01-09-1995 To date: 01-10-2002 Fuel: Gasoline Approved: Yes
    Mitsubishi Model: L 300 Model series: L 300 Size of motor: 2.0 Brand of engine: 4G63 Body: Platform / Chassis From date: 01-07-1994 To date: 01-04-2000 Fuel: Gasoline Approved: Yes
    Mitsubishi Model: L 300 Model series: L 300 Size of motor: 2.0 Type description: P0_W, P1_W Body: Van From date: 01-06-1994 To date: 01-05-1996 Fuel: Gasoline Approved: Yes
    Mitsubishi Model: L 400 Model series: L 400 Size of motor: 2.0 Brand of engine: 4G63 Type description: PAOV Body: Van From date: 01-06-1996 To date: 01-03-2001 Fuel: Gasoline Approved: Yes
    Mitsubishi Model: L 400 Model series: L 400 Size of motor: 2.0 Type description: PA0V Body: Bus From date: 01-09-1995 To date: 01-10-2002 Fuel: Gasoline Approved: Yes
    Mitsubishi Model: L 400 Model series: L 400 Size of motor: 2.4 Type description: PA0V Body: Bus From date: 01-05-1995 To date: 01-10-2002 Fuel: Gasoline Approved: Yes
    Mitsubishi Model: L 400 Model series: L 400 Size of motor: 2.4 Type description: PAOV Body: Van From date: 01-06-1996 To date: 01-02-2006 Fuel: Gasoline Approved: Yes
    Mitsubishi Model: Space Gear Model series: Space Gear Model type: 4WD Type of engine: i 16V Size of motor: 2.4 Brand of engine: 4G64 Type description: PA4W Body: MPV From date: 01-05-1995 To date: 01-05-2000 Fuel: Gasoline Approved: Yes
    1 / 2
  • Beskrivelse
    Voltage: 14
    Amp: 100
    Remskive fordeling: 23,20
    Bredde/fæstearm: 13,00
    Monteringsbeslag afstand: 79,60
    Beslagshulder: 8,30
    Bæltejustering beslagshul: 5
    Bæltejustering beslagshul 1: M8
    Remskive diameter: 64,00
    Riller/remskive: 4
    Radius: 90,00
    Radius 2: 88,00
    B+ længde mm: 14,00
    B+: M8
    Position/B+ i min.: 60
    D+ størrelse: Stik
    Rotation: CW
    Stik nr.: PL07
    Samlet længde mm: 170,00
    Remskive: SP
    Regulator type: IR
    Produktinfo: BN

    Filer

  • Specifikation
    B+ M8
    Mount. bracket dist. 79.60
    Belt. adj. bracket hole 1 M8
    Belt. adj. brackethole pos. 5
    Plug no. PL07
    Bracket hole 8.30
    Position/B+ in min. 60
    Prod. info BN
    Pulley SP
    Pulley dia. 64.00
    Pulley dist. 23.20
    Radius 90.00
    D+ Size Plug
    Radius 2 88.00
    Regulator type IR
    Rotation CW
    Grooves/pulley 4
    Voltage 14
    Total length 170.00 mm
    Width/holder arm 13.00
    Amp 100
    B+ Length 14.00 mm
  • Køretøjsmatchning

    • OEM
      A003TA0491, A003TA2391, a3ta0491, a3ta2391, a3ta2391a, F032114432, md313384, MD318460, MD354804, S113701110FA

    • Konkurrentreferens
      A5200, ALT-3515, CAL35266, DRA0586, F042303072, F042A03072, 28-2947, 155.542.090, 12647N, 12647R, 209335, 209335A, 553389RI, 12060766

    • NormaliseratArtNr
      a003ta0491, a003ta2391, a3ta0491, a3ta2391, a3ta2391a, a5200, alt3515, cal35266, dra0586, f032114432, f042303072, f042a03072, md313384, md318460, md354804, s113701110fa, 12647n, 12647r, 209335, 209335a, 282947, 553389ri, 12060766, 155542090

    • Passar modeller
      Mitsubishi Model: Delica Model series: Delica Size of motor: 2.0 Brand of engine: 4G63(SOHC16V) Body: MPV From date: 01-09-1995 To date: 01-10-2002 Fuel: Gasoline Approved: Yes
      Mitsubishi Model: L 300 Model series: L 300 Size of motor: 2.0 Brand of engine: 4G63 Body: Platform / Chassis From date: 01-07-1994 To date: 01-04-2000 Fuel: Gasoline Approved: Yes
      Mitsubishi Model: L 300 Model series: L 300 Size of motor: 2.0 Type description: P0_W, P1_W Body: Van From date: 01-06-1994 To date: 01-05-1996 Fuel: Gasoline Approved: Yes
      Mitsubishi Model: L 400 Model series: L 400 Size of motor: 2.0 Brand of engine: 4G63 Type description: PAOV Body: Van From date: 01-06-1996 To date: 01-03-2001 Fuel: Gasoline Approved: Yes
      Mitsubishi Model: L 400 Model series: L 400 Size of motor: 2.0 Type description: PA0V Body: Bus From date: 01-09-1995 To date: 01-10-2002 Fuel: Gasoline Approved: Yes
      Mitsubishi Model: L 400 Model series: L 400 Size of motor: 2.4 Type description: PA0V Body: Bus From date: 01-05-1995 To date: 01-10-2002 Fuel: Gasoline Approved: Yes
      Mitsubishi Model: L 400 Model series: L 400 Size of motor: 2.4 Type description: PAOV Body: Van From date: 01-06-1996 To date: 01-02-2006 Fuel: Gasoline Approved: Yes
      Mitsubishi Model: Space Gear Model series: Space Gear Model type: 4WD Type of engine: i 16V Size of motor: 2.4 Brand of engine: 4G64 Type description: PA4W Body: MPV From date: 01-05-1995 To date: 01-05-2000 Fuel: Gasoline Approved: Yes
