Vare nr.: F032112419

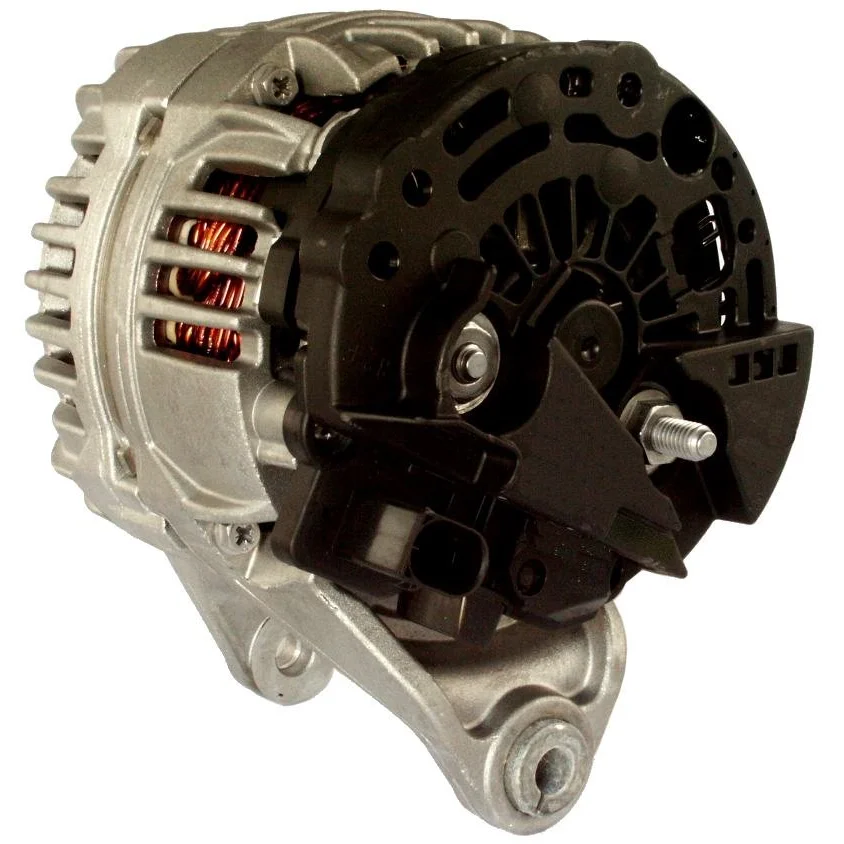

HC-Cargo Generator

Tekniske oplysninger:

Spænding: 14, Amp: 70, Rotation: CW, Monteringsbeslag afstand: 81,60

Beskrivelse

Spænding: 14
Amp: 70
Remskive dist.: 35,00
Bredde/holderarm: 14,00
Monteringsbeslag dist.: 81,60
Beslagshul: 10,30
Båndjust.beslagshul pos.: 50
Båndjust.beslagshul 1: M10
Remskive dia.: 50,00
Grooves/remskive: 5
Radius: 92,00
Radius 2: 95,00
B+: M8
Position/B+ i min.: 20
D+ Størrelse: Stik
Rotation: CW
Stik nr.: PL61
Samlet længde mm: 177,00
Remskive: SP
Regulator type: IR
Produktinfo: BN/OE
Service: Sæde

Filer

Specifikation

B+ M8
Mount. bracket dist. 81.60
Belt. adj. bracket hole 1 M10
Belt. adj. brackethole pos. 50
Plug no. PL61
Bracket hole 10.30
Position/B+ in min. 20
Prod. info BN/OE
Pulley SP
Pulley dia. 50.00
Pulley dist. 35.00
Radius 92.00
D+ Size Plug
Radius 2 95.00
Regulator type IR
Rotation CW
Servicing Seat
Grooves/pulley 5
Voltage 14
Total length 177.00 mm
Width/holder arm 14.00
Amp 70

  • OEM
    F032112419, 1586ir, 9517241, 046903015Q, 047903015q, 047903015QX, 047903017, 0124315014

  • Konkurrentreferens
    A0158, ALT-H109, ALT10368, CAL10460, DRB2640, F042A0H109, LRA02060, 8EL012428-221, 8EL737871-001, 28-3989, 211.318.702, 21490R, 119910, 210600, 210600A, 301586RI, 437710, 439255, 9042640, 12042640, 0986042640

  • NormaliseratArtNr
    a0158, alt10368, alth109, cal10460, drb2640, f032112419, f042a0h109, lra02060, 8el012428221, 8el737871001, 1586ir, 21490r, 119910, 210600, 210600a, 283989, 301586ri, 437710, 439255, 9042640, 9517241, 12042640, 046903015q, 047903015q, 047903015qx, 047903017, 0124315014, 211318702, 0986042640

  • Passar modeller
    Seat Model: Arosa Model series: Arosa Size of motor: 1.0 Brand of engine: AHT Body: Hatchback From date: 01-05-1997 To date: 01-06-2004 Fuel: Gasoline Approved: Yes
    Skoda Model: Fabia Model series: Fabia Model type: Praktik Size of motor: 1.4 Brand of engine: AME Body: Van From date: 01-07-2001 To date: 01-05-2003 Fuel: Gasoline Approved: Yes Manufacture type: PRAKTIK
    Skoda Model: Fabia Model series: Fabia Model type: Praktik Size of motor: 1.4 Brand of engine: AQW Body: Van From date: 01-07-2001 To date: 01-05-2003 Fuel: Gasoline Approved: Yes Manufacture type: PRAKTIK
    Skoda Model: Fabia Model series: Fabia Model type: Praktik Size of motor: 1.4 Brand of engine: ATZ Body: Van From date: 01-07-2001 To date: 01-05-2003 Fuel: Gasoline Approved: Yes Manufacture type: PRAKTIK
    Skoda Model: Fabia Model series: Fabia Size of motor: 1.0 Brand of engine: AQV Type description: 6Y2 Body: Hatchback From date: 01-12-1999 To date: 01-08-2002 Fuel: Gasoline Approved: Yes
    Skoda Model: Fabia Model series: Fabia Size of motor: 1.4 Brand of engine: AME Type description: 6Y3 From date: 01-07-2001 To date: 01-05-2003 Fuel: Gasoline Approved: Yes
    Skoda Model: Fabia Model series: Fabia Size of motor: 1.4 Brand of engine: AME Type description: 6Y5 Body: Estate From date: 01-04-2000 To date: 01-05-2003 Fuel: Gasoline Approved: Yes
    Skoda Model: Fabia Model series: Fabia Size of motor: 1.4 Brand of engine: AQW Type description: 6Y2 Body: Hatchback From date: 01-08-1999 To date: 01-05-2003 Fuel: Gasoline Approved: Yes
    Skoda Model: Fabia Model series: Fabia Size of motor: 1.4 Brand of engine: AQW Type description: 6Y3 From date: 01-07-2001 To date: 01-05-2003 Fuel: Gasoline Approved: Yes
    Skoda Model: Fabia Model series: Fabia Size of motor: 1.4 Brand of engine: ATZ Type description: 6Y3 From date: 01-07-2001 To date: 01-05-2003 Fuel: Gasoline Approved: Yes
    Skoda Model: Fabia Model series: Fabia Size of motor: 1.4 Brand of engine: AZE Body: Estate From date: 01-04-2000 To date: 01-03-2003 Fuel: Gasoline Approved: Yes
    Skoda Model: Fabia Model series: Fabia Size of motor: 1.4 Brand of engine: AZE Type description: 6Y2 Body: Hatchback From date: 01-08-2000 To date: 01-08-2002 Fuel: Gasoline Approved: Yes
    Skoda Model: Fabia Model series: Fabia Size of motor: 1.4 Brand of engine: AZE Type description: 6Y3 From date: 01-04-2000 To date: 01-08-2002 Fuel: Gasoline Approved: Yes
    Skoda Model: Fabia Model series: Fabia Size of motor: 1.4 Brand of engine: AZF Body: Estate From date: 01-04-2000 To date: 01-03-2003 Fuel: Gasoline Approved: Yes
    Skoda Model: Fabia Model series: Fabia Size of motor: 1.4 Brand of engine: AZF Type description: 6Y2 Body: Hatchback From date: 01-08-2000 To date: 01-08-2002 Fuel: Gasoline Approved: Yes
    Skoda Model: Fabia Model series: Fabia Size of motor: 1.4 Brand of engine: AZF Type description: 6Y3 From date: 01-04-2000 To date: 01-08-2002 Fuel: Gasoline Approved: Yes
    Skoda Model: Fabia Model series: Fabia Size of motor: 1.4 Brand of engine: AZF,AZE Type description: 6Y5 Body: Box Body / Estate From date: 01-04-2000 To date: 01-03-2003 Fuel: Gasoline Approved: Yes
