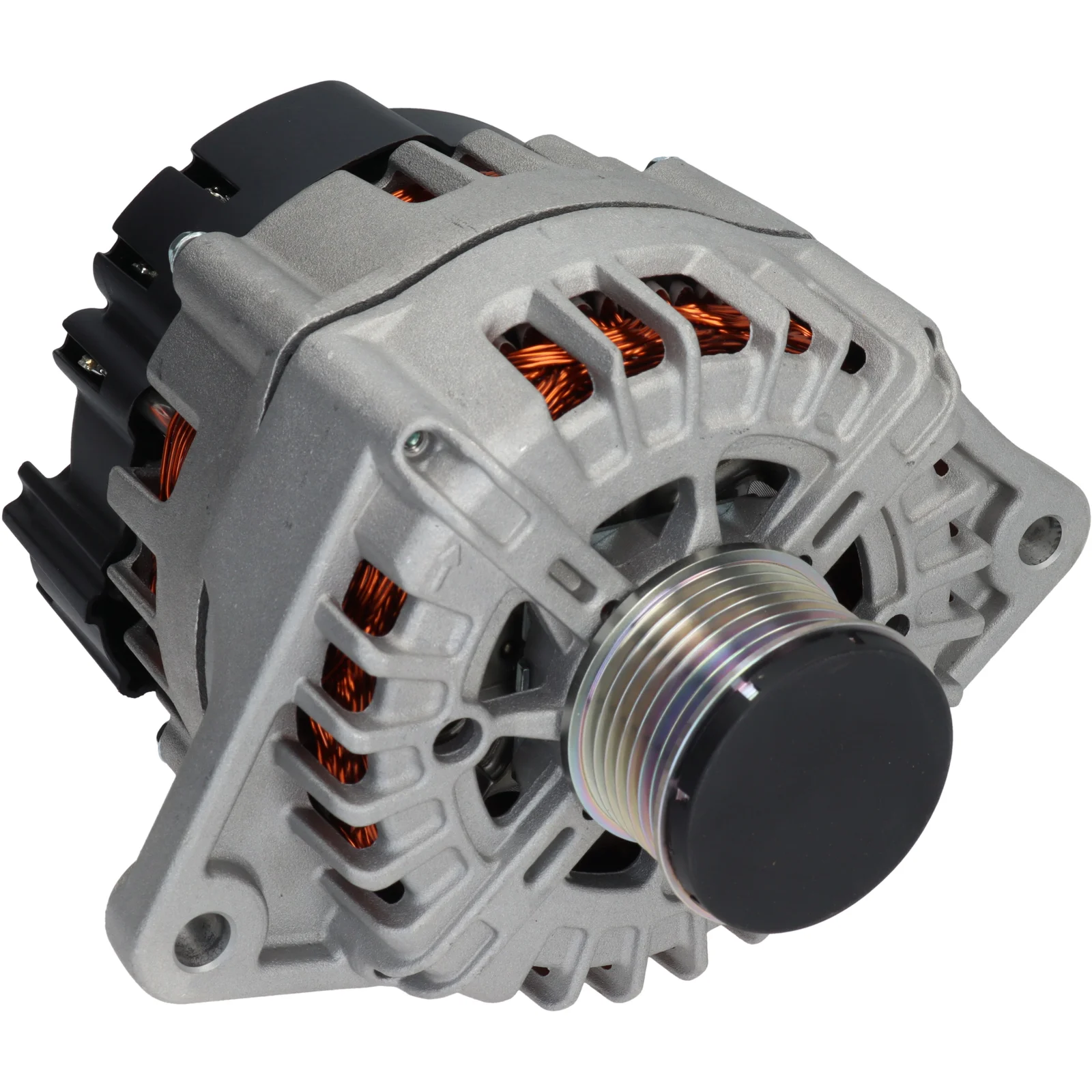

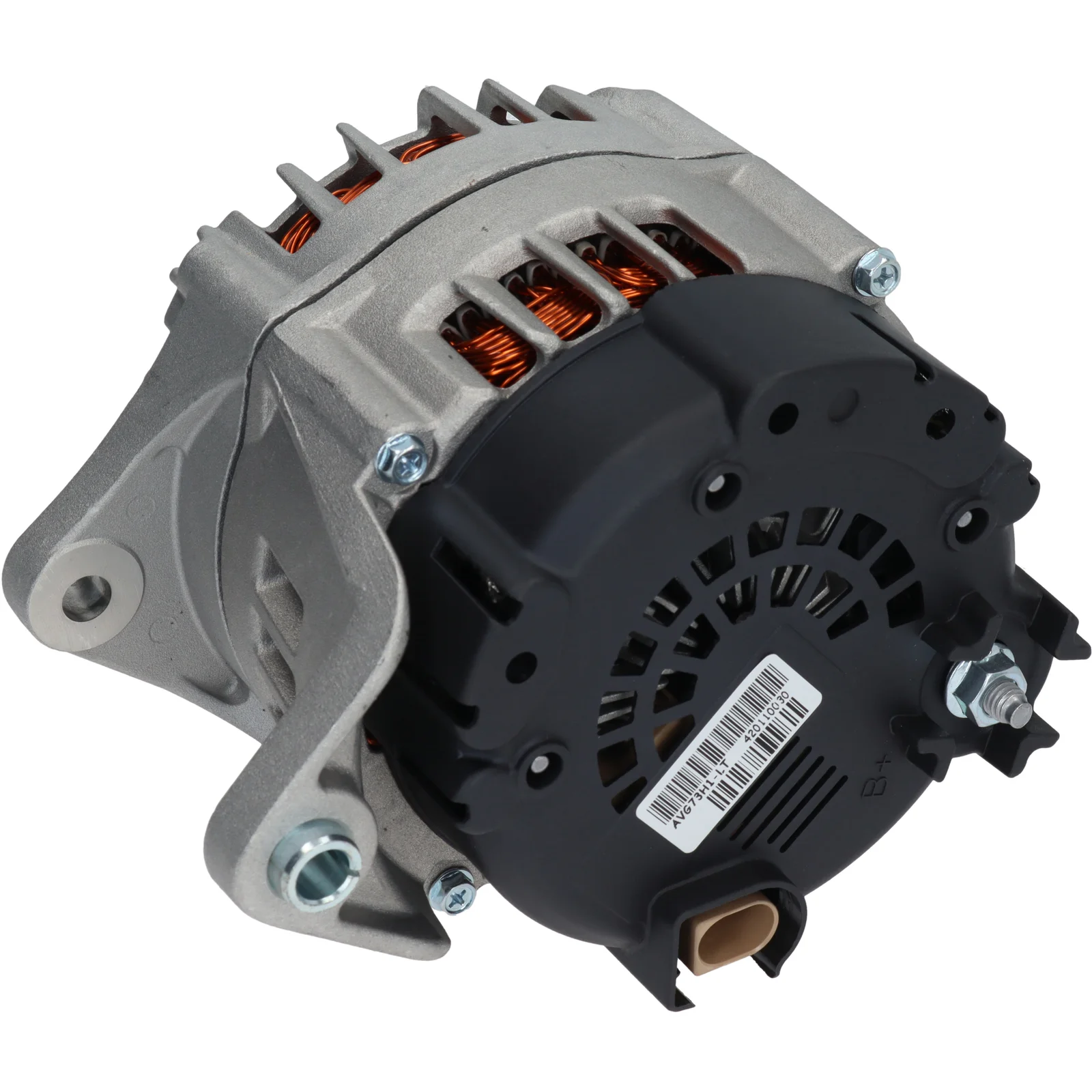

HC-Cargo Generator
HC-Cargo Generator
Vare nr.: F032116211

HC-Cargo Generator

Tekniske oplysninger:

Spænding: 14, Amp: 180, Rotation: CW, Mount. bøjle fordeler: 81,00

Beskrivelse

Spænding: 14
Amp.: 180
Skive fordeler.: 40.50
Bredde/beslag arm: 14.00
Monteringsbeslag afstand.: 81.00
Beslag hul: 10.50
Bælte justering beslag hul pos.: 56
Bælte justering beslag hul 1: 11.00
Skive dia.: 55.00
Furer/skive: 7
Radius: 94.00
Radius 2: 96.00
B+: M8
Position/B+ i min.: 4
D+ Størrelse: Hylster
Rotation: CW
Hylster nr.: PL61
Samlet længde mm: 190.00
Terminaltype: L-DFM
Skive: SP/FW
Ventilator: IF
Regulator type: IR

Filer

Specifikation

B+ M8
Mount. bracket dist. 81.00
Belt. adj. bracket hole 1 11.00
Belt. adj. brackethole pos. 56
Plug no. PL61
Bracket hole 10.50
Position/B+ in min. 4
Pulley SP/FW
Pulley dia. 55.00
Pulley dist. 40.50
Radius 94.00
D+ Size Plug
Radius 2 96.00
Regulator type IR
Rotation CW
Fan IF
Grooves/pulley 7
Terminal type L-DFM
Voltage 14
Total length 190.00 mm
Width/holder arm 14.00
Amp 180

  • OEM
    A3226, DRA1323, F032116211, FG18S 093, FG18S093, FGN18S093, K5801378902, 209183, 209183A, 2613227, 2613227B, 12090521, 32440437, 0986086780, 5801378902

  • Konkurrentreferens
    A3226, DRA1323, 209183, 209183A, 12090521, 32440437, 0986086780

  • Bilmärken
    FIAT, IVECO

  • NormaliseratArtNr
    a3226, dra1323, f032116211, fg18s093, fgn18s093, k5801378902, 209183, 209183a, 2613227, 2613227b, 12090521, 32440437, 0986086780, 5801378902

  • Passar modeller
    FIAT DUCATO Buss (250_) 110 Multijet 2,3 D Engine volume: 2.3 Engine type: F1AE3481G Year: 05.14-
    FIAT DUCATO Buss (250_) 110 Multijet 2,3 D Engine volume: 2.3 Engine type: F1AE3481G Year: 10.11-07.14
    FIAT DUCATO Buss (250_) 130 Multijet 2,3 D 4x4 Engine volume: 2.3 Engine type: F1AE3481D, F1AGL411D, F1AE0481N Year: 06.11-
    FIAT DUCATO Buss (250_) 130 Multijet 2,3 D Engine volume: 2.3 Engine type: F1AGL411M, F1AE3481D, F1AGL411D, F1AE0481N Year: 01.07-
    FIAT DUCATO Buss (250_) 150 Multijet 2,3 D 4x4 Engine volume: 2.3 Engine type: F1AGL411A, F1AGL411C Year: 04.15-
    FIAT DUCATO Buss (250_) 150 Multijet 2,3 D Engine volume: 2.3 Engine type: F1AE3481E Year: 06.11-
    FIAT DUCATO Buss (250_) 150 Multijet 2,3 D Engine volume: 2.3 Engine type: F1AGL411A, F1AGL411C Year: 04.15-
    FIAT DUCATO Flak/chassi (250_) 110 Multijet 2,3 D Engine volume: 2.3 Engine type: F1AE3481G Year: 08.06-
    FIAT DUCATO Flak/chassi (250_) 110 Multijet 2,3 D Engine volume: 2.3 Engine type: F1AE3481G Year: 10.11-07.14
    FIAT DUCATO Flak/chassi (250_) 130 Multijet 2,3 D Engine volume: 2.3 Engine type: F1AE3481D, F1AGL411D, F1AE0481N Year: 08.06-
    FIAT DUCATO Flak/chassi (250_) 150 Multijet 2,3 D Engine volume: 2.3 Engine type: F1AE3481E Year: 06.11-
    FIAT DUCATO Flak/chassi (250_) 150 Multijet 2,3 D Engine volume: 2.3 Engine type: F1AGL411C Year: 12.15-
    FIAT DUCATO Flak/chassi (250_) 180 Multijet 2,3 D Engine volume: 2.3 Engine type: F1AGL4111, F1AGL411B Year: 12.15-
    FIAT DUCATO Skåp (250_) 110 Multijet 2,3 D Engine volume: 2.3 Engine type: F1AE3481G Year: 05.14-
    FIAT DUCATO Skåp (250_) 110 Multijet 2,3 D Engine volume: 2.3 Engine type: F1AE3481G Year: 10.11-07.14
    FIAT DUCATO Skåp (250_) 130 Multijet 2,3 D 4x4 Engine volume: 2.3 Engine type: F1AE3481D, F1AGL411D, F1AE0481N Year: 06.11-
    FIAT DUCATO Skåp (250_) 130 Multijet 2,3 D Engine volume: 2.3 Engine type: F1AE3481D, F1AGL411D, F1AE0481N Year: 08.06-
    FIAT DUCATO Skåp (250_) 150 Multijet 2,3 D 4x4 Engine volume: 2.3 Engine type: F1AGL411A, F1AGL411C Year: 12.15-
    FIAT DUCATO Skåp (250_) 150 Multijet 2,3 D Engine volume: 2.3 Engine type: F1AE3481E Year: 06.11-
    FIAT DUCATO Skåp (250_) 150 Multijet 2,3 D Engine volume: 2.3 Engine type: F1AGL411A, F1AGL411C Year: 12.15-
    FIAT DUCATO Skåp (250_) 180 Multijet 2,3 D Engine volume: 2.3 Engine type: F1AGL4111, F1AGL4115, F1AGL411B Year: 12.15-
    IVECO DAILY V Flak/chassi 26L11, 29L11, 29S11, 35C11D, 35S11, 40C11 Engine volume: 2.3 Engine type: F1AE3481A Year: 09.11-02.14
    IVECO DAILY V Flak/chassi 29L15, 35S15, 35C15, 40C15, 50C15 Engine volume: 2.3 Engine type: F1AE3481C Year: 09.11-02.14
    IVECO DAILY V Flak/chassi 29S13, 29L13, 29L13D, 35S13, 35C13D, 40C13 Engine volume: 2.3 Engine type: F1AE3481B Year: 09.11-02.14
    IVECO DAILY V Skåp 29L15 V, 35S15 V, 35C15L V, 40C15L V, 50C15L V Engine volume: 2.3 Engine type: F1AE3481C Year: 09.11-02.14
    IVECO DAILY V Skåp 29S11, 29L11, 35C11, 35S11, 40C11 Engine volume: 2.3 Engine type: F1AE3481A Year: 09.11-02.14
    IVECO DAILY V Skåp 29S13, 29L13, 35C13, 35S13, 40C13, 40S13 Engine volume: 2.3 Engine type: F1AE3481B Year: 09.11-02.14
    1 / 6
  • Beskrivelse
    Spænding: 14
    Amp.: 180
    Skive fordeler.: 40.50
    Bredde/beslag arm: 14.00
    Monteringsbeslag afstand.: 81.00
    Beslag hul: 10.50
    Bælte justering beslag hul pos.: 56
    Bælte justering beslag hul 1: 11.00
    Skive dia.: 55.00
    Furer/skive: 7
    Radius: 94.00
    Radius 2: 96.00
    B+: M8
    Position/B+ i min.: 4
    D+ Størrelse: Hylster
    Rotation: CW
    Hylster nr.: PL61
    Samlet længde mm: 190.00
    Terminaltype: L-DFM
    Skive: SP/FW
    Ventilator: IF
    Regulator type: IR

    Filer

  • Specifikation
    B+ M8
    Mount. bracket dist. 81.00
    Belt. adj. bracket hole 1 11.00
    Belt. adj. brackethole pos. 56
    Plug no. PL61
    Bracket hole 10.50
    Position/B+ in min. 4
    Pulley SP/FW
    Pulley dia. 55.00
    Pulley dist. 40.50
    Radius 94.00
    D+ Size Plug
    Radius 2 96.00
    Regulator type IR
    Rotation CW
    Fan IF
    Grooves/pulley 7
    Terminal type L-DFM
    Voltage 14
    Total length 190.00 mm
    Width/holder arm 14.00
    Amp 180
  • Køretøjsmatchning

    • OEM
      A3226, DRA1323, F032116211, FG18S 093, FG18S093, FGN18S093, K5801378902, 209183, 209183A, 2613227, 2613227B, 12090521, 32440437, 0986086780, 5801378902

    • Konkurrentreferens
      A3226, DRA1323, 209183, 209183A, 12090521, 32440437, 0986086780

    • Bilmärken
      FIAT, IVECO

    • NormaliseratArtNr
      a3226, dra1323, f032116211, fg18s093, fgn18s093, k5801378902, 209183, 209183a, 2613227, 2613227b, 12090521, 32440437, 0986086780, 5801378902

    • Passar modeller
      FIAT DUCATO Buss (250_) 110 Multijet 2,3 D Engine volume: 2.3 Engine type: F1AE3481G Year: 05.14-
      FIAT DUCATO Buss (250_) 110 Multijet 2,3 D Engine volume: 2.3 Engine type: F1AE3481G Year: 10.11-07.14
      FIAT DUCATO Buss (250_) 130 Multijet 2,3 D 4x4 Engine volume: 2.3 Engine type: F1AE3481D, F1AGL411D, F1AE0481N Year: 06.11-
      FIAT DUCATO Buss (250_) 130 Multijet 2,3 D Engine volume: 2.3 Engine type: F1AGL411M, F1AE3481D, F1AGL411D, F1AE0481N Year: 01.07-
      FIAT DUCATO Buss (250_) 150 Multijet 2,3 D 4x4 Engine volume: 2.3 Engine type: F1AGL411A, F1AGL411C Year: 04.15-
      FIAT DUCATO Buss (250_) 150 Multijet 2,3 D Engine volume: 2.3 Engine type: F1AE3481E Year: 06.11-
      FIAT DUCATO Buss (250_) 150 Multijet 2,3 D Engine volume: 2.3 Engine type: F1AGL411A, F1AGL411C Year: 04.15-
      FIAT DUCATO Flak/chassi (250_) 110 Multijet 2,3 D Engine volume: 2.3 Engine type: F1AE3481G Year: 08.06-
      FIAT DUCATO Flak/chassi (250_) 110 Multijet 2,3 D Engine volume: 2.3 Engine type: F1AE3481G Year: 10.11-07.14
      FIAT DUCATO Flak/chassi (250_) 130 Multijet 2,3 D Engine volume: 2.3 Engine type: F1AE3481D, F1AGL411D, F1AE0481N Year: 08.06-
      FIAT DUCATO Flak/chassi (250_) 150 Multijet 2,3 D Engine volume: 2.3 Engine type: F1AE3481E Year: 06.11-
      FIAT DUCATO Flak/chassi (250_) 150 Multijet 2,3 D Engine volume: 2.3 Engine type: F1AGL411C Year: 12.15-
      FIAT DUCATO Flak/chassi (250_) 180 Multijet 2,3 D Engine volume: 2.3 Engine type: F1AGL4111, F1AGL411B Year: 12.15-
      FIAT DUCATO Skåp (250_) 110 Multijet 2,3 D Engine volume: 2.3 Engine type: F1AE3481G Year: 05.14-
      FIAT DUCATO Skåp (250_) 110 Multijet 2,3 D Engine volume: 2.3 Engine type: F1AE3481G Year: 10.11-07.14
      FIAT DUCATO Skåp (250_) 130 Multijet 2,3 D 4x4 Engine volume: 2.3 Engine type: F1AE3481D, F1AGL411D, F1AE0481N Year: 06.11-
      FIAT DUCATO Skåp (250_) 130 Multijet 2,3 D Engine volume: 2.3 Engine type: F1AE3481D, F1AGL411D, F1AE0481N Year: 08.06-
      FIAT DUCATO Skåp (250_) 150 Multijet 2,3 D 4x4 Engine volume: 2.3 Engine type: F1AGL411A, F1AGL411C Year: 12.15-
      FIAT DUCATO Skåp (250_) 150 Multijet 2,3 D Engine volume: 2.3 Engine type: F1AE3481E Year: 06.11-
      FIAT DUCATO Skåp (250_) 150 Multijet 2,3 D Engine volume: 2.3 Engine type: F1AGL411A, F1AGL411C Year: 12.15-
      FIAT DUCATO Skåp (250_) 180 Multijet 2,3 D Engine volume: 2.3 Engine type: F1AGL4111, F1AGL4115, F1AGL411B Year: 12.15-
      IVECO DAILY V Flak/chassi 26L11, 29L11, 29S11, 35C11D, 35S11, 40C11 Engine volume: 2.3 Engine type: F1AE3481A Year: 09.11-02.14
      IVECO DAILY V Flak/chassi 29L15, 35S15, 35C15, 40C15, 50C15 Engine volume: 2.3 Engine type: F1AE3481C Year: 09.11-02.14
      IVECO DAILY V Flak/chassi 29S13, 29L13, 29L13D, 35S13, 35C13D, 40C13 Engine volume: 2.3 Engine type: F1AE3481B Year: 09.11-02.14
      IVECO DAILY V Skåp 29L15 V, 35S15 V, 35C15L V, 40C15L V, 50C15L V Engine volume: 2.3 Engine type: F1AE3481C Year: 09.11-02.14
      IVECO DAILY V Skåp 29S11, 29L11, 35C11, 35S11, 40C11 Engine volume: 2.3 Engine type: F1AE3481A Year: 09.11-02.14
      IVECO DAILY V Skåp 29S13, 29L13, 35C13, 35S13, 40C13, 40S13 Engine volume: 2.3 Engine type: F1AE3481B Year: 09.11-02.14
      1 / 6
