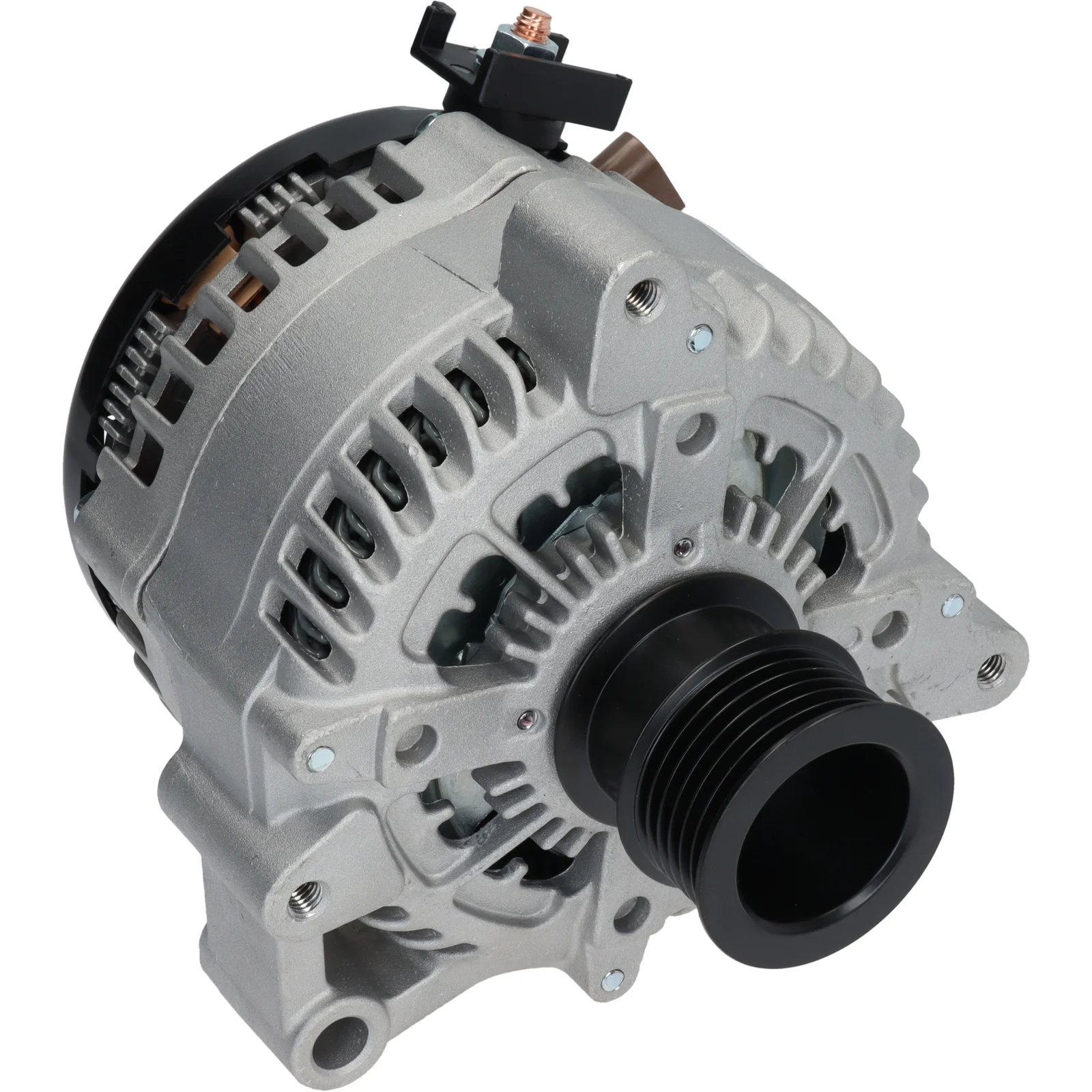

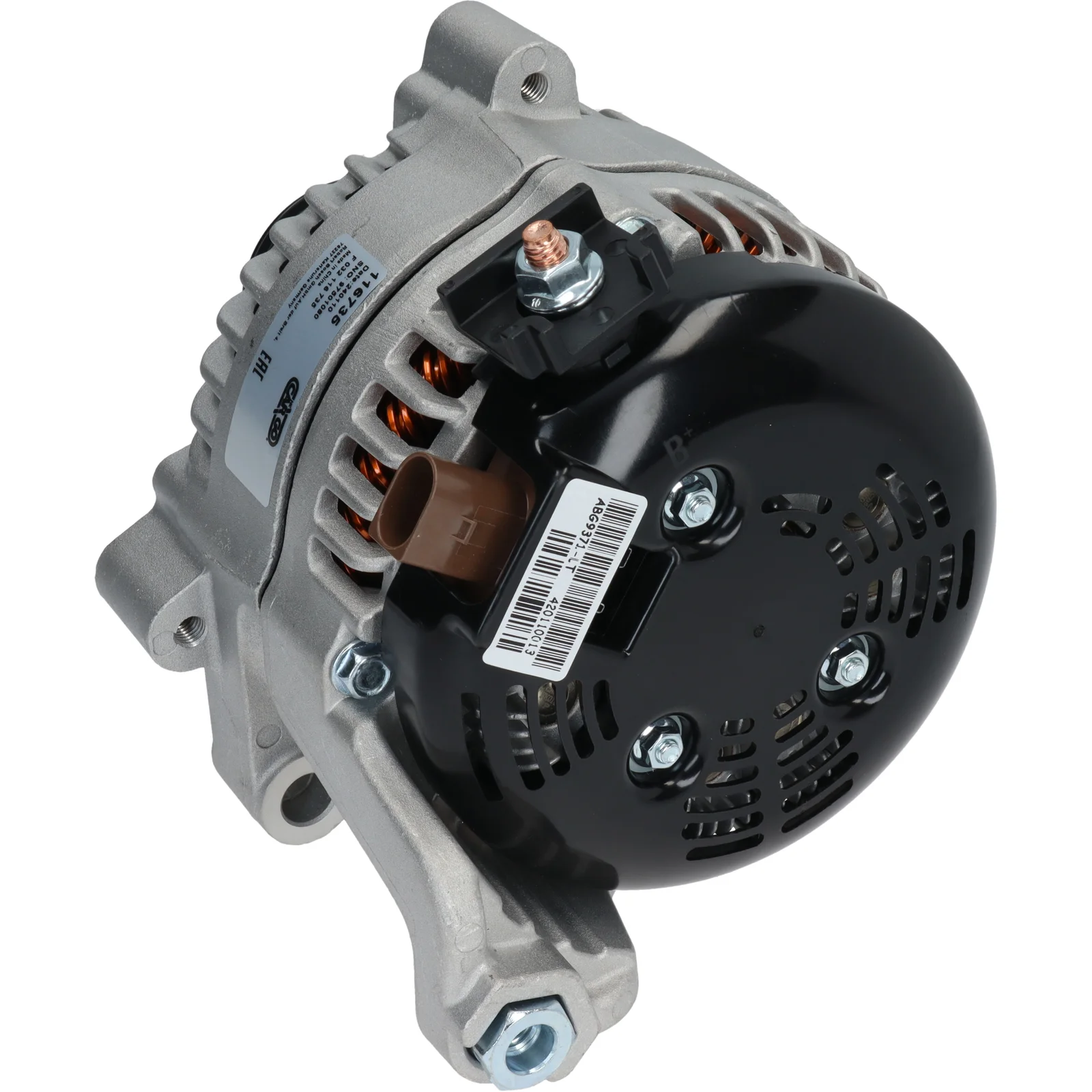

HC-Cargo Generator
HC-Cargo Generator
Vare nr.: F032116735

HC-Cargo Generator

Tekniske oplysninger:

Spænding: 14, Amp: 180, Rotation: med uret, Monteringsbeslag fordeler: 75,50

Beskrivelse

Voltage: 14
Amp: 180
Drevningshjul opdeling: 80.00
Bredde/beslag arm: 28.00
Monteringsbeslag afstand: 75.50
Beslagshul: 10.50
Bælte. justeringsbeslagshul position: 44
Bælte. justeringsbeslagshul 1: 11.00
Drevningshjul diameter: 49.00
Riller/drevningshjul: 6
Radius: 93.00
Radius 2: 93.00
B+: M8
Position/B+ i min.: 50
Rotation: CW
Stik nr.: PL181
Total længde mm: 200.00
Terminaltype: COM
Kommunikation: LIN
Drevningshjul: SP
Blæser: IF
Regulator type: IR
Bemærkninger: Denne generator har en COM-terminal på regulatoren. Det anbefales at bruge OEM-nummeret til at kontrollere egnethed, inden der bestilles.

Filer

Specifikation

B+ M8
Communication LIN
Mount. bracket dist. 75.50
Belt. adj. bracket hole 1 11.00
Belt. adj. brackethole pos. 44
Plug no. PL181
Bracket hole 10.50
Position/B+ in min. 50
Pulley SP
Pulley dia. 49.00
Pulley dist. 80.00
Radius 93.00
Radius 2 93.00
Regulator type IR
Remarks This Alternator has a COM terminal on the regulator. It is recommended that the OEM number is used to check suitability before ordering.
Rotation CW
Fan IF
Grooves/pulley 6
Terminal type COM
Voltage 14
Total length 200.00 mm
Width/holder arm 28.00
Amp 180

  • OEM
    F032116735, 104210-6730, 104210-6731, 12318626086, 12318626089

  • Konkurrentreferens
    A6673S, CAL40A27, LRA04236, 28-7845, 215.924.180, 40086, 555173RID, 12090980

  • NormaliseratArtNr
    a6673s, cal40a27, f032116735, lra04236, 40086, 287845, 555173rid, 12090980, 215924180, 1042106730, 1042106731, 12318626086, 12318626089

  • Passar modeller
    BMW Model: 1 Model series: 114 Type of engine: Diesel Size of motor: 1.5 Brand of engine: B37D15A Type description: F20 Body: Hatchback From date: 01-07-2015 To date: 01-06-2019 Fuel: Diesel Approved: Yes
    BMW Model: 1 Model series: 114 Type of engine: Diesel Size of motor: 1.5 Brand of engine: B37D15A Type description: F21 Body: Hatchback From date: 01-06-2015 Fuel: Diesel Approved: Yes
    BMW Model: 1 Model series: 116 Type of engine: Diesel Size of motor: 1.5 Brand of engine: B37D15A Type description: F20 Body: Hatchback From date: 01-03-2015 To date: 01-06-2019 Fuel: Diesel Approved: Yes
    BMW Model: 1 Model series: 116 Type of engine: Diesel Size of motor: 1.5 Brand of engine: B37D15A Type description: F21 Body: Hatchback From date: 01-03-2015 Fuel: Diesel Approved: Yes
  • Beskrivelse
    Voltage: 14
    Amp: 180
    Drevningshjul opdeling: 80.00
    Bredde/beslag arm: 28.00
    Monteringsbeslag afstand: 75.50
    Beslagshul: 10.50
    Bælte. justeringsbeslagshul position: 44
    Bælte. justeringsbeslagshul 1: 11.00
    Drevningshjul diameter: 49.00
    Riller/drevningshjul: 6
    Radius: 93.00
    Radius 2: 93.00
    B+: M8
    Position/B+ i min.: 50
    Rotation: CW
    Stik nr.: PL181
    Total længde mm: 200.00
    Terminaltype: COM
    Kommunikation: LIN
    Drevningshjul: SP
    Blæser: IF
    Regulator type: IR
    Bemærkninger: Denne generator har en COM-terminal på regulatoren. Det anbefales at bruge OEM-nummeret til at kontrollere egnethed, inden der bestilles.

    Filer

  • Specifikation
    B+ M8
    Communication LIN
    Mount. bracket dist. 75.50
    Belt. adj. bracket hole 1 11.00
    Belt. adj. brackethole pos. 44
    Plug no. PL181
    Bracket hole 10.50
    Position/B+ in min. 50
    Pulley SP
    Pulley dia. 49.00
    Pulley dist. 80.00
    Radius 93.00
    Radius 2 93.00
    Regulator type IR
    Remarks This Alternator has a COM terminal on the regulator. It is recommended that the OEM number is used to check suitability before ordering.
    Rotation CW
    Fan IF
    Grooves/pulley 6
    Terminal type COM
    Voltage 14
    Total length 200.00 mm
    Width/holder arm 28.00
    Amp 180
  • Køretøjsmatchning

    • OEM
      F032116735, 104210-6730, 104210-6731, 12318626086, 12318626089

    • Konkurrentreferens
      A6673S, CAL40A27, LRA04236, 28-7845, 215.924.180, 40086, 555173RID, 12090980

    • NormaliseratArtNr
      a6673s, cal40a27, f032116735, lra04236, 40086, 287845, 555173rid, 12090980, 215924180, 1042106730, 1042106731, 12318626086, 12318626089

    • Passar modeller
      BMW Model: 1 Model series: 114 Type of engine: Diesel Size of motor: 1.5 Brand of engine: B37D15A Type description: F20 Body: Hatchback From date: 01-07-2015 To date: 01-06-2019 Fuel: Diesel Approved: Yes
      BMW Model: 1 Model series: 114 Type of engine: Diesel Size of motor: 1.5 Brand of engine: B37D15A Type description: F21 Body: Hatchback From date: 01-06-2015 Fuel: Diesel Approved: Yes
      BMW Model: 1 Model series: 116 Type of engine: Diesel Size of motor: 1.5 Brand of engine: B37D15A Type description: F20 Body: Hatchback From date: 01-03-2015 To date: 01-06-2019 Fuel: Diesel Approved: Yes
      BMW Model: 1 Model series: 116 Type of engine: Diesel Size of motor: 1.5 Brand of engine: B37D15A Type description: F21 Body: Hatchback From date: 01-03-2015 Fuel: Diesel Approved: Yes
