Vare nr.: F032114116

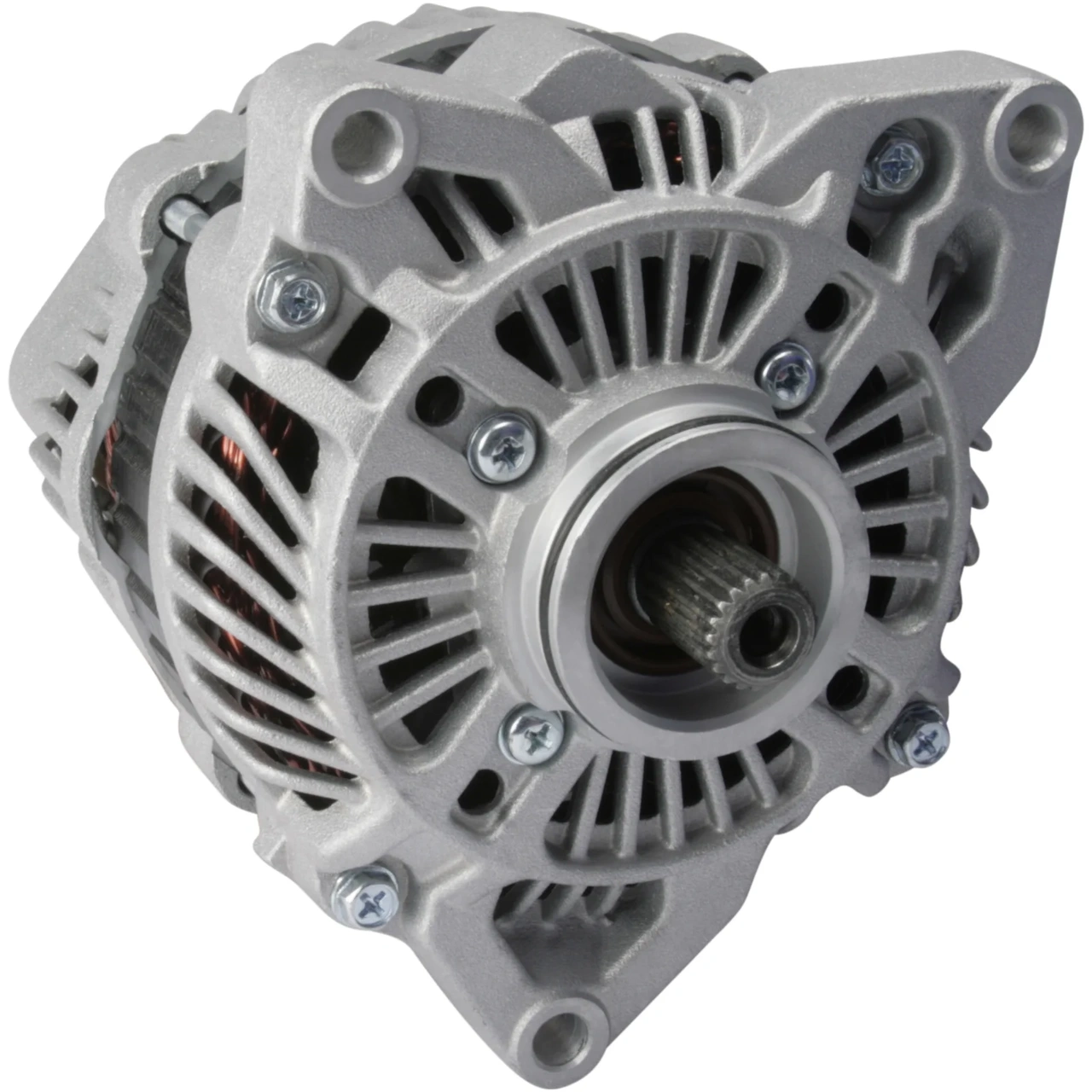

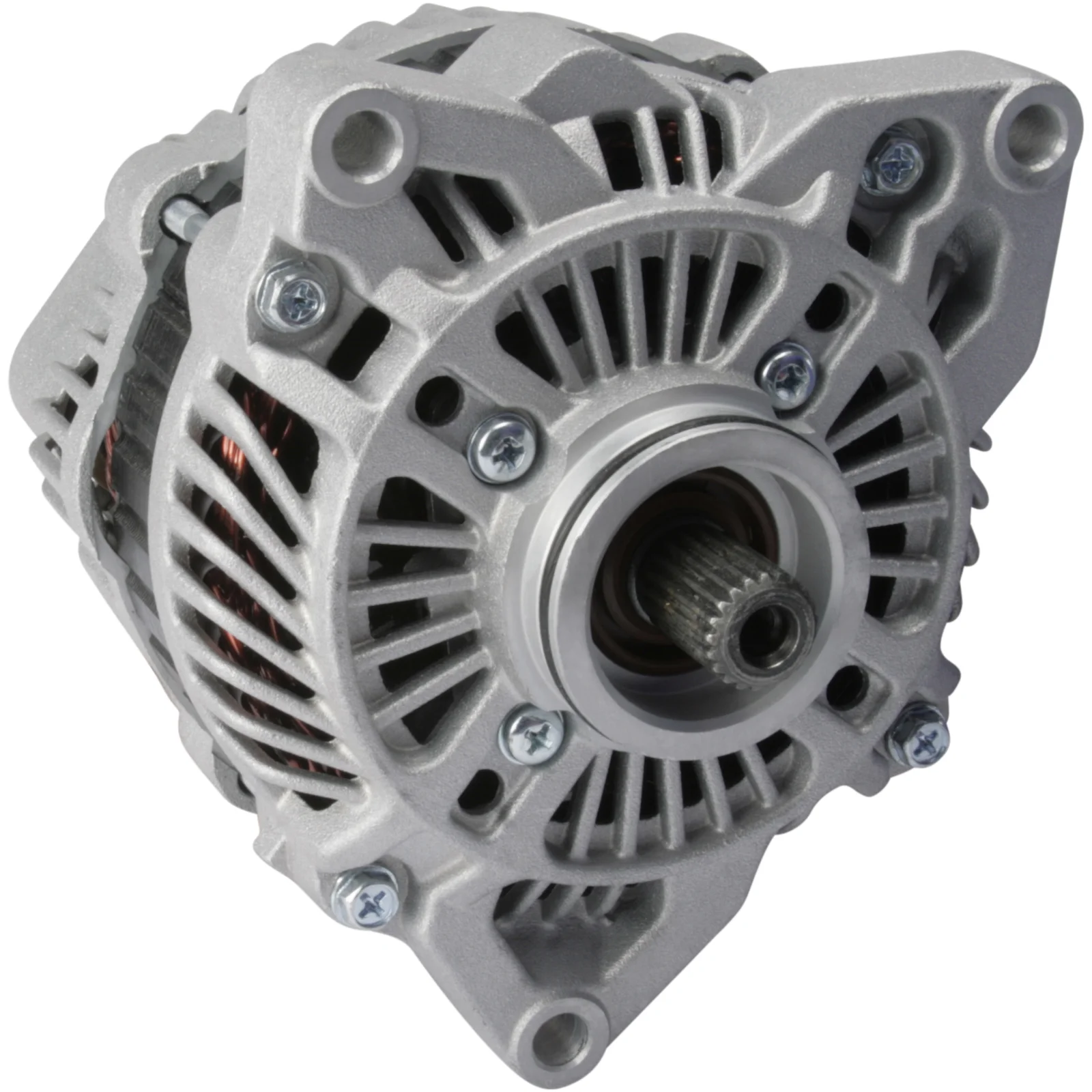

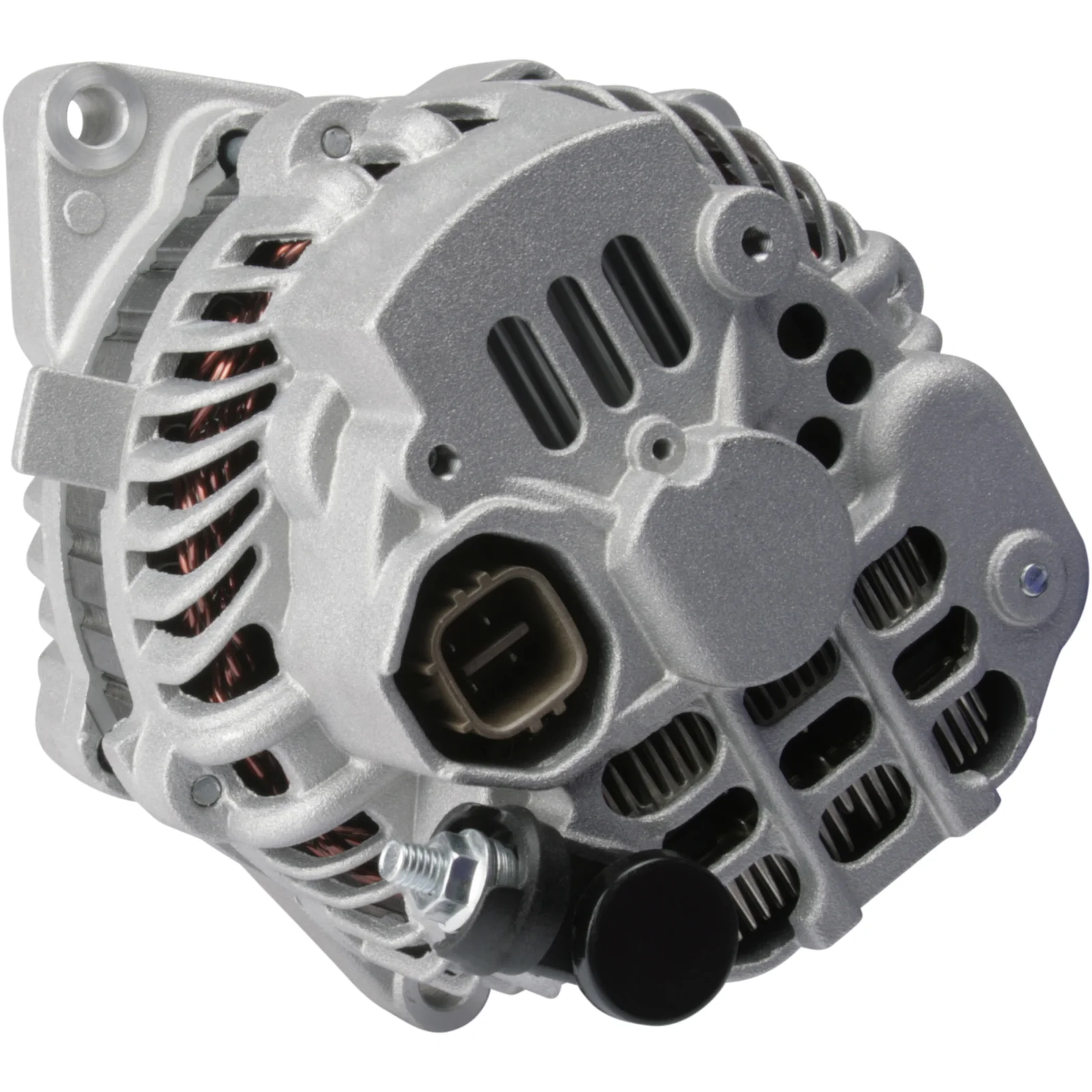

HC-Cargo Generator

Tekniske oplysninger:

Spænding: 14, Amp: 75, Rotation: CW, Radius: 75,50

Beskrivelse

Spænding: 14
Amp: 75
Bredde/holder arm: 22,00
Bøsning tilfte: 8,50
Bæl. justering bøsning pos.: 5
Bæl. justering bøsning pos. 2: 45
Bæl. justering bøsning 1: 8,50
Radius: 75,50
Radius 2: 78,50
Radius 3: 72,00
B+: M6
Position/B+ i min.: 12
Rotation: med uret
Stik nr.: PL65
Samlet længde mm: 165,00
Remskive: uden
Regulator type: IR
Produktion info: BN

Specifikation

B+ M6
Belt. adj. bracket hole 1 8.50
Belt. adj. brackethole pos. 5
Belt. adj. brackethole pos. 2 45
Plug no. PL65
Bracket hole 8.50
Position/B+ in min. 12
Prod. info BN
Pulley w/o
Radius 75.50
Radius 2 78.50
Radius 3 72.00
Regulator type IR
Rotation CW
Voltage 14
Total length 165.00 mm
Width/holder arm 22.00
Amp 75
  • OEM

    A005TA7599, A005TA7599ZC, a5ta7599, A5TA7599ZC, A5TB1079, AHGA52, F032114116, 31100-mca-003, 31100-mca-700
  • Konkurrentreferens

    A5329, AMT0202, CAL35406, 125.549.075, 12488N
  • NormaliseratArtNr

    a005ta7599, a005ta7599zc, a5329, a5ta7599, a5ta7599zc, a5tb1079, ahga52, amt0202, cal35406, f032114116, 12488n, 31100mca003, 31100mca700, 125549075
  • Passar modeller

    Honda Model: GL1800 Model series: GL1800 Model type: Goldwing Size of motor: 1.8 From date: 01-01-2001 To date: 01-12-2004 Approved: Yes
  • Beskrivelse
    Spænding: 14
    Amp: 75
    Bredde/holder arm: 22,00
    Bøsning tilfte: 8,50
    Bæl. justering bøsning pos.: 5
    Bæl. justering bøsning pos. 2: 45
    Bæl. justering bøsning 1: 8,50
    Radius: 75,50
    Radius 2: 78,50
    Radius 3: 72,00
    B+: M6
    Position/B+ i min.: 12
    Rotation: med uret
    Stik nr.: PL65
    Samlet længde mm: 165,00
    Remskive: uden
    Regulator type: IR
    Produktion info: BN
  • Specifikation
    B+ M6
    Belt. adj. bracket hole 1 8.50
    Belt. adj. brackethole pos. 5
    Belt. adj. brackethole pos. 2 45
    Plug no. PL65
    Bracket hole 8.50
    Position/B+ in min. 12
    Prod. info BN
    Pulley w/o
    Radius 75.50
    Radius 2 78.50
    Radius 3 72.00
    Regulator type IR
    Rotation CW
    Voltage 14
    Total length 165.00 mm
    Width/holder arm 22.00
    Amp 75
  • Køretøjsmatchning
    • OEM

      A005TA7599, A005TA7599ZC, a5ta7599, A5TA7599ZC, A5TB1079, AHGA52, F032114116, 31100-mca-003, 31100-mca-700
    • Konkurrentreferens

      A5329, AMT0202, CAL35406, 125.549.075, 12488N
    • NormaliseratArtNr

      a005ta7599, a005ta7599zc, a5329, a5ta7599, a5ta7599zc, a5tb1079, ahga52, amt0202, cal35406, f032114116, 12488n, 31100mca003, 31100mca700, 125549075
    • Passar modeller

      Honda Model: GL1800 Model series: GL1800 Model type: Goldwing Size of motor: 1.8 From date: 01-01-2001 To date: 01-12-2004 Approved: Yes
