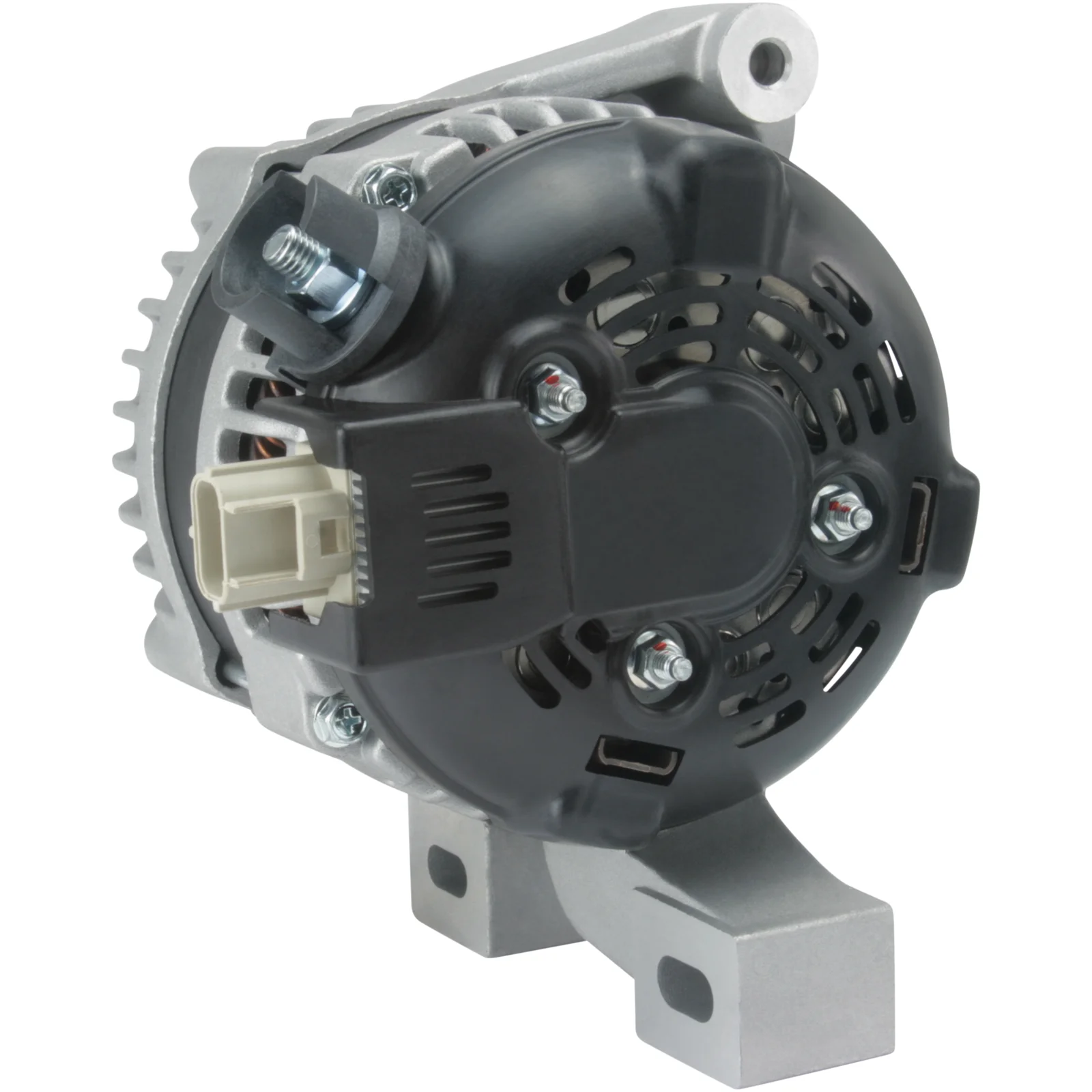

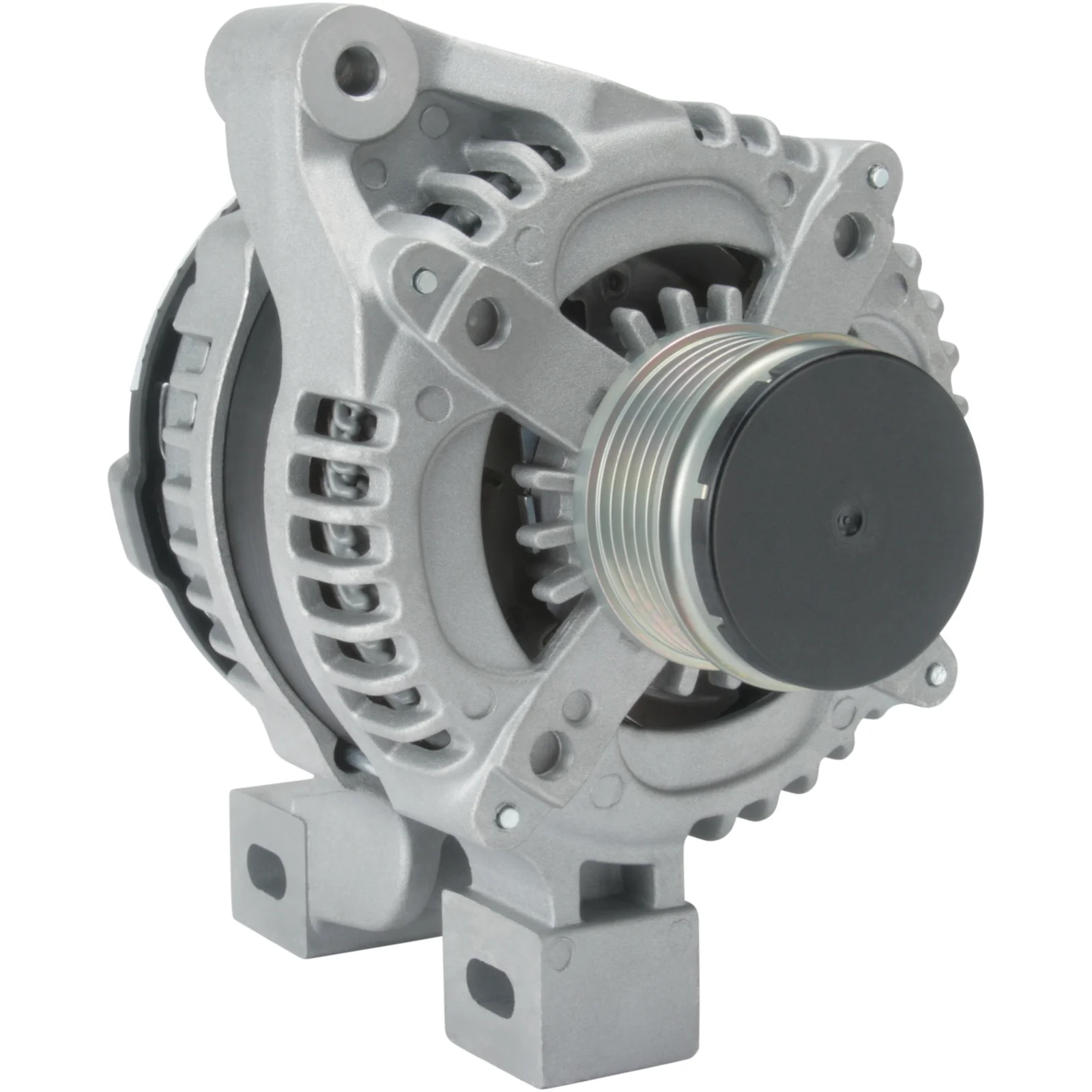

HC-Cargo Generator
HC-Cargo Generator
Vare nr.: F032114157

HC-Cargo Generator

Tekniske oplysninger:

Spænding: 14, Amp: 120, Rotation: CW, Monteringsbeslag afstand.: 90,00

Beskrivelse

Spænding: 14
Amp: 120
Remskivedistance: 73,20
Bredde/holderarm: 38,20
Monteringsbeslagsafstand: 90,00
Beslagshul: 8,20
Bæltejustering beslagshul position: 60
Bæltejustering beslagshul 1: 8,50x17,50
Remskivediameter: 55,50
Udskæringer/remskive: 5
Radius: 89,00
Radius 2: 89,00
B+: M8
Position/B+ i min.: 20
Rotation: CW
Stiknummer: PL154
Total længde mm: 170,00
Terminaltype: COM
Kommunikation: LIN
Remskive: SP/FW
Regulator type: IR
Bemærkninger: Denne generator har en COM-terminal på regulatoren. Det anbefales at bruge OEM-nummeret for at kontrollere egnethed, inden der bestilles.

Filer

Specifikation

B+ M8
Communication LIN
Mount. bracket dist. 90.00
Belt. adj. bracket hole 1 8.50x17.50
Belt. adj. brackethole pos. 60
Plug no. PL154
Bracket hole 8.20
Position/B+ in min. 20
Pulley SP/FW
Pulley dia. 55.50
Pulley dist. 73.20
Radius 89.00
Radius 2 89.00
Regulator type IR
Remarks This Alternator has a COM terminal on the regulator. It is recommended that the OEM number is used to check suitability before ordering.
Rotation CW
Grooves/pulley 5
Terminal type COM
Voltage 14
Total length 170.00 mm
Width/holder arm 38.20
Amp 120

  • OEM
    F032114157, 3M5T10300JA, 3M5T10300JB, 3m5t10300jc, 3M5T10300JD, 104210-3550, 104210-3551, 1374082, 1684865, 8676015

  • Konkurrentreferens
    A6133, A6367, CAL40273, DAN1058, DRA0741, 28-5829, 238.145.1202, 4882, 20424R, 210403, 210403A, 12090238, 32083070

  • NormaliseratArtNr
    a6133, a6367, cal40273, dan1058, dra0741, f032114157, 3m5t10300ja, 3m5t10300jb, 3m5t10300jc, 3m5t10300jd, 4882, 20424r, 210403, 210403a, 285829, 1374082, 1684865, 8676015, 12090238, 32083070, 1042103550, 1042103551, 2381451202

  • Passar modeller
    Ford Model: Focus Model series: Focus Model type: ST Size of motor: 2.5 Brand of engine: HYDA Type description: DA_ Body: Hatchback From date: 01-10-2005 To date: 01-09-2012 Fuel: Gasoline Approved: Yes
    Ford Model: Focus Model series: Focus Size of motor: 2.5 Brand of engine: JZDA Type description: DA_ Body: Hatchback From date: 01-01-2009 To date: 01-07-2011 Fuel: Gasoline Approved: Yes
  • Beskrivelse
    Spænding: 14
    Amp: 120
    Remskivedistance: 73,20
    Bredde/holderarm: 38,20
    Monteringsbeslagsafstand: 90,00
    Beslagshul: 8,20
    Bæltejustering beslagshul position: 60
    Bæltejustering beslagshul 1: 8,50x17,50
    Remskivediameter: 55,50
    Udskæringer/remskive: 5
    Radius: 89,00
    Radius 2: 89,00
    B+: M8
    Position/B+ i min.: 20
    Rotation: CW
    Stiknummer: PL154
    Total længde mm: 170,00
    Terminaltype: COM
    Kommunikation: LIN
    Remskive: SP/FW
    Regulator type: IR
    Bemærkninger: Denne generator har en COM-terminal på regulatoren. Det anbefales at bruge OEM-nummeret for at kontrollere egnethed, inden der bestilles.

    Filer

  • Specifikation
    B+ M8
    Communication LIN
    Mount. bracket dist. 90.00
    Belt. adj. bracket hole 1 8.50x17.50
    Belt. adj. brackethole pos. 60
    Plug no. PL154
    Bracket hole 8.20
    Position/B+ in min. 20
    Pulley SP/FW
    Pulley dia. 55.50
    Pulley dist. 73.20
    Radius 89.00
    Radius 2 89.00
    Regulator type IR
    Remarks This Alternator has a COM terminal on the regulator. It is recommended that the OEM number is used to check suitability before ordering.
    Rotation CW
    Grooves/pulley 5
    Terminal type COM
    Voltage 14
    Total length 170.00 mm
    Width/holder arm 38.20
    Amp 120
  • Køretøjsmatchning

    • OEM
      F032114157, 3M5T10300JA, 3M5T10300JB, 3m5t10300jc, 3M5T10300JD, 104210-3550, 104210-3551, 1374082, 1684865, 8676015

    • Konkurrentreferens
      A6133, A6367, CAL40273, DAN1058, DRA0741, 28-5829, 238.145.1202, 4882, 20424R, 210403, 210403A, 12090238, 32083070

    • NormaliseratArtNr
      a6133, a6367, cal40273, dan1058, dra0741, f032114157, 3m5t10300ja, 3m5t10300jb, 3m5t10300jc, 3m5t10300jd, 4882, 20424r, 210403, 210403a, 285829, 1374082, 1684865, 8676015, 12090238, 32083070, 1042103550, 1042103551, 2381451202

    • Passar modeller
      Ford Model: Focus Model series: Focus Model type: ST Size of motor: 2.5 Brand of engine: HYDA Type description: DA_ Body: Hatchback From date: 01-10-2005 To date: 01-09-2012 Fuel: Gasoline Approved: Yes
      Ford Model: Focus Model series: Focus Size of motor: 2.5 Brand of engine: JZDA Type description: DA_ Body: Hatchback From date: 01-01-2009 To date: 01-07-2011 Fuel: Gasoline Approved: Yes
