Vare nr.: F032114187

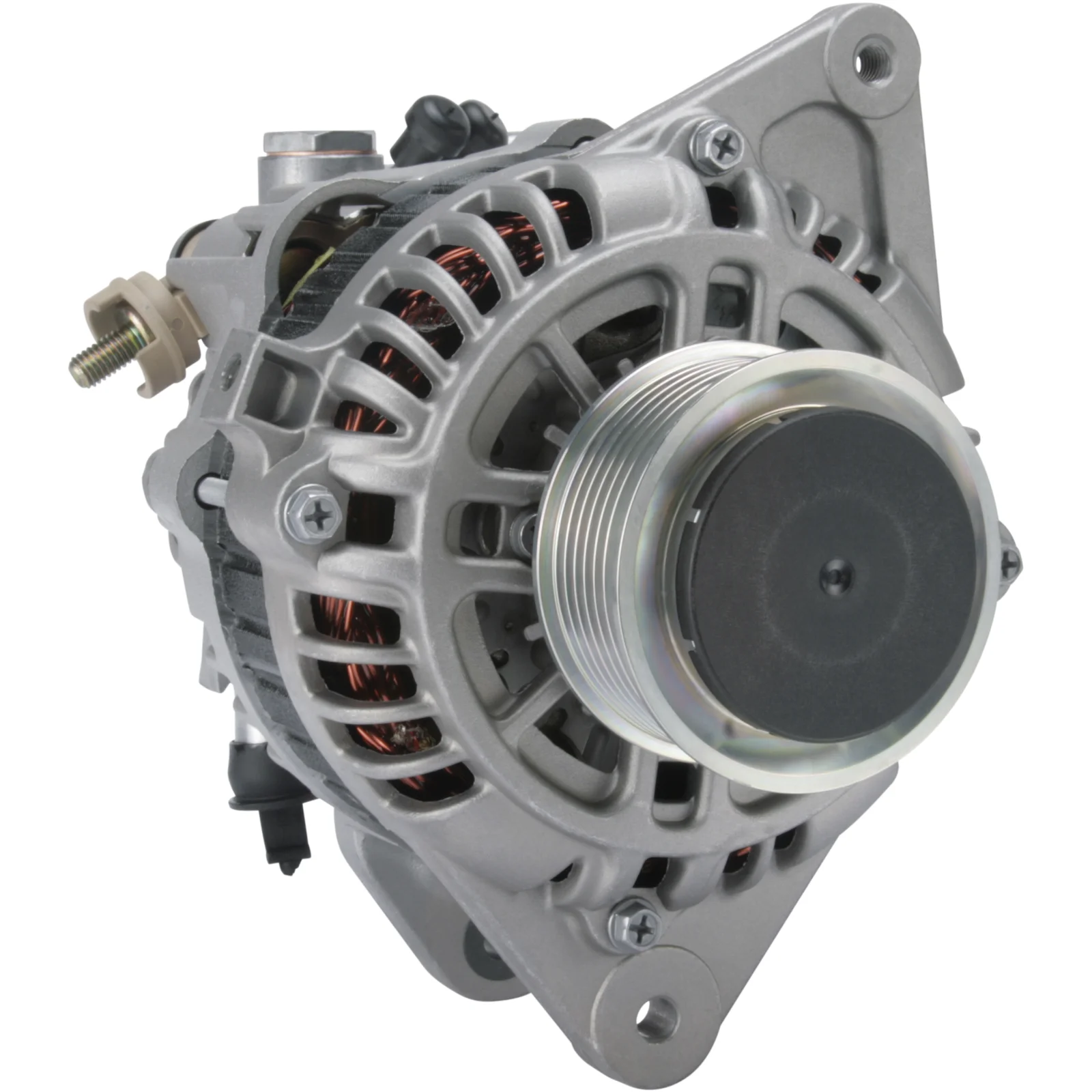

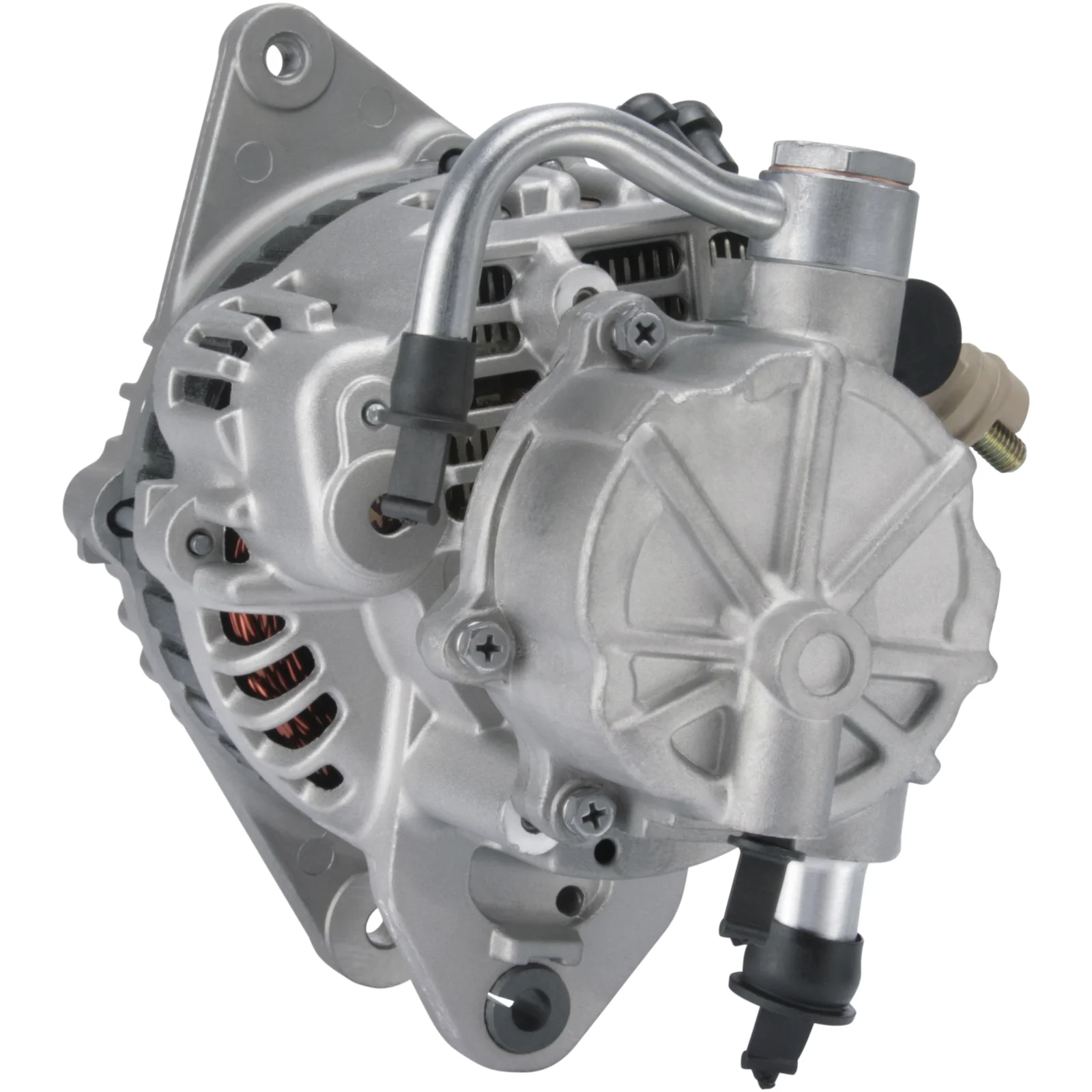

HC-Cargo Generator

Tekniske oplysninger:

Spænding: 14, Amp: 105, Rotation: CW, Monteringsbøjleafstand: 54,50

Beskrivelse

Spænding: 14
Amp: 105
Drevskive dist.: 46,70
Bredde/holderarm: 13,00
Monteringsbracket dist.: 54,50
Bracket hul: 10,50
Bælte. justering. bracket hul pos.: 5
Bælte. justering. bracket hul 1: M8
Drevskive dia.: 64,80
Riller/drevskive: 6
Radius: 90,00
Radius 2: 97,00
B+: M8
Posicion/B+ i min.: 13
Rotation: uret mod uret
Stik nr.: PL07
Samlet længde mm: 240,00
Drevskive: SP/FW
Regulator typ: IR
Produktion info: BN

Specifikation

B+ M8
Mount. bracket dist. 54.50
Belt. adj. bracket hole 1 M8
Belt. adj. brackethole pos. 5
Plug no. PL07
Bracket hole 10.50
Position/B+ in min. 13
Prod. info BN
Pulley SP/FW
Pulley dia. 64.80
Pulley dist. 46.70
Radius 90.00
Radius 2 97.00
Regulator type IR
Rotation CW
Grooves/pulley 6
Voltage 14
Total length 240.00 mm
Width/holder arm 13.00
Amp 105
  • OEM

    A003TN2481, A3TN2481, a3tn2481a, A3TN2481AT, F032114187, MD371144
  • Konkurrentreferens

    A5155, CAL35171, DRA0233, 226.176.1052, 23216, 210656, 210656A, 553247RI, 12061091
  • NormaliseratArtNr

    a003tn2481, a3tn2481, a3tn2481a, a3tn2481at, a5155, cal35171, dra0233, f032114187, md371144, 23216, 210656, 210656a, 553247ri, 12061091, 2261761052
  • Passar modeller

    Mitsubishi Model: Pajero Model series: Pajero Model type: Classic Type of engine: TD Size of motor: 2.5 Brand of engine: 4D56 Type description: V2_W From date: 01-07-2001 Fuel: Diesel Approved: Yes Manufacture type: CLASSIC
    Mitsubishi Model: Pajero Model series: Pajero Type of engine: TDi Size of motor: 2.5 Brand of engine: 4D56T Type description: V60 Body: Convertible From date: 01-09-2001 To date: 01-12-2006 Fuel: Diesel Approved: Yes
  • Beskrivelse
    Spænding: 14
    Amp: 105
    Drevskive dist.: 46,70
    Bredde/holderarm: 13,00
    Monteringsbracket dist.: 54,50
    Bracket hul: 10,50
    Bælte. justering. bracket hul pos.: 5
    Bælte. justering. bracket hul 1: M8
    Drevskive dia.: 64,80
    Riller/drevskive: 6
    Radius: 90,00
    Radius 2: 97,00
    B+: M8
    Posicion/B+ i min.: 13
    Rotation: uret mod uret
    Stik nr.: PL07
    Samlet længde mm: 240,00
    Drevskive: SP/FW
    Regulator typ: IR
    Produktion info: BN
  • Specifikation
    B+ M8
    Mount. bracket dist. 54.50
    Belt. adj. bracket hole 1 M8
    Belt. adj. brackethole pos. 5
    Plug no. PL07
    Bracket hole 10.50
    Position/B+ in min. 13
    Prod. info BN
    Pulley SP/FW
    Pulley dia. 64.80
    Pulley dist. 46.70
    Radius 90.00
    Radius 2 97.00
    Regulator type IR
    Rotation CW
    Grooves/pulley 6
    Voltage 14
    Total length 240.00 mm
    Width/holder arm 13.00
    Amp 105
  • Køretøjsmatchning
    • OEM

      A003TN2481, A3TN2481, a3tn2481a, A3TN2481AT, F032114187, MD371144
    • Konkurrentreferens

      A5155, CAL35171, DRA0233, 226.176.1052, 23216, 210656, 210656A, 553247RI, 12061091
    • NormaliseratArtNr

      a003tn2481, a3tn2481, a3tn2481a, a3tn2481at, a5155, cal35171, dra0233, f032114187, md371144, 23216, 210656, 210656a, 553247ri, 12061091, 2261761052
    • Passar modeller

      Mitsubishi Model: Pajero Model series: Pajero Model type: Classic Type of engine: TD Size of motor: 2.5 Brand of engine: 4D56 Type description: V2_W From date: 01-07-2001 Fuel: Diesel Approved: Yes Manufacture type: CLASSIC
      Mitsubishi Model: Pajero Model series: Pajero Type of engine: TDi Size of motor: 2.5 Brand of engine: 4D56T Type description: V60 Body: Convertible From date: 01-09-2001 To date: 01-12-2006 Fuel: Diesel Approved: Yes
