Vare nr.: F032110620

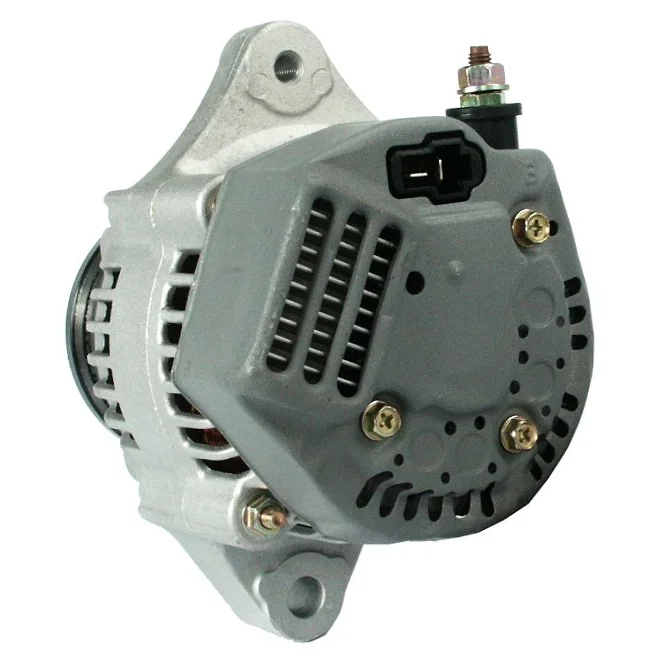

HC-Cargo Generator

Tekniske oplysninger:

Spænding: 14, Amp: 35, Rotation: CW, Remskive diameter: 74,70

Beskrivelse

Spænding: 14
Amp: 35
Drevskive dist.: 44,00
Bredde/hængelarm: 23,50
Hængel og breddehul: 10,20
Bæltejustering hængel og breddepos.: 60
Bæltejustering hængel og bredde hul 1: M8
Drevskivens diameter: 74,70
Riller/drevskive: 1
Radius: 69,50
Radius 2: 66,00
B+: M6
Position/B+ i min.: 5
D+: Størrelse: Stikkontakt
Rotationsretning: med uret
Stiknummer: PL10
Samlet længde mm: 143,00
Drevskive: P
Regulator-type: IR
Prod. info: BN
Service: Kubota

Filer

Specifikation

B+ M6
Belt. adj. bracket hole 1 M8
Belt. adj. brackethole pos. 60
Plug no. PL10
Bracket hole 10.20
Position/B+ in min. 5
Prod. info BN
Pulley P
Pulley dia. 74.70
Pulley dist. 44.00
Radius 69.50
D+ Size Plug
Radius 2 66.00
Regulator type IR
Rotation CW
Servicing Kubota
Grooves/pulley 1
Voltage 14
Total length 143.00 mm
Width/holder arm 23.50
Amp 35

  • OEM
    am877740, F032110620, ja971ir, MIA884637, RE42778, re72915, 16771-64010, 16771-64012, 17580-64012, 27060-78001, 27060-78001-71, 27060-96001, 100211-1660, 100211-1661, 100211-1662, 100211-4530, 100211-4531, 100211-4700, 100211-4701, 101211-1070, 102211-5350, 119620-77201, 119620-77202, 501824

  • Konkurrentreferens
    A6022, A6022R, A6363, ALT-5305, ALT-5306, ALT30004, CAL40100, CAL40248, CAL40A12, DAN2040, dra3453, dra6641, dra7271, F042302116, F042302117, F042302165, F042A02116, F042A02165, LRA01980, LRA02615, lrb00344, 1-2119-11HD, 1-2119-11ND, 1-2335-01nd, 8el732736-001, 28-0934, 28-1503, 28-3881, 535.103.352, 985.503.040, 2212, 2335, 3204R, 5461, 12080, 12080N, 12080R, 12180, 12180-SECN, 12180-SEN, 12188, 12188N, 12188R, 12196N, 12206N, 40971RI, 119093, 554432RI, 9212976, 12060564, 0986036641

  • NormaliseratArtNr
    a6022, a6022r, a6363, alt30004, alt5305, alt5306, am877740, cal40100, cal40248, cal40a12, dan2040, dra3453, dra6641, dra7271, f032110620, f042302116, f042302117, f042302165, f042a02116, f042a02165, ja971ir, lra01980, lra02615, lrb00344, mia884637, re42778, re72915, 8el732736001, 2212, 2335, 3204r, 5461, 12080, 12080n, 12080r, 12180, 12180secn, 12180sen, 12188, 12188n, 12188r, 12196n, 12206n, 40971ri, 119093, 280934, 281503, 283881, 501824, 554432ri, 1211911hd, 1211911nd, 1233501nd, 9212976, 12060564, 535103352, 985503040, 0986036641, 1002111660, 1002111661, 1002111662, 1002114530, 1002114531, 1002114700, 1002114701, 1012111070, 1022115350, 1677164010, 1677164012, 1758064012, 2706078001, 2706096001, 11962077201, 11962077202, 270607800171

  • Passar modeller
    Kubota Model: Engine Model series: Engine Brand of engine: V1502 Fuel: Diesel Approved: Yes
    Various Agriculture Vehicles Model: Various Agriculture Vehicles Approved: Yes
    Yanmar Model: 2TN66E 3TNA72 Model series: 2TN66E 3TNA72 From date: 01-01-1991 To date: 01-12-2005 Approved: Yes
  • Beskrivelse
    Spænding: 14
    Amp: 35
    Drevskive dist.: 44,00
    Bredde/hængelarm: 23,50
    Hængel og breddehul: 10,20
    Bæltejustering hængel og breddepos.: 60
    Bæltejustering hængel og bredde hul 1: M8
    Drevskivens diameter: 74,70
    Riller/drevskive: 1
    Radius: 69,50
    Radius 2: 66,00
    B+: M6
    Position/B+ i min.: 5
    D+: Størrelse: Stikkontakt
    Rotationsretning: med uret
    Stiknummer: PL10
    Samlet længde mm: 143,00
    Drevskive: P
    Regulator-type: IR
    Prod. info: BN
    Service: Kubota

    Filer

  • Specifikation
    B+ M6
    Belt. adj. bracket hole 1 M8
    Belt. adj. brackethole pos. 60
    Plug no. PL10
    Bracket hole 10.20
    Position/B+ in min. 5
    Prod. info BN
    Pulley P
    Pulley dia. 74.70
    Pulley dist. 44.00
    Radius 69.50
    D+ Size Plug
    Radius 2 66.00
    Regulator type IR
    Rotation CW
    Servicing Kubota
    Grooves/pulley 1
    Voltage 14
    Total length 143.00 mm
    Width/holder arm 23.50
    Amp 35
  • Køretøjsmatchning

    • OEM
      am877740, F032110620, ja971ir, MIA884637, RE42778, re72915, 16771-64010, 16771-64012, 17580-64012, 27060-78001, 27060-78001-71, 27060-96001, 100211-1660, 100211-1661, 100211-1662, 100211-4530, 100211-4531, 100211-4700, 100211-4701, 101211-1070, 102211-5350, 119620-77201, 119620-77202, 501824

    • Konkurrentreferens
      A6022, A6022R, A6363, ALT-5305, ALT-5306, ALT30004, CAL40100, CAL40248, CAL40A12, DAN2040, dra3453, dra6641, dra7271, F042302116, F042302117, F042302165, F042A02116, F042A02165, LRA01980, LRA02615, lrb00344, 1-2119-11HD, 1-2119-11ND, 1-2335-01nd, 8el732736-001, 28-0934, 28-1503, 28-3881, 535.103.352, 985.503.040, 2212, 2335, 3204R, 5461, 12080, 12080N, 12080R, 12180, 12180-SECN, 12180-SEN, 12188, 12188N, 12188R, 12196N, 12206N, 40971RI, 119093, 554432RI, 9212976, 12060564, 0986036641

    • NormaliseratArtNr
      a6022, a6022r, a6363, alt30004, alt5305, alt5306, am877740, cal40100, cal40248, cal40a12, dan2040, dra3453, dra6641, dra7271, f032110620, f042302116, f042302117, f042302165, f042a02116, f042a02165, ja971ir, lra01980, lra02615, lrb00344, mia884637, re42778, re72915, 8el732736001, 2212, 2335, 3204r, 5461, 12080, 12080n, 12080r, 12180, 12180secn, 12180sen, 12188, 12188n, 12188r, 12196n, 12206n, 40971ri, 119093, 280934, 281503, 283881, 501824, 554432ri, 1211911hd, 1211911nd, 1233501nd, 9212976, 12060564, 535103352, 985503040, 0986036641, 1002111660, 1002111661, 1002111662, 1002114530, 1002114531, 1002114700, 1002114701, 1012111070, 1022115350, 1677164010, 1677164012, 1758064012, 2706078001, 2706096001, 11962077201, 11962077202, 270607800171

    • Passar modeller
      Kubota Model: Engine Model series: Engine Brand of engine: V1502 Fuel: Diesel Approved: Yes
      Various Agriculture Vehicles Model: Various Agriculture Vehicles Approved: Yes
      Yanmar Model: 2TN66E 3TNA72 Model series: 2TN66E 3TNA72 From date: 01-01-1991 To date: 01-12-2005 Approved: Yes
